Description
MultiDyne SilverBULLET2 Overview

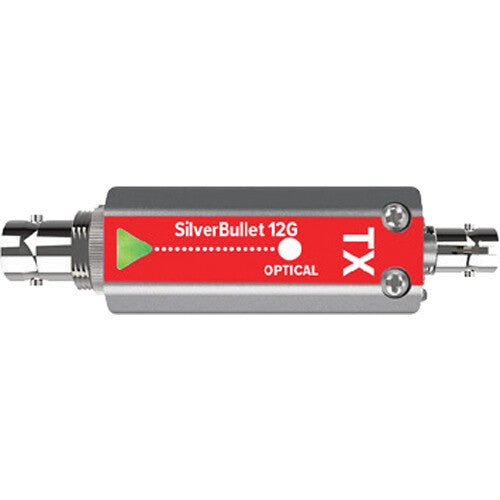

Transport a multi-rate SDI signal up to 12G-SDI over long distances with this SilverBullet2 Mini 12G-SDI Fiber E to O Video Fiber Transmitter from MultiDyne. The compact SilverBullet2 transmitter inputs up to 12G-SDI video via the integrated BNC connector and provides an ST fiber output to a separately available receiver.
Features include serving as a power meter for digital optical signals, MADI and AES support, integrated LEDs, and autosensing inputs with reclocking.
Items Included
- MultiDyne SilverBullet2 Mini 12G-SDI Fiber E to O Video Fiber Optic Transmitter (1300nm, ST)
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
MultiDyne SilverBULLET2 Specs
Interfaces
| Inputs |
1x BNC (12G-SDI) Male
|
| Embedded Audio Input |
SDI
|
| Outputs |
1x ST (Fiber) Female
|
Standards
| Video Standard Compliance |
SMPTE 292M/297M/424M/ST 2081-10/ST 2082-11
|
| Reclocking |
Yes
|
Transmission
| PC Resolutions |
0 x 0
|
| Supported Cable Types |
Single-Mode Fiber
|
| Fiber Center Wavelength |
1310 nm
|
Power
| Power I/O |
1x Barrel (5 to 16 VDC) Input
|
| Power Consumption |
Device: (1 W)
|
General
| Certifications |
FCC
|
| Operating Conditions |
-4 to 113?F / -20 to 45?C up to 90% Humidity
|
| Storage Conditions |
-40 to 158?F / -40 to 70?C up to 90% Humidity
|
| Dimensions |
3.2 x 0.75 x 0.65" / 8.1 x 1.91 x 1.65 cm
|
| Weight |
1.8 oz / 51 g
|
Packaging Info
| Package Weight |
1.025 lb
|
| Box Dimensions (LxWxH) |
8.9 x 6.4 x 4.4"
|
