| ₹ 321.77 includes GST and import duties. | |
| B2B customers can avail ₹ 49.07 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

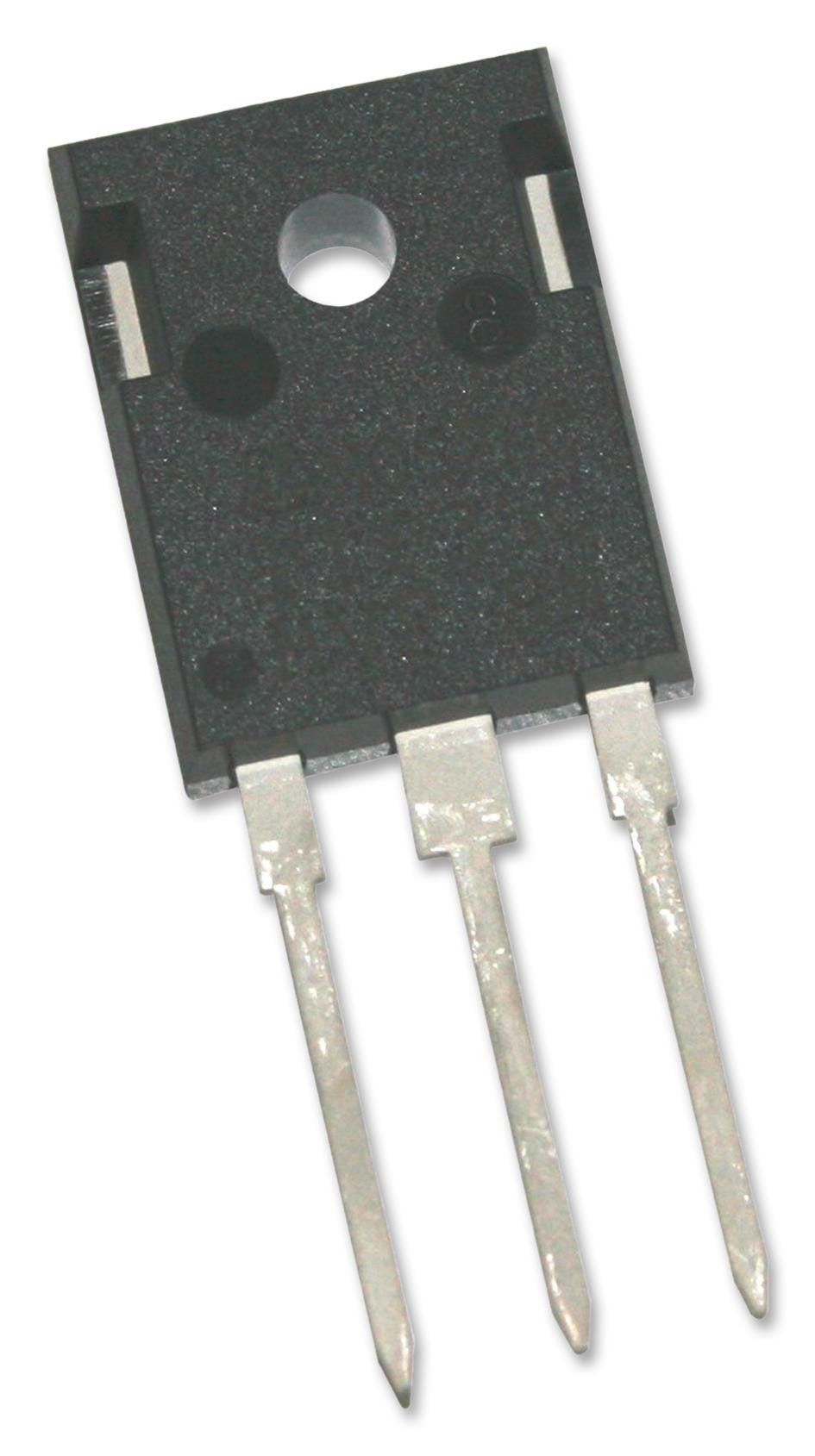

The TIP35C is a complementary Power Transistor, designed for use in general purpose power amplifier and switching applications. Collector-emitter sustaining voltage at 100V and power dissipation at 125W.
- 1°C/W Junction-to-case thermal resistance
Applications
Audio, Industrial
Product details
| Power Dissipation Pd | 125W |
| DC Collector Current | 25A |
| Collector Emitter Voltage V(br)ceo | 100V |
| Transition Frequency ft | 3MHz |
| Operating Temperature Max | 150°C |
| Transistor Polarity | NPN |
| DC Current Gain hFE | 75hFE |
| No. of Pins | 3Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Transistor Case Style | TO-247 |
| MSL | - |
Other details
| Brand | MULTICOMP |
| Part Number | TIP35C |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 315.33 |
| 3-5 | ₹ 312.12 |
| 5-10 | ₹ 305.68 |
| 10+ | ₹ 299.25 |
Bulk discount will be automatically applied during checkout based on quantity.
