Multicomp PRO PP001603 Multicore Cable SY Flex Armoured Control Yslysy VDE Screened 5 Core 4 mm² 164 ft 50 m

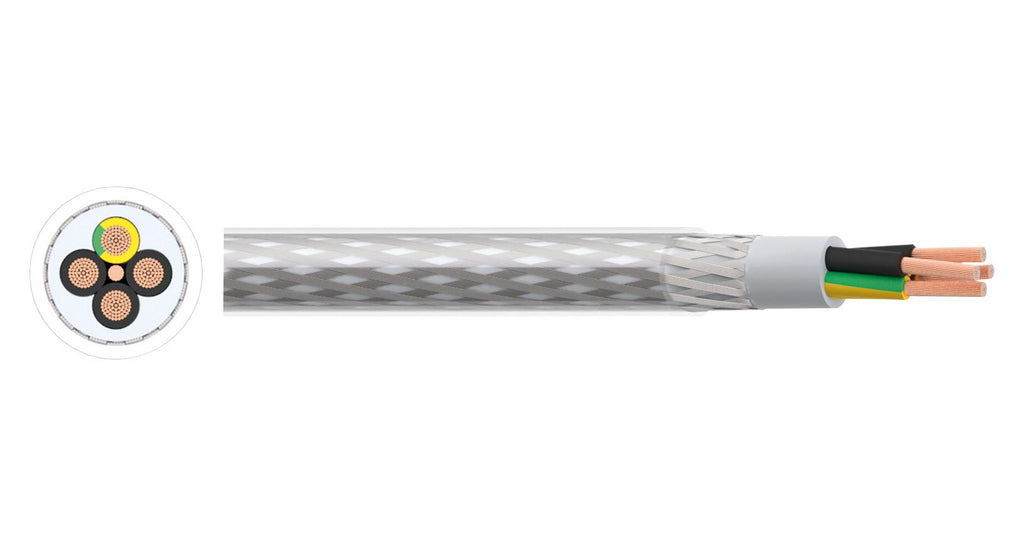

This Pro-Power Flexible, Armoured SY Multicore Control Cable features Class 5 flexible bare copper cores, PVC insulation, a grey PVC inner sheath, armoured with a galvanised steel wire braid and a transparent PVC outer sheath. Used for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load. Suitable for use in dry, moist and wet rooms. The galvanised steel wire braid serves as protection against mechanical traverse loads and acts as a magnetic screen against interference.

• Flexible Class 5 bare copper conductors are PVC insulated
• Grey PVC inner sheath
• Armoured with a galvanised steel wire braid
• Clear transparent PVC outer sheath
• Minimum bending radius - Fixed: 4 Ã� overall diameter; Flexed 12.5 Ã� overall diameter
• Voltage rating 300/500V
• Temperature range Fixed -40°C to +80°C; Flexed -5°C to +70°C
• Meets cable standards: VDE 0207-363-3, VDE 0285-525-2-51, VDE 0285-525-1, VDE 0285-525-2-11, VDE 0482-332-1-2, VDE 819-102 (TM54)
• Flame retardant according to IEC 60332-1-2
• Pro Power products are rated 4.5 out of 5 stars
• 12 month limited warranty *view Terms & Conditions for details
• 96% of customers would recommend to a friend

Applications

Instrumentation, Industrial

Other details

Brand	MULTICOMP PRO
Part Number	PP001603
Quantity	Reel of 50
Technical Data Sheet EN
