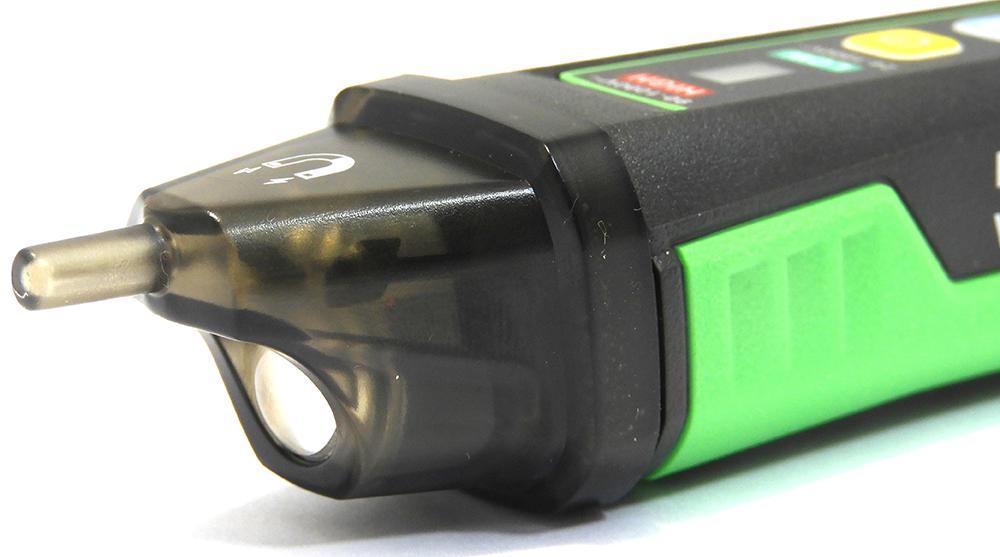

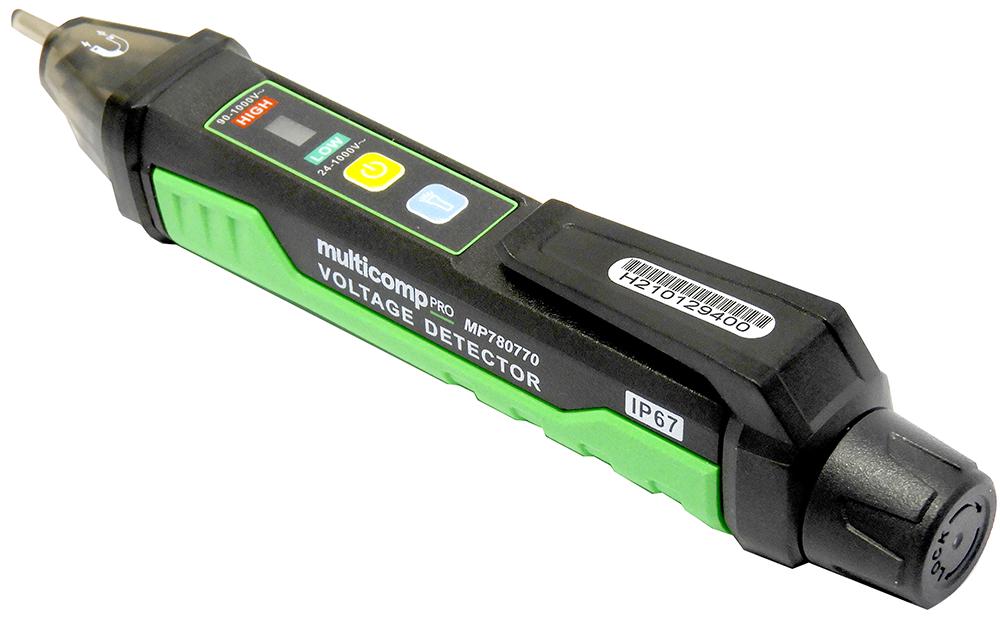

Multicomp PRO MP780770 MP780770 Non-Contact AC Voltage and Magnetic Field Detector IP67 24V to 1KV LED Buzzer CAT IV 1000V

MP780770 from Multicomp Pro is a professional grade magnetic field and voltage detector, designed with IP67 dust & water resistance and drop proof up to 2 metres. This durable device is suitable for use in harsh environments and is able to detect magnetic fields (magnetic solenoid detection). Applications include (low voltage mode - <90V) audio systems, arc welding machines, underground mining lighting, cables with a thick insulation layer and other weaker electromagnetic AC signals, (high voltage mode - 90-1000V) urban electric supply and three-phase systems, such as power distribution units, electrical panels and electrical appliances.

• AC voltage (low): 24V~1000V
• AC voltage (high): 90V~1000V
• Frequency range: 50/60Hz
• Magnetic Solenoid Detection
• Built-in flashlight
• Audible (buzzer) and visual (LED) indication
• Auto power-off
• Low voltage indication
• Double injection moulding
• 2m drop test

• 1.5V battery (R03) x 2
• Device dimensions: 160.5mm x 21.5mm x 25mm
• Device weight: 72g
• IP Rating: IP67
• Safety Class: CAT IV 1000V

Applications

Test & Measurement, Audio, Commercial, Control Panels, Electrical, Low Voltage, Industrial & Manufacturing

Contents

x1 Non-Contact AC Voltage Detector; x2 1.5V AAA Battery (R03)

Footnotes Buzzer and sensing LED frequencies increases when detector gets closer to the test object

Other details

Brand	MULTICOMP PRO
Part Number	MP780770
Quantity	Each
Technical Data Sheet EN
