Description

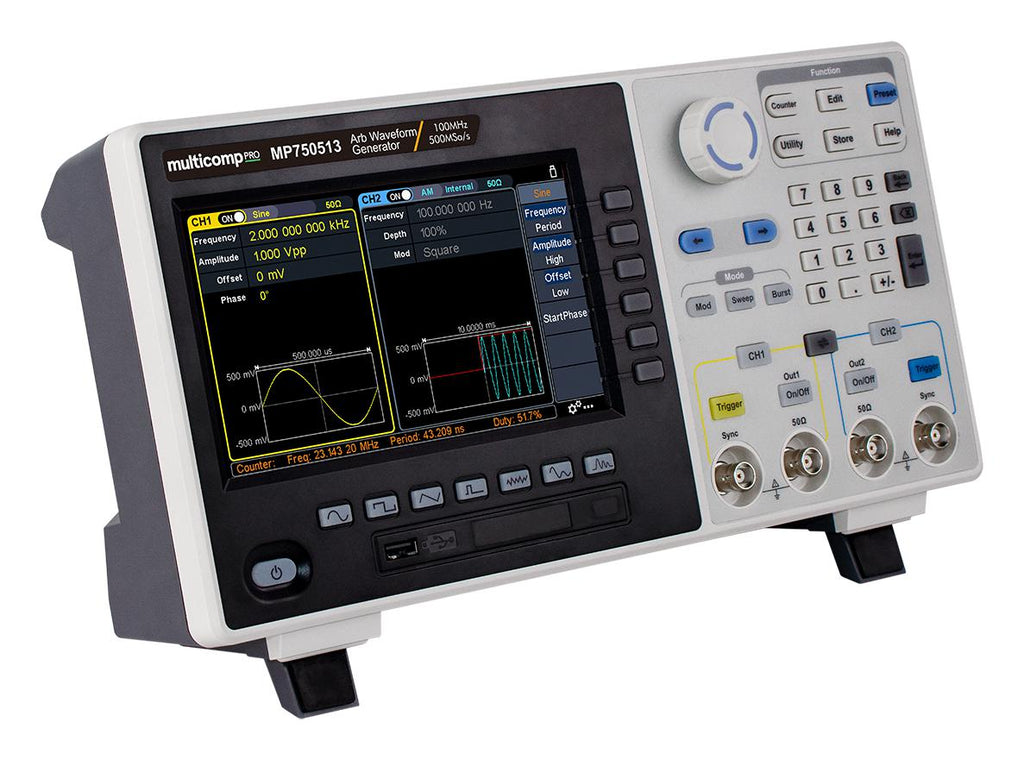

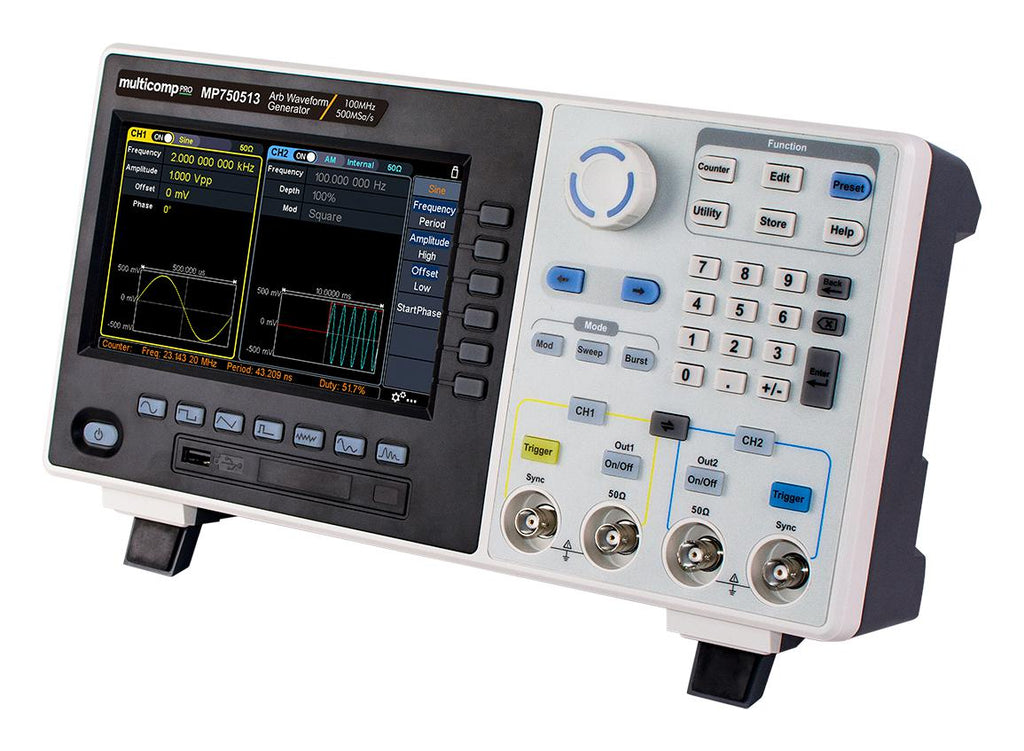

The MP750513 from Multicomp Pro is a 100MHz economical dual-channel arbitrary waveform generator, featuring advanced DDS technology, 1µHz frequency resolution, 500MSa/s sample rates and 14-bits vertical resolution.
- 7" (800 x 480 pixels) TFT LCD screen
- 14-bits vertical resolution, max 10M arb waveform length
- Comprehensive waveform output: 6 basic waveforms and 152 built-in arbitrary waveforms
- AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, DSB-AM, QPSK, SUM, BPSK, PWM, Sweep and Burst
- High accuracy frequency counter integrated - supported range 100MHz to 200MHz
- SCPI and LabVIEW support
- USB host, USB device and LAN communication interfaces
- Device dimensions - 340mm x 177mm x 90mm
- Device weight (approx) - 2.3kg
Arbitrary Waveform Generator, Mains Cord (UK & EU), CD-ROM, Operating Instructions, USB Cable, Q9 Cable
Footnotes Standard certified calibration service available for this product. Visit our calibration page for more details.Other details
| Brand | MULTICOMP PRO |
| Part Number | MP750513 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
| Operating Instructions EN | |
