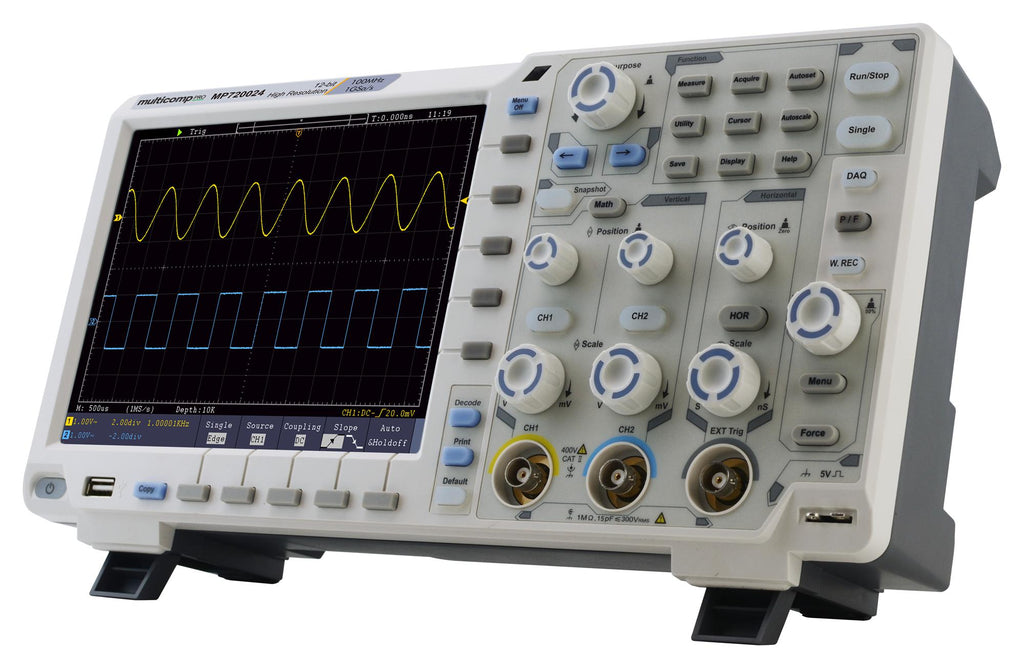

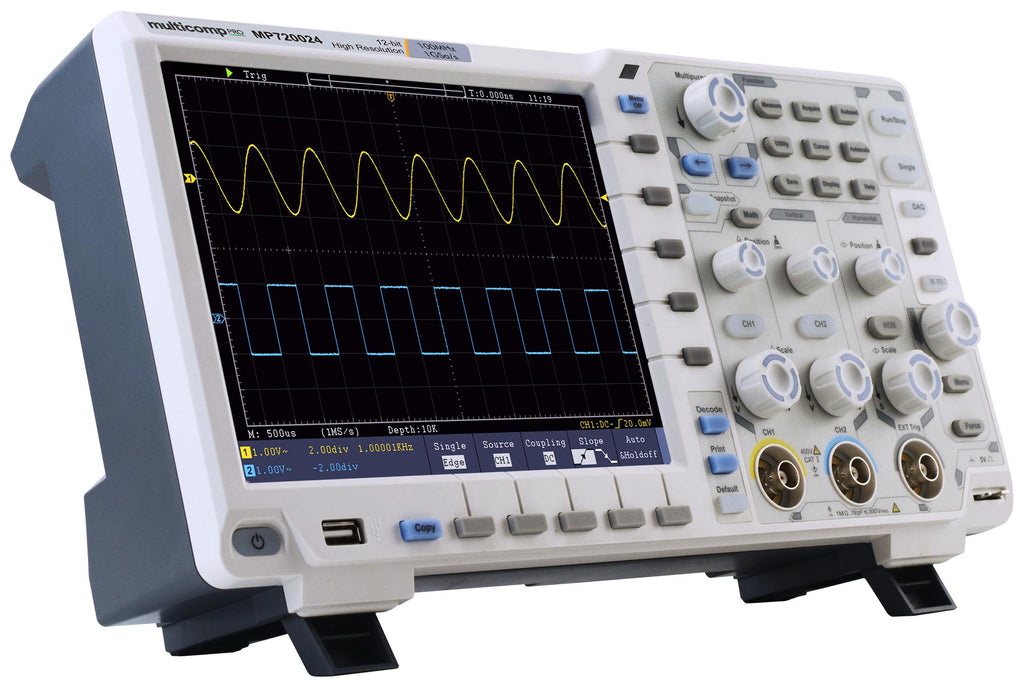

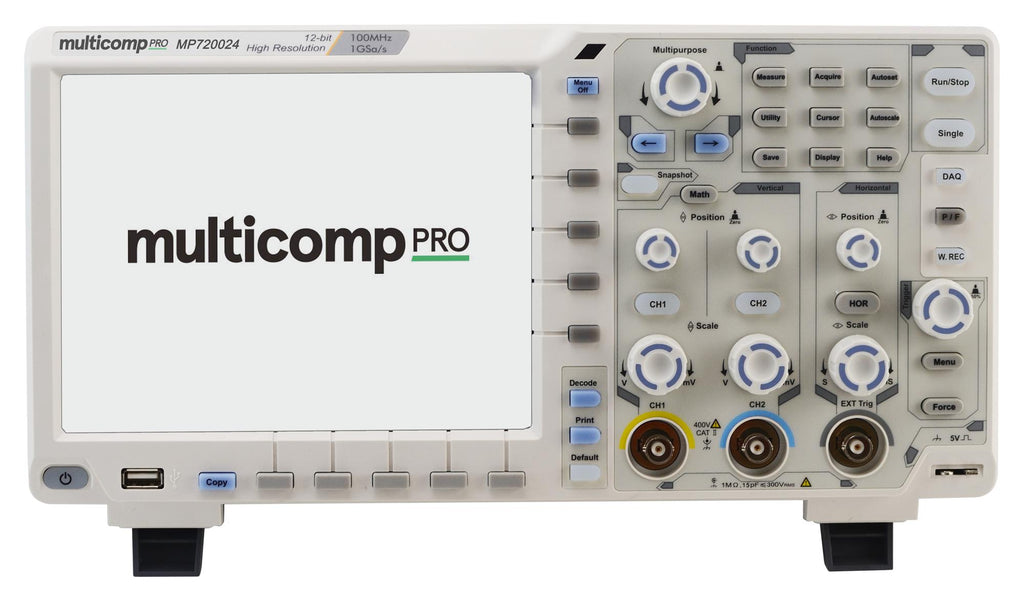

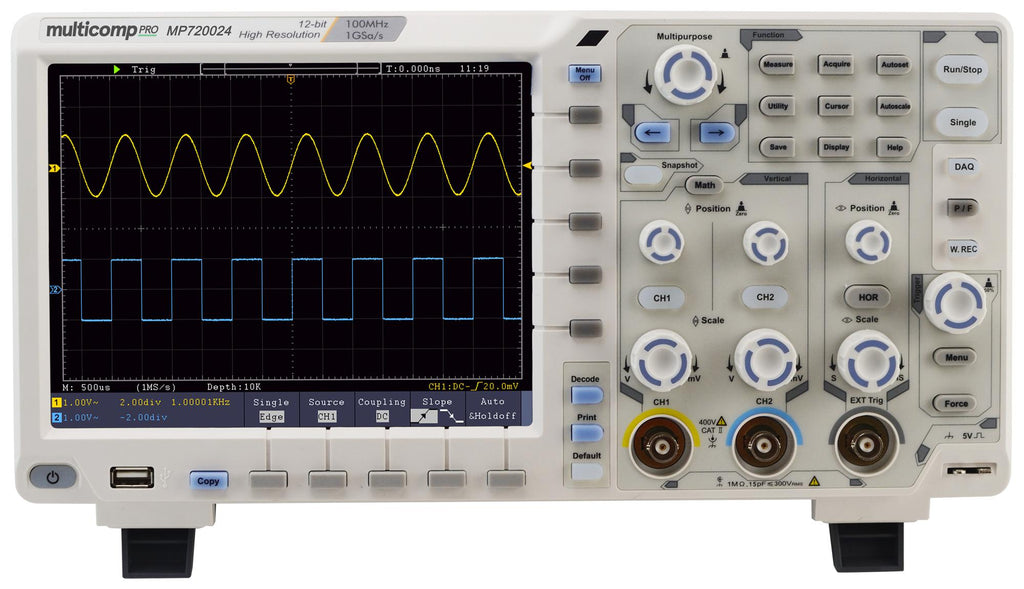

The Multicomp Pro MP720024 is a 12 bit, economical 100MHz digital oscilloscope. Featuring a 12 bit high vertical resolution 8" large TFT display, 20M record lengths, 55,000 wfms/s waveform refresh rates, multi-trigger and bus decoding functions and SCPI/LabVIEW support.
- 12 bits high vertical resolution
- 8" large clear TFT display (800x600)
- Ultra-thin body design, less space accommodation
- Low background noise - vertical sensitivity of 1mV/div - 10V/div
- Standard SPI/I2C/RS232/CAN decoding functions
- SCPI and LabVIEW support
- Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN and AUX and VGA port.
- Horizontal scale (s/div) - 2ns/div - 1000s/div, step by 1-2-5
- Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232 and CAN trigger types
- Dimensions - 340 x 177 x 90mm
Contents
Digital Storage Oscilloscope, 2x Probes, Probe Manual, Accessories Bag, USB Type B Cable, Operating Instructions, CD-ROM, UK & EU Power Cords
Footnotes In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
Product details
| Product Range |
Eco Series |
| Scope Channels |
2 Analogue, 1 Ext Trigger |
| Bandwidth |
100MHz |
| Sampling Rate |
500MSPS |
| Display Memory Depth |
20 Mpts |
| Calculated Rise Time |
3.5ns |
| Scope Display Type |
LCD Colour |
| Kit Contents |
DSO, Power Cord, USB Cable, CD Rom, Probes, Probe Adjust Tool, Optional Acc: Soft Bag |
| Manufacturer Warranty |
1 Year |
| Plug Type |
EU, UK |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP720024 EU-UK |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
