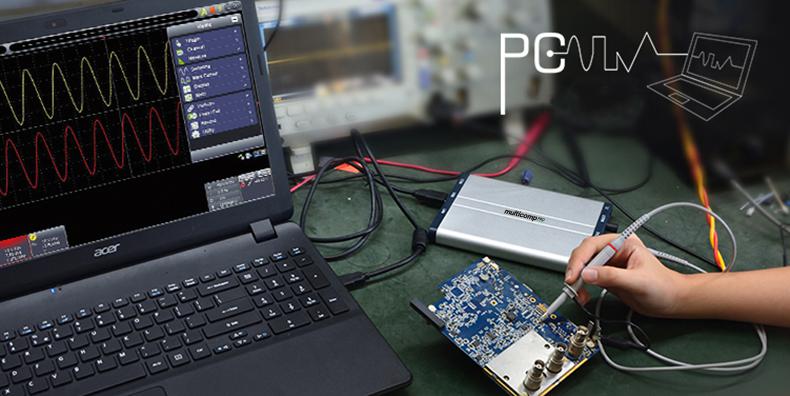

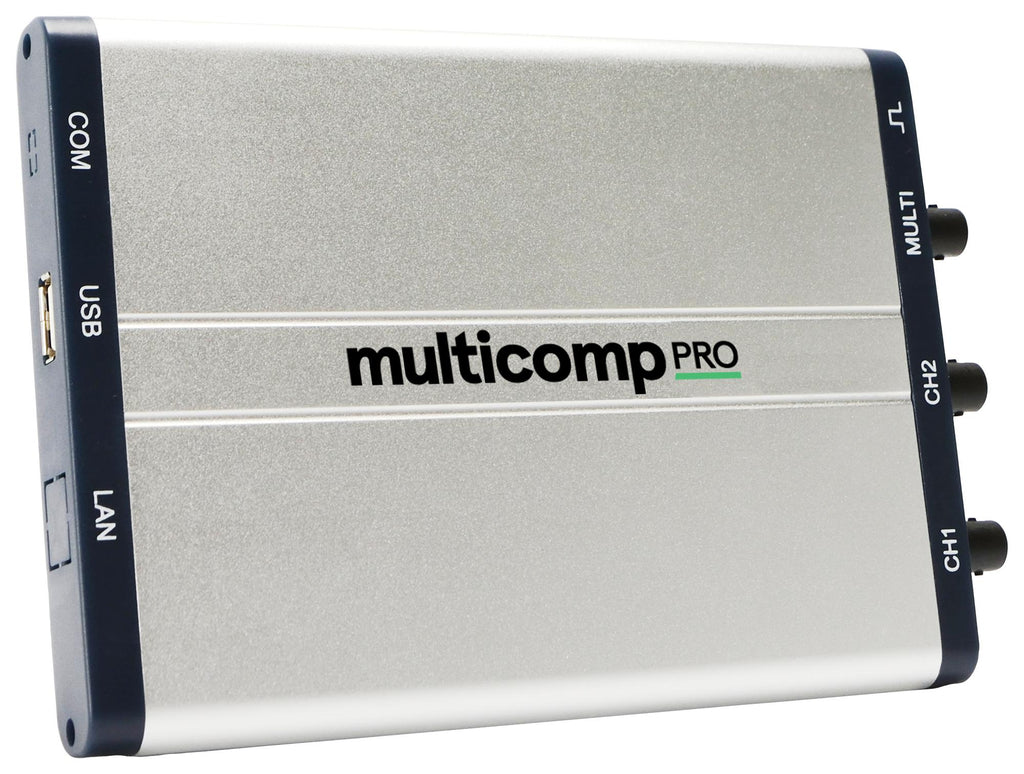

The Multicomp Pro MP720016 is a 2 channel, 25MHz, 8-bit PC-based oscilloscope. Featuring 5K record lengths, friendly UI, multi-trigger options, USB bus powering and an ultra-thin body design with easy portability.
- X-Y and FFT modes, with waveforms displayed on the same screen
- Horizontal scale (s/div) - 5ns/div~100s/div, step by 1~2~5
- 8 bit vertical resolution (A/D) (2 channels simultaneously)
- 5mV/div~5V/div vertical sensitivity

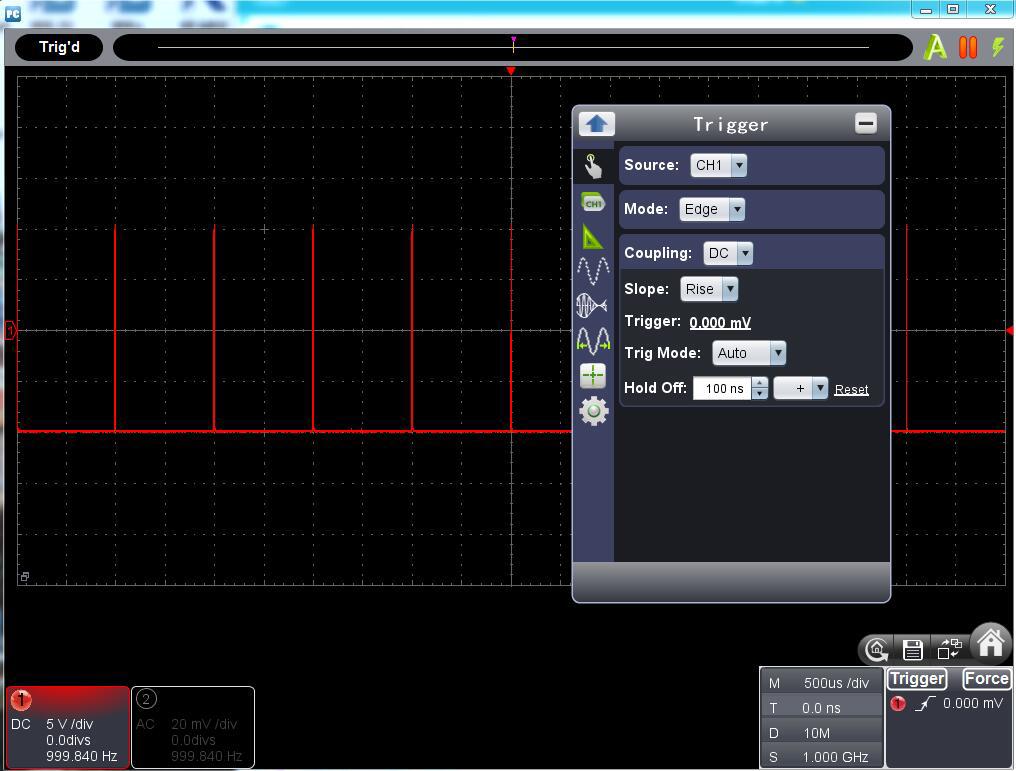

- Edge, pulse, video, slope and alternate trigger types
- Auto, normal and single trigger modes

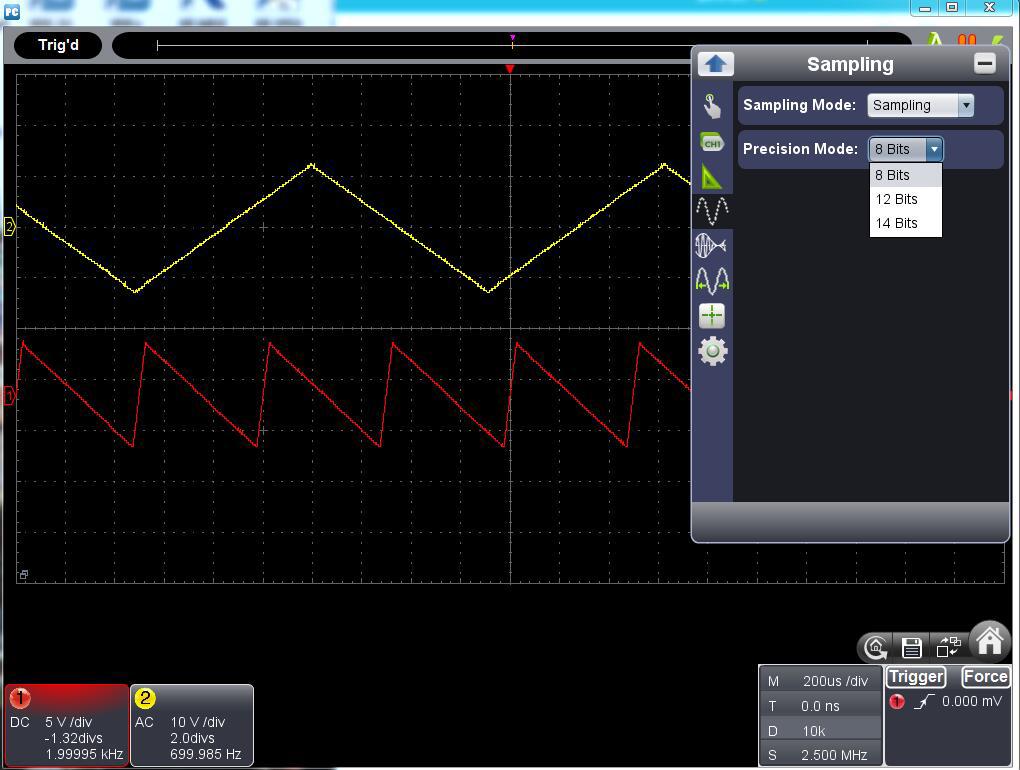

- Sample, peak detect and average acquisition modes
- USB 2.0 communication interface
- Synchronized input/output, pass/fail and external trigger input signal types
- TTL level standard
- 5.0V/1A power supply
- Dimensions - 170 x 120 x 18mm
- Device weight - 260g
Contents
PC Oscilloscope, 2x 60MHz Probes, Probe Manual, Accessories Bag, Operating Instructions, CD-ROM
Footnotes In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
Product details
| Product Range |
PC Scope Series |
| Scope Channels |
2 Analogue, 1 Ext Trigger |
| Bandwidth |
25MHz |
| Sampling Rate |
100MSPS |
| Display Memory Depth |
5 kpts |
| Calculated Rise Time |
14ns |
| Kit Contents |
Oscilloscope, USB cable, CD Rom, Probes, Probe Adjust Tool |
| Manufacturer Warranty |
1 Year |
| Plug Type |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP720016 EU-UK |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
| Software EN |
|
