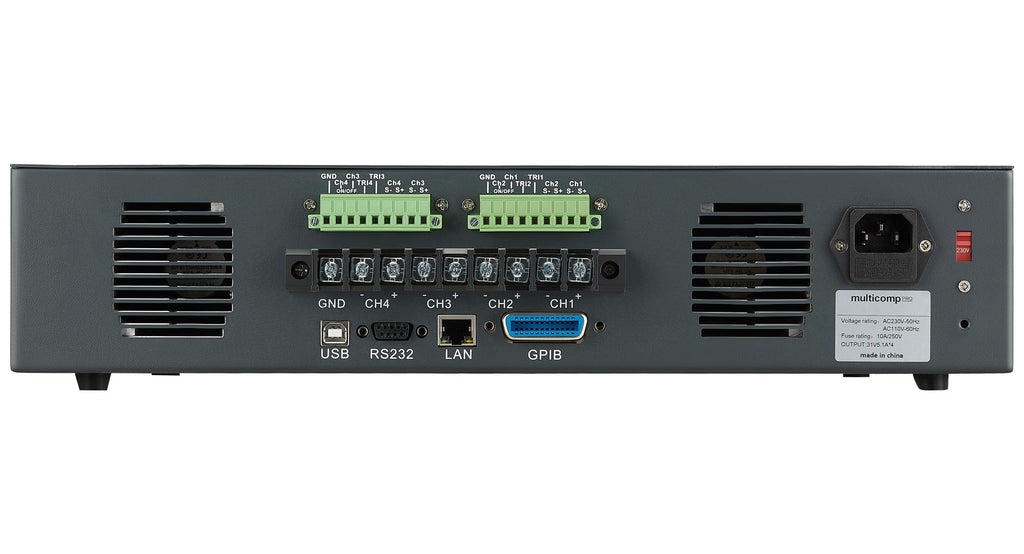

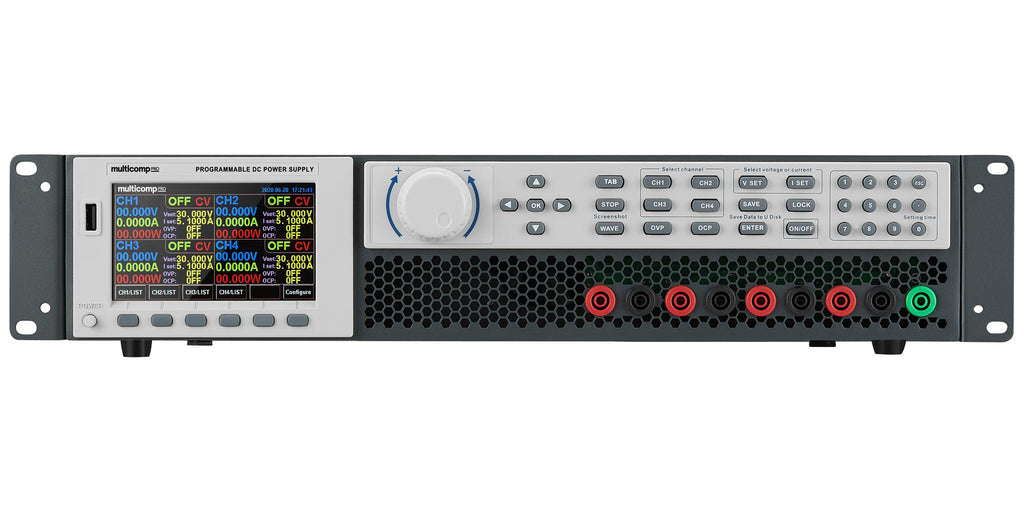

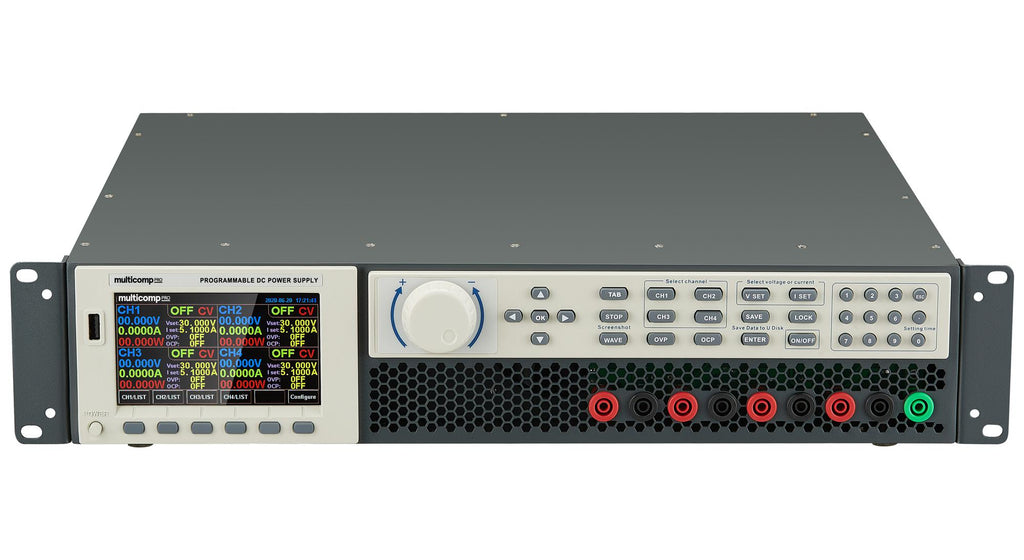

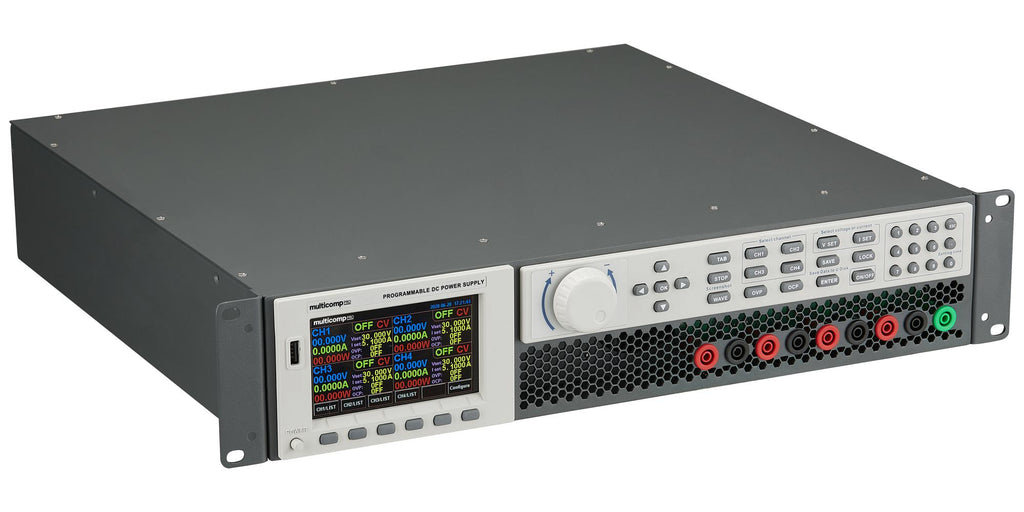

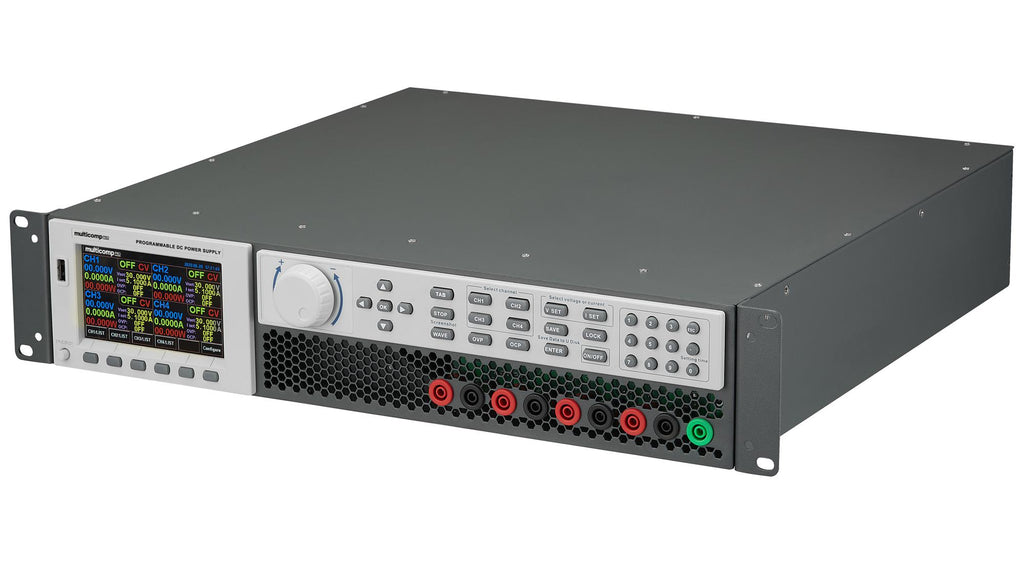

The MP710509 from Multicomp Pro is a 4-channel DC power supply with built-in oscilloscope function. The device can provide pure linear output of 4 isolated channels with features such as stability, free interference, low ripple and low noise.
- High speed coordinated o/p and each channel can be controlled with 4-ch o/p delays as microseconds
- LIST programmable output sequence, 100 consecutive different settings
- LIST mode and normal mode can be switched automatically with one key
- Oscilloscope function for simultaneous display of four channels voltage and current
- Oscilloscope screen capture via USB access to U disk
- U disk import and export output table data, editable within Excel
- Low chopping and low noise
- High resolution and precision
- Remote measurement function
- Built-in USB/RS-232/GPIB/LAN communication interfaces
- Device weight - 16.5kg
- Device dimension is 430mm x 88mm x 440mm (W x H x D)
Contents
Power supply, User manual, EU/UK mains leads.
Footnotes Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
Product details
| Power Supply Output Type |
Programmable |
| No. of Outputs |
4 Output |
| Output Voltage Min |
0V |
| Output Voltage Max |
60V |
| Output Current Min |
0A |
| Output Current Max |
3A |
| Power Rating |
180W |
| Supply Voltage Min |
- |
| Supply Voltage Max |
230V |
| Manufacturer Warranty |
1 Year |
| Product Range |
- |
| Plug Type |
EU, UK |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP710509 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
