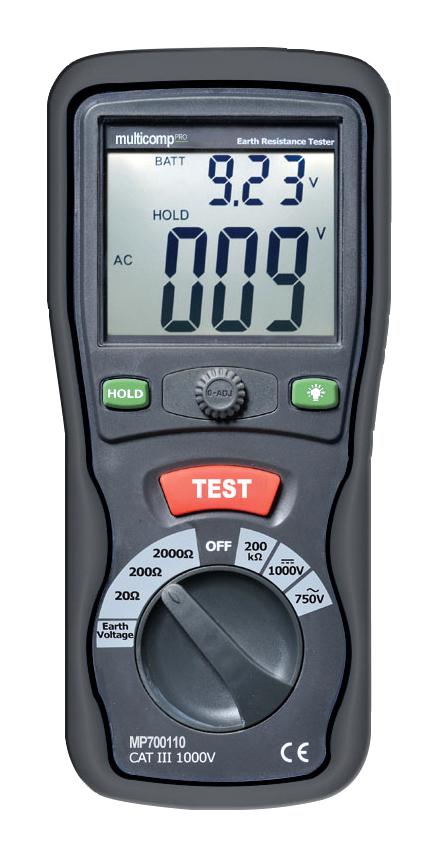

The MP700110 from Multicomp Pro is an electronic digital earth resistance tester, which is a direct replacement for the conventional hand generator type tester. It is designed for the measurement of the resistance of earthing used in the electrical equipment as well as for measurement of ground resistivity. It can be used for the measurements of the other low regular and liquid resistances. It can also be used for measurement of voltage AC, voltage DC and resistance.
- Meets IEC10101, CATIII 1000V
- Large dual display with backlight and low battery indication
- Test hold function for easy operation
- Zero automatic adjustment
- Sampling rate: 2.5 times per second
- Double moulded plastic housing
Contents
Earth Ground Resistance Tester, Test Leads, Wire Cable, Iron Rod, AA Battery, Operating Instructions, Carry Case
Footnotes Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
Product details
| Measuring Functions |
AC/DC Voltage, Ground Resistance |
| Resistance Measurement Range |
20ohm, 200ohm, 2kohm |
| Resistance Measurement Frequency |
- |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP700110 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
