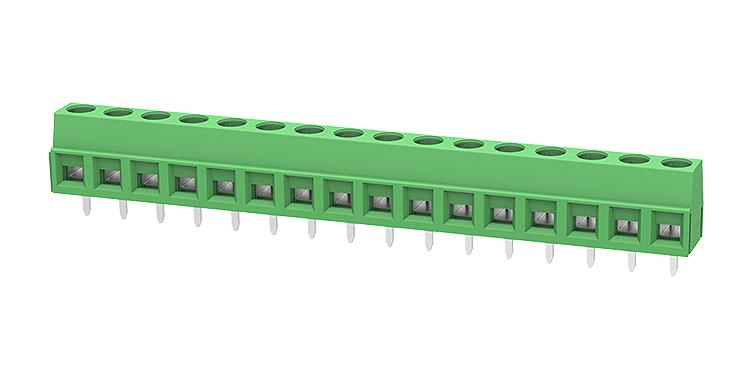

Multicomp Pro MP127-5.08 series is a range of wire to board terminal blocks available in a choice between 2 and 16 pole with a pitch of 5.08mm. Designed for cable sizes of 0.75-1.5mm² with a rated current of 15A at 250V, screw termination and with UL and VDE certification makes these connectors ideal for many applications.
Product details
| Pitch Spacing:
5.08mm
|
| No. of Positions:
16Ways
|
| Wire Size AWG Min:
26AWG
|
| Wire Size AWG Max:
14AWG
|
| Conductor Area CSA:
1.5mm²
|
| Wire Connection Method:
Screw
|
| Rated Current:
15A
|
| Rated Voltage:
250V
|
| Block Orientation:
Through Hole Right Angle
|
| Product Range:
MP127-5.08
|
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP012071 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
