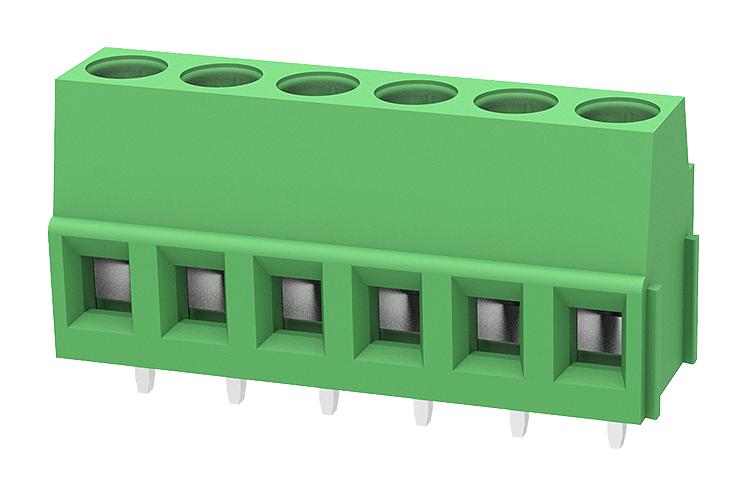

Multicomp Pro DG500-5.08 series is a range of wire to board terminal blocks available in a choice of 2 to 12, 14 and 16 pole with a pitch of 5.08mm. These connectors can be combined together through the use of the side lock system allowing for an unlimited number of configurations. Designed for cable sizes of 1.0-2.5mm² with a rated current of 18A at 250V, screw termination with tension sleeve and with UL and VDE certification makes these connectors ideal for many applications.
Product details
| Pitch Spacing:
5.08mm
|
| No. of Positions:
6Ways
|
| Wire Size AWG Min:
30AWG
|
| Wire Size AWG Max:
12AWG
|
| Conductor Area CSA:
2.5mm²
|
| Wire Connection Method:
Screw
|
| Rated Current:
18A
|
| Rated Voltage:
250V
|
| Block Orientation:
Through Hole Right Angle
|
| Product Range:
MP500-5.08
|
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP012014 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
