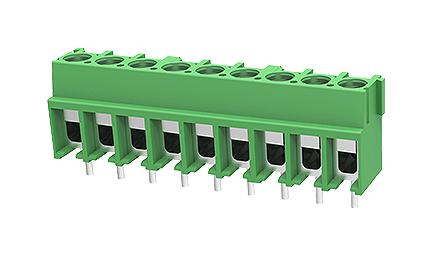

Multicomp Pro MP302-5.0 series is a full range of wire to board terminal blocks available in a choice of 2 to 12 pole with a pitch of 5mm. These connectors can be combined together through the use of the side lock system allowing for an unlimited number of configurations. Designed with a larger square wiring hole allowing for cable sizes of 0.5-4.0mm² with a rated current of 25A at 250V, screw termination and with UL and VDE certification makes these connectors ideal for many applications.
Product details
| Pitch Spacing:
5mm
|
| No. of Positions:
9Ways
|
| Wire Size AWG Min:
20AWG
|
| Wire Size AWG Max:
12AWG
|
| Conductor Area CSA:
4mm²
|
| Wire Connection Method:
Screw
|
| Rated Current:
25A
|
| Rated Voltage:
250V
|
| Block Orientation:
Through Hole Right Angle
|
| Product Range:
MP302-5.0
|
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP012006 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
