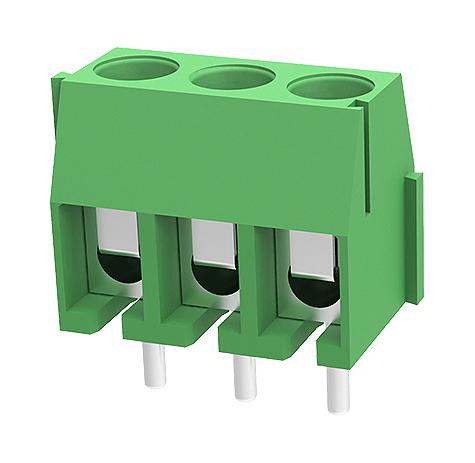

Multicomp Pro MP350-3.5 series is a full range of wire to board terminal blocks available in a choice of 2 to 16 pole with a pitch of 3.5mm. These connectors can be combined together through the use of the side lock system allowing for an unlimited number of configurations. Designed for cables of 0.5-1.0mm² with a rated current of 10A at 130V, screw termination and with UL and VDE certification makes these connectors ideal for many applications.
Product details
| Pitch Spacing:
3.5mm
|
| No. of Positions:
3Ways
|
| Wire Size AWG Min:
24AWG
|
| Wire Size AWG Max:
18AWG
|
| Conductor Area CSA:
1mm²
|
| Wire Connection Method:
Screw
|
| Rated Current:
10A
|
| Rated Voltage:
130V
|
| Block Orientation:
Through Hole Right Angle
|
| Product Range:
MP350-3.5
|
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP011985 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
