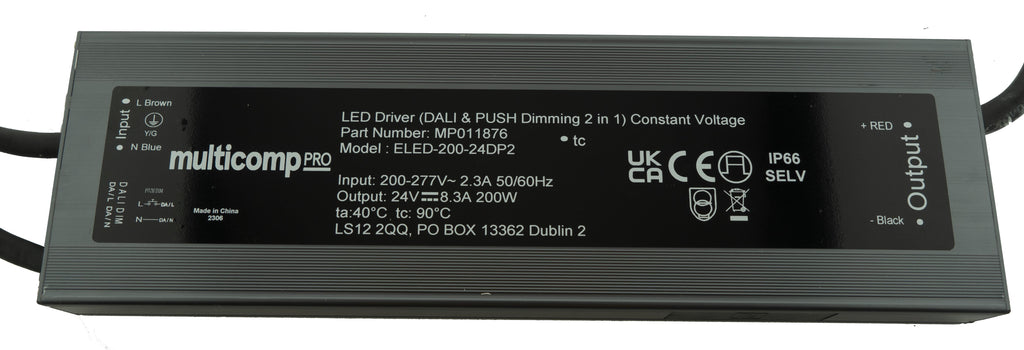

- 24V, IP66 rated push dimmable LED driver
- Constant voltage/ PWM output (NFC regulation), 24V (24-26V adjust by NFC) output voltage
- DALI and push dimming function (0-100%)
- AC input range from 100V AC to 277VAC
- Built-in active PFC function, 86.4% full load efficiency (typical)
- Short circuit/ over load/overtemperature protections
- Cooling by free air convection, IP66 design for indoor and outdoor installation
- Suitable for intelligent LED lighting
- 8.34A output current, 200W rated power
- 278mm � 78mm � 25.1mm size, EN61347-1, EN61347-2-13, EN62493 safety standards
Product details
| Power Supply Applications |
LED Lighting |
| Output Power Max |
200W |
| Output Voltage Max |
24V |
| Output Current |
8.34A |
| LED Driver Mode |
Constant Voltage |
| Input Voltage Min |
100VAC |
| Input Voltage Max |
277VAC |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP011876 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
