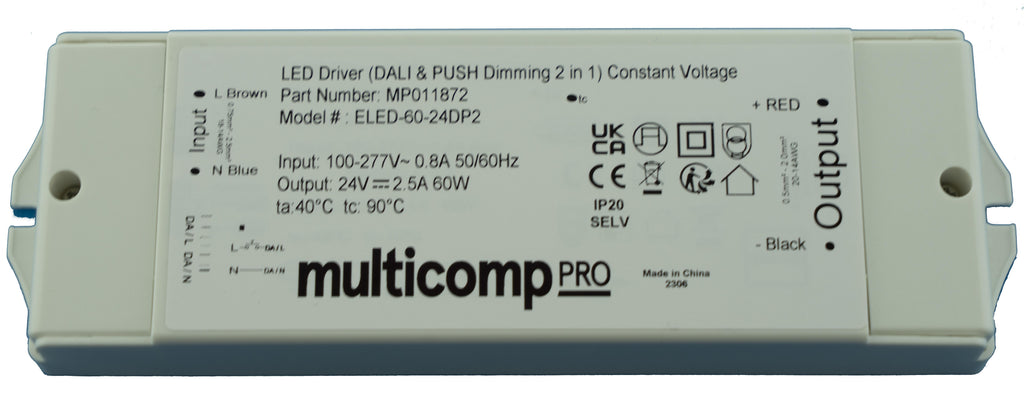

- 24V, IP20 rated push dimmable LED driver
- Constant voltage/ PWM output (NFC regulation), 24V (24V to 26V adjust by NFC) output voltage
- DALI and push dimming function (0-100%)
- AC input range from 100VAC to 277VAC
- Built-in active PFC function, 88% full load efficiency (typical)
- Short circuit/ over load/overtemperature protections
- Cooling by free air convection, IP20 design for indoor installation
- Suitable for intelligent LED lighting
- 2.5A output current, 60W rated power
- 192.5mm � 62mm � 24mm size, EN61347-1, EN61347-2-13, EN62493, UL8750 (US) safety standards
Product details
| Power Supply Applications |
LED Lighting |
| Output Power Max |
60W |
| Output Voltage Max |
24V |
| Output Current |
2.5A |
| LED Driver Mode |
Constant Voltage |
| Input Voltage Min |
100VAC |
| Input Voltage Max |
277VAC |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP011872 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
