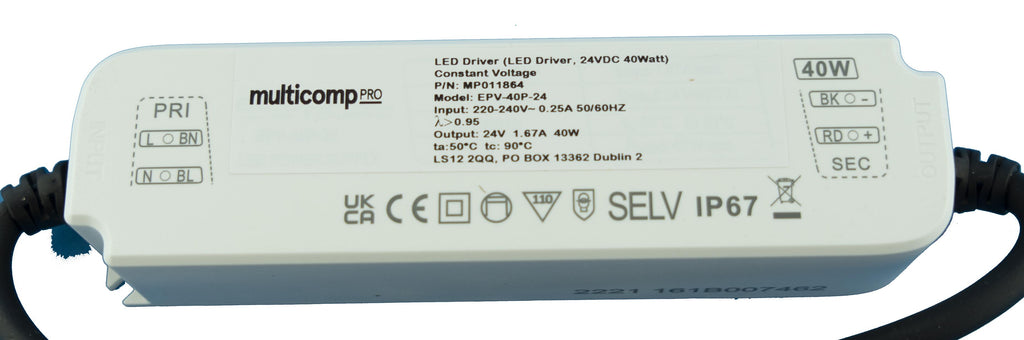

- 24V, IP67 rated constant voltage LED driver
- Fully approved to all lighting specifications, output constant voltage
- High efficiency up to 86%, built-in active PFC function
- ErP compliant, short circuit/ overloading/overtemperature/ overvoltage protection
- Cooling by free air convection, IP67 design for outdoor installation
- Input surge protection: 2KV line-line, low noise and ripple
- 5 years warranty, high efficiency for longer life, size is 148mm � 42mm � 33mm
- 1.67A output current, 40W rated power
- Input voltage range from 220VAC to 240VAC, no load power consumption of <=0.5W
- Safety standards are EN61347-1, EN61347-2-13
Product details
| Power Supply Applications |
LED Lighting |
| Output Power Max |
40W |
| Output Voltage Max |
24V |
| Output Current |
1.67A |
| LED Driver Mode |
Constant Voltage |
| Input Voltage Min |
220VAC |
| Input Voltage Max |
240VAC |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP011864 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
