| ₹ 18314.65 includes GST and import duties. | |
| B2B customers can avail ₹ 2792.98 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

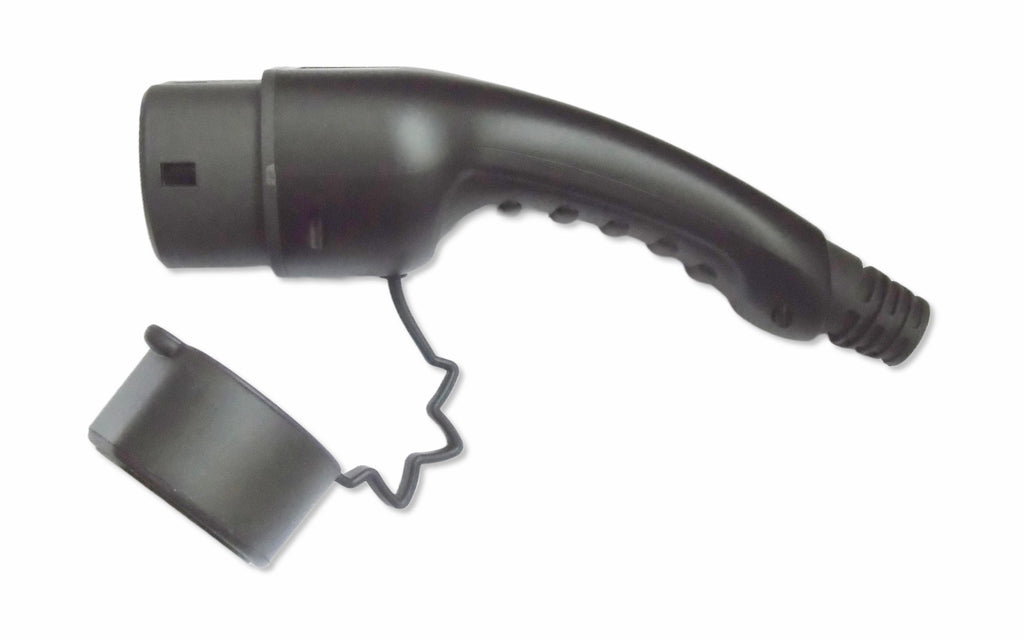

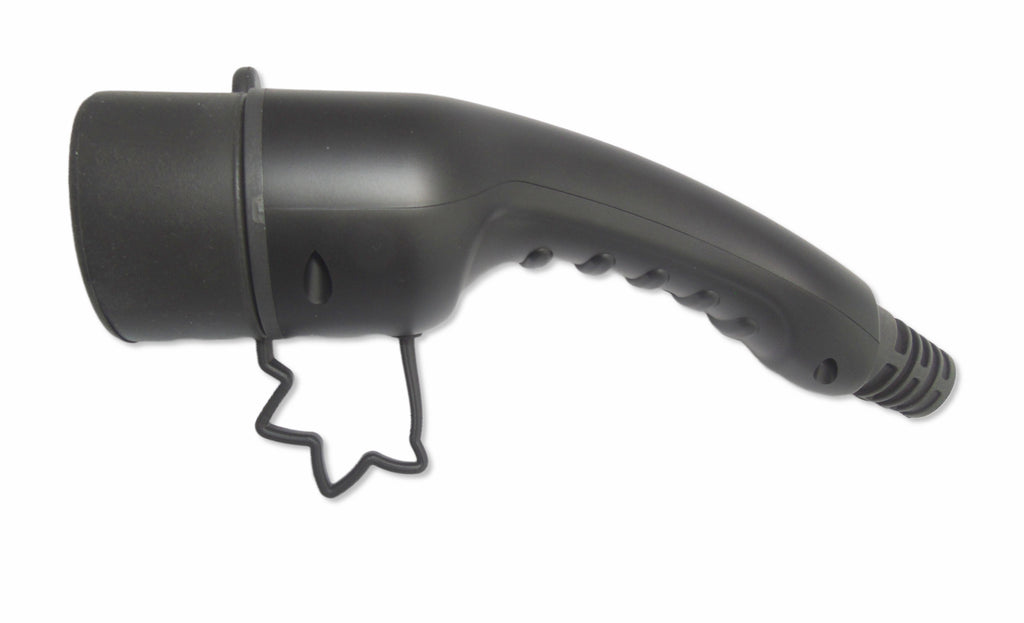

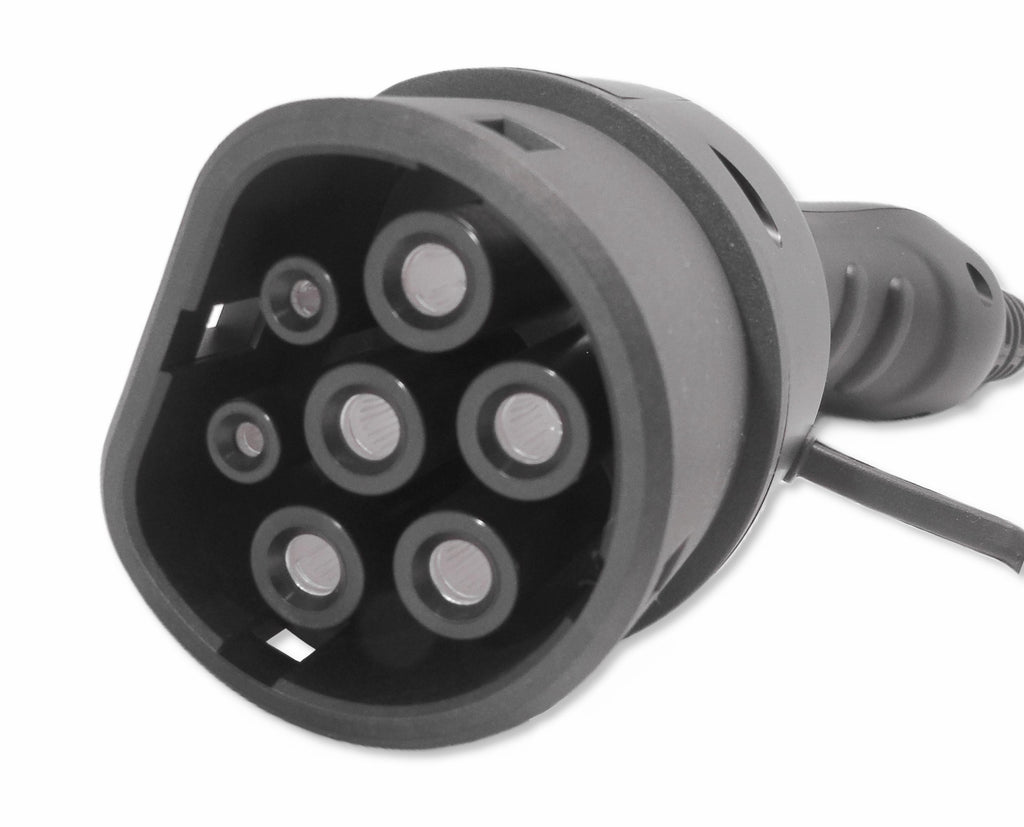

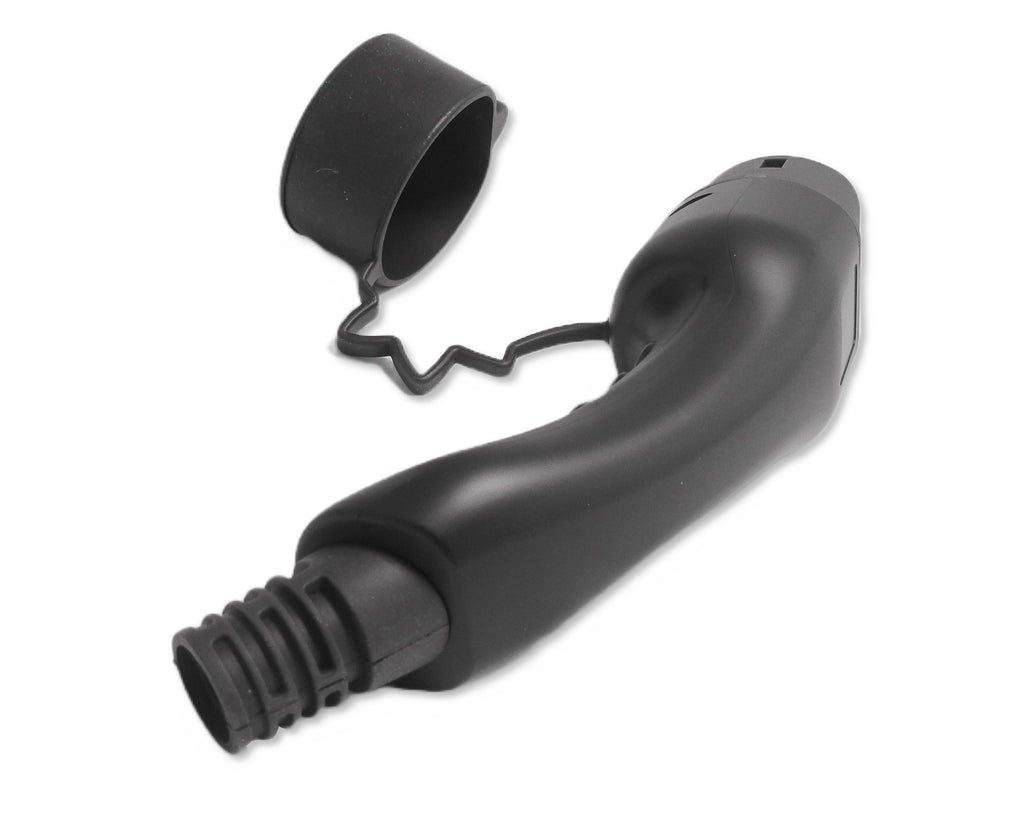

- EU type 2, female EV charging gun connector
- Rated voltage is 480VAC, current rating is 32A
- >1000Mohm (DC500V) insulation resistance, 0.5mohm maximum contact resistance
- Withstand voltage is 2000V, UL94 V-0 fire rating
- Insertion and extraction force is F<=100N
- Protection level is IP54, 7 contacts, charging level 2
- Thermoplastic plastics housing, copper silver coating conduct
- Environment temperature range from -30°C to +50°C
- TUV approved
Industrial, Automotive, Transportation, Energy, Electric Vehicle (EV) Charging
Other details
| Brand | MULTICOMP PRO |
| Part Number | MP009736 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Technical Notes & Articles EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 17948.36 |
| 3-5 | ₹ 17765.21 |
| 5-10 | ₹ 17398.92 |
| 10+ | ₹ 17032.62 |
Bulk discount will be automatically applied during checkout based on quantity.
