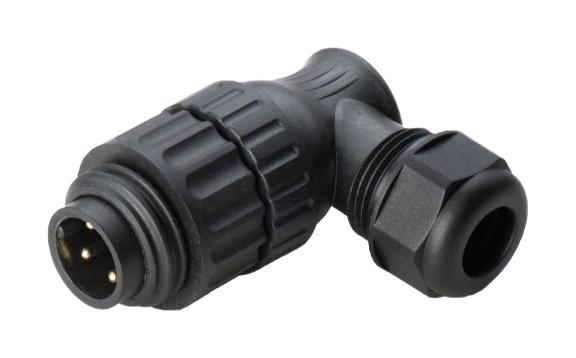

Multicomp PRO MP007692 MP007692 Circular Connector MP WA22 Right Angle Cable Plug 3 Contacts Screw Pin Threaded

MP007692 is the 3+PE Male 90 degree Cable connector 4.5-7mm OD. The WA22 series of waterproof connectors are solidly built to IP67 standards making them ideal for demanding outdoor applications. Available in 3+PE or 6+PE terminations and with current ratings of 16A and 10A respectively means that these connectors to be used in a variety of different situations. These connectors also benefit from the option of having either internal or external threading on the cable mount side meaning you can securely mate to the corresponding panel mount or any other corresponding cable mount connector in the series. Choices include 2 hole flanged panel mount, cable mount, short back shell cable mount, 90-degree cable mount and in-line cable mount options.

• Fit panel cut-outs of 22mm (3+PE) or 22.5mm (6+PE)
• IP67
• Threaded mating
• Internal or external threaded options
• Gold plated contacts
• Accessory (cap etc): WA22G1

Applications

Agriculture, Automation & Process Control, Commercial, Electrical, Factory Automation, Industrial Automation, Industrial, Industrial Automation Control, Manufacturing, Power Management

Footnotes Mating Parts: MP007686, MP007679, MP007680, MP007681, MP007682, MP007683, MP007684, MP007685

Other details

Brand	MULTICOMP PRO
Part Number	MP007692
Quantity	Each
Technical Data Sheet EN
