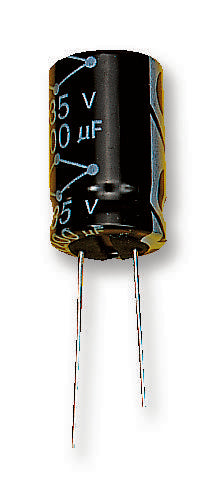

The Multicomp MCRH series capacitors are general purpose, radial leaded polarized aluminium electrolytic capacitors. The capacitance value ranges from 0.1µF to 15000µF.
- Rated voltage range of 10VDC to 100VDC
- Tolerance of ±20%
- Endurance of 2000h at 85°C
- Operating temperature range -40°C to 105°C
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Capacitance |
0.22µF |
| Voltage Rating |
50V |
| Product Range |
MCRH Series |
| Capacitance Tolerance |
± 20% |
| Capacitor Terminals |
Radial Leaded |
| Diameter |
5mm |
| Lead Spacing |
2mm |
| Height |
11mm |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
105°C |
| Lifetime @ Temperature |
2000 hours @ 105°C |
| ESR |
- |
| Automotive Qualification Standard |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCRH50V224M5X11 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
