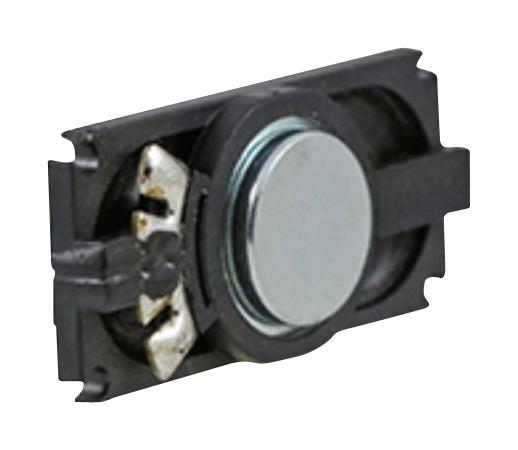

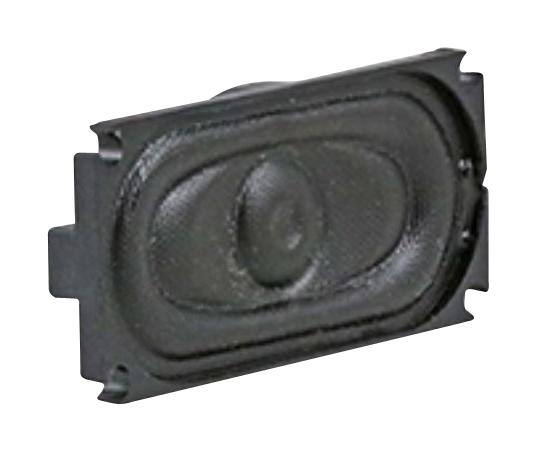

- 8ohm, 1W miniature speaker
- 8±15%ohm/2KHz rated impedance
- 1W rated input power, 2W maximum input power
- Resonant frequency is 670±20% Hz/1V, frequency range from F0Hz-20,000Hz
- 83±3dB sound pressure level at (AVG 0.6, 0.8, 1.0, 1.2)KHz 1W/0.5m
- Black PBT frame, SPCC yoke and plate, cloth diaphragm
- Operating temperature range from -20°C to +60°C
- 10% maximum at 1KHz, 1.0W total harmonic distortion
Applications
Medical Electronics, Consumer Electronics, Clock & Timing, Test & Instrumentation, Agriculture, Automotive Systems, Sensing & Instrumentation, Computers & Computer Peripherals, Remote Sensing and Metering, Safety
Product details
| Driver Type |
Miniature |
| External Diameter - Metric |
- |
| External Width - Metric |
16mm |
| Impedance |
8ohm |
| Power Rating Nom |
1W |
| Sound Level SPL |
83dB |
| External Diameter - Imperial |
- |
| External Width - Imperial |
0.629" |
| Frequency Response Min |
0Hz |
| Frequency Response Max |
20kHz |
| Speaker Shape |
Oval with Rectangular Frame |
| Resonant Frequency |
670Hz |
| Speaker Mounting |
Flange Mount |
| Power Rating Max |
2W |
| External Length - Metric |
35mm |
| External Depth - Metric |
5.8mm |
| External Length - Imperial |
1.377" |
| External Depth - Imperial |
0.228" |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCABS-268-RC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
