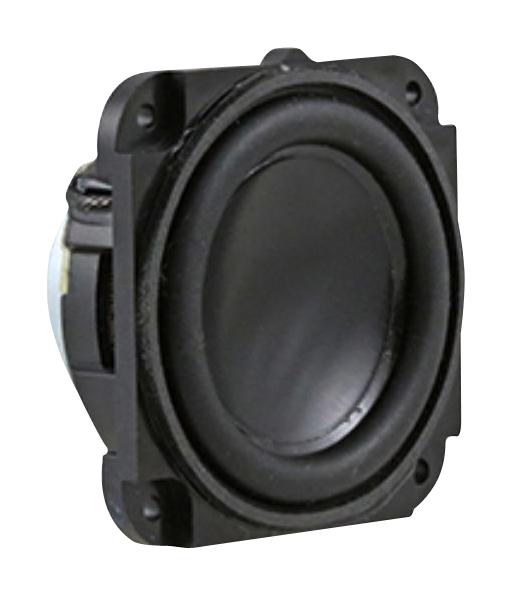

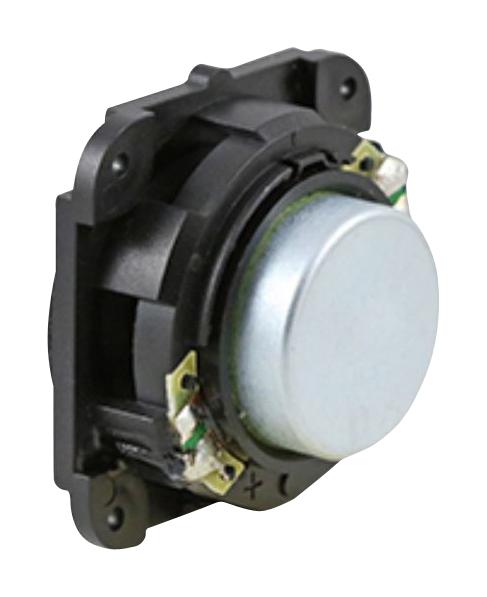

- 8ohm, 2W miniature speaker
- 8 ±20%ohm/2.83V rated impedance
- 3W rated input power, 4W maximum input power
- Resonant frequency is 240 ±20% Hz/2.83V, frequency range from F200Hz-20,000Hz
- 83 ±3dB sound pressure level at (AVG 0.6, 0.8, 1.0, 1.2)KHz 1W/0.5m baffleboard IEC
- SPCC frame and plate, NdFeB magnet, foam diaphragm
- Operating temperature range from -20°C to +60°C
- 10% maximum at 1KHz/0.5m, 1.0W total harmonic distortion
Applications
Medical Electronics, Consumer Electronics, Clock & Timing, Test & Instrumentation, Agriculture, Automotive Systems, Sensing & Instrumentation, Computers & Computer Peripherals, Remote Sensing and Metering, Safety
Product details
| Driver Type |
Miniature |
| External Diameter - Metric |
- |
| External Width - Metric |
32.7mm |
| Impedance |
8ohm |
| Power Rating Nom |
3W |
| Sound Level SPL |
83dB |
| External Diameter - Imperial |
- |
| External Width - Imperial |
1.287" |
| Frequency Response Min |
200Hz |
| Frequency Response Max |
20kHz |
| Speaker Shape |
Rectangular |
| Resonant Frequency |
240Hz |
| Speaker Mounting |
Flange Mount |
| Power Rating Max |
4W |
| External Length - Metric |
31.7mm |
| External Depth - Metric |
16.5mm |
| External Length - Imperial |
1.248" |
| External Depth - Imperial |
0.649" |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCABS-267-RC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
