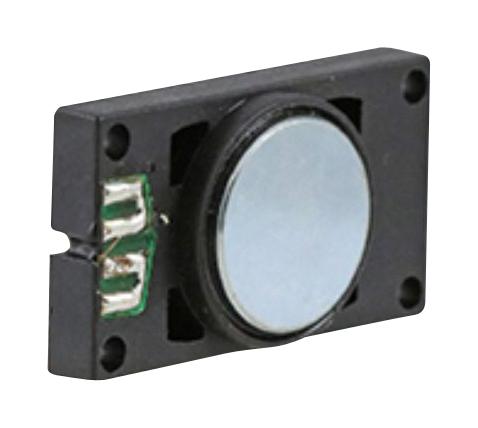

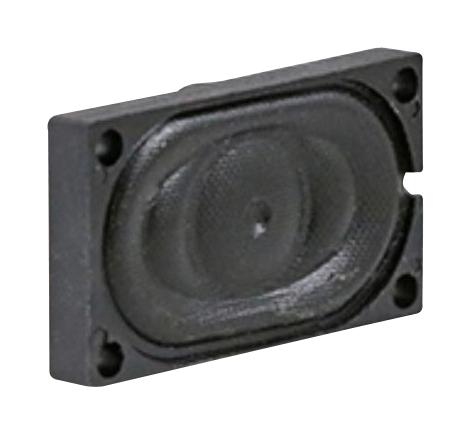

- 8ohm, 1W miniature speaker
- 8 ±20%ohm rated impedance 1.0KHz/1.0V
- 1W rated input power, 1.5W maximum input power
- Resonant frequency is 1100 ±20%Hz/1V, frequency range from F0Hz-20,000Hz
- 95 ±3d sound pressure level at (AVG 0.8, 1.0, 1.21.5) KHz 0.1W/0.1m
- 1.0T flux density, -30°C to +70°C operating temperature
- 5% maximum at 2KHz, 1W total harmonic distortion
- ABS frame, SPCC plate and yoke, NdFeB magnet, cloth diaphragm
Applications
Medical Electronics, Consumer Electronics, Clock & Timing, Test & Instrumentation, Agriculture, Automotive Systems, Sensing & Instrumentation, Computers & Computer Peripherals, Remote Sensing and Metering, Safety
Product details
| Driver Type |
Miniature |
| External Diameter - Metric |
- |
| External Width - Metric |
14mm |
| Impedance |
8ohm |
| Power Rating Nom |
1W |
| Sound Level SPL |
95dB |
| External Diameter - Imperial |
- |
| External Width - Imperial |
0.551" |
| Frequency Response Min |
0Hz |
| Frequency Response Max |
20kHz |
| Speaker Shape |
Oval with Rectangular Frame |
| Resonant Frequency |
1.1kHz |
| Speaker Mounting |
Flange Mount |
| Power Rating Max |
1.5W |
| External Length - Metric |
25mm |
| External Depth - Metric |
5.4mm |
| External Length - Imperial |
0.984" |
| External Depth - Imperial |
0.212" |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCABS-265-RC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
