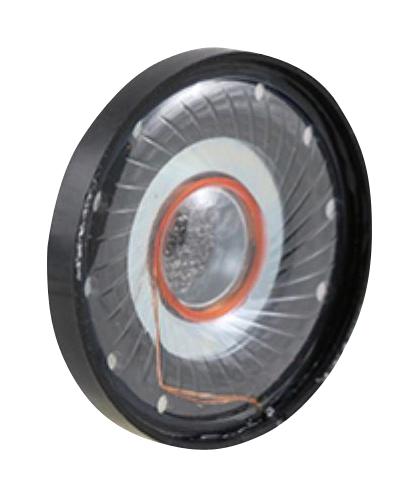

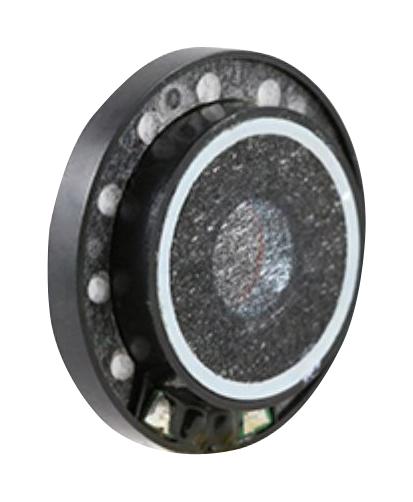

- 8ohm, 0.4W miniature speaker
- 8 ±15%ohm rated impedance 1KHz/0.57Vrms
- 40mW rated input power, 100mW maximum input power
- Resonant frequency F0 (in free field) is 180 ±20%(Hz) with input
- 122 ±3dB sound pressure level at 1KHz with IEC318 coupler, 1mW, 1cm
- 5% maximum at 1KHz, 0.57V total harmonic distortion
- Operating temperature range from 20°C to +60°C
- ABS frame, SPCC plate and yoke
- Frequency response & deviation is 0.57V/1cm 20,000-40,000Hz
- PET diaphragm, ferrite magnet
Applications
Medical Electronics, Consumer Electronics, Clock & Timing, Test & Instrumentation, Agriculture, Automotive Systems, Sensing & Instrumentation, Computers & Computer Peripherals, Remote Sensing and Metering, Safety
Product details
| Driver Type |
Miniature |
| External Diameter - Metric |
39.8mm |
| External Width - Metric |
- |
| Impedance |
8ohm |
| Power Rating Nom |
40mW |
| Sound Level SPL |
122dB |
| External Diameter - Imperial |
1.566" |
| External Width - Imperial |
- |
| Frequency Response Min |
20kHz |
| Frequency Response Max |
40kHz |
| Speaker Shape |
Round |
| Resonant Frequency |
180Hz |
| Speaker Mounting |
Bare Mount |
| Power Rating Max |
100mW |
| External Length - Metric |
- |
| External Depth - Metric |
9.3mm |
| External Length - Imperial |
- |
| External Depth - Imperial |
0.366" |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCABS-264-RC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
