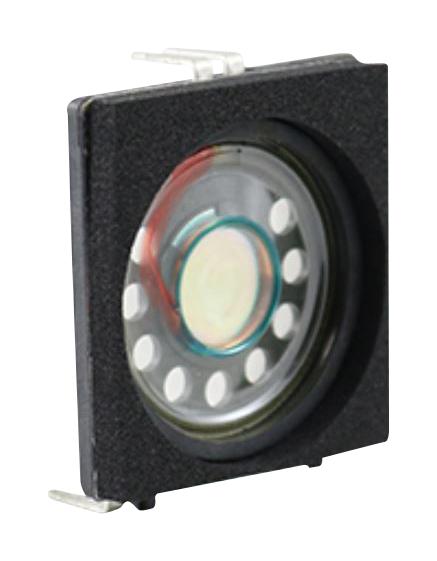

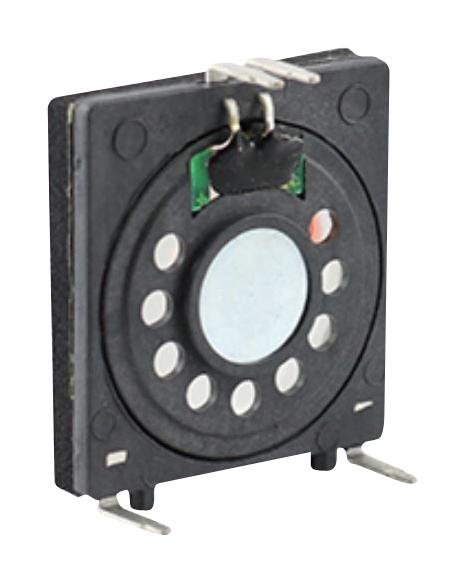

- 8ohm, 1W miniature speaker
- 8 ±15%ohm rated impedance 1KHz/1Vrms
- 1W rated input power, 1.5W maximum input power
- Resonant frequency is 600 ±150Hz /1V, frequency range from F0Hz-5,000Hz
- 83 ±3dB 1W/0.5m sound pressure level at (AVG 0.6, 0.8, 1.0, 1.2)KHz baffleboard IEC
- Black noryl frame, SPCC yoke and plate, clear PEI diaphragm
- Operating temperature range from -40°C to +85°C
- PIN and black noryl case
Applications
Medical Electronics, Consumer Electronics, Clock & Timing, Test & Instrumentation, Agriculture, Automotive Systems, Sensing & Instrumentation, Computers & Computer Peripherals, Remote Sensing and Metering, Safety
Product details
| Driver Type |
Miniature |
| External Diameter - Metric |
- |
| External Width - Metric |
39.6mm |
| Impedance |
8ohm |
| Power Rating Nom |
1W |
| Sound Level SPL |
83dB |
| External Diameter - Imperial |
- |
| External Width - Imperial |
1.559" |
| Frequency Response Min |
0Hz |
| Frequency Response Max |
5kHz |
| Resonant Frequency |
600Hz |
| Speaker Mounting |
Flange Mount |
| Power Rating Max |
1.5W |
| External Length - Metric |
42.5mm |
| External Depth - Metric |
16mm |
| External Length - Imperial |
1.673" |
| External Depth - Imperial |
0.629" |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCABS-263-RC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
