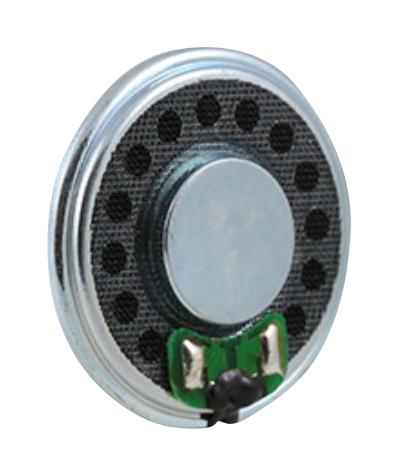

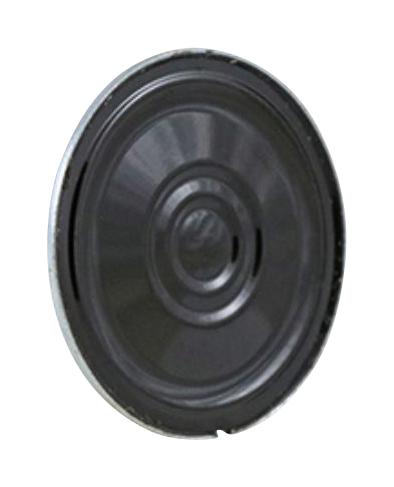

- 8ohm, 0.5W miniature speaker
- 8 ±15%ohm rated impedance 2KHz/1Vrms
- 0.5W rated input power, 1W maximum input power
- Resonant frequency is 750 ±20% Hz, frequency range from F0Hz-5,000Hz
- 90 ±3dB sound pressure level at (AVG 1.0, 1.2, 1.5)KHz 0.1W/0.1m baffleboard (IEC)
- SPCC frame and plate, black PET diaphragm, NdFeB magnet
- Operating temperature range from -30°C to +70°C
- 5% maximum at 1KHz,0.3W total harmonic distortion
Applications
Medical Electronics, Consumer Electronics, Clock & Timing, Test & Instrumentation, Agriculture, Automotive Systems, Sensing & Instrumentation, Computers & Computer Peripherals, Remote Sensing and Metering, Safety
Product details
| Driver Type |
Miniature |
| External Diameter - Metric |
28mm |
| External Width - Metric |
- |
| Impedance |
8ohm |
| Power Rating Nom |
500mW |
| Sound Level SPL |
90dB |
| External Diameter - Imperial |
1.102" |
| External Width - Imperial |
- |
| Frequency Response Min |
0Hz |
| Frequency Response Max |
5kHz |
| Speaker Shape |
Round |
| Resonant Frequency |
750Hz |
| Speaker Mounting |
Bare Mount |
| Power Rating Max |
1W |
| External Length - Metric |
- |
| External Depth - Metric |
4mm |
| External Length - Imperial |
- |
| External Depth - Imperial |
0.157" |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCABS-262-RC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
