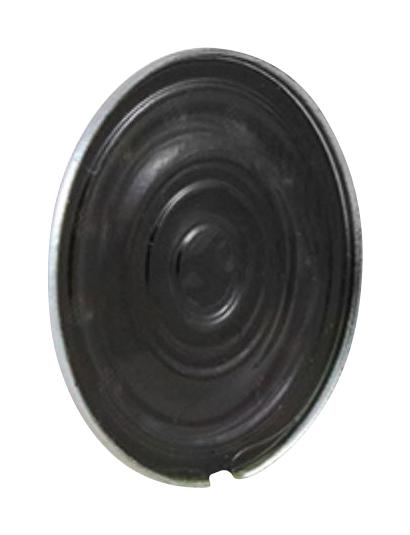

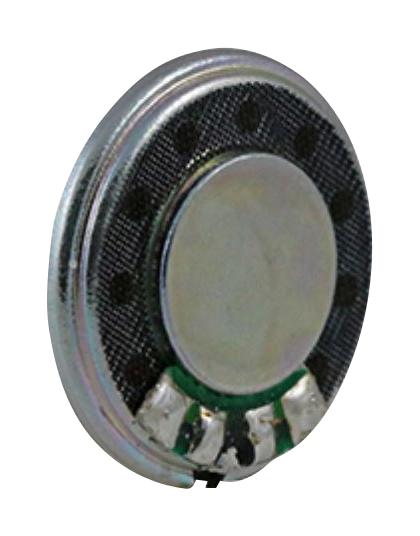

- 100 ohm, 0.15W miniature speaker
- 100 ±15%ohm/2KHz/0.1W rated impedance
- 0.15W rated input power, 0.3W maximum input power
- Resonant frequency is 600 ±20%Hz/0.1W, frequency range from F0Hz-5,000Hz
- 83±3dB sound pressure level at (AVG 0.8, 1.0, 1.2, 1.5)KHz 0.1W/0.1m baffle board IEC
- 5% maximum at 2KHz/0.1W total harmonic distortion
- Operating temperature range from -20°C to +60°C
- SPCC frame/plate, black PET diaphragm
- Self bonding wire voice coil
- NdFeB magnet and FR4 PCB
Applications
Medical Electronics, Consumer Electronics, Clock & Timing, Test & Instrumentation, Agriculture, Automotive Systems, Sensing & Instrumentation, Computers & Computer Peripherals, Remote Sensing and Metering, Safety
Product details
| Driver Type |
Miniature |
| External Diameter - Metric |
20mm |
| External Width - Metric |
- |
| Impedance |
100ohm |
| Power Rating Nom |
150mW |
| Sound Level SPL |
83dB |
| External Diameter - Imperial |
0.787" |
| External Width - Imperial |
- |
| Frequency Response Min |
0Hz |
| Frequency Response Max |
5kHz |
| Speaker Shape |
Round |
| Resonant Frequency |
600Hz |
| Speaker Mounting |
Bare Mount |
| Power Rating Max |
300mW |
| External Length - Metric |
- |
| External Depth - Metric |
3mm |
| External Length - Imperial |
- |
| External Depth - Imperial |
0.118" |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCABS-261-RC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
