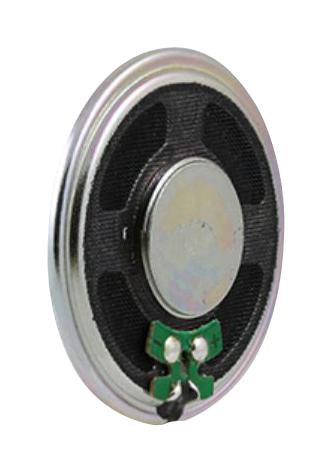

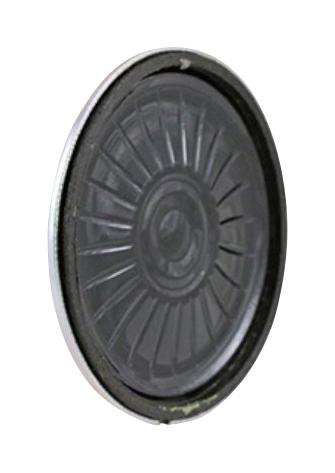

- 16ohm, 0.5W miniature speaker
- 16 ±15%ohm rated impedance 2KHz/1Vrms
- 0.5W rated input power, 1W maximum input power
- Resonant frequency is 510 ±20% Hz, frequency range from F0Hz-6,000Hz
- 84 ±3dB 1W/0.5m sound pressure level at (AVG 0.8, 1.0, 1.2, 1.5)KHz
- Mylar cone material and metal housing material
- Operating temperature range from -20°C to +60°C
Applications
Medical Electronics, Consumer Electronics, Clock & Timing, Test & Instrumentation, Agriculture, Automotive Systems, Sensing & Instrumentation, Computers & Computer Peripherals, Remote Sensing and Metering, Safety
Product details
| Driver Type |
Miniature |
| External Diameter - Metric |
40mm |
| External Width - Metric |
- |
| Impedance |
16ohm |
| Power Rating Nom |
500mW |
| Sound Level SPL |
84dB |
| External Diameter - Imperial |
1.574" |
| External Width - Imperial |
- |
| Frequency Response Min |
0Hz |
| Frequency Response Max |
6kHz |
| Resonant Frequency |
510Hz |
| Speaker Mounting |
Bare Mount |
| Power Rating Max |
1W |
| External Length - Metric |
- |
| External Depth - Metric |
5mm |
| External Length - Imperial |
- |
| External Depth - Imperial |
0.196" |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCABS-260-RC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
