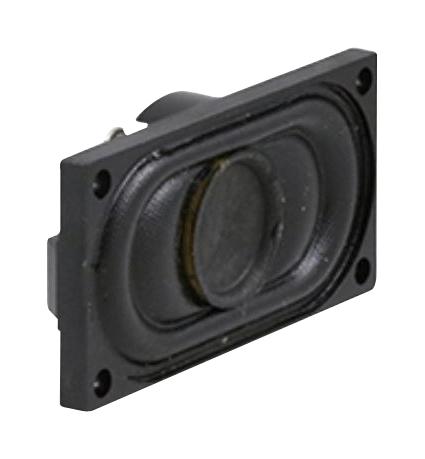

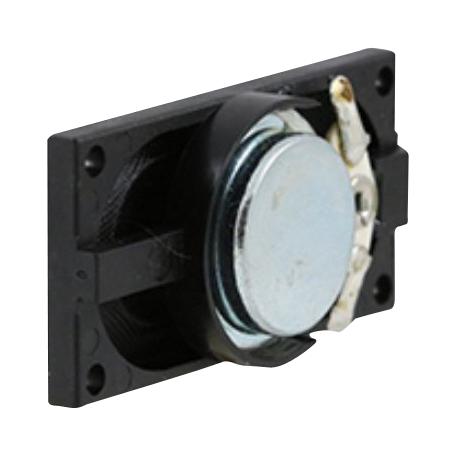

- 8ohm, 1.5W miniature speaker
- 8 ±15%ohm rated impedance 1KHz/1V
- 1.5W rated input power, 3W maximum input power
- Resonant frequency is 450 ±20% Hz/1V, frequency range from F0Hz-20,000Hz
- 84 ±3dB sound pressure level at (AVG 0.8, : 84 ±3dB 1.0, 1.2, 1.5)KHz 1W/0.5m
- 5% maximum at 1KHz, 1V total harmonic distortion
- 1.0T flux density, -20°C to +60°C operating temperature
- 1.0T yoke, cloth diaphragm/cone, paper dust cap
- Self bonding wire voice coil
- Plastic frame, Fe+paper PCB
Applications
Medical Electronics, Consumer Electronics, Clock & Timing, Test & Instrumentation, Agriculture, Automotive Systems, Sensing & Instrumentation, Computers & Computer Peripherals, Remote Sensing and Metering, Safety
Product details
| Driver Type |
Miniature |
| External Diameter - Metric |
- |
| External Width - Metric |
20mm |
| Impedance |
8ohm |
| Power Rating Nom |
1.5W |
| Sound Level SPL |
84dB |
| External Diameter - Imperial |
- |
| External Width - Imperial |
0.787" |
| Frequency Response Min |
0Hz |
| Frequency Response Max |
20kHz |
| Speaker Shape |
Oval with Rectangular Frame |
| Resonant Frequency |
450Hz |
| Speaker Mounting |
Flange Mount |
| Power Rating Max |
3W |
| External Length - Metric |
40mm |
| External Depth - Metric |
8mm |
| External Length - Imperial |
1.574" |
| External Depth - Imperial |
0.314" |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCABS-259-RC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
