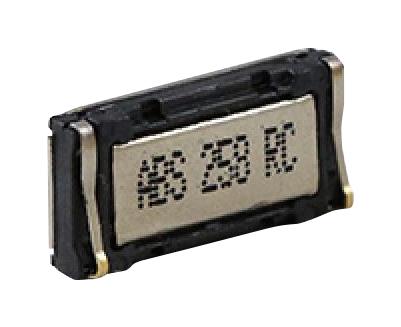

- 8ohm, 0.25W miniature speaker
- 8 ±15%ohm rated impedance 2KHz/1.4Vrms/in 0.5cc box
- 0.25W rated noise power in 0.5cc box
- 0.5W maximum short term power in 0.5cc box, 1100 ±20%Hz resonant frequency testing in 0.5cc box
- Frequency range from F0Hz to 10,000Hz
- 81 ±3dB sound pressure level 1.4V/0.1m at 2.0K Hz, in 0.5cc box
- Operating temperature range from 20°C to +70°C
- LCP frame, SPCC plate and yoke, NdFeB magnet
- PEEK diaphragm, PPA font cover, copper wire voice coil, pin x 2 - SUS
Applications
Medical Electronics, Consumer Electronics, Clock & Timing, Test & Instrumentation, Agriculture, Automotive Systems, Sensing & Instrumentation, Computers & Computer Peripherals, Remote Sensing and Metering, Safety
Product details
| Driver Type |
Miniature |
| External Diameter - Metric |
- |
| External Width - Metric |
12mm |
| Impedance |
8ohm |
| Power Rating Nom |
250mW |
| Sound Level SPL |
81dB |
| External Diameter - Imperial |
- |
| External Width - Imperial |
0.472" |
| Frequency Response Min |
0Hz |
| Frequency Response Max |
10kHz |
| Speaker Shape |
Rectangular |
| Resonant Frequency |
1.1kHz |
| Speaker Mounting |
Flange Mount |
| Power Rating Max |
500mW |
| External Length - Metric |
6mm |
| External Depth - Metric |
2mm |
| External Length - Imperial |
0.236" |
| External Depth - Imperial |
0.078" |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCABS-258-RC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
