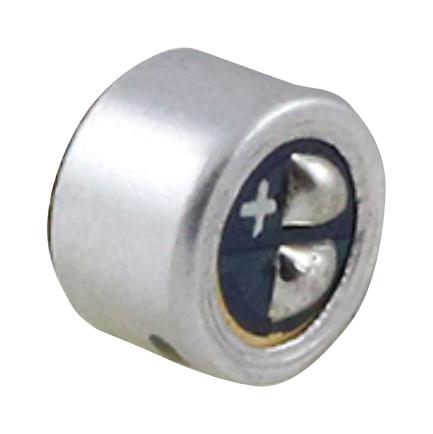

- 4.5mm omnidirectional microphone
- 2V standard operating voltage, 10V maximum operating voltage
- 0.5mA maximum current consumption
- <2.2Kohm output impedance (F=1KHz 1Pa)
- Frequency range from 50Hz to 16000Hz
- Sensitivity (at F=1KHz, 0dB=1V/Pa) is -44 ±3dB, sensitivity reduction (at3.0V-1.5V) is -3dB
- >60dB Signal to noise ratio (F=1KHz 1Pa) A weighted
- Solder terminal type and AL material
- Operating temperature range from -20°C to +60°C
Applications
Medical Electronics, Consumer Electronics, Clock & Timing, Test & Instrumentation, Agriculture, Automotive Systems, Sensing & Instrumentation, Computers & Computer Peripherals, Remote Sensing and Metering, Safety
Product details
| Transducer Function |
Microphone |
| Directivity |
Omnidirectional |
| Frequency Response Min |
50Hz |
| Frequency Response Max |
16kHz |
| Supply Voltage Min |
2V |
| Supply Voltage Max |
10V |
| Sensitivity (dB) |
-44dB |
| Drain Current Max |
500µA |
| Output Impedance |
2.2kohm |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MCABM-719-RC |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
