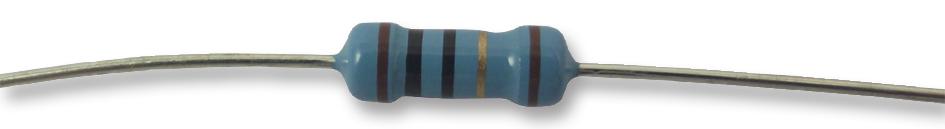

The Multicomp MCMF50 series resistors are axial leaded precision metal film resistors with 1ohm to 1Mohm resistance range. The multiple epoxy coating on vacuum deposited metal film provides superior moisture protection and nichrome resistor element provides stable performance in various environments.
- Maximum working voltage of 350V
- Power rating of 500mW
- Tolerance of ±1%
- Temperature coefficient (TCR) of ±50ppm/°C
- EIA standard colour coding
- Low noise and voltage coefficient
- Wide precision range in small package
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Resistance |
180kohm |
| Product Range |
MF50 Series |
| Power Rating |
500mW |
| Resistance Tolerance |
± 1% |
| Resistor Case Style |
Axial Leaded |
| Voltage Rating |
350V |
| Resistor Element Type |
Metal Film |
| Temperature Coefficient |
± 50ppm/°C |
| Automotive Qualification Standard |
- |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
MULTICOMP |
| Part Number |
MF50 180K |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
