Description

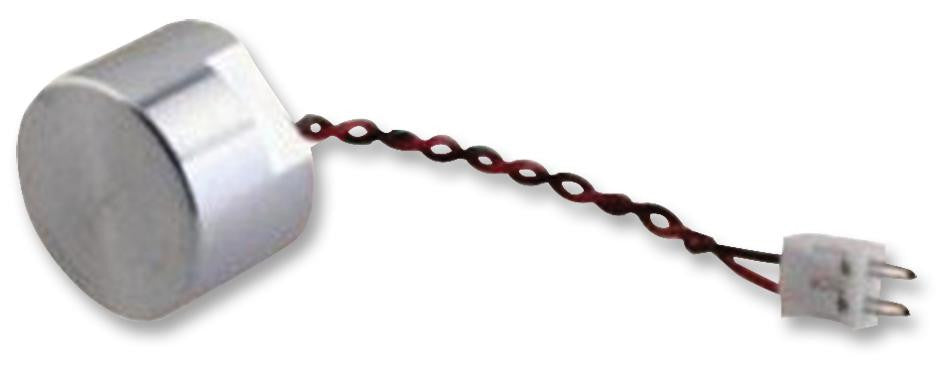

The MCUSD14A40S09RS-30C is a 40kHz Transceiver, with open structure and dual use. Compact and light weight. High sensitivity and sound pressure. Less power consumption. High reliability. This specification covers the water proof type ultrasonic ceramic transducer which are used for ultrasonic ranging and parking sensor of automobile.
- 2500pF Capacitance
- -40 to 85�C Operating temperature
Applications
Automation & Process Control, Robotics
Product details
| Sensing Range Max | - |
| External Diameter | 14mm |
| Sensing Range Min | - |
| Beam Angle | 110� |
| Operating Temperature Min | -40�C |
| Product Range | - |
| Switching Frequency | 40kHz |
| Operating Temperature Max | 85�C |
| Sensitivity (dB) | -75dB |
Other details
| Brand | MULTICOMP |
| Part Number | MCUSD14A40S09RS-30C |
| Quantity | Each |
| Technical Data Sheet EN |  |
