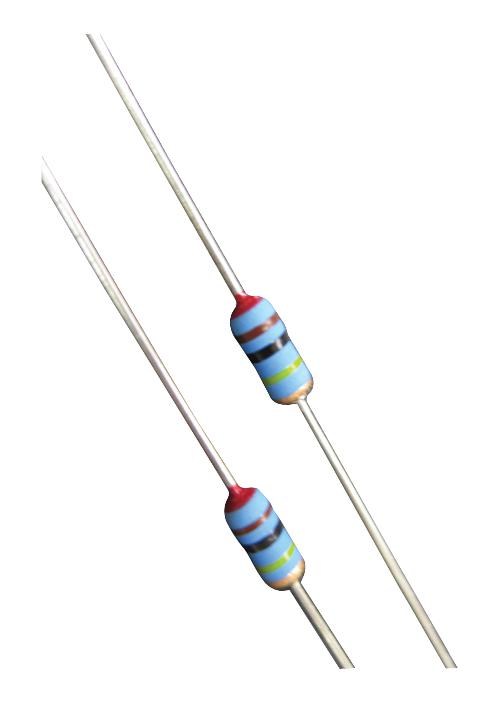

The MCPMR series 2W power metal Fixed Resistor has power rating based on continuous full load operation at an ambient temperature of 70°C. The resistor also have a rated direct-current (DC) continuous working voltage or an approximate sine-wave root-mean-square (RMS) alternating-current (AC) continuous working voltage at commercial-line frequency and waveform corresponding to the power rating.
- 2W-S Power resistance
- J Resistance tolerance
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Product details
| Resistance |
56kohm |
| Product Range |
MCPMR Series |
| Power Rating |
2W |
| Resistance Tolerance |
± 5% |
| Resistor Case Style |
Axial Leaded |
| Voltage Rating |
500V |
| Resistor Element Type |
Metal Film |
| Temperature Coefficient |
± 350ppm/°C |
| Automotive Qualification Standard |
- |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
MULTICOMP |
| Part Number |
MCPMR02SJ0563A10 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
