Description

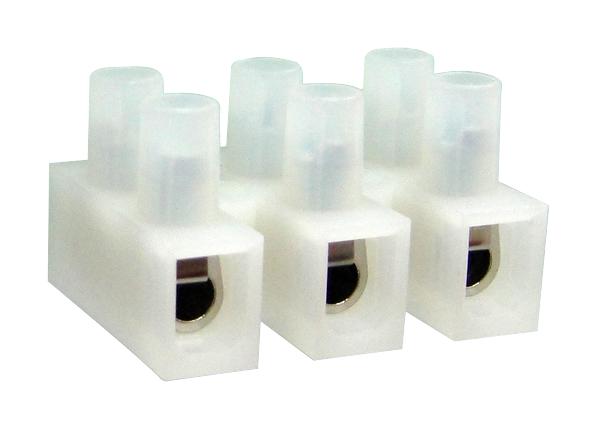

The MC001828 from Multicomp is a white colour H type dual row terminal block with 6 positions. It has minimum insulation withstands voltage of 2000VAC and insulation resistance of greater than 2000Mohm at 500VDC.
- Current rating is 30A and voltage rating is 600V
- Pitch spacing is 10mm
- Wire size range from 10AWG to 22AWG
- 5.5mm to 6.5mm stripped length
- Continuous working temperature is 85°C maximum
- Operating temperature range from -30°C to +85°C
- PA66 (UL94-V2) insulating body, SUS301 wire protector
- Steel screw with zinc plating and brass cage clamp with nickel plating
- Easily cut to size
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Industrial
Other details
| Brand | MULTICOMP |
| Part Number | MC001828 |
| Quantity | Each |
| Technical Data Sheet EN |  |
