Description

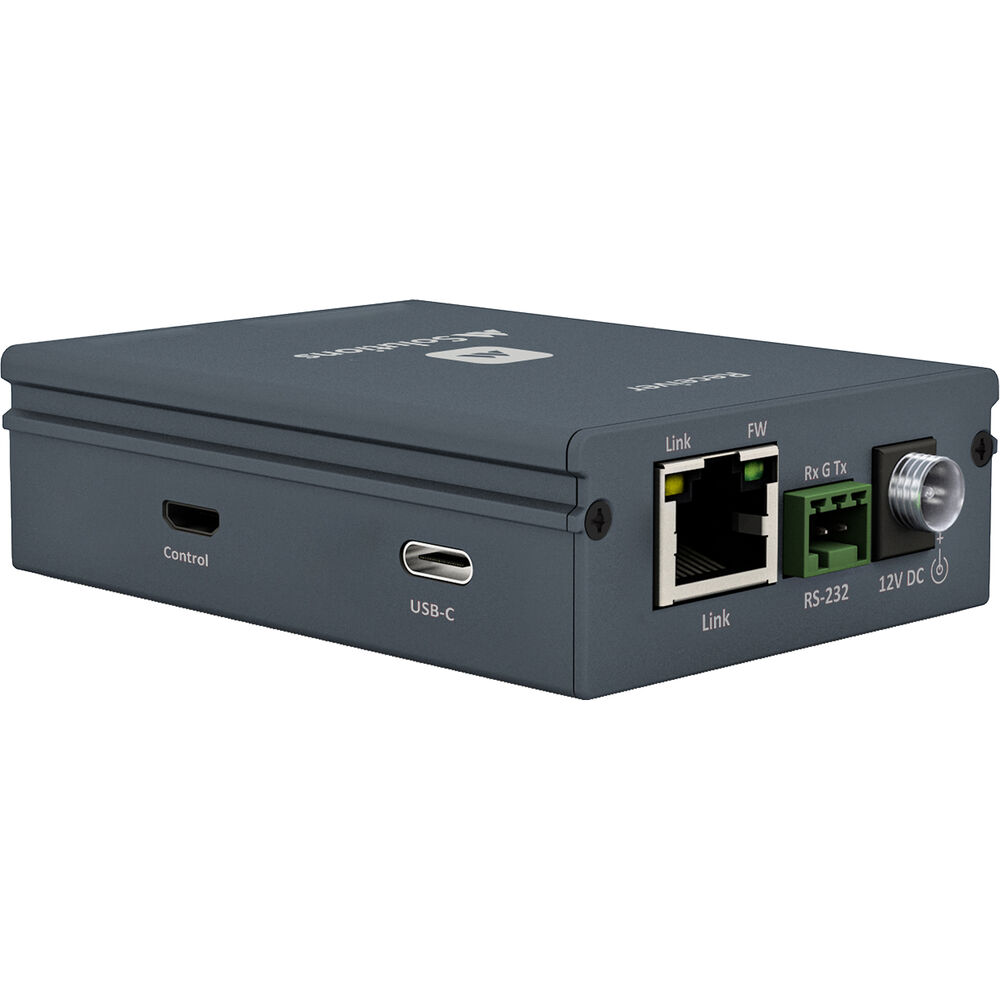

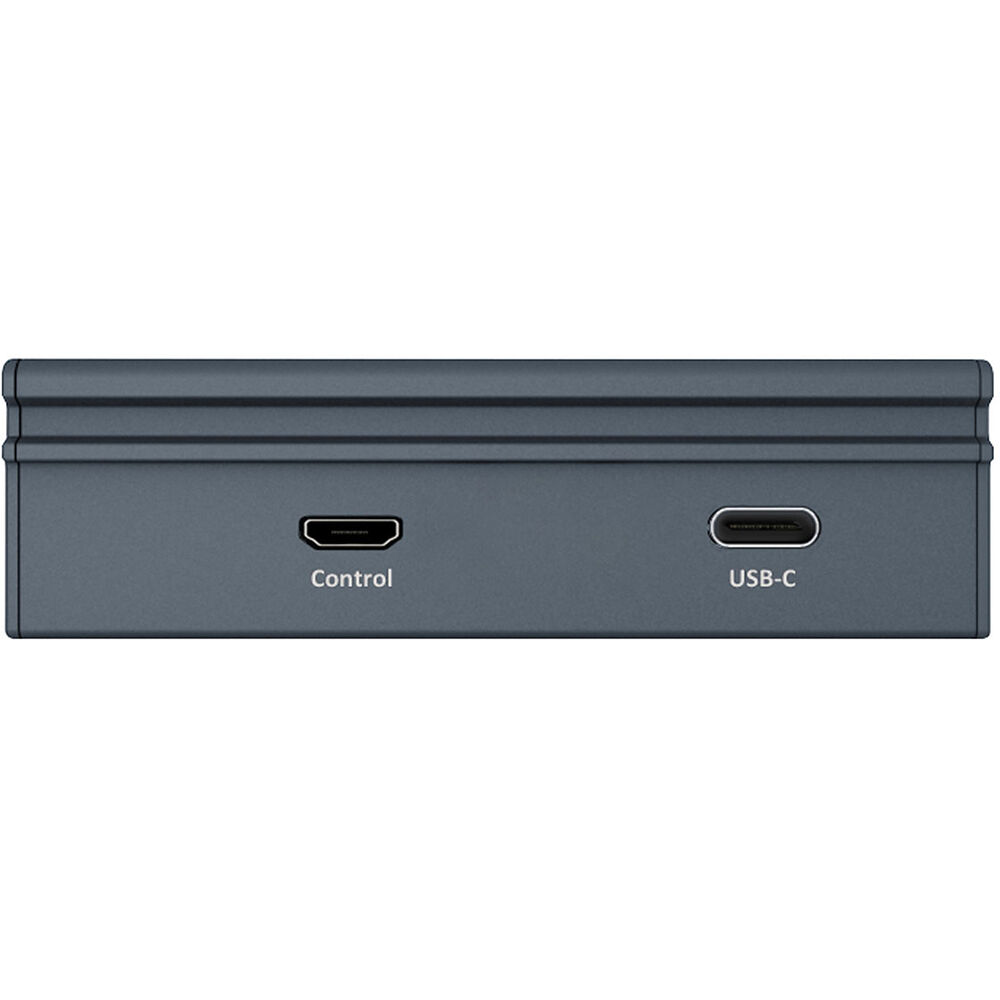

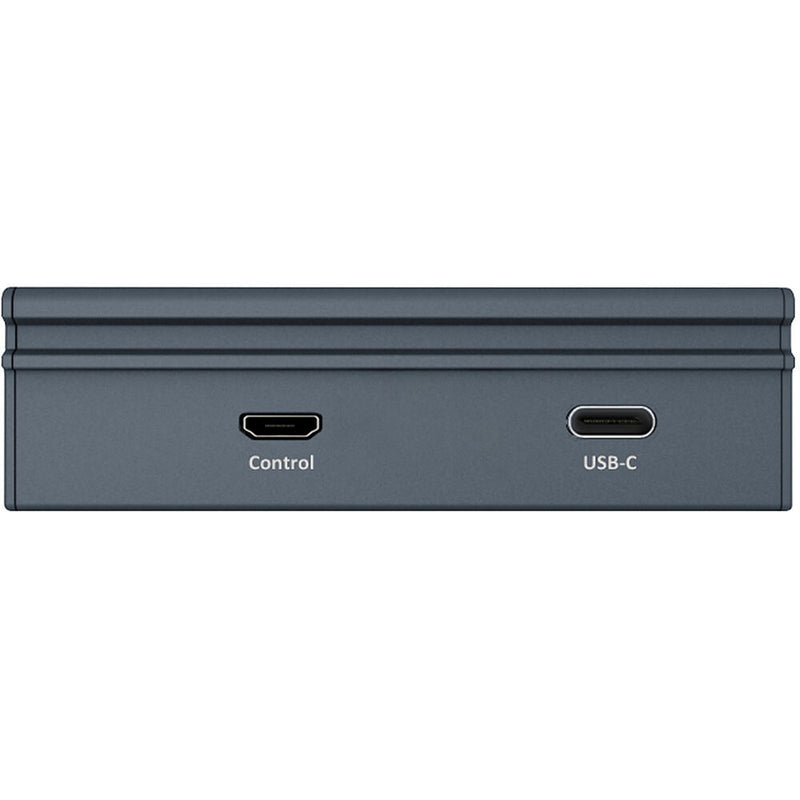

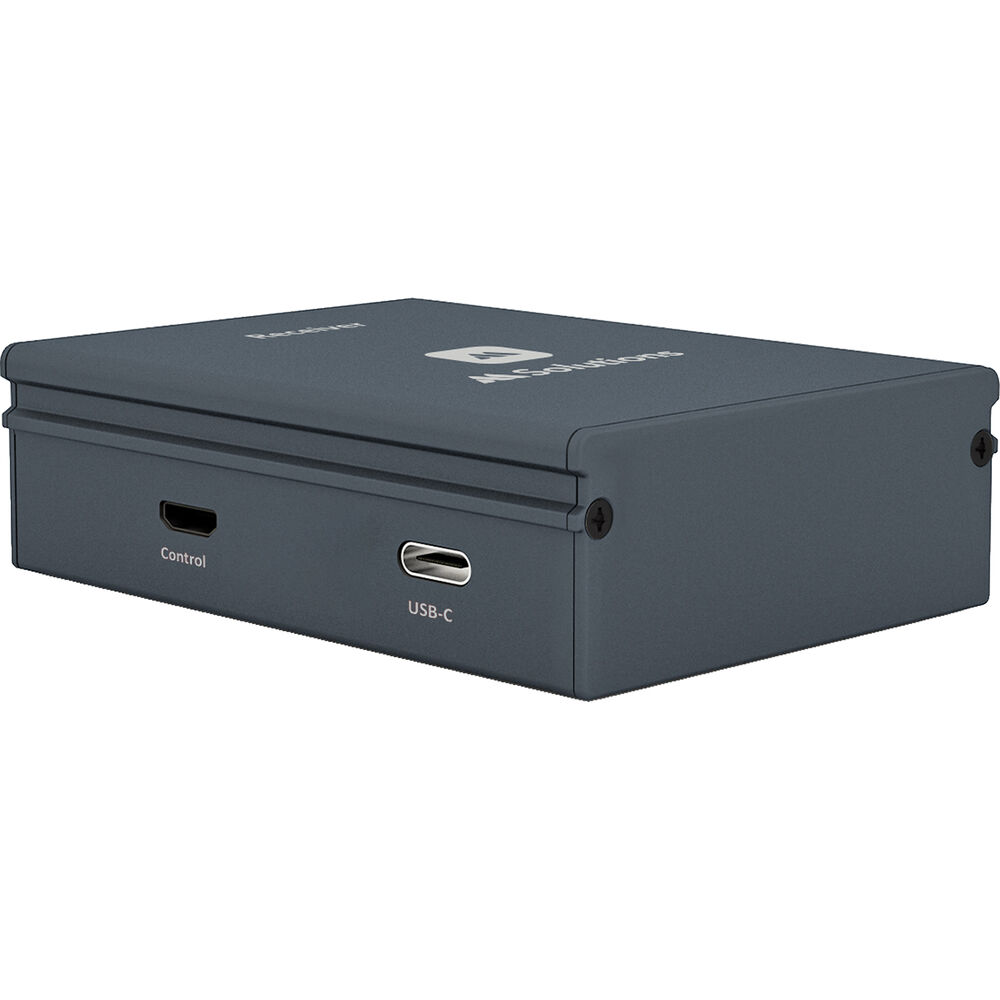

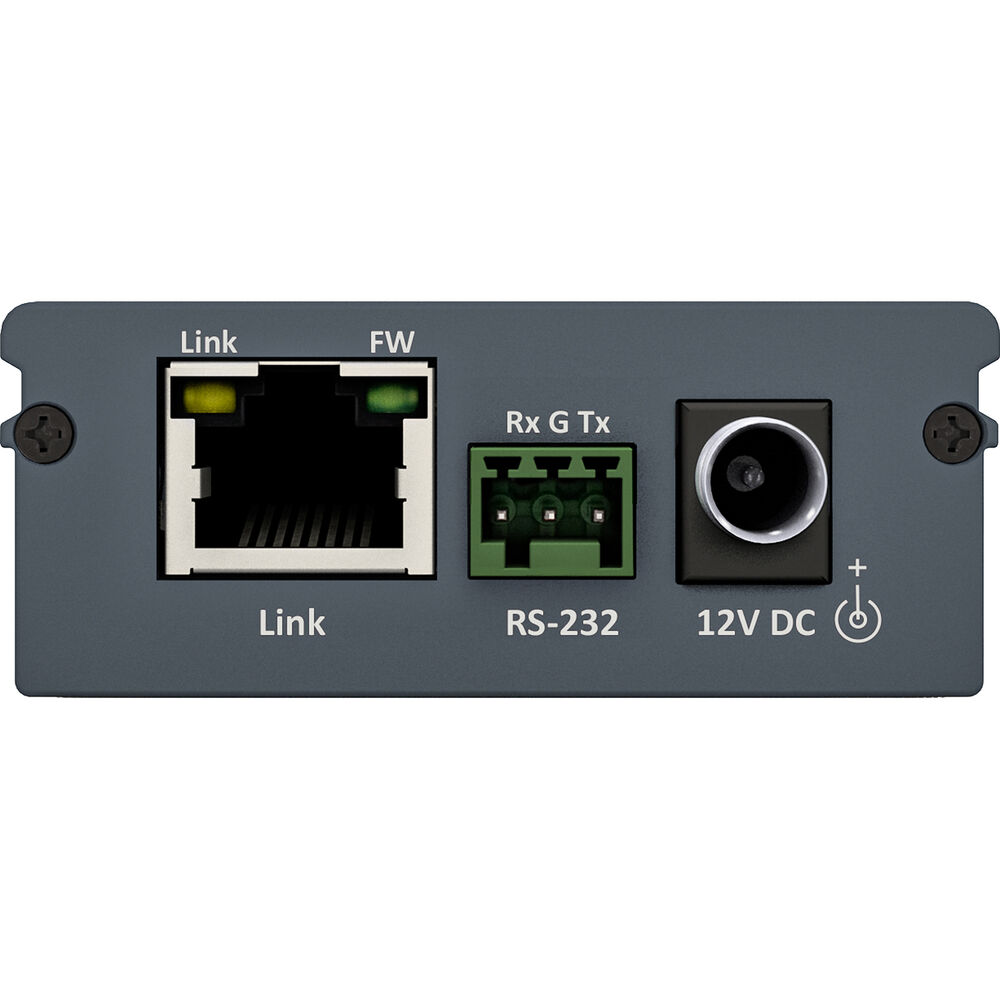

MSolutions MS-6U1CP Overview
Extend USB-C signals and power up to 328' using Catx cables with the MS-6U1CP USB-C & 12V Power Extender Set from MSolutions. With data rates of up to 320 Mb/s, this set may be used with USB-C PTZ cameras, hard drives, laptops, and other compatible peripherals. Also featured is RS-232 serial passthrough, 12V PoC (Power over Cable) from the host side to supply 12V/2A of DC power for connected equipment on the device side, and micro-USB ports for firmware updates and control.
Features
- Solves the challenge of extending USB camera data and power over a single category cable up to 328'
- 12V output on Device side for remote powering of connected VC equipment (or PoC to the TX if power to the VC device is not required)
- One USB-C channel for up to 320 Mb/s data connectivity of USB-C devices across the link
- Flexible USB extension for USB-C PTZ cameras, hard drives, laptops, and other USB-C peripherals
- Bi-directional RS-232 serial pass through
- Bi-directional 12V PoC (Power over Cable)
In the Box
- MSolutions MS-6U1CP USB-C & 12V Power Extender Set
- MS-6U1CP Host
- MS-6U1CP Device
- 12V/2A power supply with US, UK & EU Territory Clips
- 2 x Surface Mounting Brackets
- USB-C to USB-A Female Cable
- USB-C to USB-C Cable
- Limited 3-Year Manufacturer Warranty
MSolutions MS-6U1CP Specs
Key Specs
| Maximum Range |
109.4 yd / 100 m
|
| Receiver I/O |
1x USB-C (3.0 / 3.1/3.2 Gen 1) Output
1x RJ45 (RS-232) Output 1x RJ45 Output |
| Transmitter I/O |
1x USB-C (3.0 / 3.1/3.2 Gen 1) Input
1x RJ45 (RS-232) Input 1x RJ45 Input |
| Power Source |
Power Adapter
|
| Receiver I/O |
1x USB-C (3.0 / 3.1/3.2 Gen 1) Output
1x RJ45 (RS-232) Output 1x RJ45 Output |
| Transmitter I/O |
1x USB-C (3.0 / 3.1/3.2 Gen 1) Input
1x RJ45 (RS-232) Input 1x RJ45 Input |
| Maximum Number of Devices |
2
|
Power
| Power Source |
Power Adapter
|
| Power Connector |
Unspecified Size Barrel
|
| DC Input Power |
12 VDC at 2 A
|
| Power Consumption |
4.5 W
|
Environmental
| Operating Humidity |
0 to 80% ()
|
| Operating Temperature |
32 to 118°F / 0 to 48°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
Physical
| Dimensions |
2.4 x 1.0 x 3.1" / 60.0 x 25.0 x 80.0 mm Each
|
| Weight |
Each: 3.5 oz / 0.1 kg
|
Packaging Info
| Package Weight |
1.175 lb
|
| Box Dimensions (LxWxH) |
7.3 x 5.7 x 3.4"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
