Description
MSolutions MS-070PRI Overview

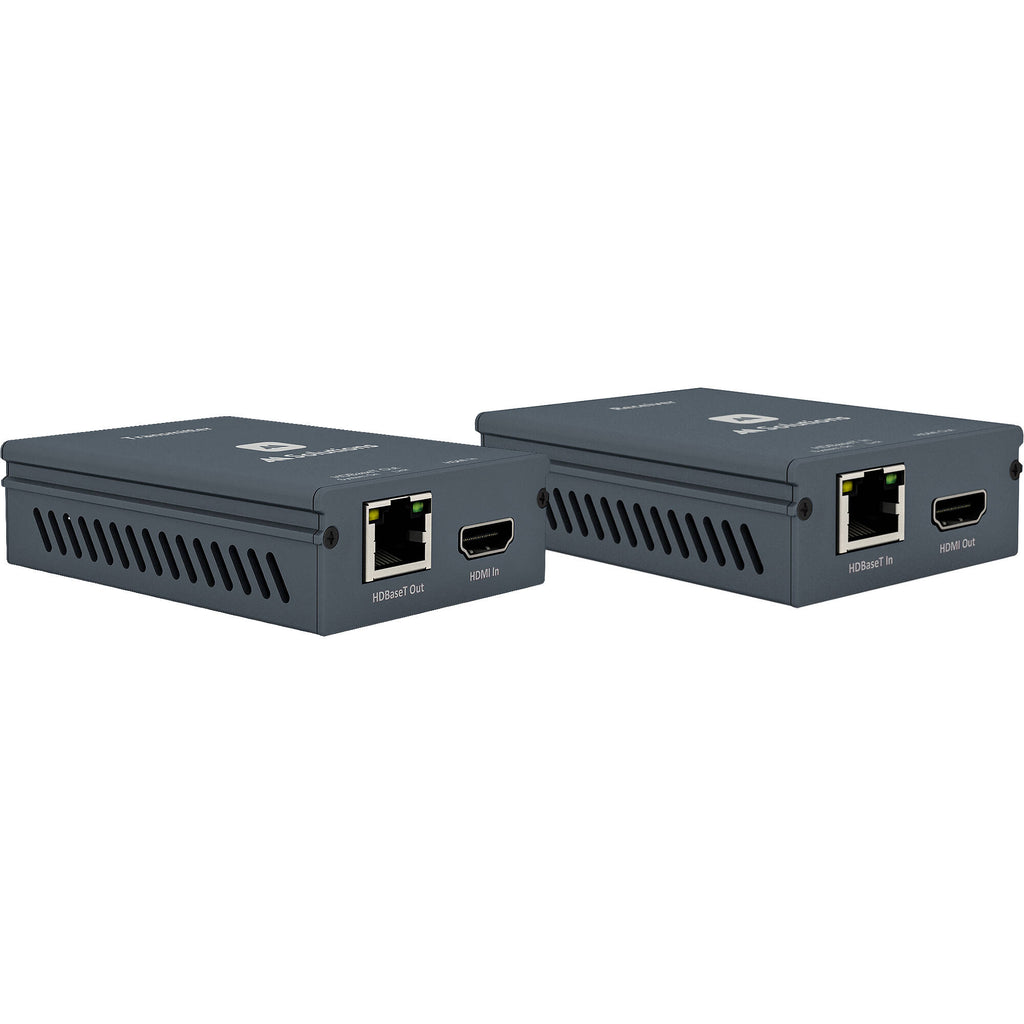

Use the MS-070PRI HDBaseT Extender Set by MSolutions to extend uncompressed HDMI video over HDBaseT. This set handles video at 4K 60 Hz and 4:2:0, and 4K 30 Hz at 4:4:4. Extend 4K video up to 131.2', and 1080p or lower resolution video up to 229' all on one Cat cable. Additional connectivity includes a bidirectional RS-232 via an integrated 3-pin Phoenix connector with the block included and a single channel IR port, supporting TX to RX and RX to TX. The extender set handles all known HDMI audio formats, including Dolby Atmos and DTS:X, is HDCP 2.2 compliant, and has a Consumer Electronics Control (CEC) pass-through. Power the setup with the included bi-directional 12V Power over Cable adapter.
Items Included
- MSolutions MS-070PRI HDBaseT Extender Set
- 12V 2A Power Supply with US, UK, and EU Region Clips
- 5V IR Receiver with 3' Cable
- 5V IR Transmitter with 3' Cable
- Surface-Mounting Brackets
- 3-Pin Phoenix Connector
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
MSolutions MS-070PRI Specs
| Inputs |
1x HDMI (HDMI 1.4)
|
| Embedded Audio Input |
HDMI
|
| Outputs |
1x RJ45 (HDBaseT)
|
| Transmitter Other I/O |
1x 1/8" / 3.5 mm IR
1x Block 3-Pin RS-232 |
| Inputs |
1x RJ45 (HDBaseT)
|
| Outputs |
1x HDMI (HDMI 1.4)
|
| Embedded Audio Output |
HDMI
|
| Receiver Other I/O |
1x 1/8" / 3.5 mm IR
1x Block 3-Pin RS-232 |
| HDR Support |
Yes
|
| HDCP Support |
Yes: Version 2.2
|
| Max Transmission Distance |
UHD 4K:
131.2' / 40 m |
| Video Format |
HDMI (4:2:0):
3840 x 2160: 60 fps 3840 x 2160: 29.97 fps |
| Audio Format |
Unspecified Digital Signal
|
| Surround/Immersive Audio |
DTS:X, Dolby Atmos
|
| Transmitter Power I/O |
1x Barrel (12 VDC at 2 A) Input
|
| Receiver Power I/O |
1x Barrel (12 VDC at 2 A) Input
|
| Transmitter Power Consumption |
(7.5 W)
|
| Receiver Power Consumption |
(7.5 W)
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 0 to 80% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C
|
| Transmitter Dimensions |
3.3 x 2.4 x 0.1" / 83.8 x 61 x 2.5 mm
|
| Receiver Dimensions |
3.3 x 2.4 x 1" / 83.8 x 61 x 25.4 mm
|
| Transmitter Weight |
3.5 oz / 0.1 kg
|
| Receiver Weight |
3.5 oz / 0.1 kg
|
| Package Weight |
1.185 lb
|
| Box Dimensions (LxWxH) |
6.5 x 5.9 x 3.4"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
