MSI PRO Z790-P WIFI Overview
- 1Description
- 2LGA 1700 Socket
- 3Intel Z790 Chipset
- 4Lightning Gen 5
- 5DDR5 Memory Support
- 62.5 Gigabit Ethernet
- 7USB 3.2 Gen 2x2
- 8M.2 Shield FROZR
- 9Extended PWM Heat Sink
- 10M.2 Shield FROZR
- 11Frozr AI Cooling
- 12Core Boost Technology

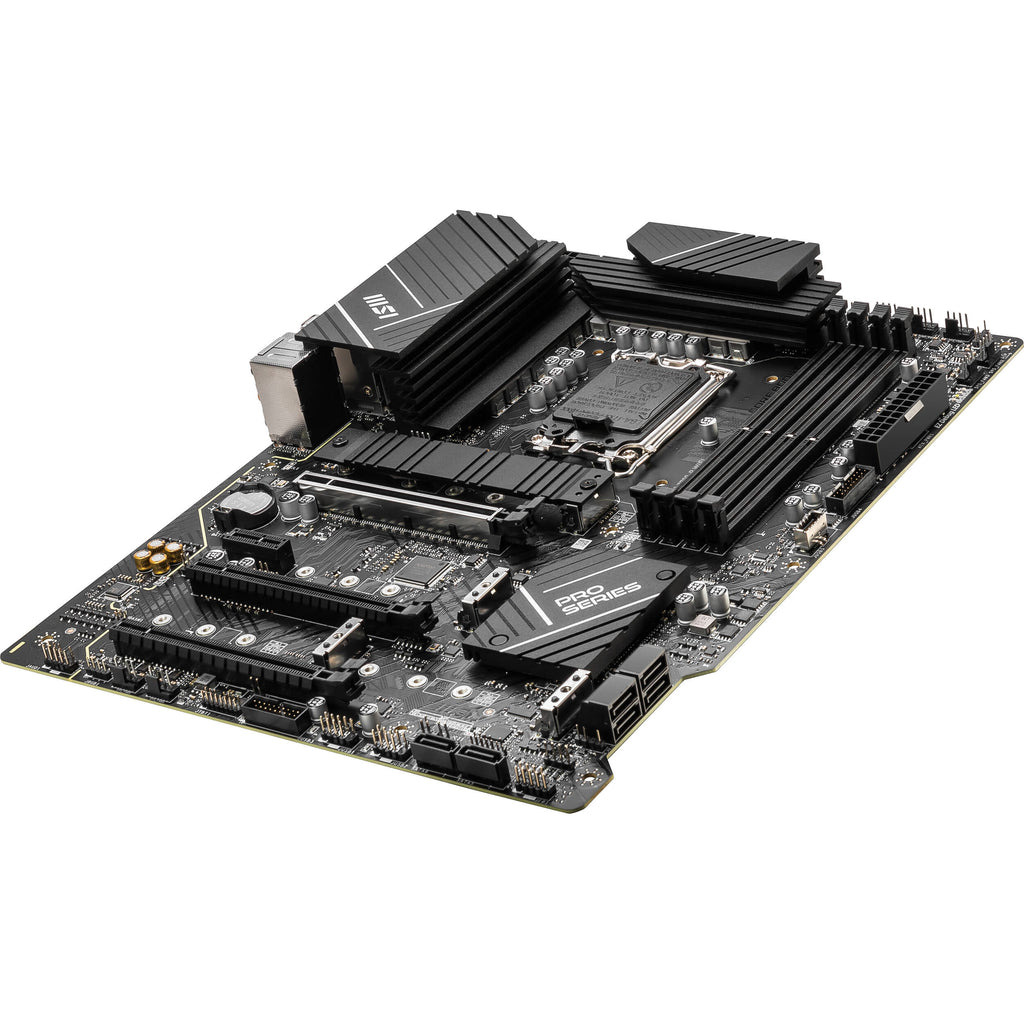

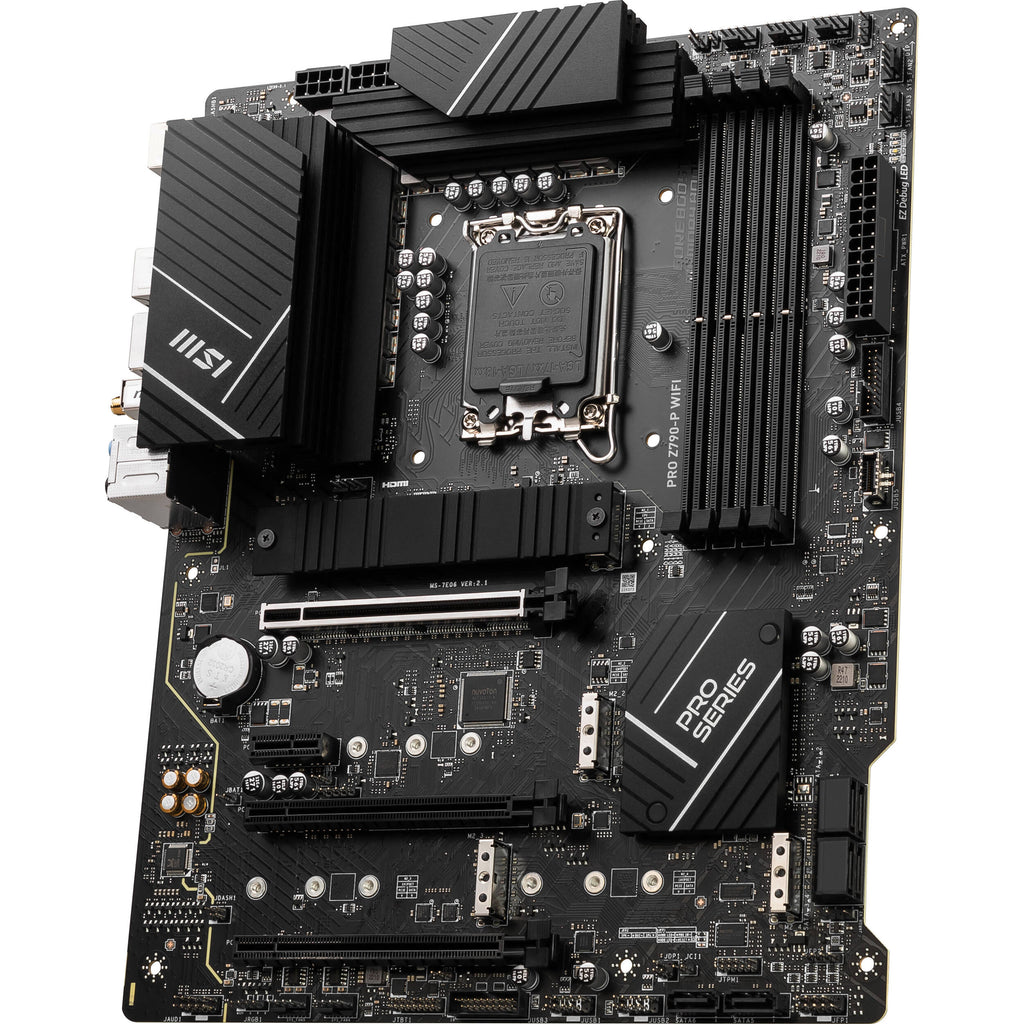

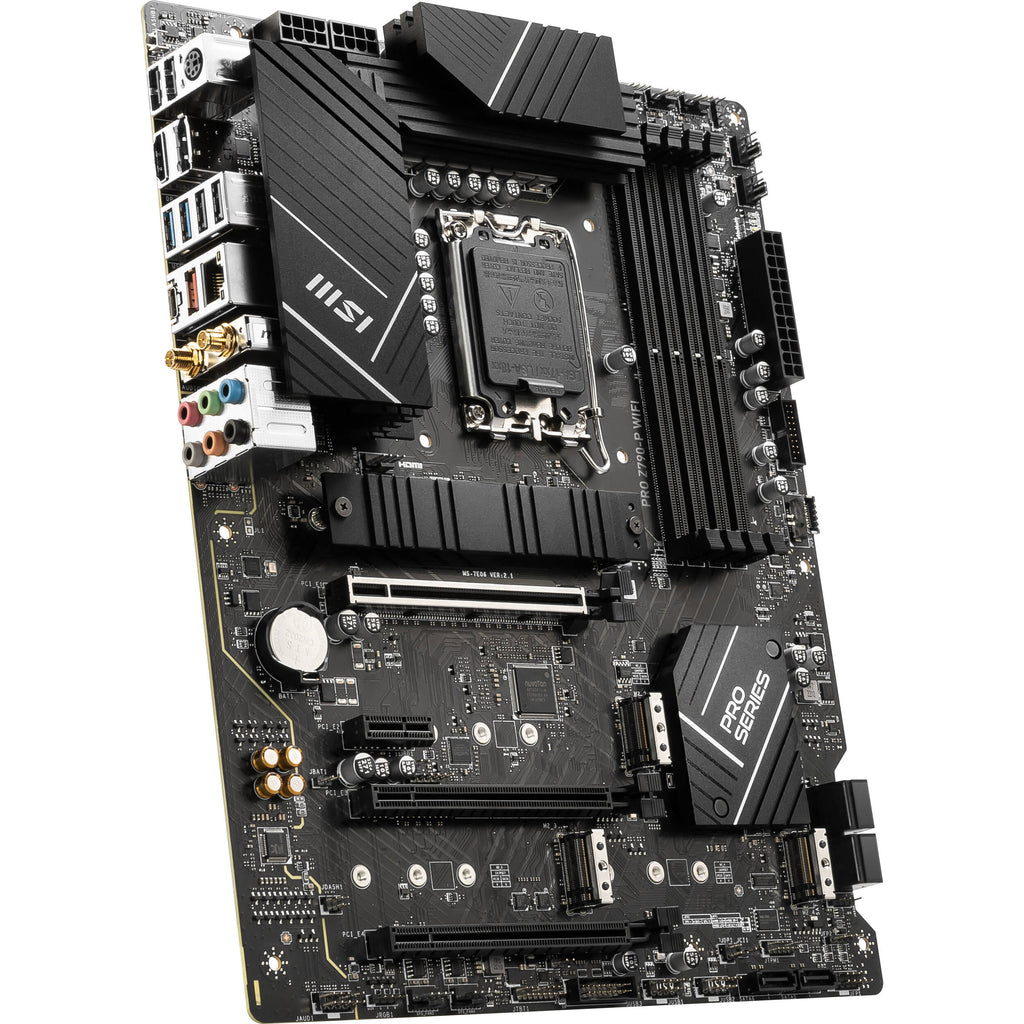

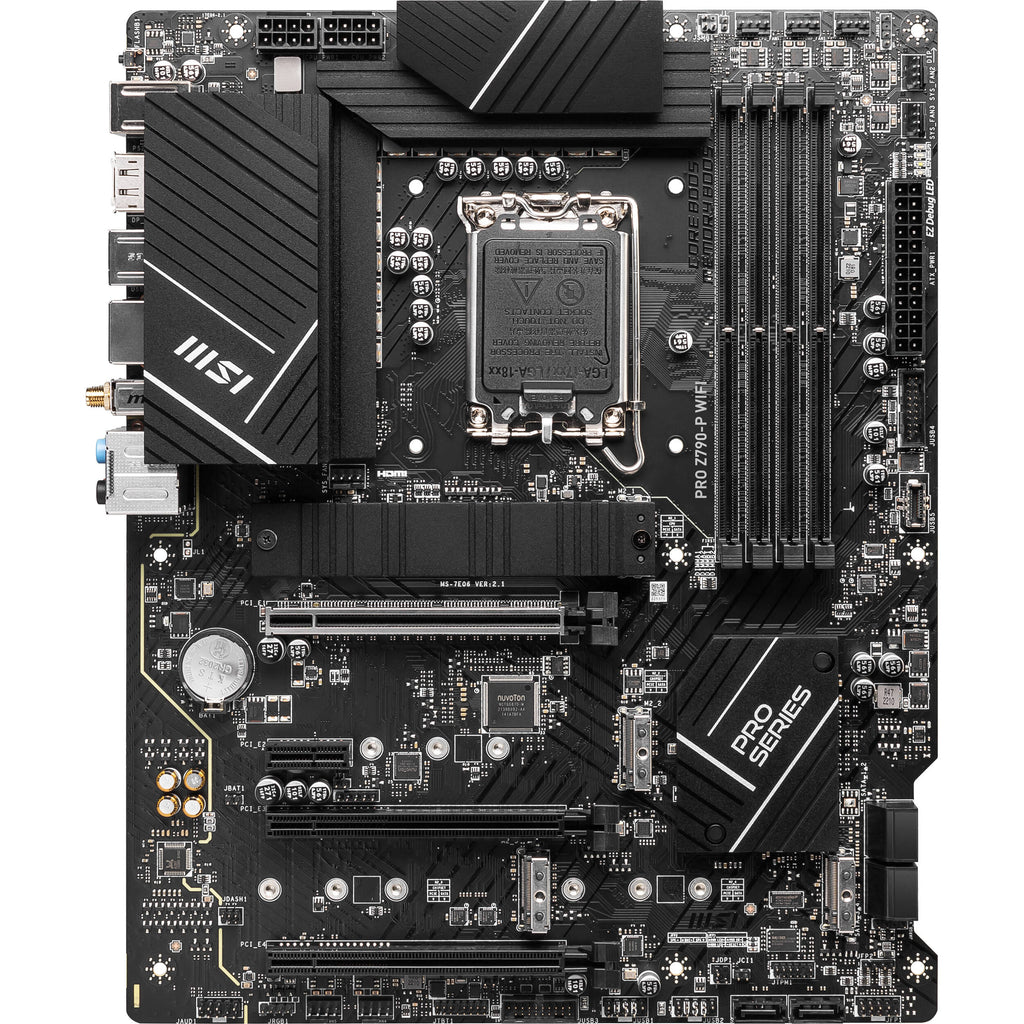

Get ample connectivity and performance with the PRO Z790-P WIFI LGA 1700 ATX Motherboard from MSI. Utilizing the Intel Z790 chipset and LGA 1700 socket, this ATX motherboard sports four DDR5 RAM slots supporting dual channel memory and speeds up to 7000 MHz when overclocked. Six SATA III and four M.2 interfaces provide room for storage and support RAID 0, 1, 5, and 10. Install GPUs or other adapter cards via PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots. Take advantage of fast networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; connect to wireless peripherals in a flash using Bluetooth 5.2.

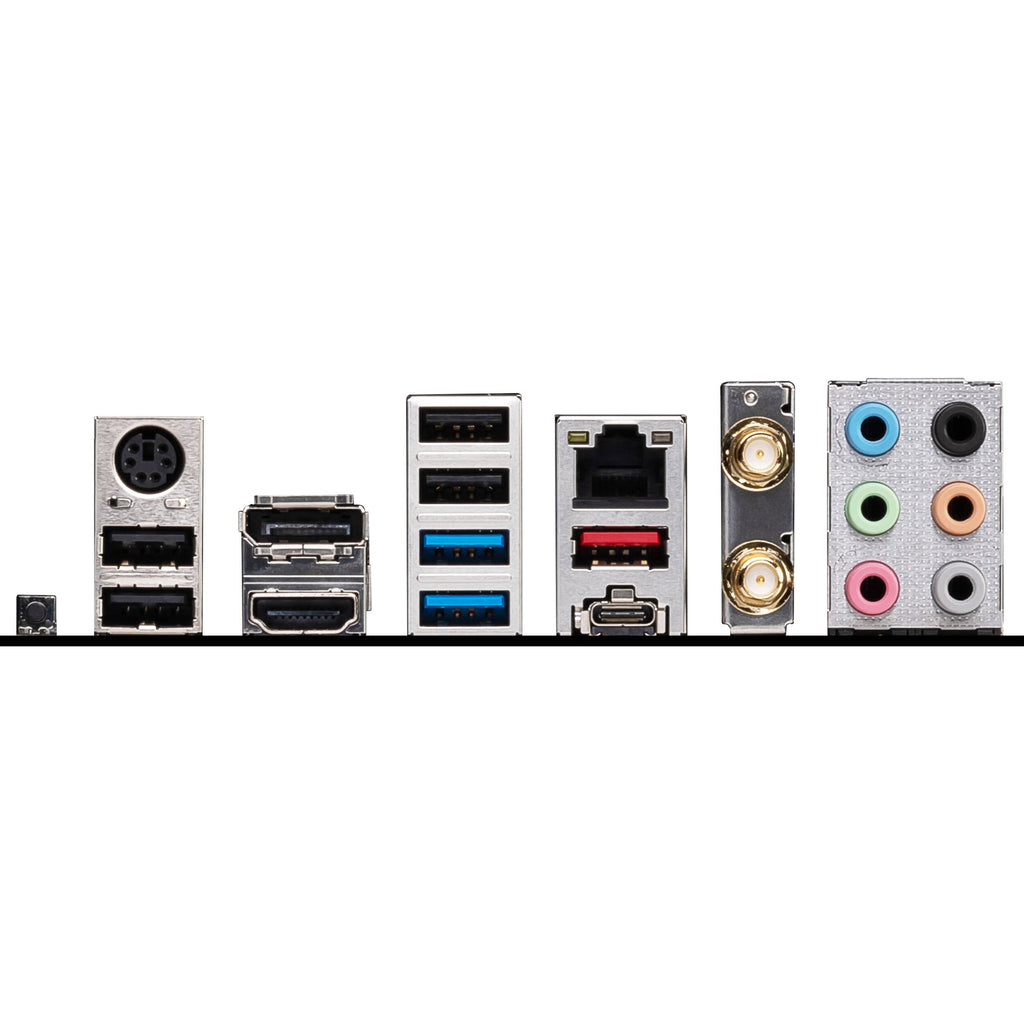

The Realtek ALC897 audio codec supports 7.1 channel surround sound, while rear ports allow for analog output. Connect wired peripherals via a USB 3.2 Gen 2, two Gen 1, and four USB 2.0 Type-A ports, or via a USB 3.2 Gen 2x2 Type-C port. A PS/2 port is also present, allowing for connections to legacy peripherals. Output video via DisplayPort and HDMI. The rear I/O panel also sports a Flash BIOS button, while internal headers provide support for front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connectors, chassis intrusion, a TPM module, and more.

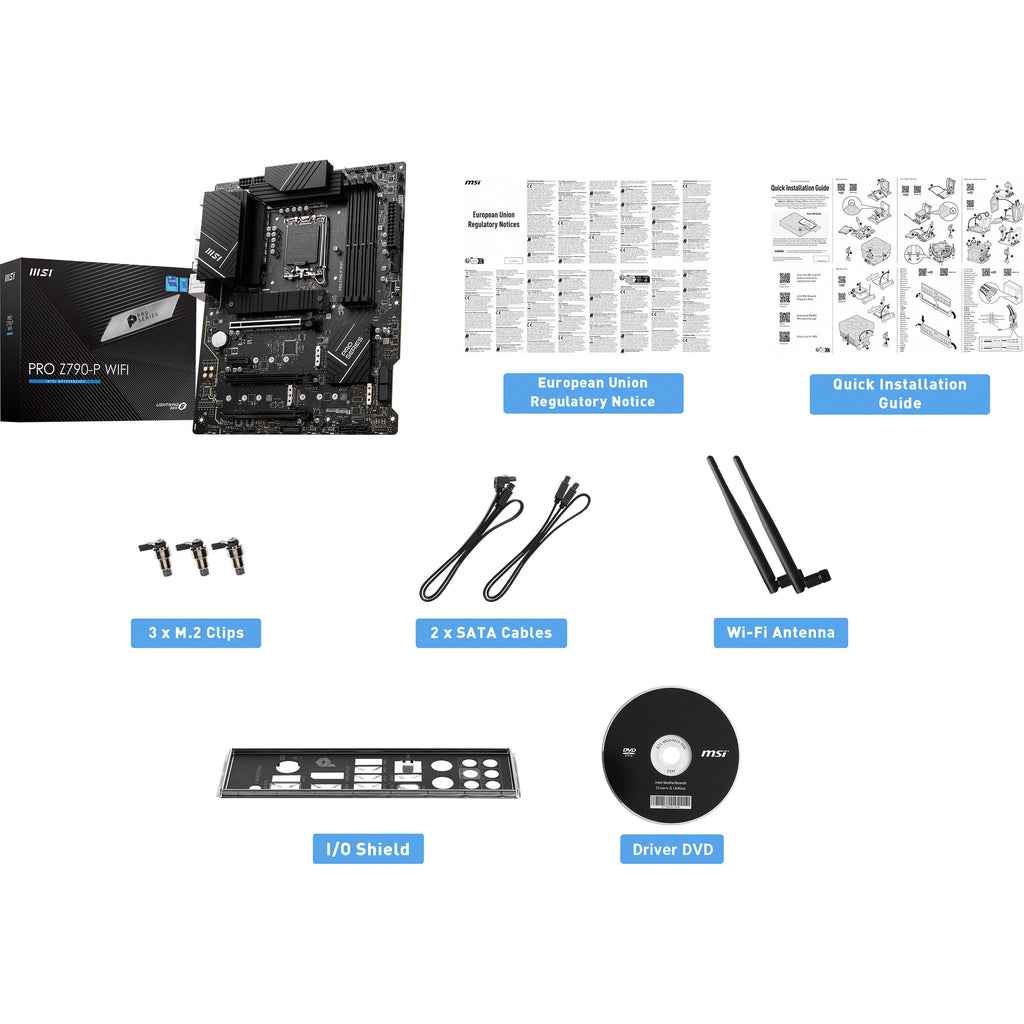

In the Box
- MSI PRO Z790-P WIFI LGA 1700 ATX Motherboard
- 2 x SATA Cables
- I/O Shield
- 3 x M.2 Clip
- Driver DVD
- Wi-Fi Antenna
- Limited 3-Year Manufacturer Warranty
- Description
- LGA 1700 Socket
- Intel Z790 Chipset
- Lightning Gen 5
- DDR5 Memory Support
- 2.5 Gigabit Ethernet
- USB 3.2 Gen 2x2
- M.2 Shield FROZR
- Extended PWM Heat Sink
- M.2 Shield FROZR
- Frozr AI Cooling
- Core Boost Technology
MSI PRO Z790-P WIFI Specs
| Chipset | Intel Z790 |
| CPU Socket | LGA 1700 |
| USB | 1 x USB-C (USB 3.2 Gen 2x2) 1 x USB-A (USB 3.1/3.2 Gen 2) 2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4 x USB-A (USB 2.0) |
| Thunderbolt | None |
| Display | 1 x HDMI 2.1 1 x DisplayPort 1.4 |
| Audio | 6 x 1/8" / 3.5 mm |
| Ethernet / Controller | 1 x Intel 2.5Gigabit |
| PS/2 | 1 x PS/2 |
| Wi-Fi Antenna | 2 x Connector |
| Buttons | BIOS Flashback |
| Memory Slots | 4 x 288-Pin |
| Memory Support | DDR5 5600, 6800, 7000 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 6 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) 2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) |
| RAID Support | RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5, 10 (M.2) |
| Expansion Slots | 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x16 (x1 mode) 1 x PCIe 3.0 x1 |
| USB | 1 x 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling | 1 x 4-Pin CPU 6 x 4-Pin System |
| Liquid Cooling | 1 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard 2 x 8-Pin ATX |
| Security | Chassis Intrusion, TPM Module |
| LED Header | 3 x RGB |
| Audio | None |
| Diagnostics | 2-Digit Debug LED, Clear CMOS |
| ROM | 256 Mb |
| Front Panel I/O | AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2 |
| Audio Codec | Realtek ALC897 (7.1-Channel) |
| Bluetooth | 5.2 |
| Wi-Fi | Wi-Fi 6E (802.11ax) with MU-MIMO Support |
| Wireless | Wi-Fi 6E (802.11ax) / Bluetooth 5.2 |
| Module Support | 1 E Key M.2 |
| Form Factor | ATX |
| Dimensions | 12 x 9.6" / 30.5 x 24.4 cm |
| Package Weight | 3.395 lb |
| Box Dimensions (LxWxH) | 13.6 x 11.1 x 2.7" |
