MSI PRO Z790-A WIFI II LGA 1700 ATX Motherboard

Roll over image to zoom in

MSI PRO Z790-A WIFI II LGA 1700 ATX Motherboard


	₹ 33450.0 includes GST and import duties.
	B2B customers can avail ₹ 5101.13 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	MSI
SKU:	7441397481557
MPN:	PRO Z790-A WIFI II
UPC/HSN:	824142446843

Share this product

MSI WIFI II Overview

Designed for reliable performance and flexible connectivity, the MSI PRO Z790-A WIFI II LGA 1700 ATX Motherboard helps to enhance your build to maximize productivity. Supporting Intel desktop processors with the LGA 1700 socket, professionals and content creators can outfit this motherboard to smoothly handle demanding applications and video editing workloads.

Designed to help simplify builds, MSI makes it easy to install up to four PCIe 4.0 SSDs to store your games library, applications, and important files. There are also six SATA III connectors available. The four DDR5 DIMM slots support up to 256GB, reaching up to 7800 MT/s overclocked speeds. With one PCIe 5.0 x16 slot, one PCIe 4.0 x16 (x4) slot, one PCIe 3.0 x16 (x1), and one PCIe 3.0 x1 slot, you can install powerful graphics cards and other compatible expansions.

The rear panel features a USB-C port that can transfer up to 20 Gb/s with compatible devices. There are also three USB-A 3.2 Gen 2 ports for 10 Gb/s compatible devices alongside two 5 Gb/s USB-A 3.2 Gen 1 ports. Additional peripherals may be connected to the two USB-A 2.0 ports. An internal header allows you to connect a front panel 10 Gb/s USB-C port. Built-in Wi-Fi 6E (802.11ax) support and a 2.5 Gb/s Ethernet port provide you with connections to compatible network devices for smooth 8K video streaming and low-latency online games. Windows 11 64-bit is required to take advantage of all the motherboard's features.

Performance

Enhanced Power

Unleash maximum performance with a VRM design built with a total of direct 16+1+1 power phases and 80A power stage.

Optimized PCB

With an 8-layer design and 2oz of thickened copper, the PCB has been optimized for higher bandwidth and faster transfer speeds.

DDR5 Memory Support

High-performance DDR5 memory works with a dedicated SMT welding process and MSI Memory Boost technology to deliver exceptional performance.

Expansion

PCIe 5.0

Doubling the speed of the previous generation, the PCIe 5.0 x16 interface can reach 128 GB/s.

SMT PCIe 5.0 Slot

The advanced SMT (Surface Mount Technology) PCIe slot diminishes interference and electrical noise to fully support the PCI-E 5.0 signal.

Steel Armor II

Compared to the previous generation, Steel Armor II's weight endurance has increased by 21%, ensuring excellent signal transmission quality.

DIY Friendly

Flash BIOS

Flash the BIOS with only a connected power supply and a flash drive. No CPU or memory required.

XL Clip

An enlarged clip helps to simplify the removal of expansion cards.

EZ Debug LED

Onboard LEDs indicate the source of problems so that you can quickly troubleshoot them.

Keep Out Zone

The motherboard's circuitry design ensures that the case standoff keep out zones keep the area clean while protecting the paint printed around each screw hole to help prevent scratches and damage.

Protection

Stainless Steel I/O Shield

A corrosion resistant I/O shield helps improve static electricity protection while reducing electromagnetic radiation noise from the system.

Transient Voltage Suppressors (TVS)

Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All MSI motherboards are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

Overcurrent Protection

Embedded Overcurrent Protection (OCP) ensures that crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This reduces the risk of damage or malfunction due to power surges.

Grounding Structure

MSI's grounded structure design suppresses the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane.

Connectivity

Audio Boost 5

Enjoy studio grade sound quality for immersive gaming experiences.

Mystic Light

Customize RGB lighting with a variety of effects and sync them with Mystic Light compatible peripherals.

UPC: 824142446843

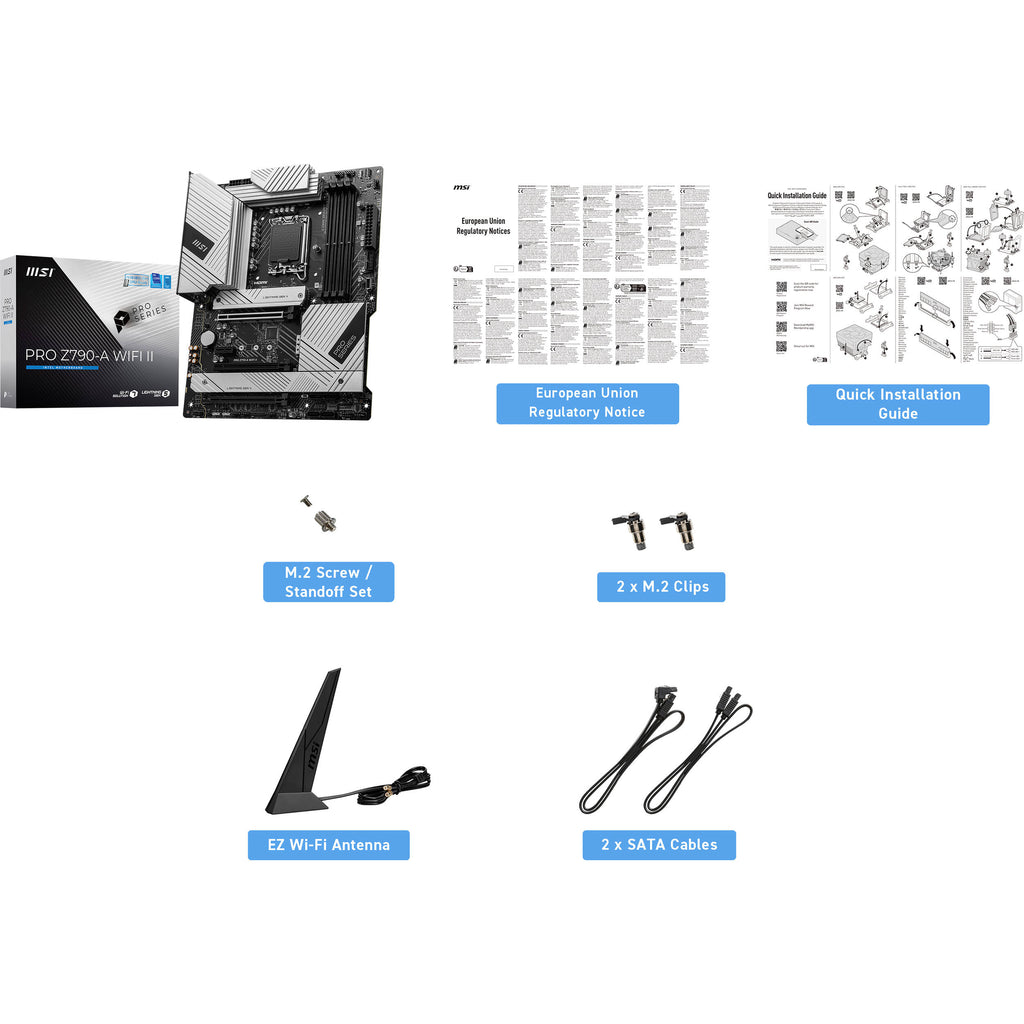

Items Included

MSI PRO Z790-A WIFI II LGA 1700 ATX Motherboard
2 x SATA III Cable
EZ Wi-Fi Antenna
M.2 Screw & Standoff Set
2 x M.2 Clip
Limited 3-Year Manufacturer Warranty

Additional Resources

User Manual

5.3 MB

MSI WIFI II Specs

Key Specs

Chipset	Intel Z790
CPU Socket	LGA 1700
Memory Slots	4x 288-Pin
Memory Type Support	DDR5, 7800 MT/s Maximum Supported Speed
M.2 Slots	22110 / 2280
Expansion Slots	3x PCIe 5.0 x16 1x PCIe 3.0 x1
Wi-Fi	Wi-Fi 6E (802.11ax)
Form Factor	ATX

CPU

Chipset	Intel Z790
CPU Socket	LGA 1700

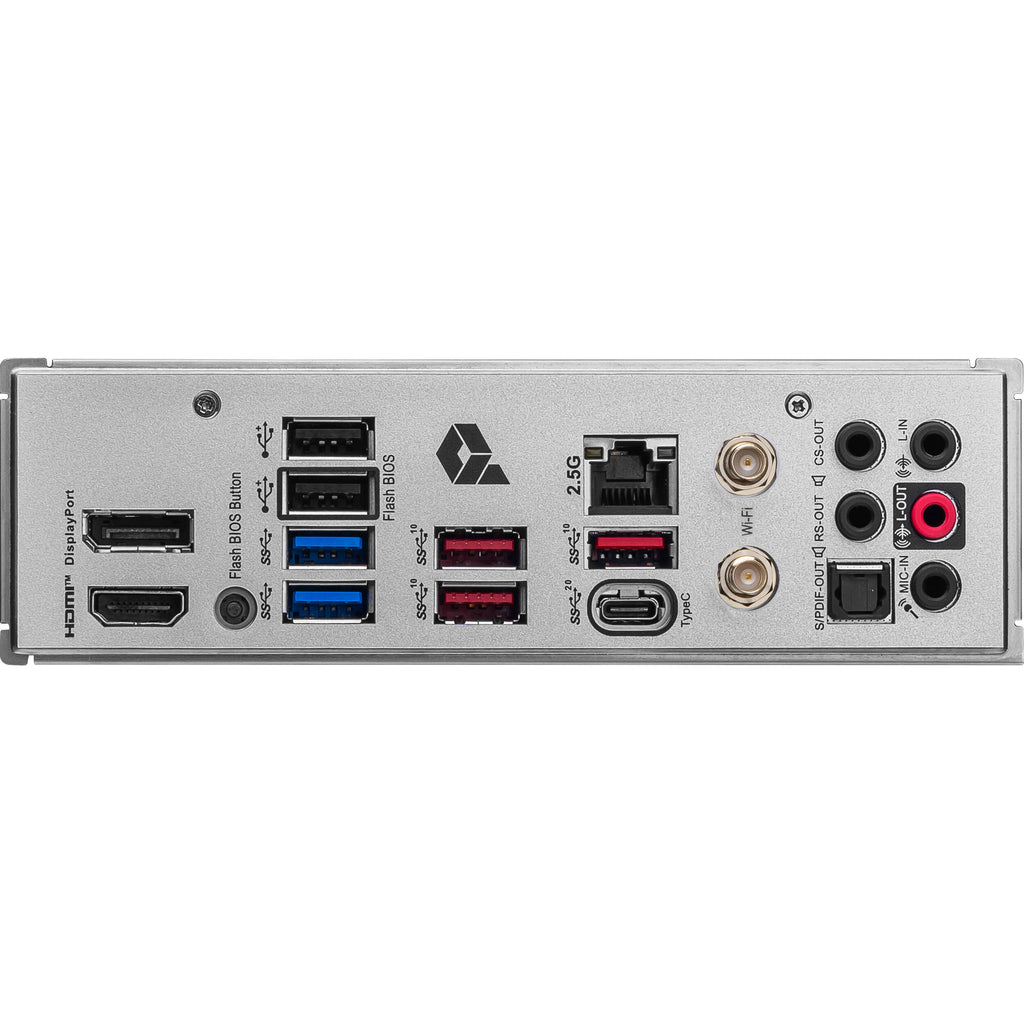

Back Panel I/O

USB	1x USB-C (USB 3.2 Gen 2x2) 3x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI 1x DisplayPort
Audio	5x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller	No
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback

Memory

Memory Slots	4x 288-Pin
Memory Type Support	DDR5, 7800 MT/s Maximum Supported Speed
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	6x SATA III
M.2 Slots	1x M.2 (M Key) 22110/2280/2260/2242 (PCIe 4.0 x4) 1x M.2 (M Key) 2280/2260/2242 (PCIe 4.0 x4) 2x M.2 (M Key) 2280/2260/2242 (PCIe 4.0 x4 / SATA III)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5, 10 (M.2)

Internal I/O

Expansion Slots	3x PCIe 5.0 x16 1x PCIe 3.0 x1
USB	1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling	1x 4-Pin CPU 6x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 2x 12V-2X6 (12VHPWR)
Security	Chassis Intrusion, TPM Module
LED Header	8x RGB
Diagnostics	Clear CMOS
Add-On	1x USB4 Expansion Card Header

BIOS

ROM

256 Mb

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1

Audio

Audio Codec	Realtek ALC4080 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 6E (802.11ax): Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth	Bluetooth 5.3

Software

OS Compatibility

Windows 11 (64-Bit Only)

Physical

Form Factor	ATX
Dimensions	9.6 x 12" / 24.4 x 30.5 cm

Packaging Info

Package Weight	4.25 lb
Box Dimensions (LxWxH)	14.3 x 11.4 x 2.8"
