MSI PRO H610M-G WIFI DDR4 Overview
-
1Description
-
2Video Support
-
37.1-Channel Audio
-
4Networking
-
5Legacy Support
-
6Power Enhancements
-
7User-Friendly Design

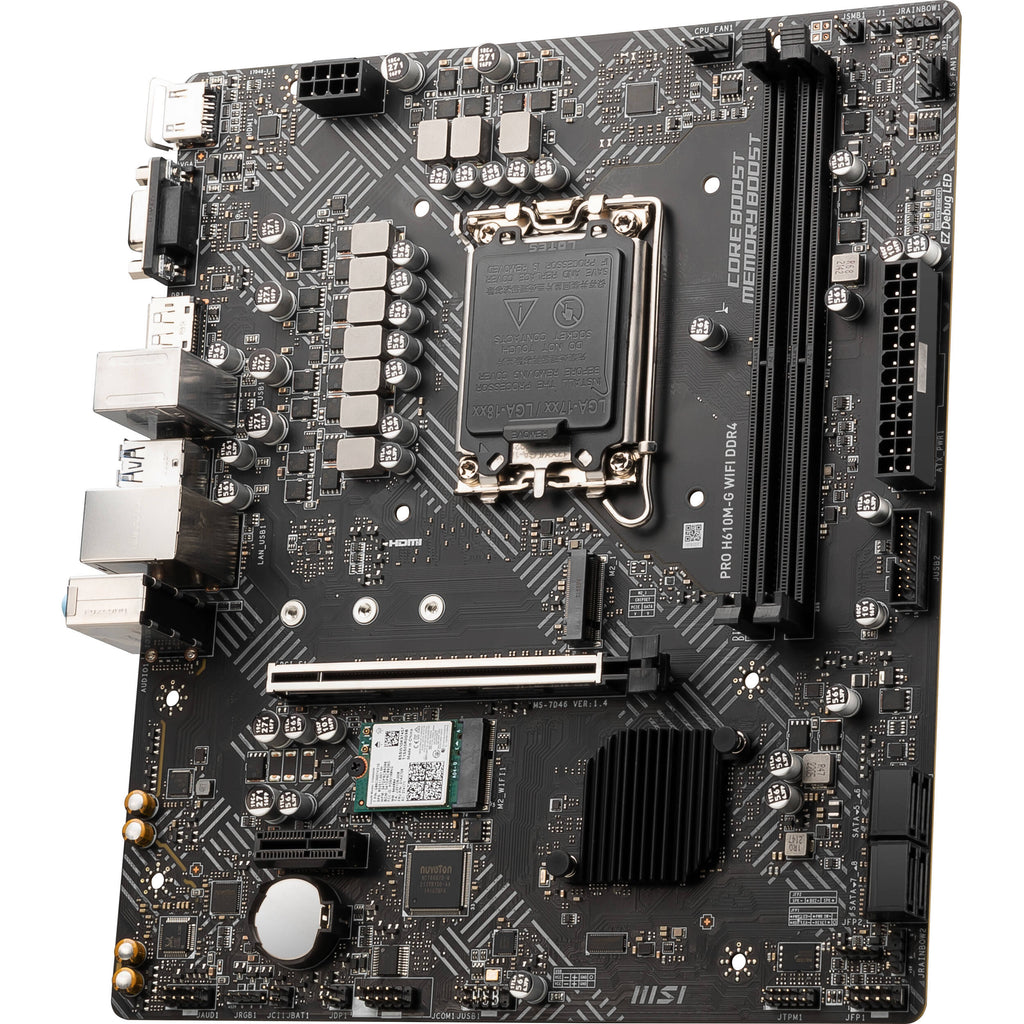

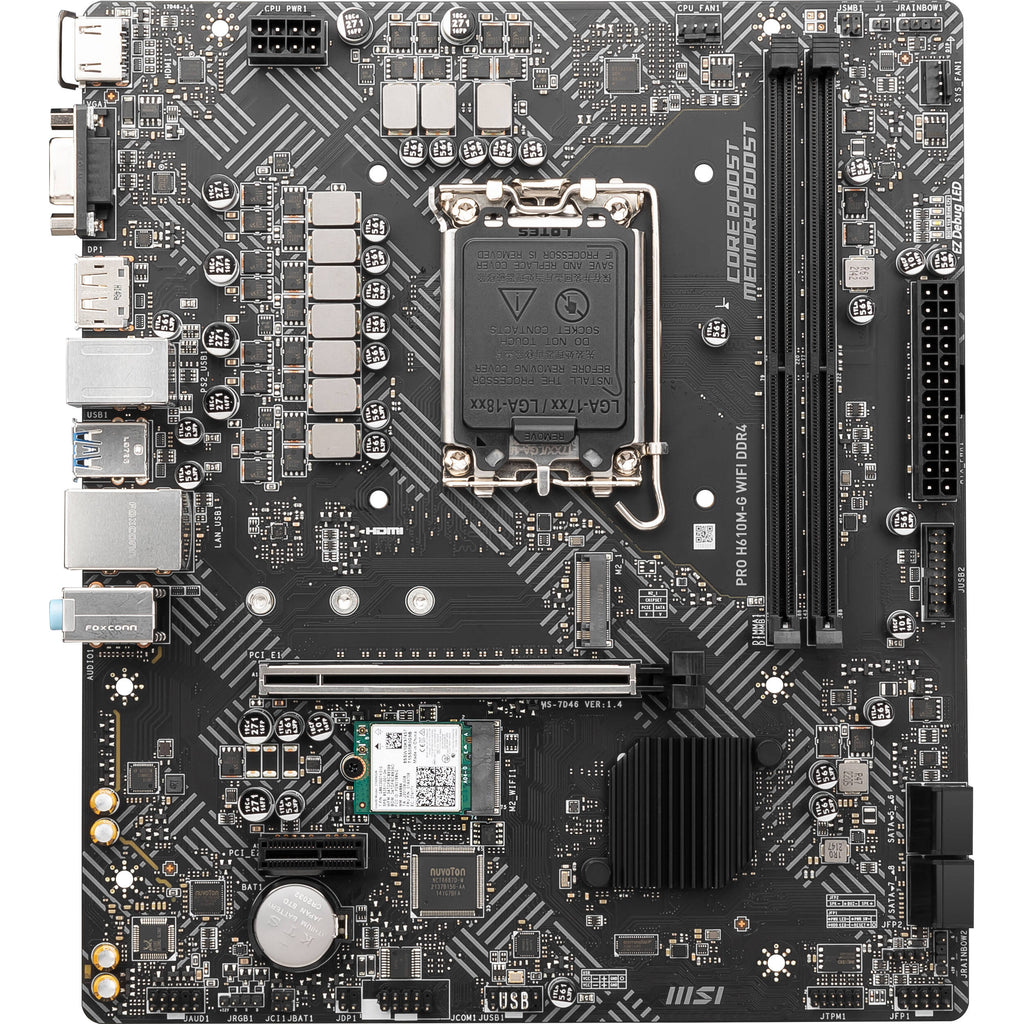

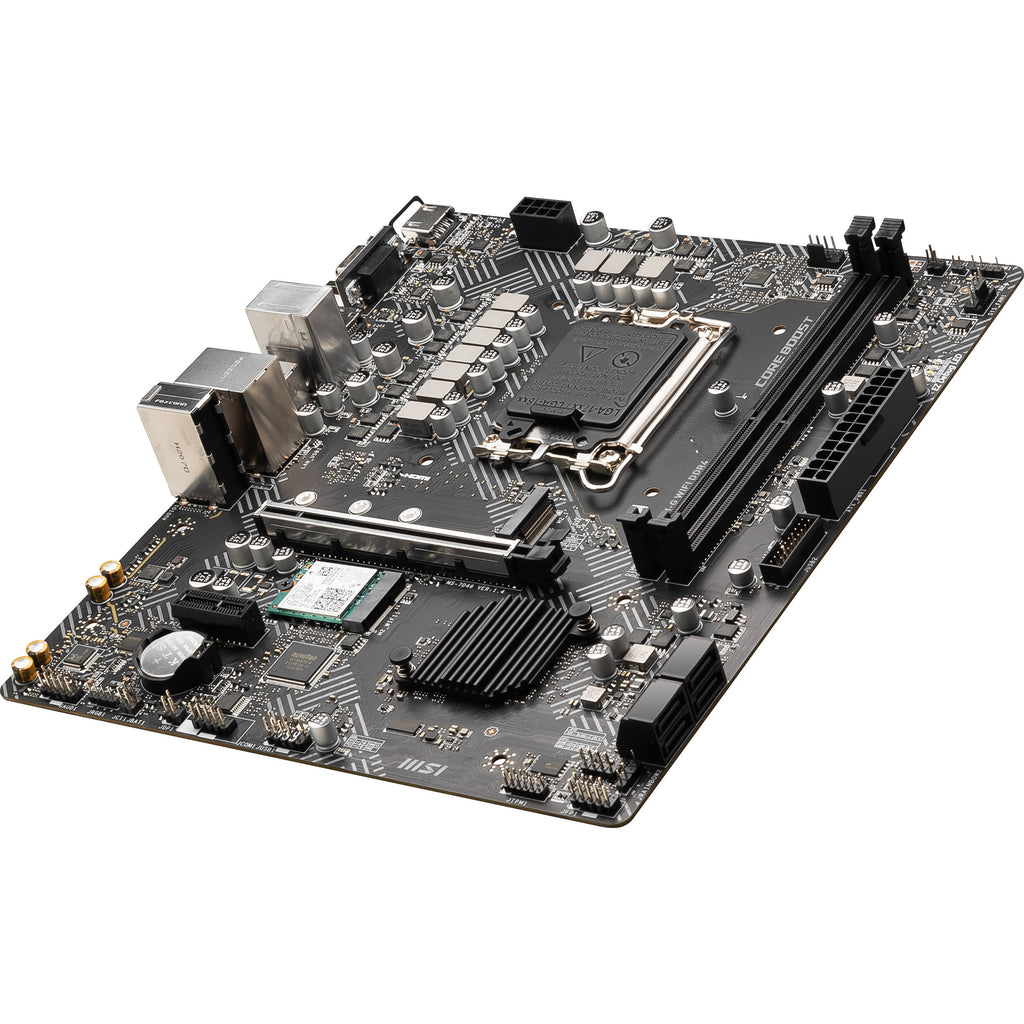

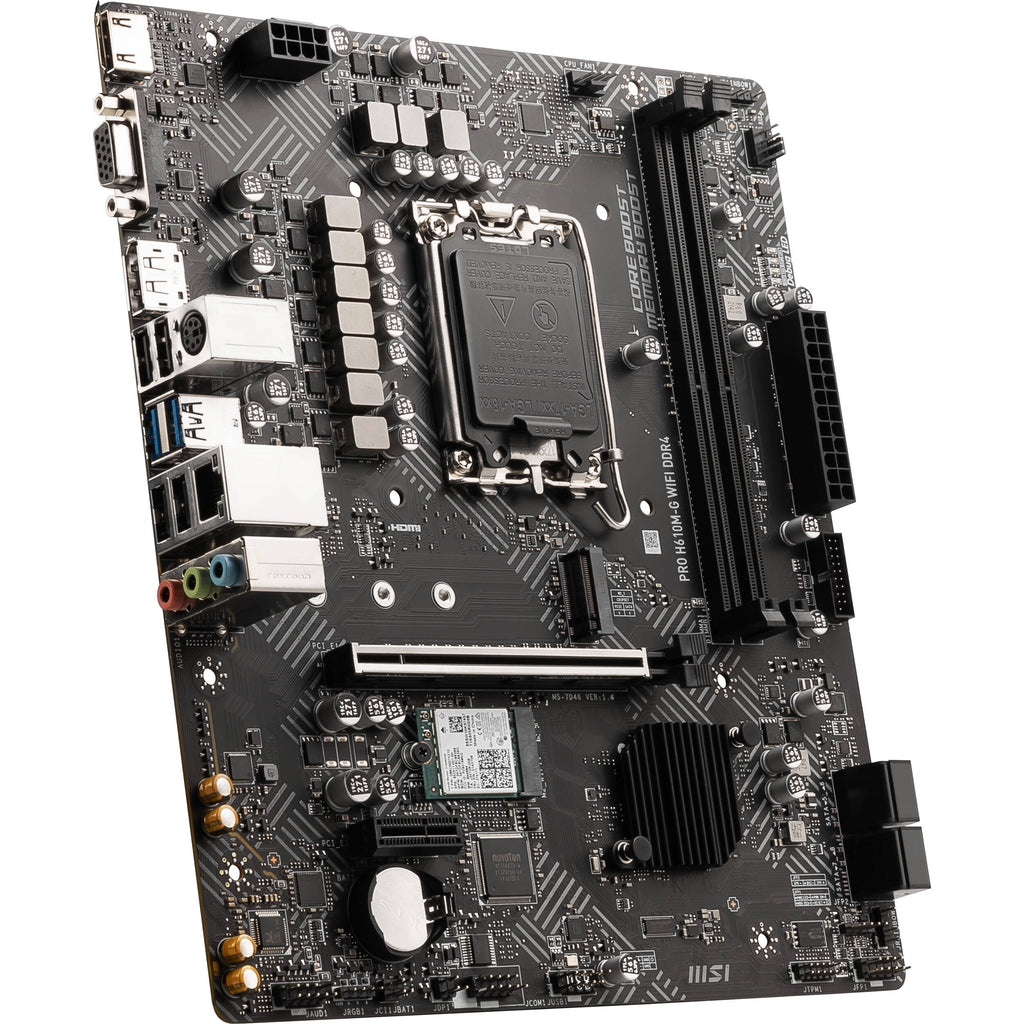

Designed for business-focused builds or replacing dead and out-of-warranty components, the MSI PRO H610M-G WIFI DDR4 LGA 1700 Mini-ATX Motherboard offers support for legacy systems while also embracing the power of Intel's 12th and 13th Gen processor family, giving you enhanced performance for professional applications and programs.
Running on the H610 chipset, you get access to an LGA 1700 socket designed for Intel's 12th and 13th gen Core processors as well as Pentium Gold and Celeron CPUs. Two dual-channel DDR4 slots allow you to install up to 64GB of RAM for quicker rendering and multitasking capabilities. Amass a range of storage drives with four SATA III ports and one M.2 interface that enhances system load times and streamlines production with reduced application load times. Install graphics and utility cards with one PCIe 4.0 x16 and one PCIe 3.0 x1 expansion slot. Plug in various low-powered peripherals such as mice and keyboards with several USB-A 2.0 ports. USB-A 3.2 Gen 1 ports allow you to quickly transfer data up to 5 Gb/s and support resource-demanding devices such as microphones, webcams, and more.
For processors that support integrated graphics, you get access to HDMI and DisplayPort video outputs as well as one VGA port for legacy hardware.
Whether you are working on your next presentation or enjoying some of your favorite streaming media, the 7.1-channel audio gives you a deep and immersive experience backed by Realtek's ALC892 and ALC897 codecs.
A single RJ45 Gigabit Ethernet port allows you to utilize a wired network connection with enhanced speeds suitable for accessing your network, downloading assets, and conduct online video calls with minimal lag.
A single PS2 combo port is available so you can connect legacy peripherals such as compatible mice and keyboards, allowing you to still use your previous devices if you prefer.
Achieve optimal performance with MSI's Lightning Gen 4 PCIe, Memory Boost, and Core Boost technologies which enhance the throughput of your system.
The PRO sports a user-friendly design that incorporates various improvements to help seasoned and new builders get their system off the ground. Fan headers and AI cooling assist with keeping your system thermally safe. EZ DEBUG LED lights make troubleshooting easy by telling you which components are experiencing issues. A Steel Armor PCIe slot uses a reinforced metal covering to support the graphics card by leveraging additional solder points for extra reliability.

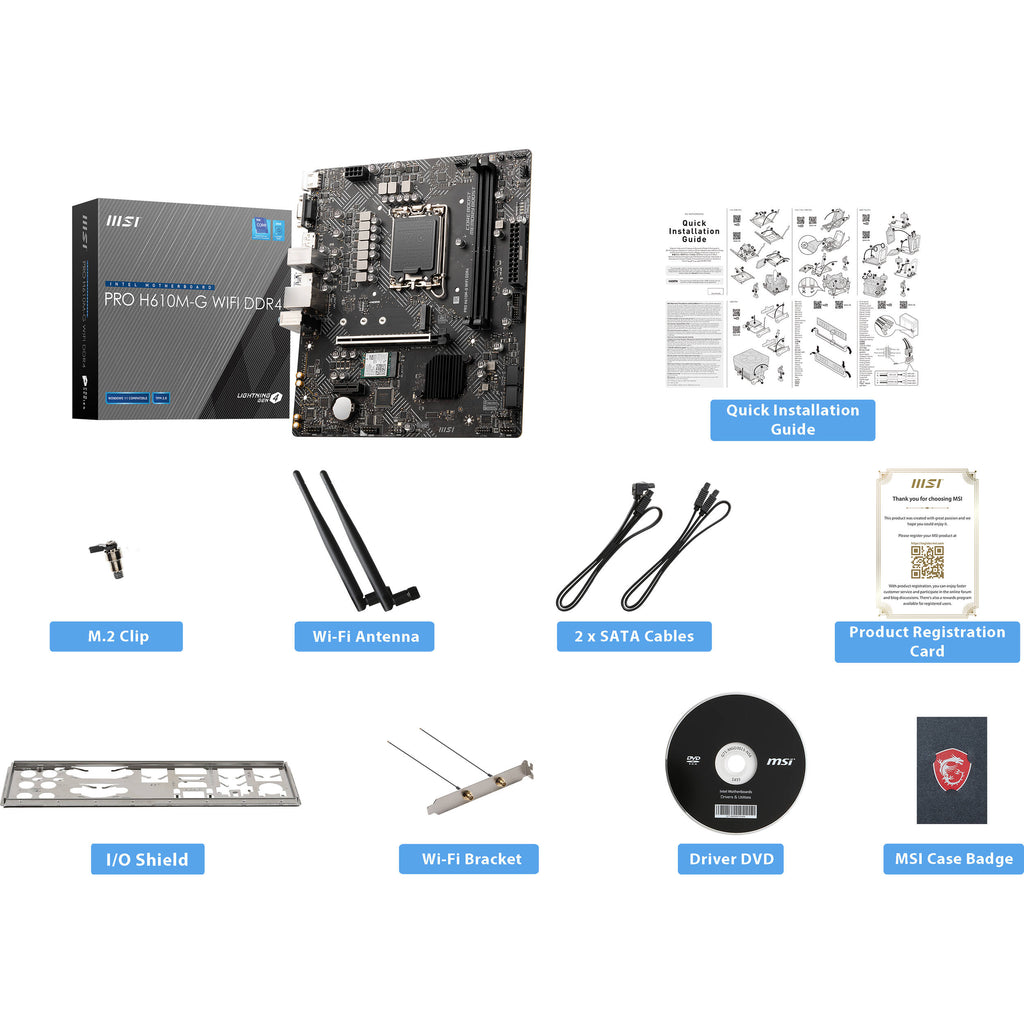

In the Box
- MSI PRO H610M-G WIFI DDR4 LGA 1700 Mini-ATX Motherboard
- M.2 Clip
- 2 x SATA Cables
- I/O Shield
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Video Support
- 7.1-Channel Audio
- Networking
- Legacy Support
- Power Enhancements
- User-Friendly Design
MSI PRO H610M-G WIFI DDR4 Specs
CPU
| Chipset |
Intel H610 |
| CPU Socket |
LGA 1700 |

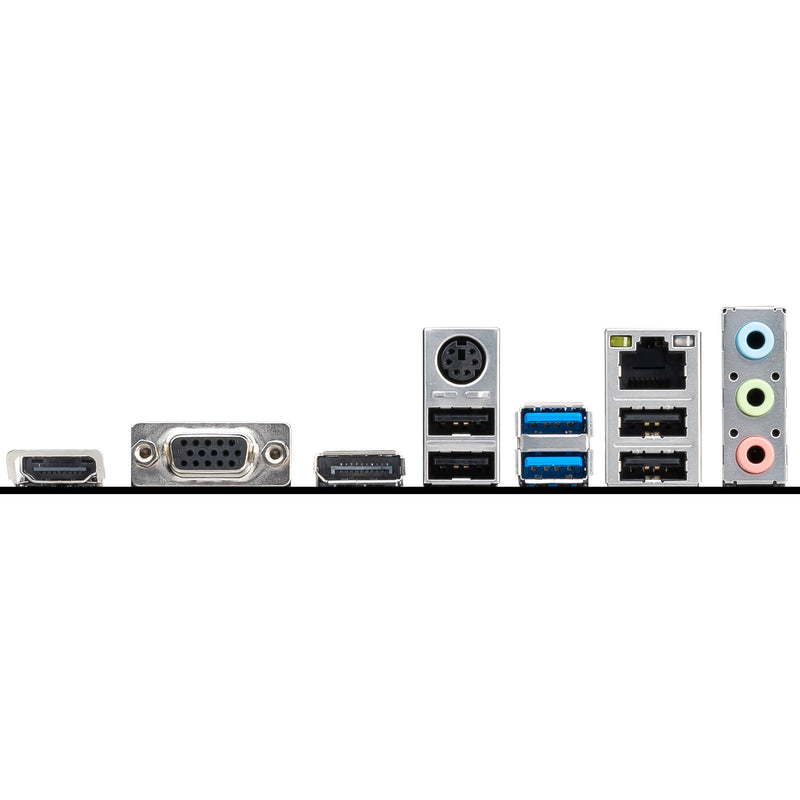

Back Panel I/O
| USB |
2 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4 x USB-A (USB 2.0) |
| Thunderbolt |
None |
| Display |
1 x HDMI
1 x VGA
1 x DisplayPort |
| Audio |
3 x 1/8" / 3.5 mm |
| Ethernet / Controller |
1 x Intel Gigabit |
| PS/2 |
1 x Combo |
Memory
| Memory Slots |
2 x 288-Pin |
| Memory Support |
DDR4 2133, 2666, 2933, 3200 MHz |
| Maximum Capacity |
64 GB |
| Channel Architecture |
Dual Channel |
| ECC Support |
Non-ECC Unbuffered |
Storage Expansion
| SATA |
4 x SATA III |
| M.2 |
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) |
Internal I/O
| Expansion Slots |
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1 |
| USB |
1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1 x 2.0 Header (Supports 2 USB-A Port) |
| Air Cooling |
1 x 4-Pin CPU
1 x 4-Pin System |
| Power Connectors |
1 x 24-Pin Mainboard
1 x 8-Pin ATX |
| Security |
Chassis Intrusion, TPM Header |
| LED Header |
3 x RGB |
| Audio |
None |
| Diagnostics |
Clear CMOS |
Front Panel I/O
| Front Panel I/O |
AAFP, USB 3.0 / 3.1/3.2 Gen 1 |
Audio
| Audio Codec |
Realtek ALC892 / ALC897 (7.1-Channel) |
Software
| OS Compatibility |
Windows 11
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Physical
| Form Factor |
Micro-ATX |
| Dimensions |
9.61 x 8.31" / 24.41 x 21.11 cm |
Packaging Info
| Package Weight |
1.79 lb |
| Box Dimensions (LxWxH) |
11.1 x 10.3 x 2.2" |
