Description
MSI B860M-A WiFi Overview

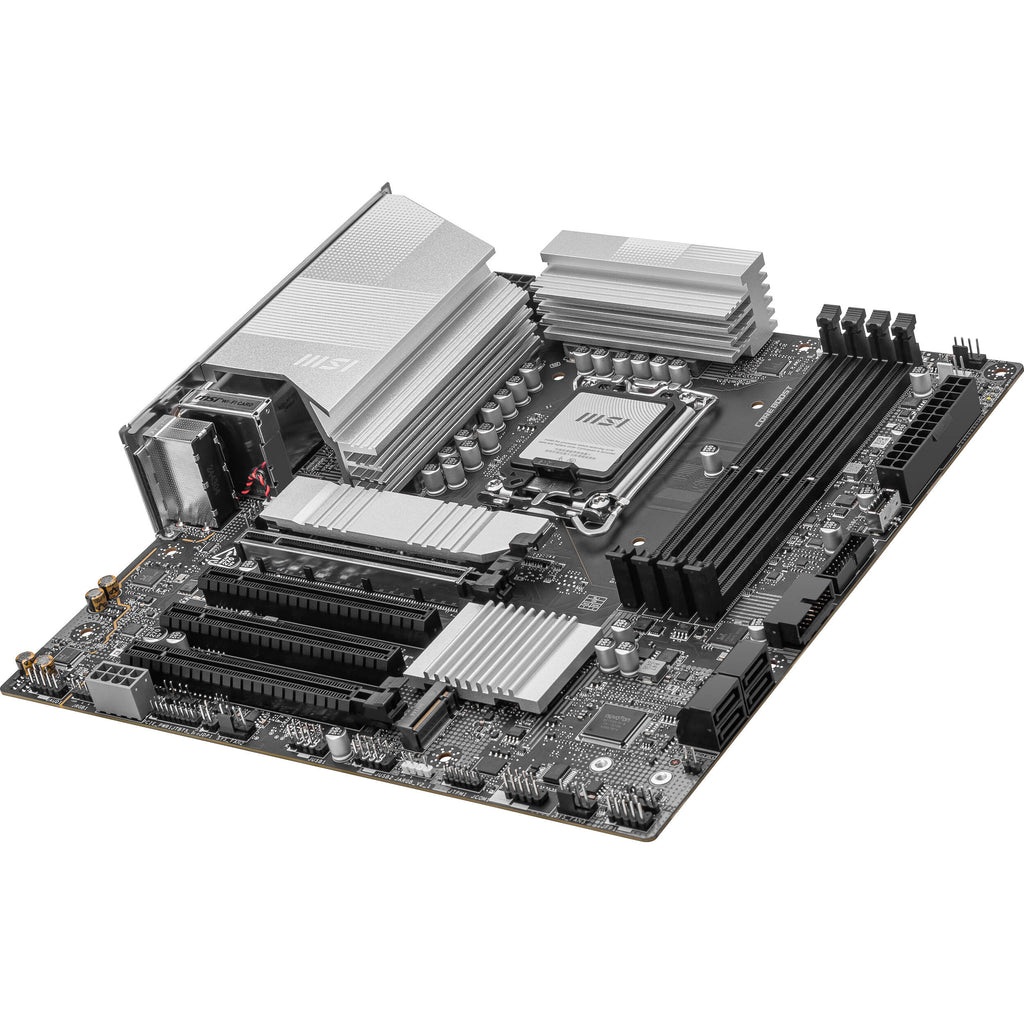

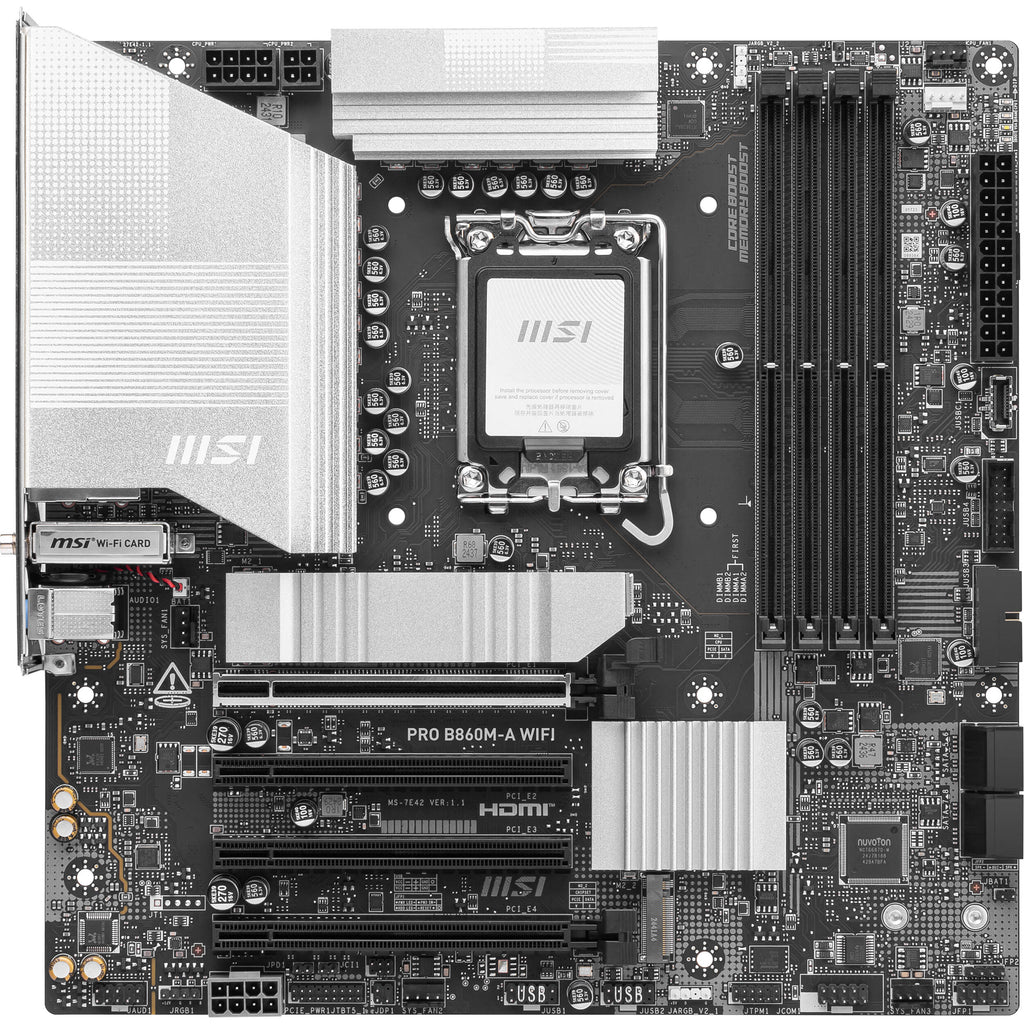

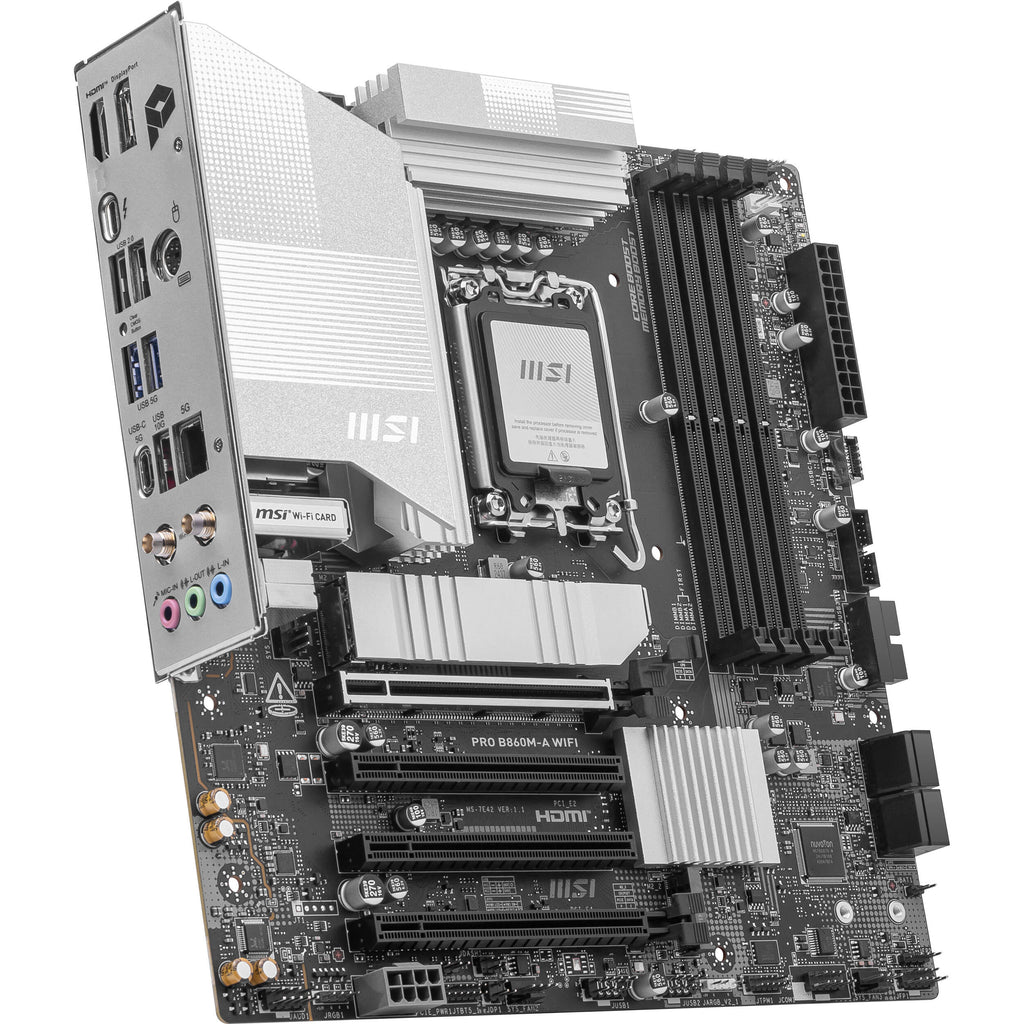

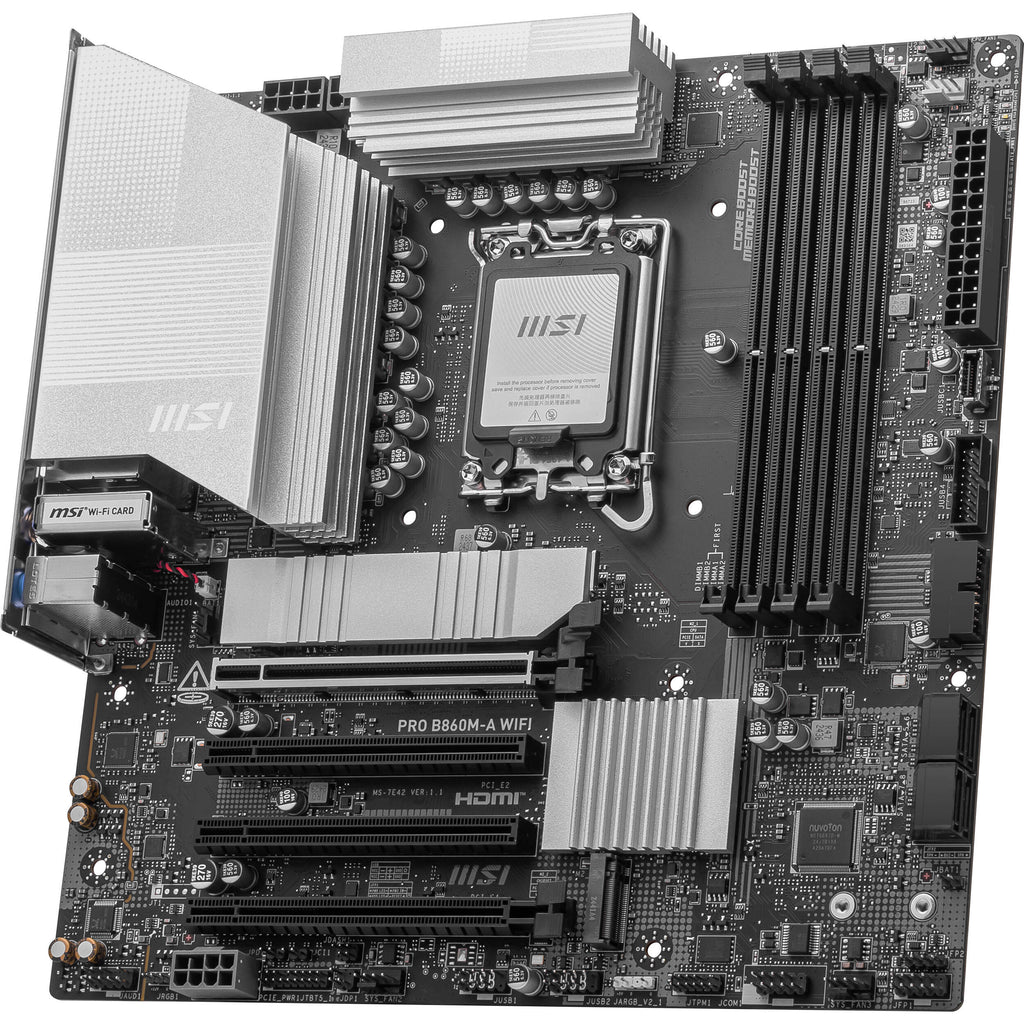

Enhance your professional workstation or gaming rig with the PRO B860M-A WIFI LGA 1851 mATX Motherboard from MSI. Featuring a premium design with support for overclocking, this micro-ATX motherboard delivers a comprehensive and versatile experience for gamers looking to optimize their setup.

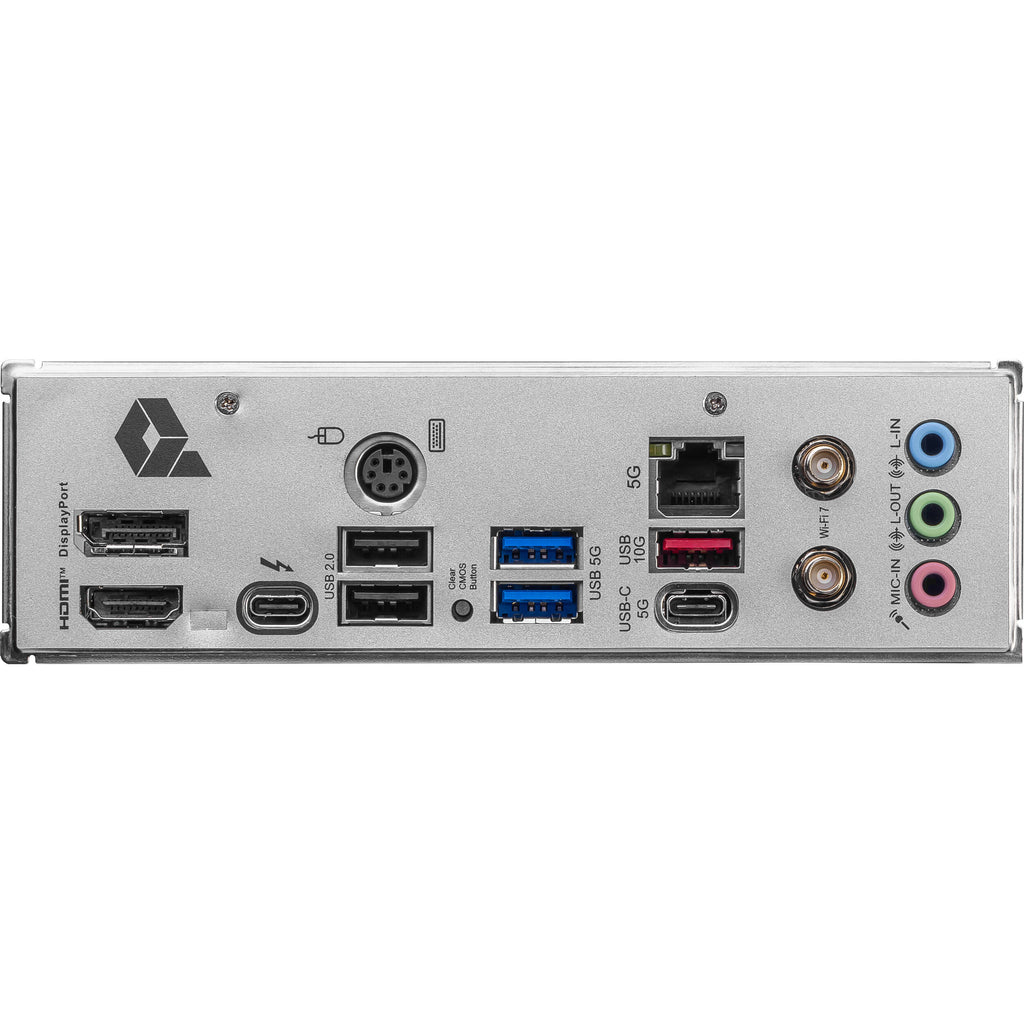

Supporting the LGA 1851 socket and B860 chipset, you can install an Intel Core Ultra Series 2 processor and customize the performance to fit your needs. Up to 256GB of dual-channel 8800 MHz DDR5 memory may be installed in overclocked mode across four slots to deliver smooth multitasking. A PCIe 5.0 x16 expansion slot allows you to utilize Nvidia's 50-series graphics cards and still have access to additional PCIe 4.0 slots. In addition to four SATA III drives, you can install lightning-fast SSDs into the M.2 NVMe PCIe 5.0 slot and the two additional M.2 NVMe PCIe 4.0 slots. The rear panel features one Thunderbolt 4 port that can transfer up to 40 Gb/s with compatible devices or connect a USB-C compatible 8K display. There is also one 10 Gb/s USB-A port, two 5 Gb/s USB-A ports, one 5 Gb/s USB-C port, and two USB 2.0 connectors. Integrated Wi-Fi 7 (802.11b) support and a 5G Ethernet port let you connect to compatible high-speed networks. Windows 11 64-bit is required to take advantage of all the motherboard's features.
Front-panel headers support one 10 Gb/s USB-C port alongside four USB-A 2.0 ports and four 5 Gb/s USB-A ports.

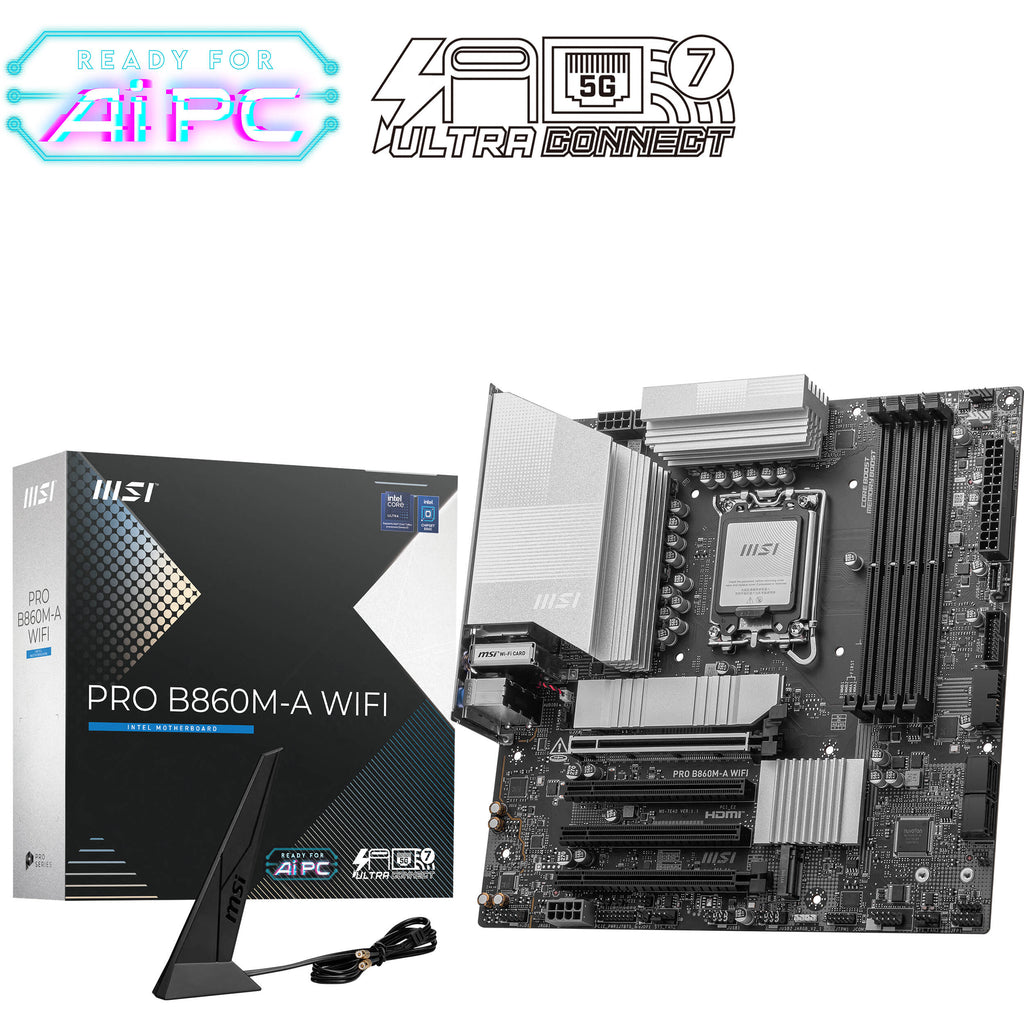

- MSI PRO B860M-A WIFI LGA 1851 mATX Motherboard
- 2 x M.2 Screw / Standoff Set
- 2 x EZ M.2 Clip II
- EZ M.2 Clip II Remover
- EZ Wi-Fi Antenna
- SATA Cable
- Limited 3-Year Manufacturer Warranty
MSI B860M-A WiFi Specs
| Chipset |
Intel B860
|
| CPU Socket |
LGA 1851
|
| Memory Slots |
4x 288-Pin
|
| Memory Type Support |
DDR5, 8800 MT/s Maximum Supported Speed
|
| M.2 Slots |
2280
|
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x4 2x PCIe 4.0 x1 |
| Wi-Fi |
Wi-Fi 7 (802.11be)
|
| Form Factor |
Micro-ATX
|
| Chipset |
Intel B860
|
| CPU Socket |
LGA 1851
|
| USB |
1x USB-C (USB 3.0 / 3.1/3.2 Gen 1)
1x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 2.0) |
| Thunderbolt |
1x Thunderbolt 4
|
| Display |
1x HDMI
1x DisplayPort |
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
No
|
| Wi-Fi Antenna |
2x Connector
|
| Memory Slots |
4x 288-Pin
|
| Memory Type Support |
DDR5, 8800 MT/s Maximum Supported Speed
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
| SATA |
4x SATA III
|
| M.2 Slots |
1x M.2 (M Key) 2280/2260/2242 (PCIe 5.0 x4)
1x M.2 (M Key) 2280/2260 (PCIe 4.0 x4) 1x M.2 (M Key) 2280 (PCIe 4.0 x2) |
| RAID Support |
RAID 0, 1, 5, 10 (SATA)
|
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x4 2x PCIe 4.0 x1 |
| USB |
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port) 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) |
| Air Cooling |
1x 4-Pin CPU
3x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin ATX 1x 4-Pin ATX |
| Security |
Chassis Intrusion, TPM Module
|
| LED Header |
7x RGB
|
| ROM |
256 Mb
|
| Front Panel I/O |
AAFP
|
| Audio Codec |
Realtek ALC897 (7.1-Channel)
|
| DAC |
No
|
| Wi-Fi |
Wi-Fi 7 (802.11be): Tri-Band (2.4, 5, & 6 GHz)
|
| Bluetooth |
Bluetooth 5.4
|
| OS Compatibility |
Windows
|
| Form Factor |
Micro-ATX
|
| Dimensions |
9.6 x 9.6" / 243.8 x 243.8 mm
|
| Package Weight |
3.115 lb
|
| Box Dimensions (LxWxH) |
11.4 x 11 x 2.8"
|
