Description

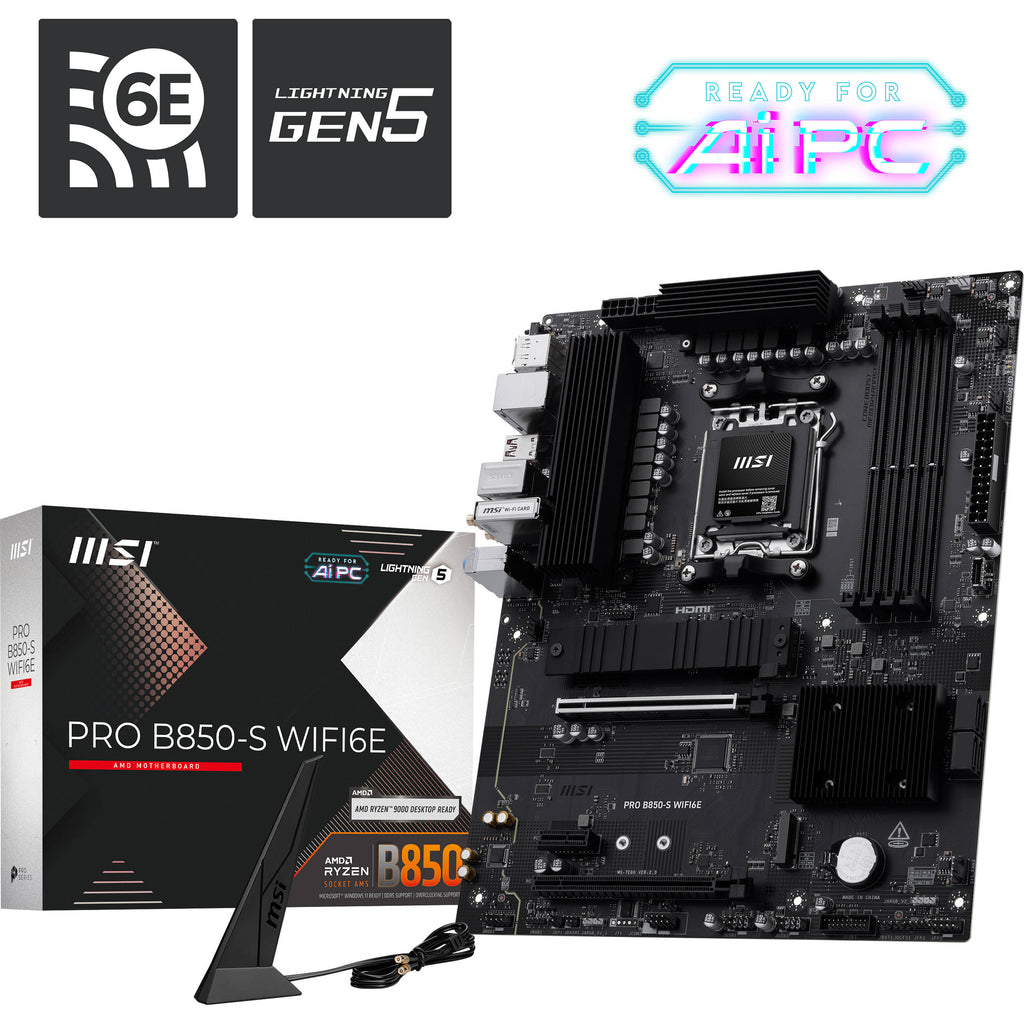

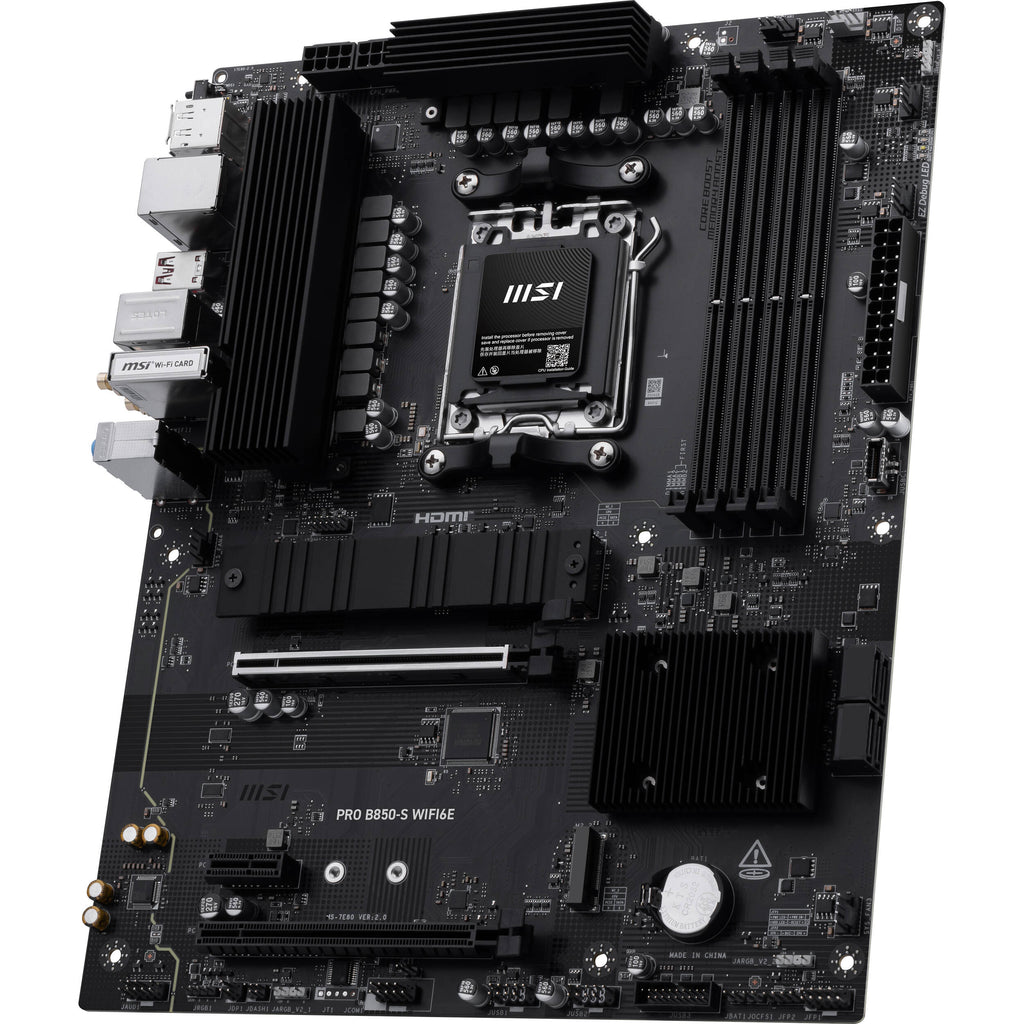

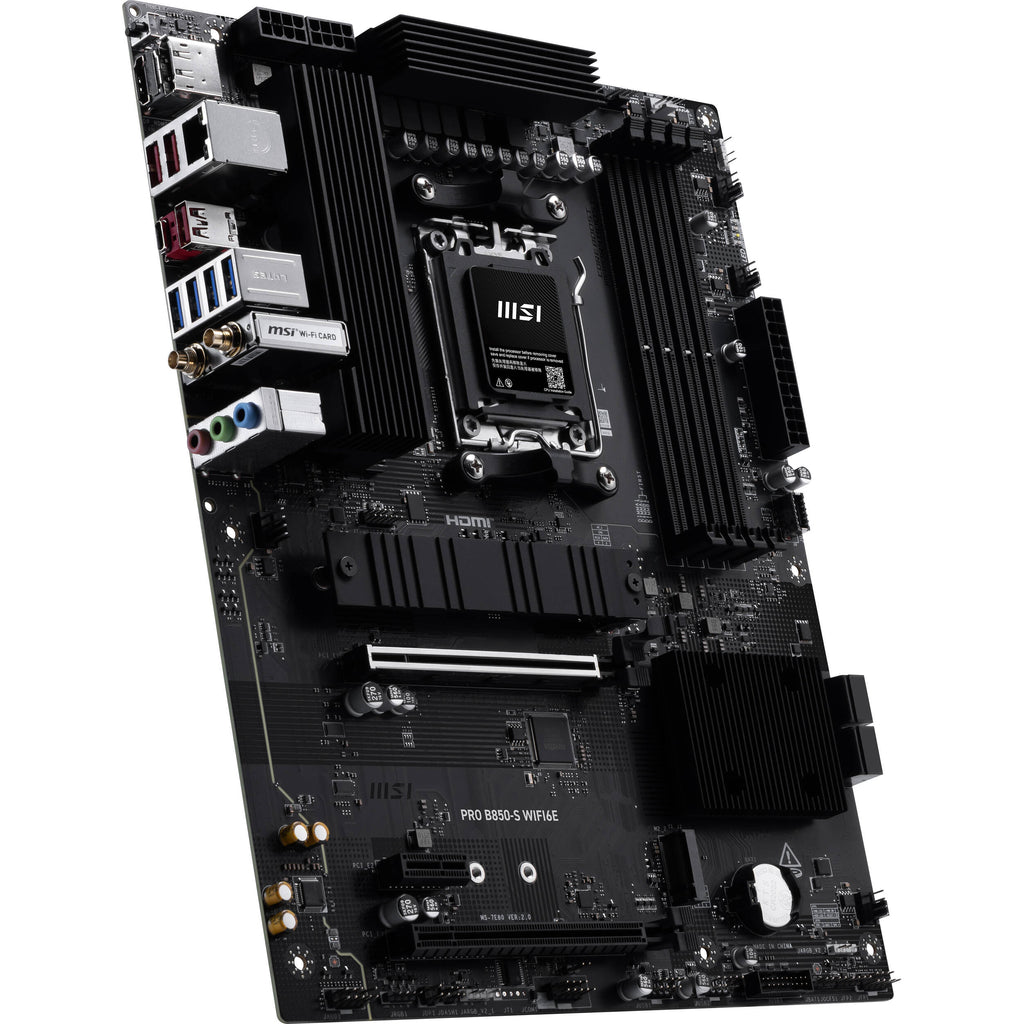

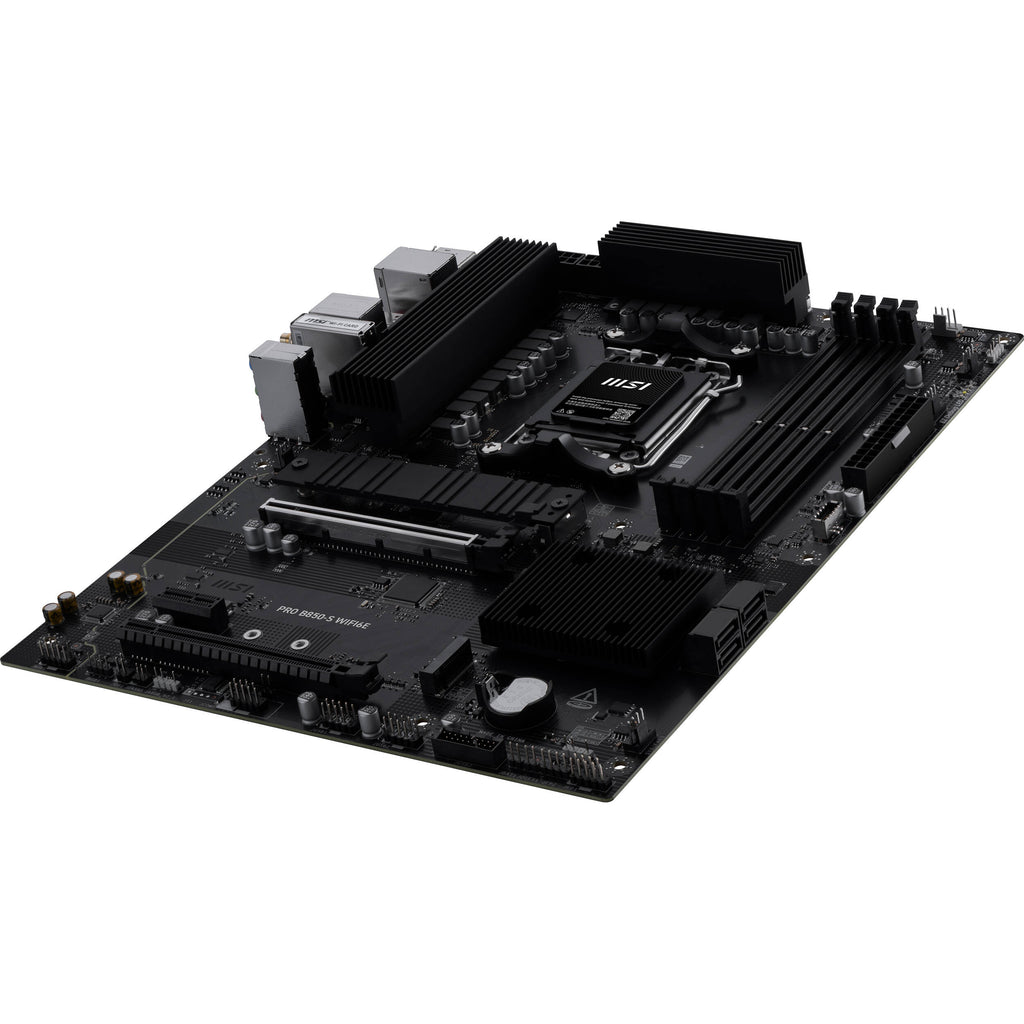

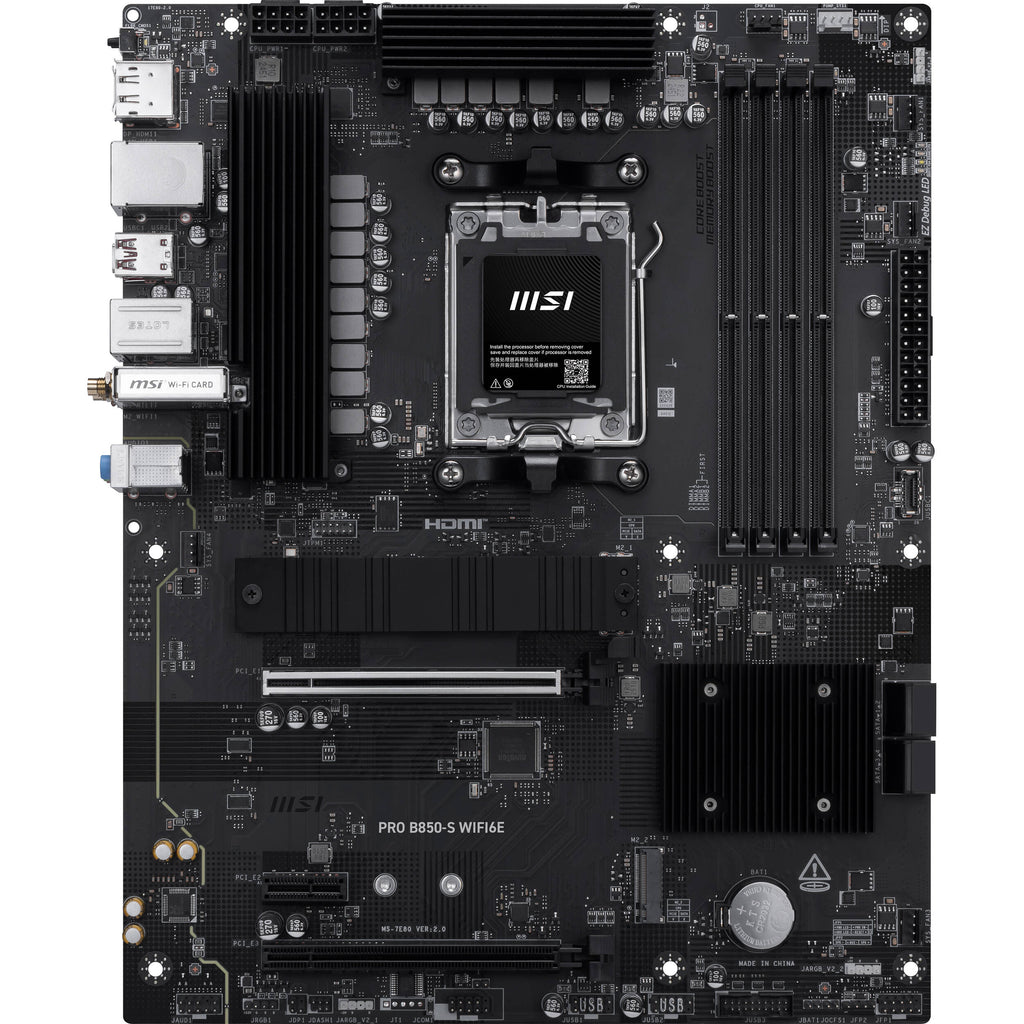

MSI PRO B850-S WIFI6E Overview
With a simple design and color scheme, the MSI PRO B850-S WIFI6E AM5 ATX Motherboard is an ideal start to your PC build. This ATX motherboard features the AM5 socket, supporting an AMD Ryzen 9000, 8000, or 7000 Series processor. It is also engineered with many exclusive MSI features, a Wi-Fi 6E EZ antenna, 2.5GbE LAN, and PCIe 5.0 M.2 with M.2 Shield Frozr. The motherboard can connect to peripherals with Bluetooth 5.3 or several USB-C and USB-A ports.
Ready for AI PC
AI Engine
The AI Engine provides several categories for you to sync the applications you want to perform and automatically optimize them to create a comfortable environment.
AI LAN Manager
The AI LAN Manager optimizes networking performance and minimizes latency, providing a seamless online experience.
Frozr AI Cooling
With Frozr AI Cooling, this motherboard automatically adjusts fans to make sure the system remains cool and stable while still providing high performance.
AI Boost
An exclusive MSI feature, AI boost can overclock the NPU to improve AI performance.
EZ DIY
This motherboard was designed for EZ DIY. MSI focused on ensuring that installing and connecting components is easy and effortless. Below are some examples. Flash the BIOS with only a connected power supply by following a few steps and the integrated Flash BIOS button.
- Restore the BIOS to default settings with the Clear CMOS button.
- The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup.
- This motherboard ensures the case standoff keep-out zones are clean. Moreover, the protective paint printed around each screw hole prevents parts from scratching or damaging the motherboard.
- The included EZ Wi-Fi Antenna makes the installation effortless by simply attaching fasteners to the motherboard without needing to screw them in.
Power Design
Unleash and sustain the maximum performance with a flagship VRM design built with a total 12+2+1 digital power phases. Combining dual power connectors, this motherboard is ready for the challenge of high-end processors.
Lightning Gen 4 PCIe with Steel Armor
The PCIe 5.0 x16 slot delivers up to 64 GB/s, doubling the speed of the previous generation. The PCIe slot is secured to the motherboard with extra solder points, thanks to MSI Steel Armor, allowing it to support the weight of heavy graphics cards.
Wi-Fi 6E
With the included antenna, this motherboard utilizes tri-band Wi-Fi 6E, MU-MIMO, and BSS color technology to deliver speeds of up to 2,400 Mb/s. You can also connect via 2.5GbE Ethernet LAN.
Frozr Design
Extended Heatsink
The extended heatsink enlarges the surface of heat dissipation and maintains the performance at heavy loads.
M.2 Shield Frozr
The M.2 shield keeps your installed M.2 SSDs safe for optimal performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Frozr Heatsink
Designed with the patented fan and double ball bearings to provide optimal performance for enthusiast gamers.
UPC: 824142433577

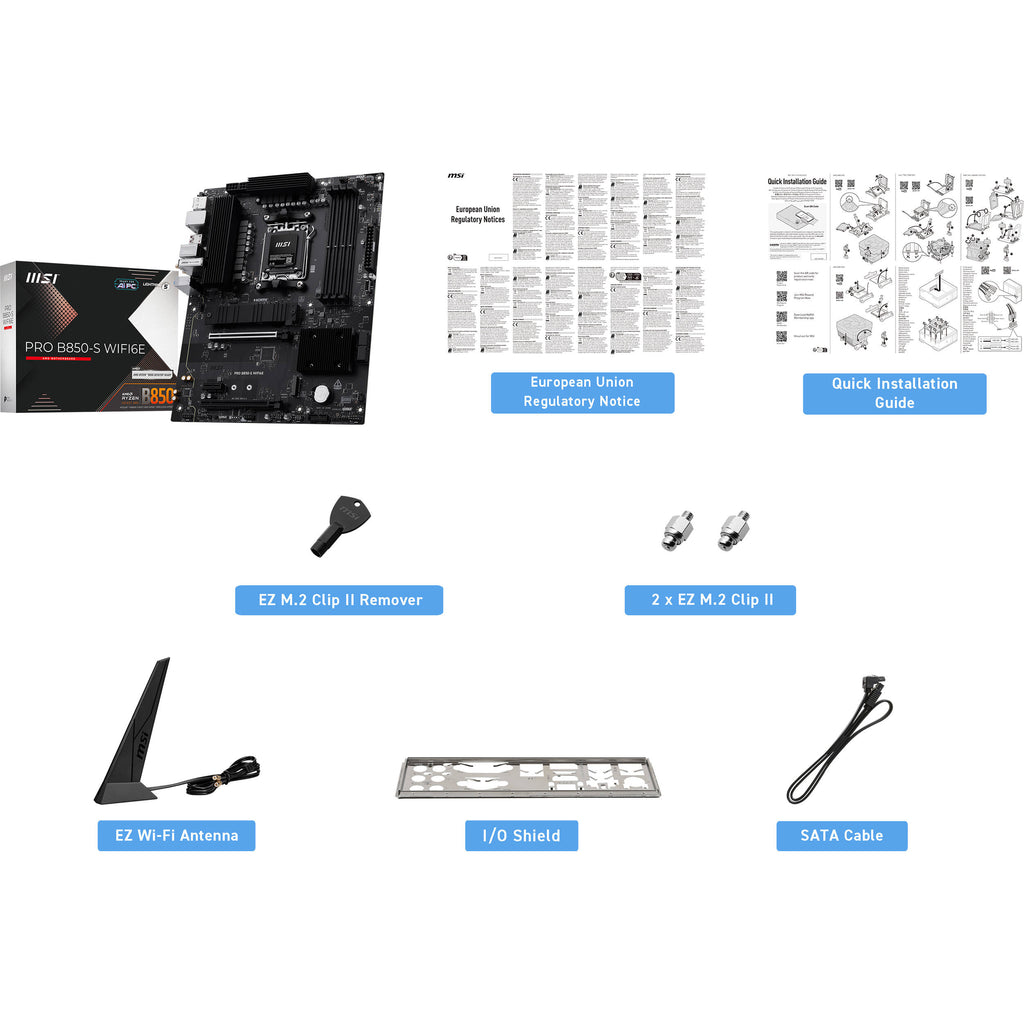

- MSI PRO B850-S WIFI6E AM5 ATX Motherboard
- 2 x EZ M.2 Clip II
- EZ M.2 Clip II Remover
- EZ Wi-Fi Antenna
- I/O Shield
- SATA Cable
- Limited 3-Year Manufacturer Warranty
MSI PRO B850-S WIFI6E Specs
Key Specs
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Type Support |
DDR5, 8200 MT/s Maximum Supported Speed
|
| M.2 Slots |
22110 / 2280
|
| Expansion Slots |
2x PCIe 4.0 x16
1x PCIe 3.0 x1 |
| Wi-Fi |
Wi-Fi 6E (802.11ax)
|
| Form Factor |
ATX
|
CPU
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|

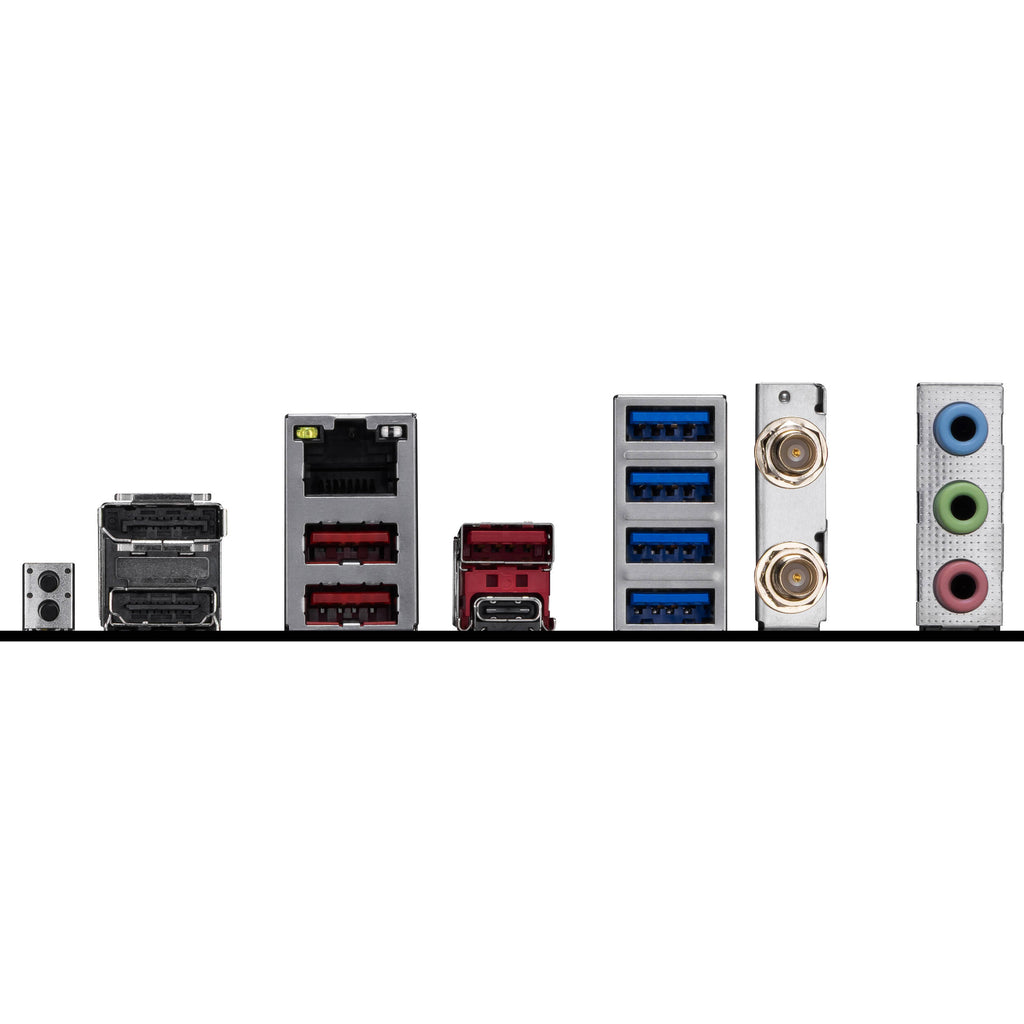

Back Panel I/O
| USB |
1x USB-C (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| Thunderbolt |
No
|
| Display |
1x HDMI
1x DisplayPort |
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Realtek 8125 2.5Gigabit
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback, Clear CMOS
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Type Support |
DDR5, 8200 MT/s Maximum Supported Speed
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| M.2 Slots |
1x M.2 (M Key) 22110/2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2280/2260 (PCIe 4.0 x4) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1
|
Internal I/O
| Expansion Slots |
2x PCIe 4.0 x16
1x PCIe 3.0 x1 |
| USB |
1x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) |
| Air Cooling |
1x 4-Pin CPU
4x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
1x 8-Pin CPU |
| Security |
Chassis Intrusion, TPM Header
|
| LED Header |
4x RGB
|
| Legacy |
1x Serial
|
Front Panel I/O
| Front Panel I/O |
USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
|
Audio
| Audio Codec |
Realtek ALC897 (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 6E (802.11ax): Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
| Bluetooth |
Bluetooth 5.3
|
Software
| OS Compatibility |
Windows 11 (64-Bit Only)
|
Physical
| Form Factor |
ATX
|
| Dimensions |
9.60 x 12.0" / 243.84 x 304.8 mm
|
Packaging Info
| Package Weight |
3.35 lb
|
| Box Dimensions (LxWxH) |
13.8 x 10.7 x 2.9"
|
