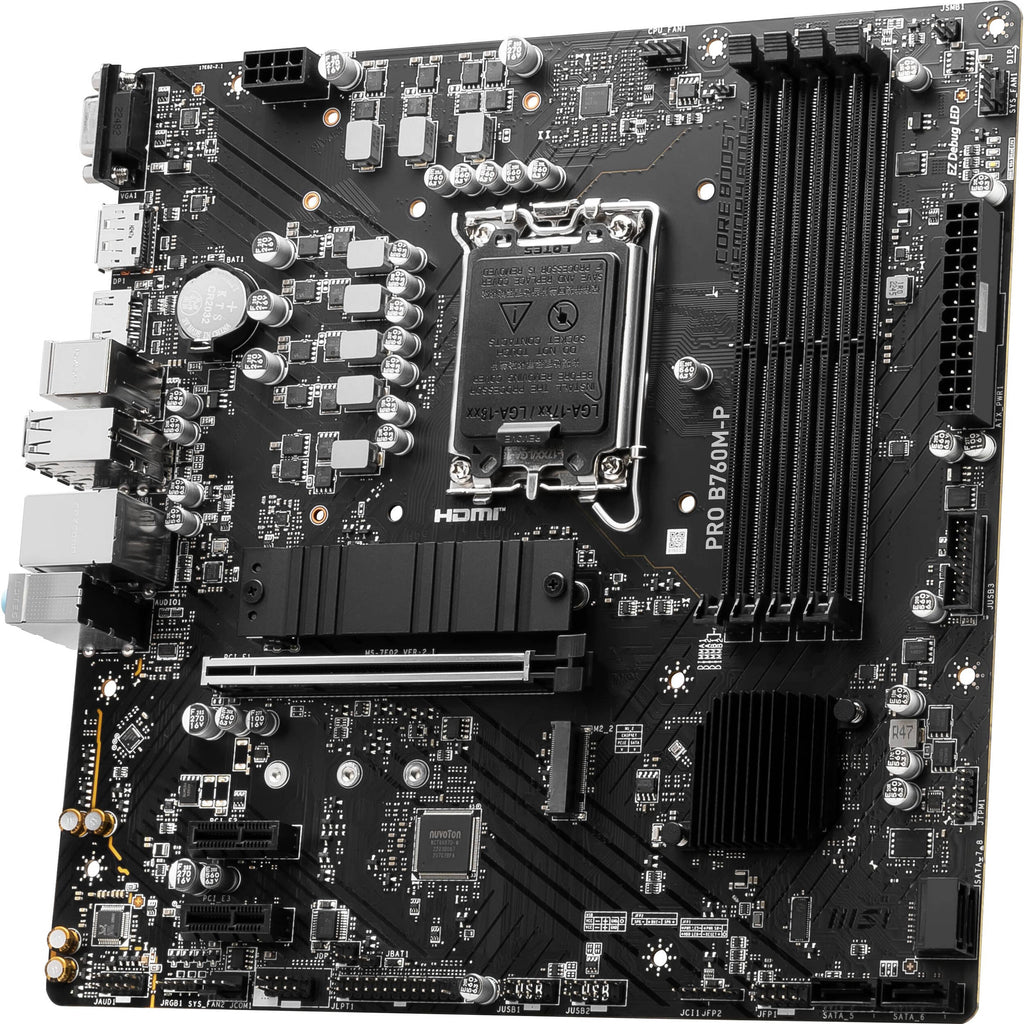

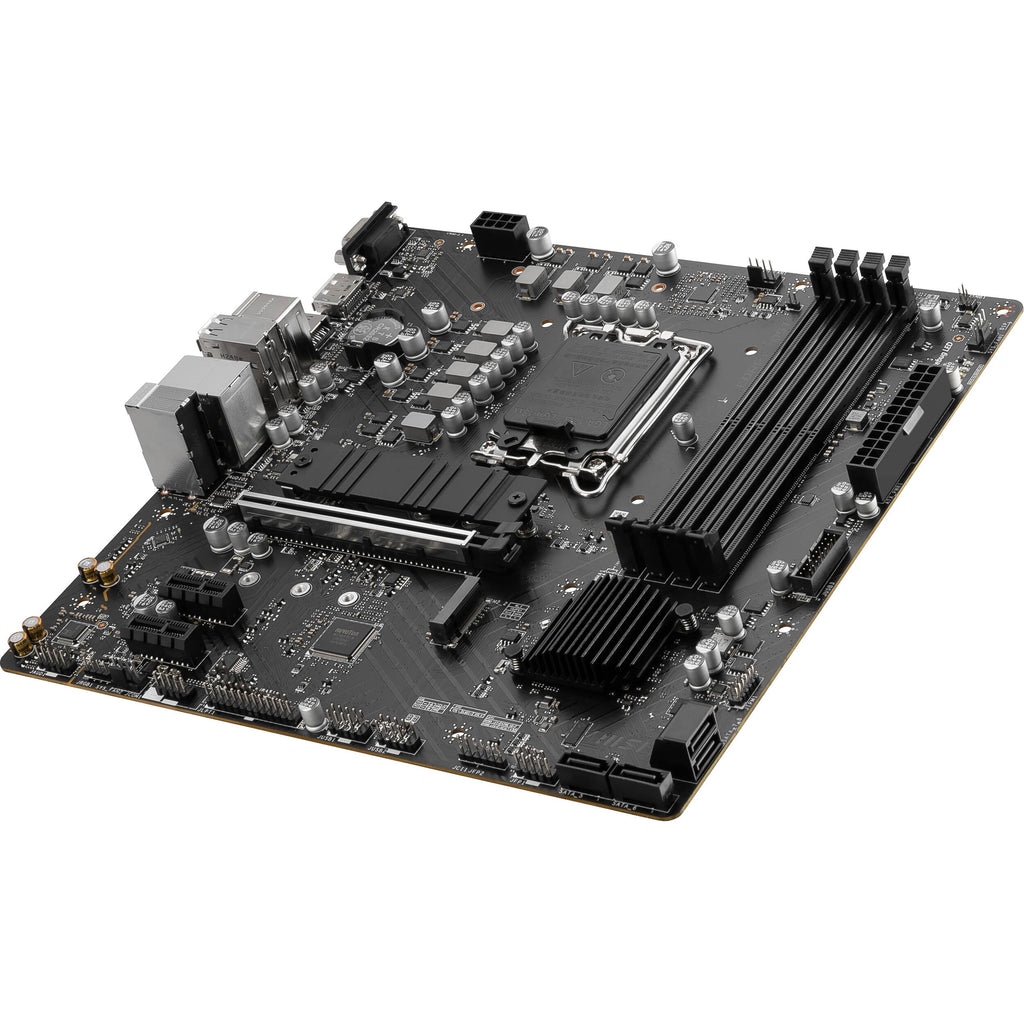

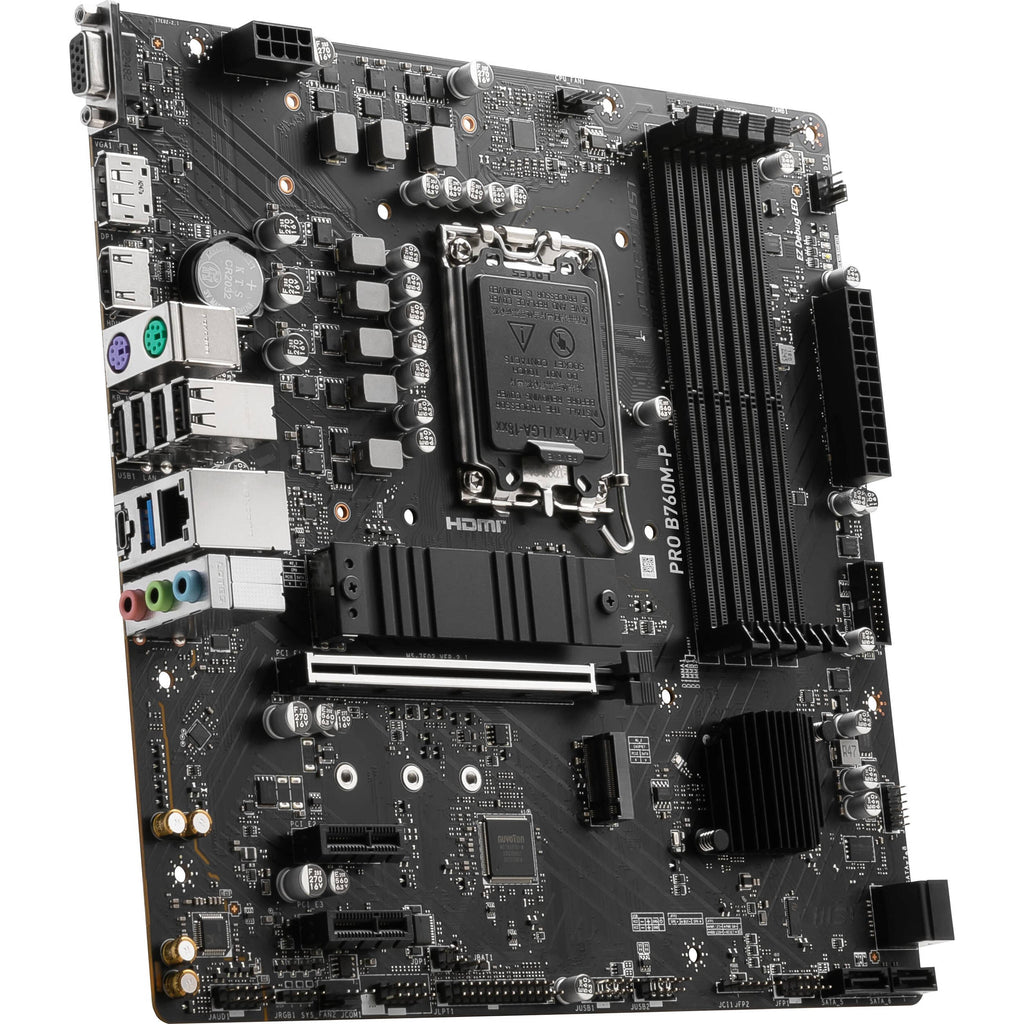

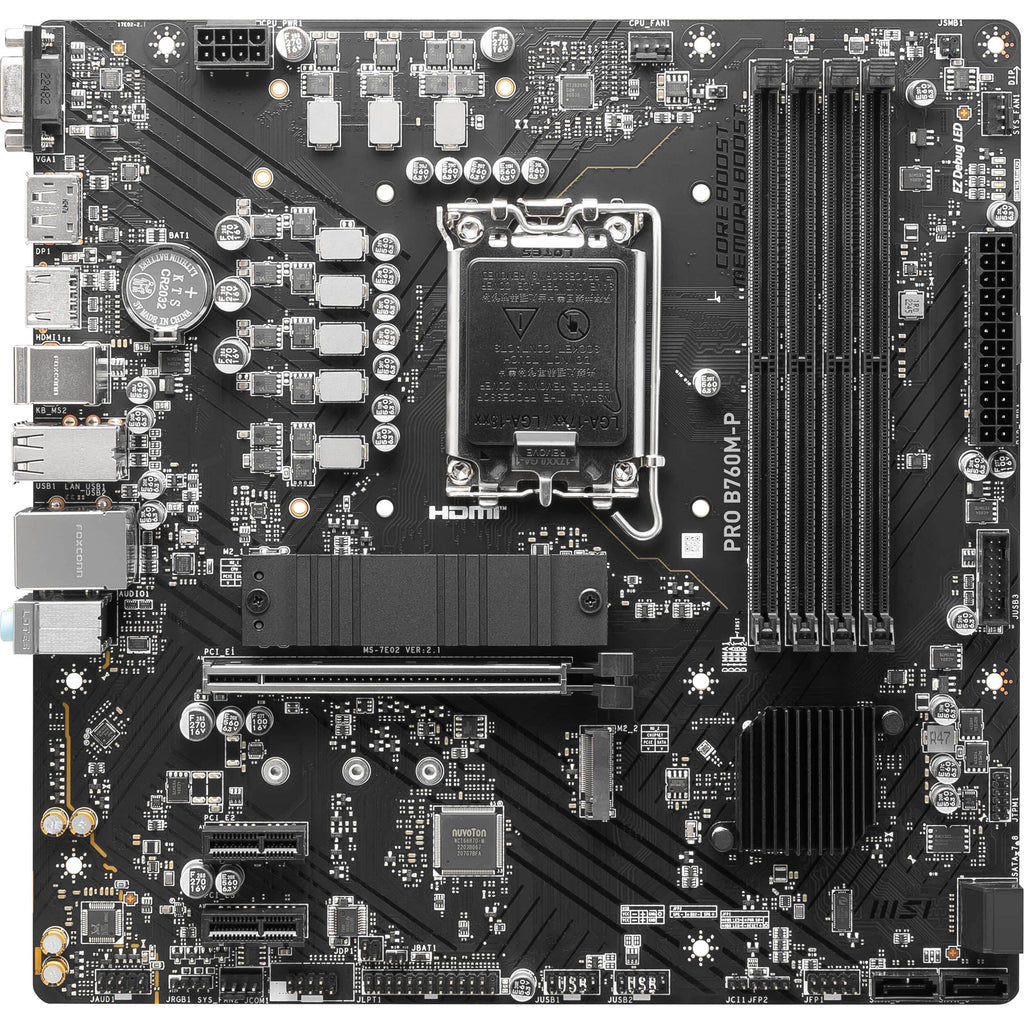

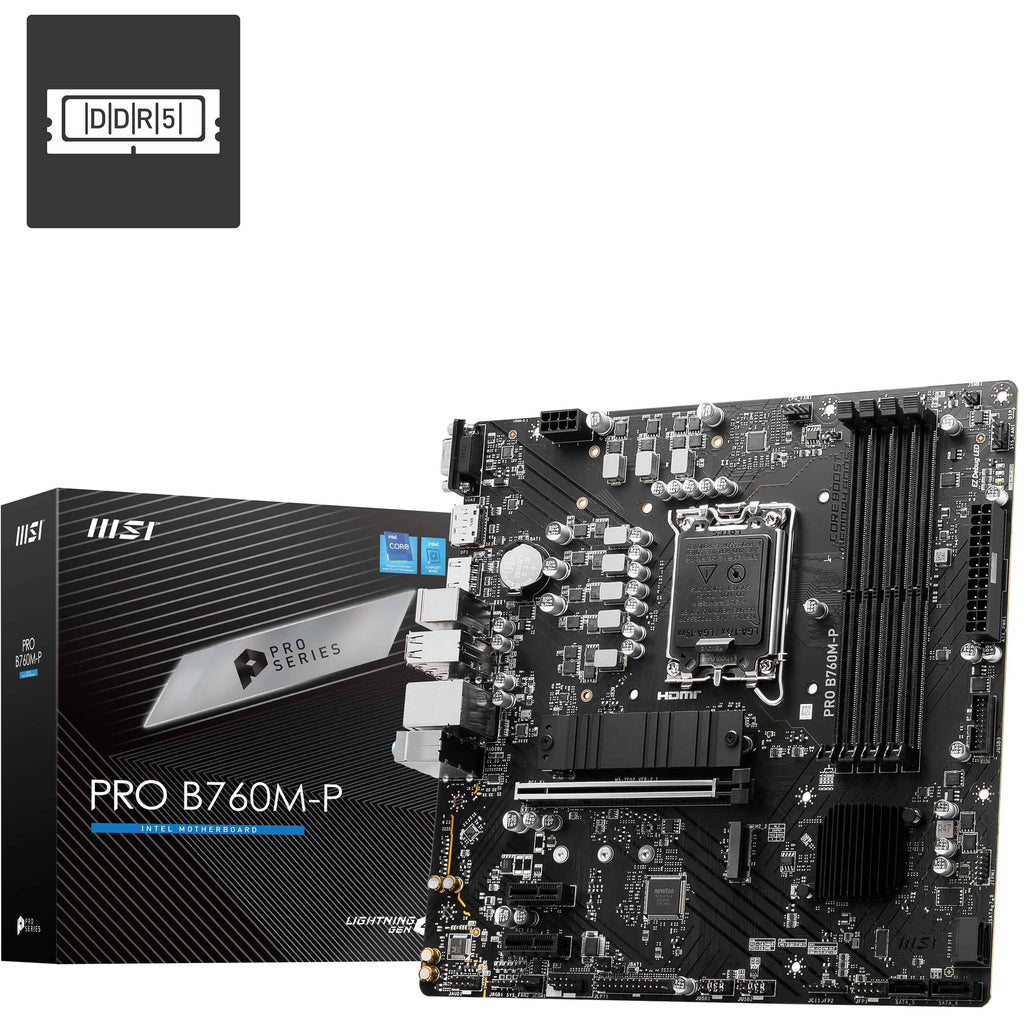

MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard

Roll over image to zoom in

MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard


	₹ 20945.0 includes GST and import duties.
	B2B customers can avail ₹ 3194.11 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	MSI
SKU:	7441397252181
MPN:	PRO B760M-P
UPC/HSN:	824142319802

Share this product

MSI B760M-P Overview

Set the foundation of your next small form-factor business PC build with the robust MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard. Designed to leverage the power of 12th, 13th, and 14th Gen Intel CPUs, the PRO enhances system performance suitable for operating multiple programs with speed and reliability.

Intel's LGA 1700 socket rests at the heart of the Pro, allowing you to install a variety of 12th, 13th, and 14th Gen processors to match your needs. Four DDR5 RAM slots allow you to install up to 256GB of memory to enhance multitasking and render speeds. Four SATA III and two M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Connect an array of graphics and utility cards with the 4.0 x16 expansion slot and two additional PCIe 4.0 x1 slots. Between back-panel connections and internal headers, you get eight USB-A 2.0, three USB-A 3.2 Gen 1 ports, and one USB-C 3.2 Gen 2 port designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces. Connect to your network with a wired Gigabit Ethernet LAN port. This motherboard supports Windows 10 (64-bit) and Windows 11 (64-bit).

Cooling Capabilities

Designed to keep your system cool even under the heaviest power load, the PRO offers an M.2 Shield Frozr heat sink to keep your solid-state drives safe from thermal throttling. Fully Fan Control ensures your internal fans are meeting thermal demands properly through software that can operate automatically or manually.

DIY Friendly

Whether you are new to constructing PCs or a seasoned builder, the PRO is designed to offer a variety of enhancements that ease the installation process. EZ M.2 Clip makes inserting and securing storage devices easier.

Expansion Slots

There is one PCIe 4.0 x16 expansion slot and two PCIe 4.0 x1 slots featured on the PRO, allowing you to install a wide range of graphics and utility cards.

Protection

A Steel Armor PCIe slot provides added strength ideal for heavier graphics cards thanks to extra solder points and metal casing. Double ESD protection adds a grounding layer around the mounting holes to prevent static discharges. The PRO is Windows 11 Certified, ensuring a worry-free installation.

Built for Speed

Leveraging the power of PCIe 4.0 technology, you can experience data-transfer speeds up to 64 Gb/s for your M.2 storage and graphics cards. Dual-channel DDR5 RAM DIMM slots can handle memory frequencies up to 6800 MHz and offer XMP support for a wide range of memory brands, ensuring that performance meets your needs.

BIOS and Updates

MSI Center unifies a suite of software utilities into a single centralized application, giving you a litany of features enabling you to modify and monitor your system. Hardware Monitoring, System Diagnosis, Fan Center, User Scenario, True Color, and Profile Setting offer fine-tuning on a hardware level while Mystic Light offers control over RGB lighting across your system and connected peripherals. Click BIOS 5 enables you to adjust various motherboard parameters so you can adjust performance, efficiency, and even overclocking capabilities. Resizable Bar technology streamlines the connection between your GPU and CPU for smoother performance, ideal for gaming and graphically intense programs.

Connectivity Options

With robust connectivity options, you can connect a wide range of devices to the PRO without worrying about compromising the performance of your build. Gain fast networking speeds with Gigabit Ethernet LAN that works alongside LAN Manager software to prioritize your connection. Experience high-quality sound with Audio Boost, equipped with a dedicated high-definition audio processor, high-quality audio capacitors, and audio jacks. Left and right audio signals are isolated on separate PCB layers, preventing crosstalk between each channel. De-Pop Protection reduces the popping sound when plugging and unplugging your devices from the audio jacks.

Security

The PRO offers enhanced security functions within the BIOS. Secure Boot ensures your system has not been compromised and only starts your system when all components and boot software have been properly verified.

UPC: 824142319802

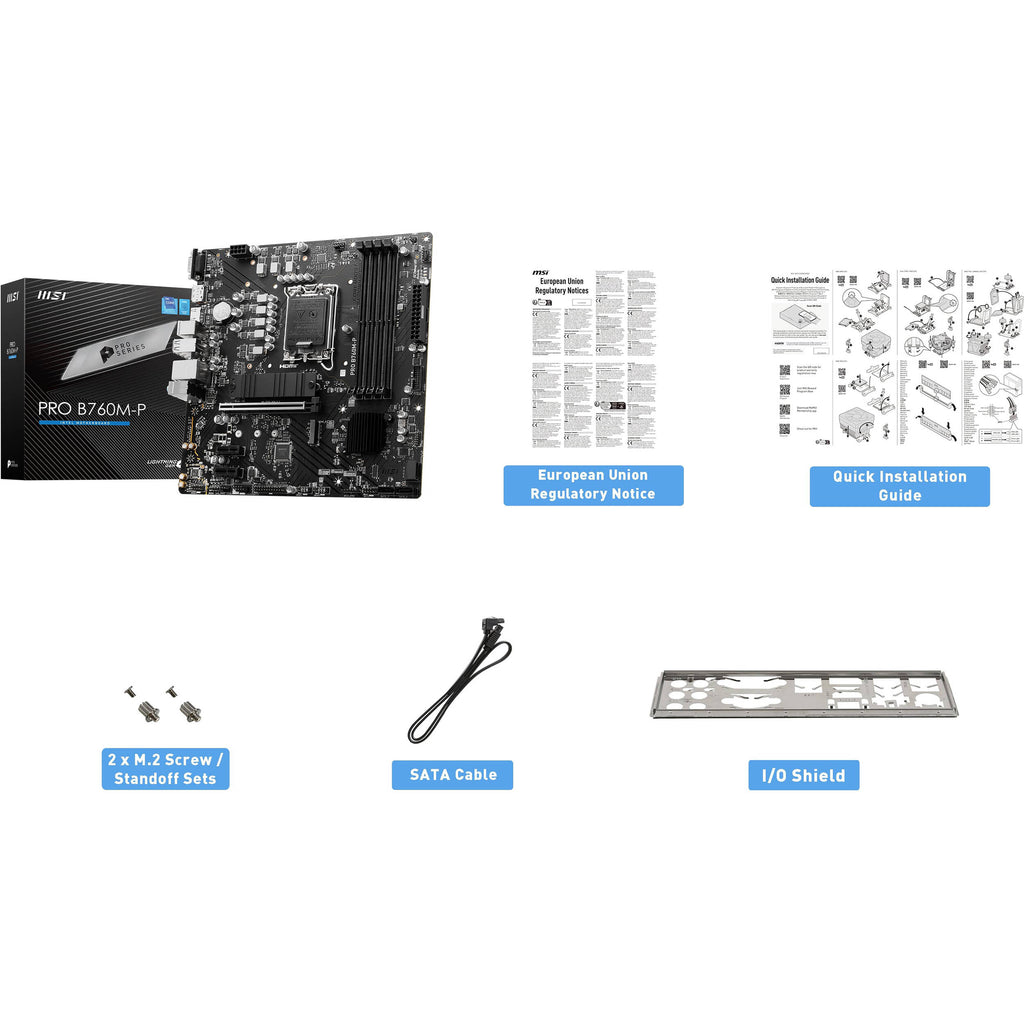

Items Included

MSI PRO B760M-P DDR5 LGA 1700 Micro-ATX Motherboard
2 x M.2 Screw / Standoff Set
SATA Cable
I/O Shield
Limited 3-Year Manufacturer Warranty

Additional Resources

User Manual

30.5 MB

MSI B760M-P Specs

Key Specs

Chipset	Intel B760
CPU Socket	LGA 1700
Memory Slots	4x 288-Pin
Memory Type Support	DDR5, 6800 MT/s Maximum Supported Speed
M.2 Slots	2280
Expansion Slots	1x PCIe 4.0 x16 2x PCIe 4.0 x1
Wi-Fi	No
Form Factor	Micro-ATX

CPU

Chipset	Intel B760
CPU Socket	LGA 1700

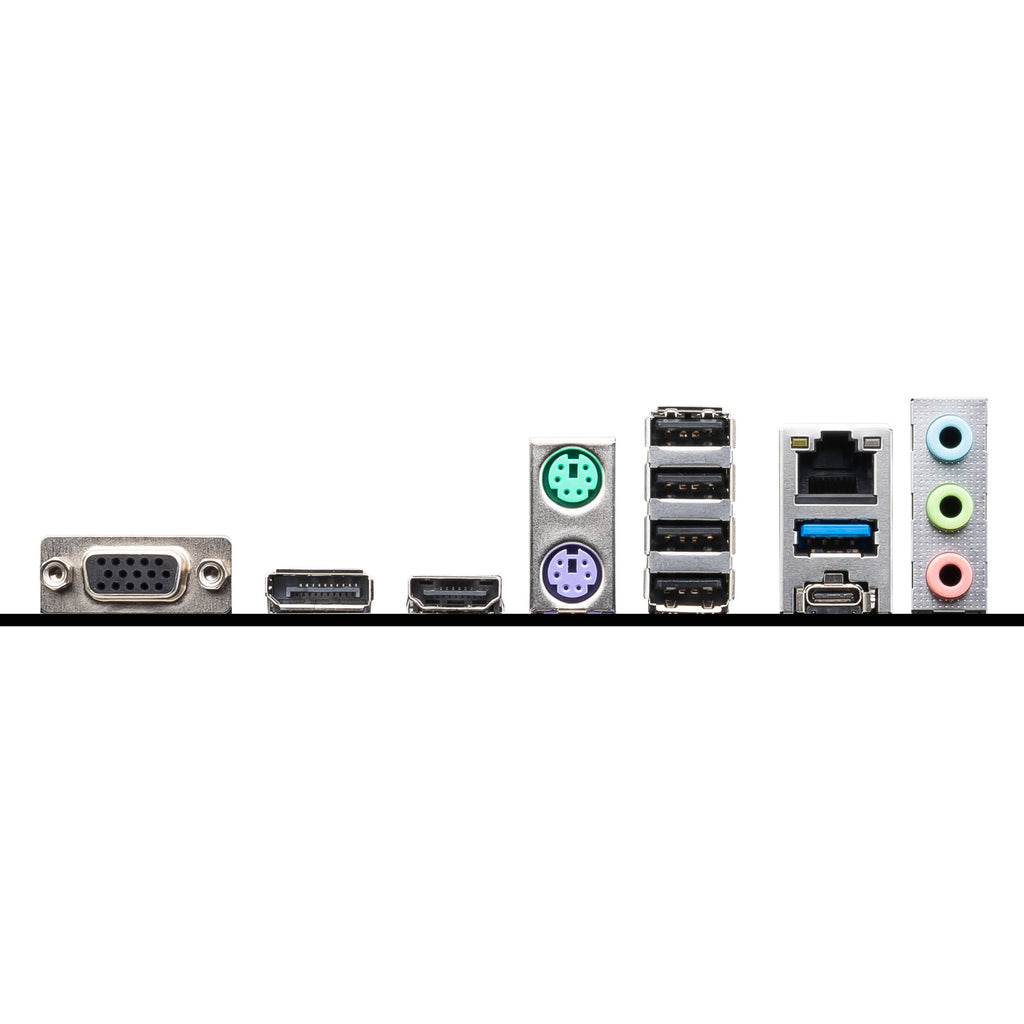

Back Panel I/O

USB	1x USB-C (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI 1x DisplayPort 1x VGA
Audio	3x 1/8" / 3.5 mm
Ethernet / Controller	1x Gigabit
PS/2	2x PS/2

Memory

Memory Slots	4x 288-Pin
Memory Type Support	DDR5, 6800 MT/s Maximum Supported Speed
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4x SATA III
M.2 Slots	1x M.2 (M Key) 2280/2260/2242 (PCIe 4.0 x4) 1x M.2 (M Key) 2280/2260/2242 (PCIe 4.0 x4 / SATA III)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10 (SATA)

Internal I/O

Expansion Slots	1x PCIe 4.0 x16 2x PCIe 4.0 x1
USB	2x USB 2.0 Header (Supports 4 USB-A Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
Air Cooling	1x 4-Pin CPU 2x 4-Pin System
Power Connectors	1x 24-Pin Mainboard 1x 12V-2X6 (12VHPWR)
Security	Chassis Intrusion, TPM Module
LED Header	4x RGB
Diagnostics	Clear CMOS

BIOS

ROM

256 Mb

Front Panel I/O

AAFP

Audio

Audio Codec	Realtek ALC897 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	No
Bluetooth	No

Software

OS Compatibility

Windows

Physical

Form Factor	Micro-ATX
Dimensions	9.6 x 9.6" / 243.8 x 243.8 mm

Packaging Info

Package Weight	2.01 lb
Box Dimensions (LxWxH)	12.5 x 10.8 x 2.3"
