Description
MSI PRO B650M-P Overview
- 1Description
- 2Connectivity
- 3Cooling Capabilities
- 4DIY Friendly
- 5Built for Speed
- 6Protection
- 7BIOS and Updates
- 8Mystic Light
- 9Enhanced Audio
Set the foundation of your next business PC build with the robust MSI PRO B650M-P AM5 Micro-ATX Motherboard. Designed to leverage the power of AMD's Ryzen 7000 series processors, the PRO enhances system performance suitable for operating multiple programs with speed and reliability.
AMD's AM5 socket rests at the heart of the PRO, allowing you to install a variety of Ryzen 7000 series processors to match your needs. Four DDR5 RAM slots allow you to install up to 192GB of memory to enhance multitasking and render speeds. Four SATA III and two M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Connect an array of graphics and utility cards with one PCIe 4.0 x16 and two PCIe 3.0 x1 expansion slots. Between back-panel connections and internal headers, you get several USB 2.0 ports for low-powered devices as well as USB 3.2 Gen 1 and Gen 2 ports for resource-demanding devices like audio interfaces, external drives, and more. You can connect to your network to download important assets with a single 2.5 Gigabit Ethernet port, giving you access to various websites, media, and cloud storage.
Connectivity

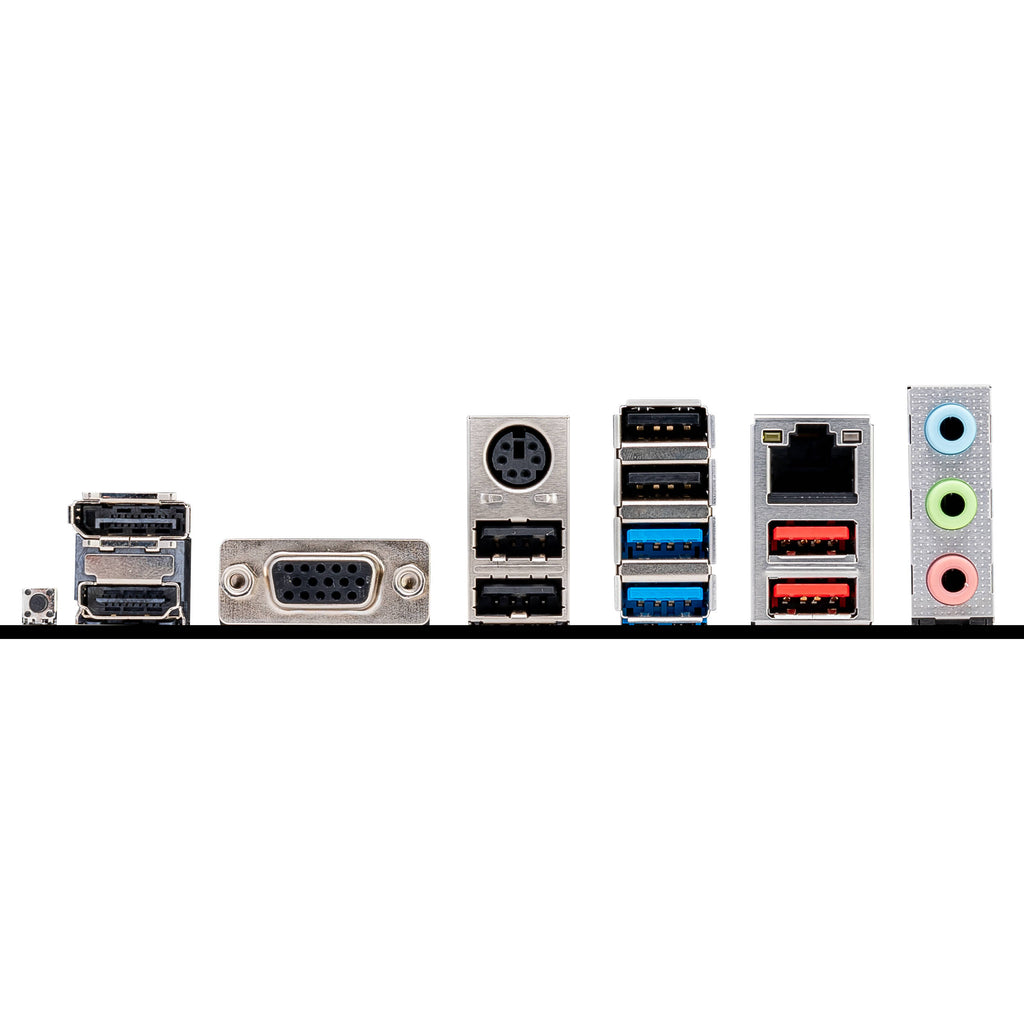

The back panel of the PRO gives you a wide range of support for both modern and legacy hardware. You get USB-A 2.0 ports for low-powered devices as well as two USB-A 3.2 Gen 1 and two USB-A 3.2 Gen 2 ports, delivering up to 5 and 10 Gb/s data transfer speeds. HDMI and DisplayPort video outputs support processors with integrated graphics. You also get VGA and PS/2 connectors for legacy displays and peripherals, respectively.
Cooling Capabilities
Designed to keep your system cool even under the heaviest power load, the PRO offers an M.2 Shield Frozr heat sink as well as a heavy-plated VRM heat sink, 7W/mK thermal pad, and a chipset heat sink, keeping your system safe from thermal throttling. Fully Fan Control ensures your internal fans are meeting thermal demands properly through software that can operate automatically or manually.
DIY Friendly
Whether you are new to constructing PCs or a seasoned builder, the PRO offers enhancements that ease the installation process and protect the motherboard. You get Double ESD Protection, dedicated Keep Out Zone, EZ Debug LED, Windows 11 Certification, and a Driver Utility Installer suite.
Built for Speed
Leveraging the power of PCIe 4.0 technology, you can experience data-transfer speeds up to 64 Gb/s for your M.2 storage and graphics cards. Dual-channel DDR5 RAM DIMM slots can handle memory frequencies up to 6000 MHz and offer EXPO support for a wide range of memory brands, ensuring that performance meets your needs.
Protection
A Steel Armor PCIe slot provides added strength ideal for heavier graphics cards thanks to extra solder points and metal casing. Double ESD protection adds a grounding layer around the mounting holes to prevent static discharges. The PRO is Windows 11 Certified, ensuring a worry-free installation.
BIOS and Updates
MSI Center unifies a suite of software utilities into a single centralized application, giving you a litany of features enabling you to modify and monitor your system. Hardware Monitoring, System Diagnosis, Fan Center, User Scenario, True Color, and Profile Setting offer fine-tuning on a hardware level while Mystic Light offers control over RGB lighting across your system and connected peripherals. Click BIOS 5 enables you to adjust various motherboard parameters so you can adjust performance, efficiency, and even overclocking capabilities. Resizable Bar technology streamlines the connection between your GPU and CPU for smoother performance, ideal for gaming and graphically intense programs.
Mystic Light
Give your system a sense of personality with MSI's Mystic Light software which enables you to use a wide range of RGB lighting effects to illuminate your case. You can also synchronize various lighting strips and configurations from a simple to use interface without the need of a separate RGB controller.
Enhanced Audio
A built-in HD audio processor boosts performance of your media and music backed by high-quality audio capacitors, ensuring a clear sound whether you are listening to your favorite bands, watching your favorite shows, or taking part in a video call. Each channel offers their own contained isolated audio signal pathing to prevent distortion and crosstalk for clearer sound. You also get DE-POP protection which prevents loud popping sounds as plug and unplug your headset.
UPC: 824142324837

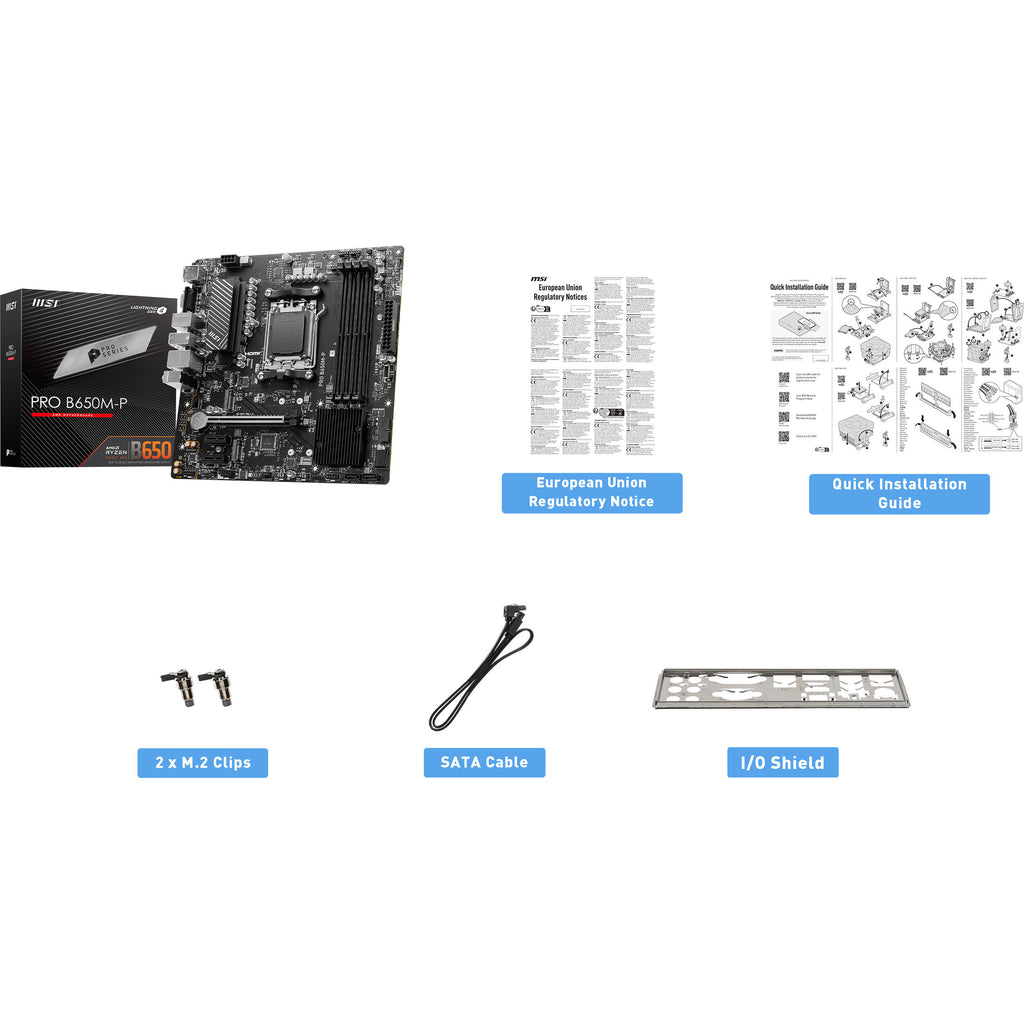

In the Box
- MSI PRO B650M-P AM5 Micro-ATX Motherboard
- SATA Cable
- M.2 Screw and Standoff Package
- I/O Shield
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Connectivity
- Cooling Capabilities
- DIY Friendly
- Built for Speed
- Protection
- BIOS and Updates
- Mystic Light
- Enhanced Audio
MSI PRO B650M-P Specs
Key Specs
| Chipset |
AMD B650
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000 MHz
|
| M.2 |
2x M Key 2260, 2280 (PCIe 4.0 x4)
|
| Expansion Slots |
1x PCIe 4.0 x16
2x PCIe 3.0 x1 |
| Wi-Fi |
Yes
|
| Form Factor |
Micro-ATX
|
CPU
| Chipset |
AMD B650
|
| CPU Socket |
AM5
|
Back Panel I/O
| USB |
4x USB-A (USB 2.0)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 3.1/3.2 Gen 2) |
| Thunderbolt |
No
|
| Display |
1x VGA Output
1x HDMI 1.4 Output 1x DisplayPort 1.4 Output |
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Realtek 8125BG 2.5Gigabit
|
| PS/2 |
1x PS/2
|
Memory
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000 MHz
|
| Maximum Capacity |
192 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
4x SATA III
|
| M.2 |
2x M Key 2260, 2280 (PCIe 4.0 x4)
|
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 10 (SATA)
RAID 0, 1 (M.2) |
Internal I/O
| Expansion Slots |
1x PCIe 4.0 x16
2x PCIe 3.0 x1 |
| USB |
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port) 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) |
| Air Cooling |
1x 4-Pin CPU
3x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
1x 8-Pin ATX |
| Security |
Chassis Intrusion, TPM Module, TPM Header
|
| LED Header |
4x RGB
|
| Diagnostics |
Clear CMOS
|
Audio
| Audio Codec |
Realtek ALC897 (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Yes
|
| Bluetooth |
No
|
Software
| OS Compatibility |
Windows 10 to 11 (64-Bit Only)
|
Physical
| Form Factor |
Micro-ATX
|
| Dimensions |
9.6 x 9.6" / 243.8 x 243.8 mm
|
Packaging Info
| Package Weight |
2.29 lb
|
| Box Dimensions (LxWxH) |
12.4 x 11.9 x 2.1"
|
