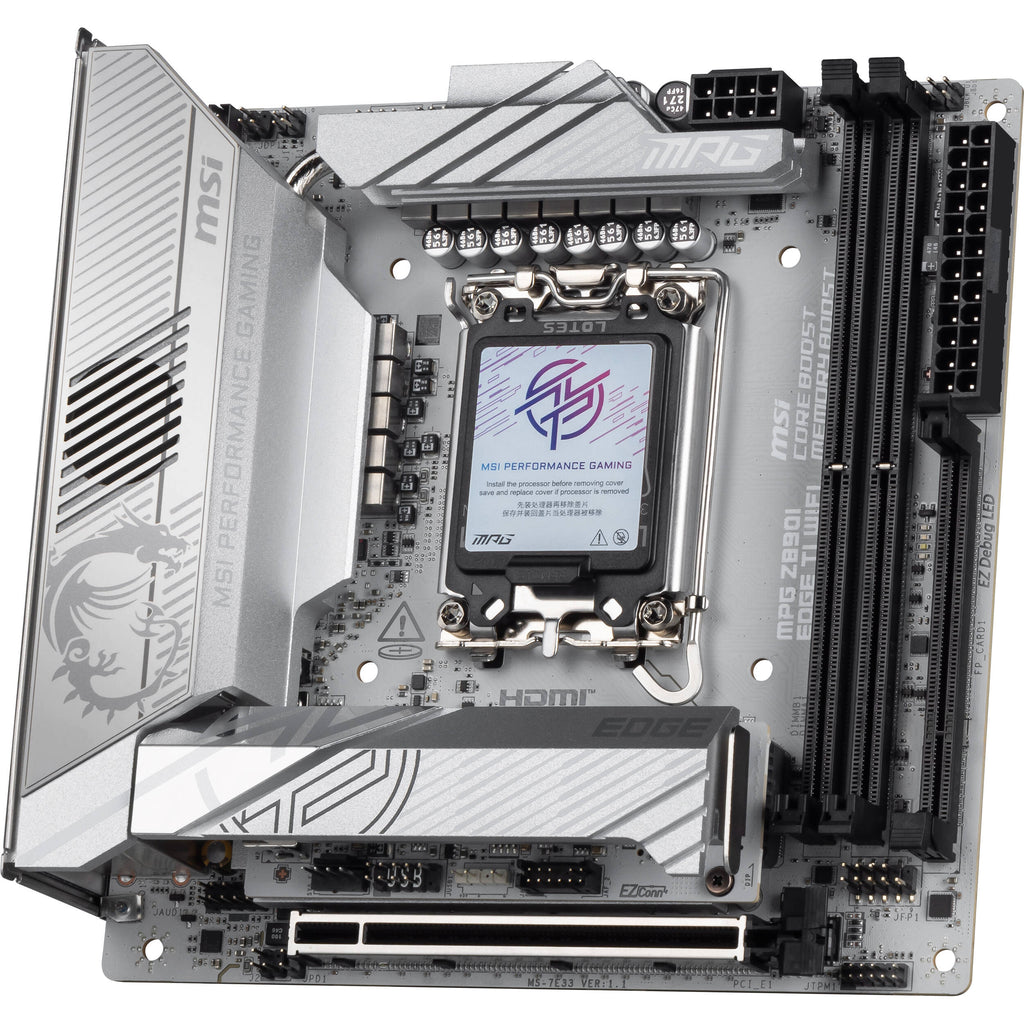

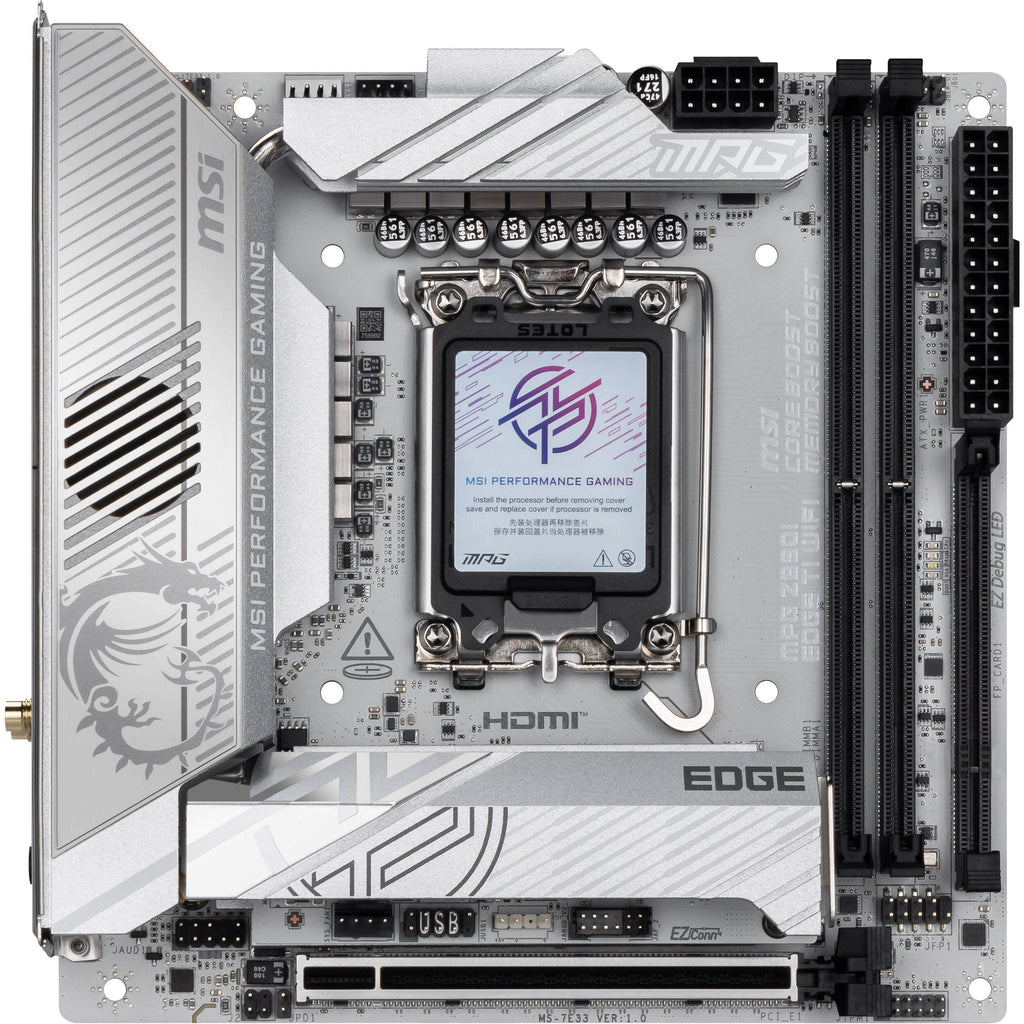

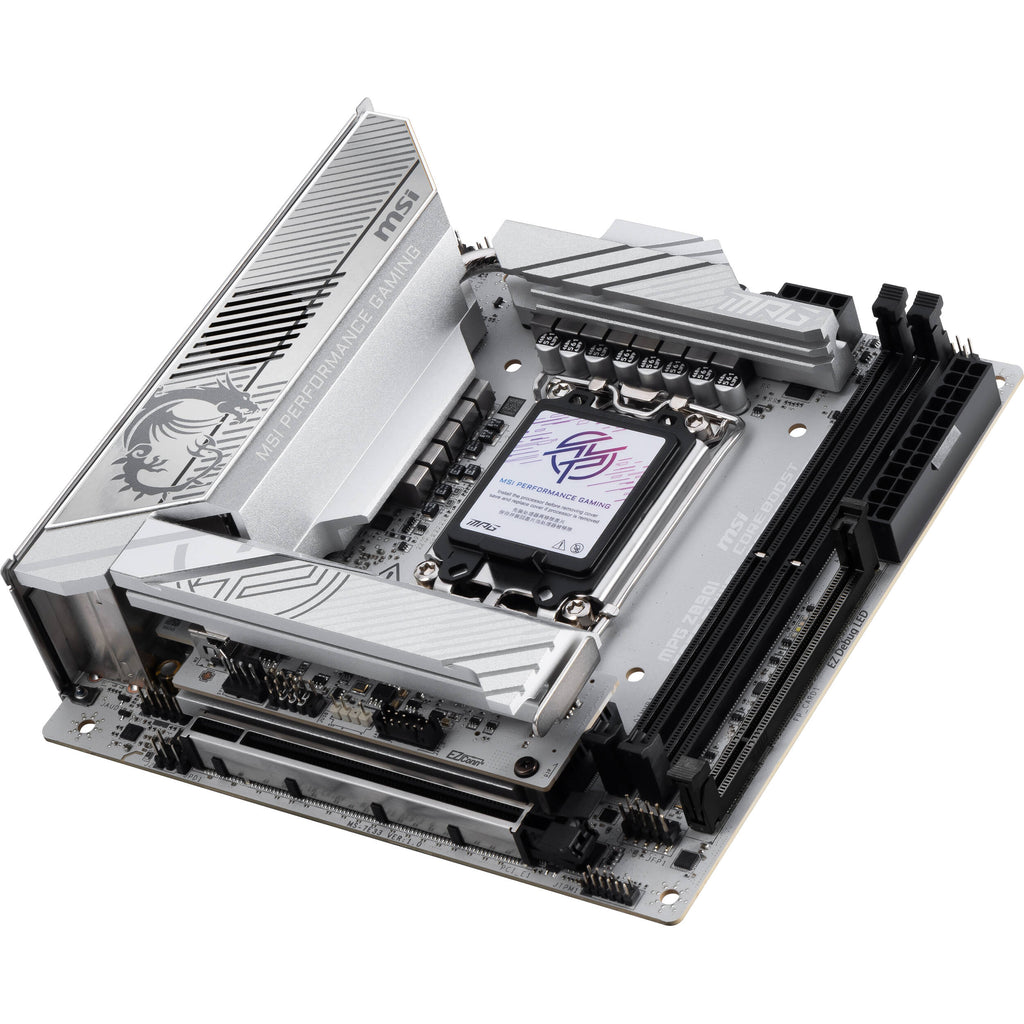

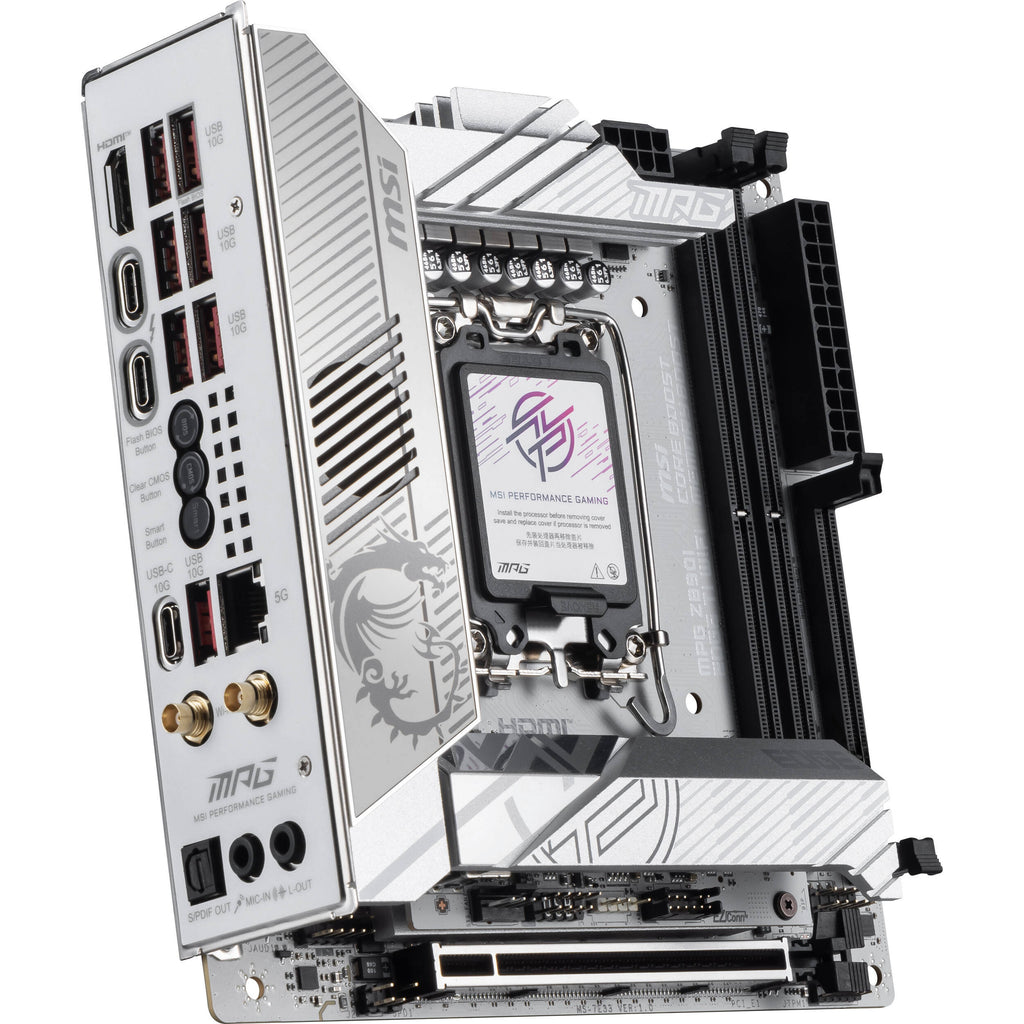

MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)

Roll over image to zoom in

MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)


	₹ 51025.0 includes GST and import duties.
	B2B customers can avail ₹ 7781.31 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	MSI
SKU:	7441398825045
MPN:	Z890IEDGTIWIFI
UPC/HSN:	824142388099

Share this product

MSI Z890I EDGE TI WiFi Overview

Take your gaming and content-creation experiences new levels by including the MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard in your small-form-factor computer build. Supporting Intel Core Ultra Series 2 processors with the LGA 1851 socket, gamers, professionals, and enthusiasts can outfit this motherboard to smoothly handle demanding applications, video editing, and AI workloads.

Designed to help simplify builds, MSI's EZ technology makes it easy to install an M.2 PCIe 5.0 SSD alongside up to three PCIe 4.0 SSDs to store your games library, applications, and important files. There are also two SATA III connectors available. The two DDR5 DIMM slots support up to 128GB, at overclocked speeds up to 8600 MT/s. With one PCIe 5.0 x16 slot, you can install a powerful graphics cards or other compatible expansion.

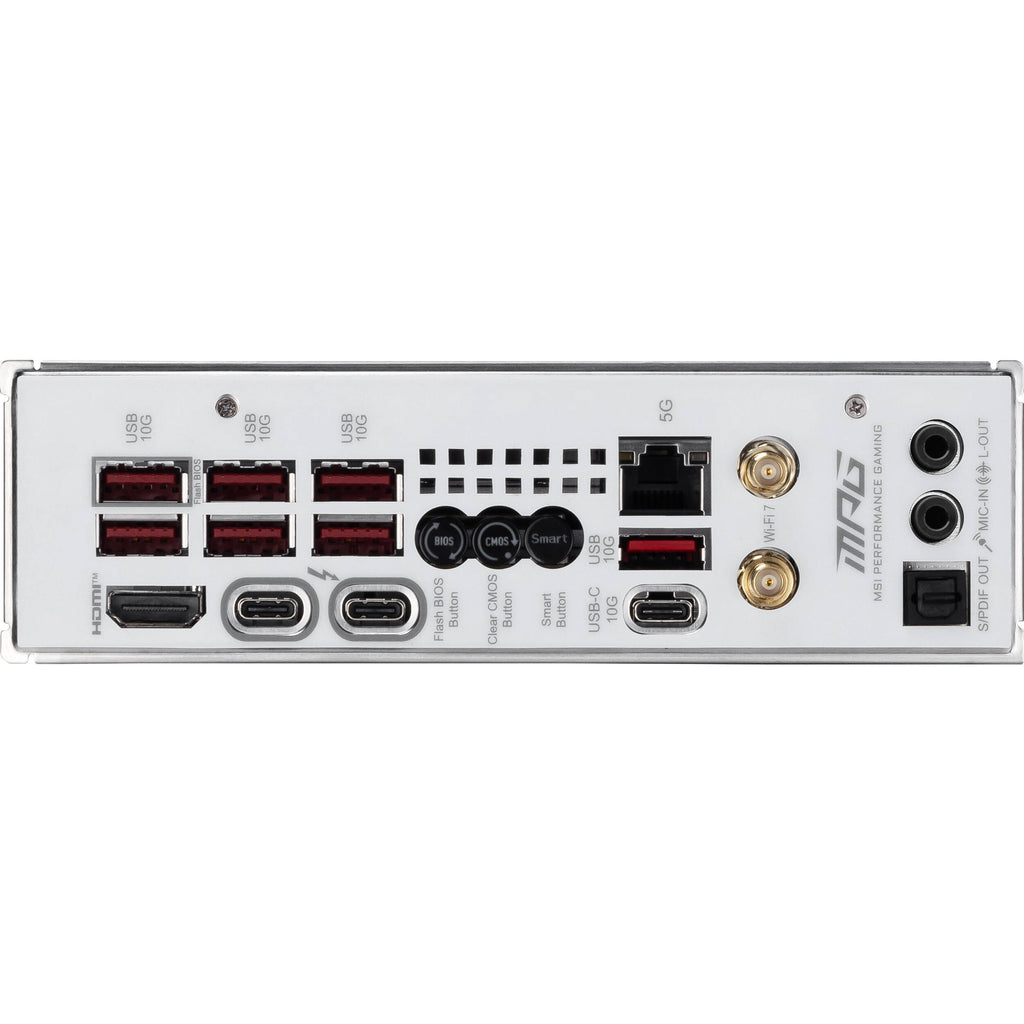

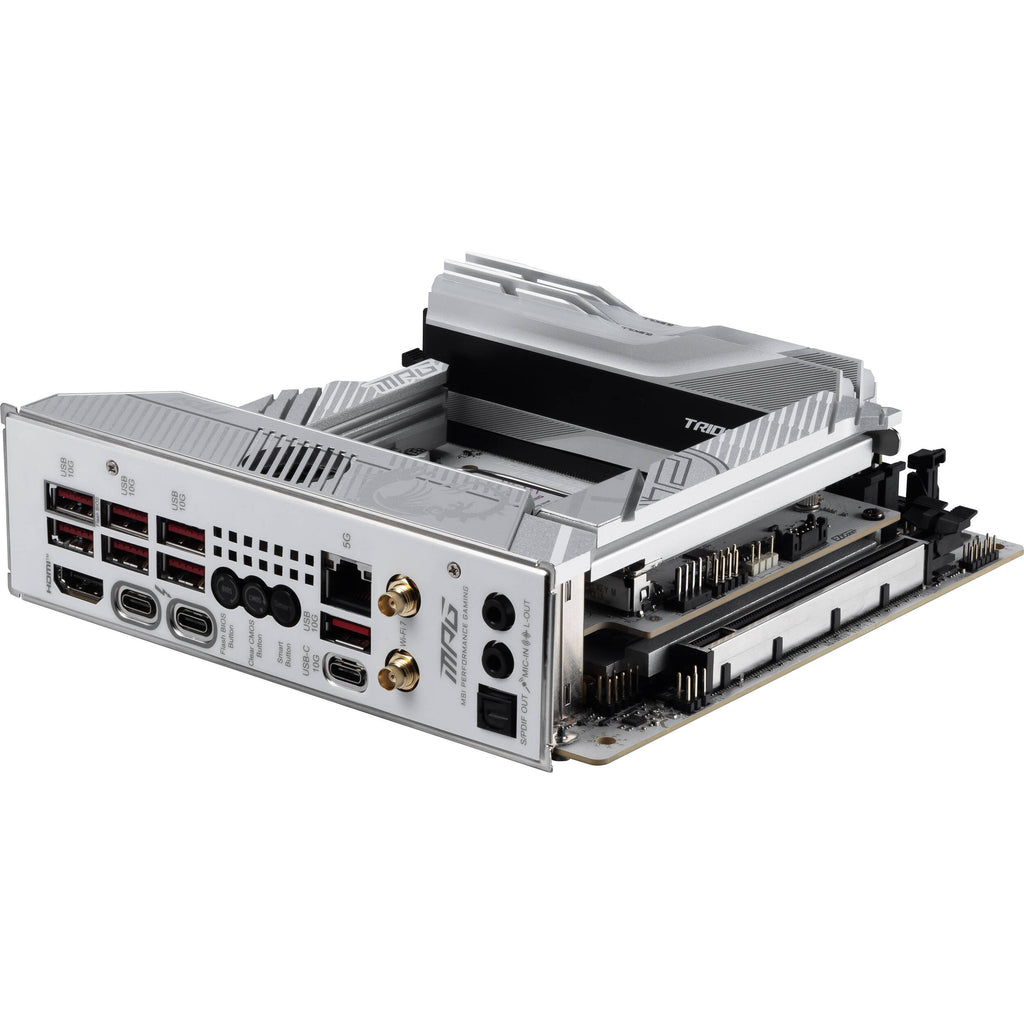

The rear panel features two Thunderbolt 4 ports that can transfer up to 40 Gb/s with compatible devices or connect a USB-C compatible 8K display. There is also one 10 Gb/s USB-C and seven USB-A 3.2 Gen 2 ports. Internal headers allow you to connect two USB 2.0 ports, two 5 Gb/s USB-A 3.2 Gen 1 ports, and a 20 Gb/s USB-C port on the front panel. Built-in Wi-Fi 7 (802.11be) support and a 5 Gb/s Ethernet port provide you with connections to compatible network devices for smooth 8K video streaming and low-latency online games. Windows 11 64-bit is required to take advantage of all the motherboard's features.

EZ DIY

Enhanced Power

Unleash maximum performance with 10+1+1+1 digital power phases and a 110A Smart Power Stage.

EZ M.2 Installation

A simplified design allows you to set your M.2 Shield Frozr without the annoying screws.

Smart Button

Configure the front panel button to reset the computer, turn LED lights on and off, enable safe boot mode, and activate the turbo fan system.

Flash BIOS

Flash the BIOS with only a connected power supply and a flash drive. No CPU or memory required.

Clear CMOS

Restore the BIOS to its default settings with the push of a button.

Preinstalled I/O Shield

The pre-Installed I/O shield offers a streamlined and hassle-free installation experience.

EZ Debug LED

Onboard LEDs indicate the source of the problem so you know exactly where to look to get up and running.

Frozr Sync

Connect and synchronize coolers and cases with strategically positioned pin-header locations, including a dedicated pump-fan header.

Frozr Design

Extended Heat Sink

An extended Heat Sink enlarges the surface of heat dissipation for optimal processors performance.

Heat-Pipe

An efficient heat pipe connects two MOS heat sinks to enlarge the surface of heat dissipation.

Frozr Heat Sink

An active cooling system helps to maintain maximum performance.

M.2 Shield Frozr

M.2 Shield Frozr keeps SSDs safe while preventing throttling.

MOSFET Baseplate

A baseplate on the back lowers MOSFET temperatures, ensuring better heat dissipation.

High-Speed Connectivity

Thunderbolt 4

In addition to transferring up to 40 Gb/s transfers with compatible devices, each Thunderbolt 4 port can provide up to 15W of power. You can also connect compatible displays. Up to three Thunderbolt 4 devices or five Thunderbolt 3 devices may be daisy chained to each port.

Wi-Fi 7

Wi-Fi 7 (802.11be) introduces higher speeds, wider channels, improved efficiency, and reduced latency over Wi-Fi 6 (802.11ax), with maximum speeds of up to 5.8 Gb/s. Utilizing 320 MHz on the 6 GHz band ensures reliability during simultaneous transmissions at max speeds and the 4096 QAM boosts peak transmission rates and network capacity. Multi-Link Operation enables devices to simultaneously send and receive data across several frequency bands and channels to meet traffic demands and the growing number of wireless devices.

AI Features

Game Boost

One-click CPU overclock automatically optimizes your CPU performance.

AI Boost

An intelligent algorithm boosts NPU performance to get the best possible AI performance when you need it.

AI Engine

By learning your behavior, the MSI AI engine can optimize and adjust your system in real-time, which saves you from having to perform manual changes.

XMP

Choose from preset XMP profiles to automatically overclock compatible DDR memory for optimal performance.

AI Boost

Overclock your NPU for improved AI performance.

Enhanced Immersion

Audio Boost 5

Enjoy studio grade sound quality for immersive gaming experiences.

Mystic Light

Customize RGB lighting with a variety of effects and sync them with Mystic Light compatible peripherals.

UPC: 824142388099

Items Included

MSI MPG Z890I EDGE TI WIFI LGA 1851 Mini-ITX Motherboard (White)
2 x SATA Cable
EZ Wi-Fi Antenna
5-in-1 XPANDER
1-to-3 Conn-Cable (V2)
EZ Front Panel Cable
3 x M.2 Screw
USB Drive
Cable Sticker Sheet
Limited 3-Year Manufacturer Warranty

Additional Resources

User Manual

5.8 MB

MSI Z890I EDGE TI WiFi Specs

Key Specs

Chipset	Intel Z890
CPU Socket	LGA 1851
Memory Slots	2x 288-Pin
Memory Type Support	DDR5, 8600 MT/s Maximum Supported Speed
M.2 Slots	2280
Expansion Slots	1x PCIe 5.0 x16
Wi-Fi	Wi-Fi 7 (802.11be)
Form Factor	Mini-ITX

CPU

Chipset	Intel Z890
CPU Socket	LGA 1851

Back Panel I/O

USB	1x USB-C (USB 3.1/3.2 Gen 2) 7x USB-A (USB 3.1/3.2 Gen 2)
Thunderbolt	2x Thunderbolt 4
Display	1x HDMI
Audio	2x 1/8" / 3.5 mm
Ethernet / Controller	1x Intel E5000B 5GbE
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback, Clear CMOS

Memory

Memory Slots	2x 288-Pin
Memory Type Support	DDR5, 8600 MT/s Maximum Supported Speed
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	2x SATA III
M.2 Slots	1x M.2 (M Key) 2280 (PCIe 5.0 x4) 2x M.2 (M Key) 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2280 (PCIe 4.0 x4 / SATA III)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5 (SATA) RAID 0, 1, 5, 10 (M.2)

Internal I/O

Expansion Slots	1x PCIe 5.0 x16
USB	1x USB 2.0 Header (Supports 2 USB-A Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
Air Cooling	1x 4-Pin CPU 1x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin CPU
Security	Chassis Intrusion, TPM Module
LED Header	5x RGB

Front Panel I/O

AAFP

Audio

Audio Codec	Realtek ALC4080 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 7 (802.11be): Tri-Band (2.4, 5, & 6 GHz)
Bluetooth	Bluetooth 5.4

Software

OS Compatibility

Windows 11 (64-Bit Only)

Physical

Form Factor	Mini-ITX
Dimensions	6.7 x 6.7" / 170.2 x 170.2 mm

Packaging Info

Package Weight	2.96 lb
Box Dimensions (LxWxH)	11.3 x 9.1 x 2.3"
