Description

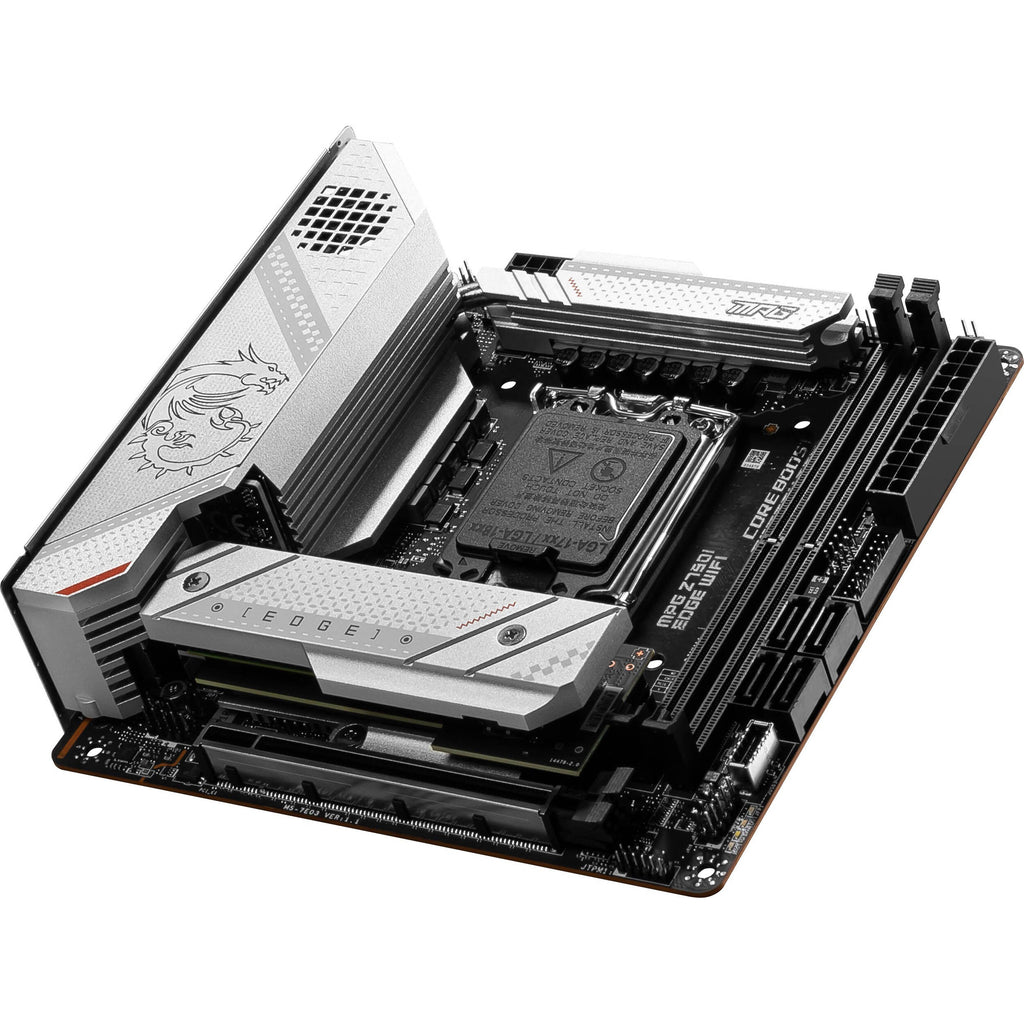

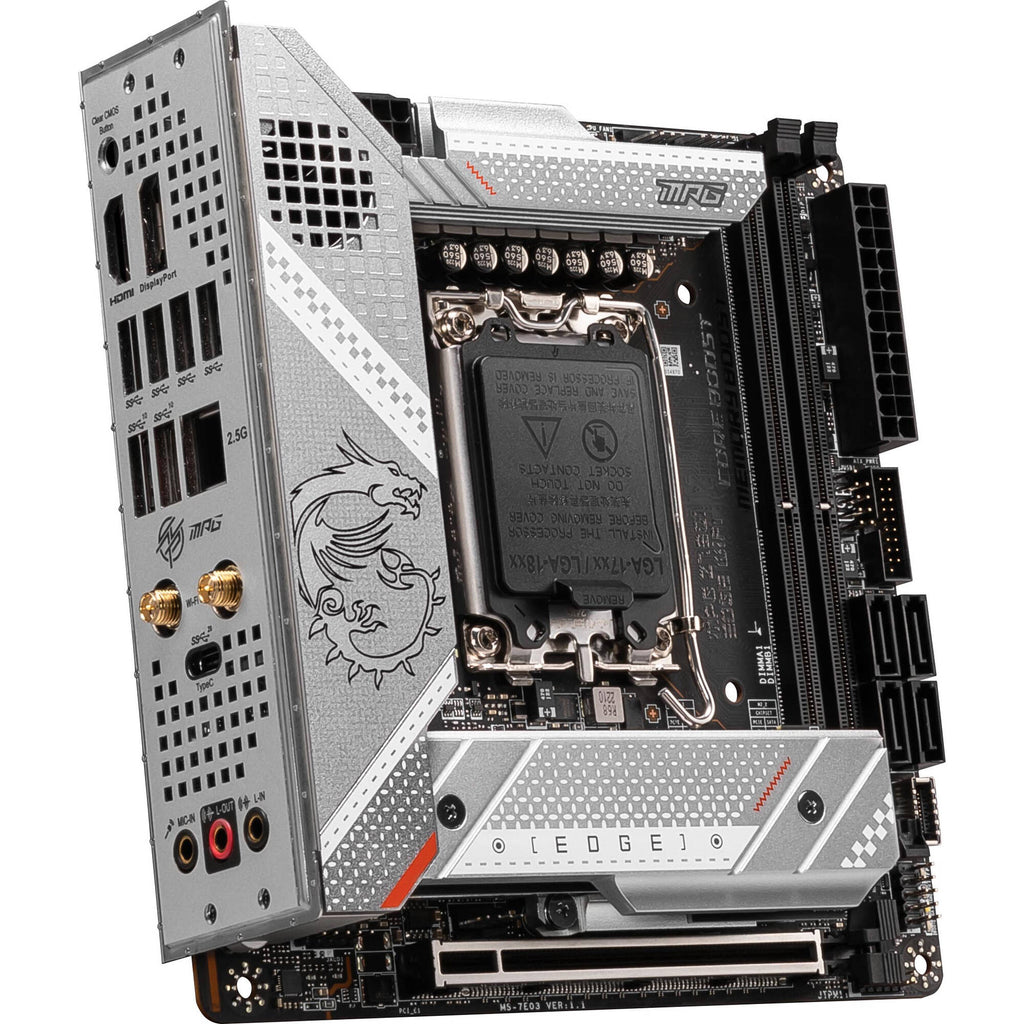

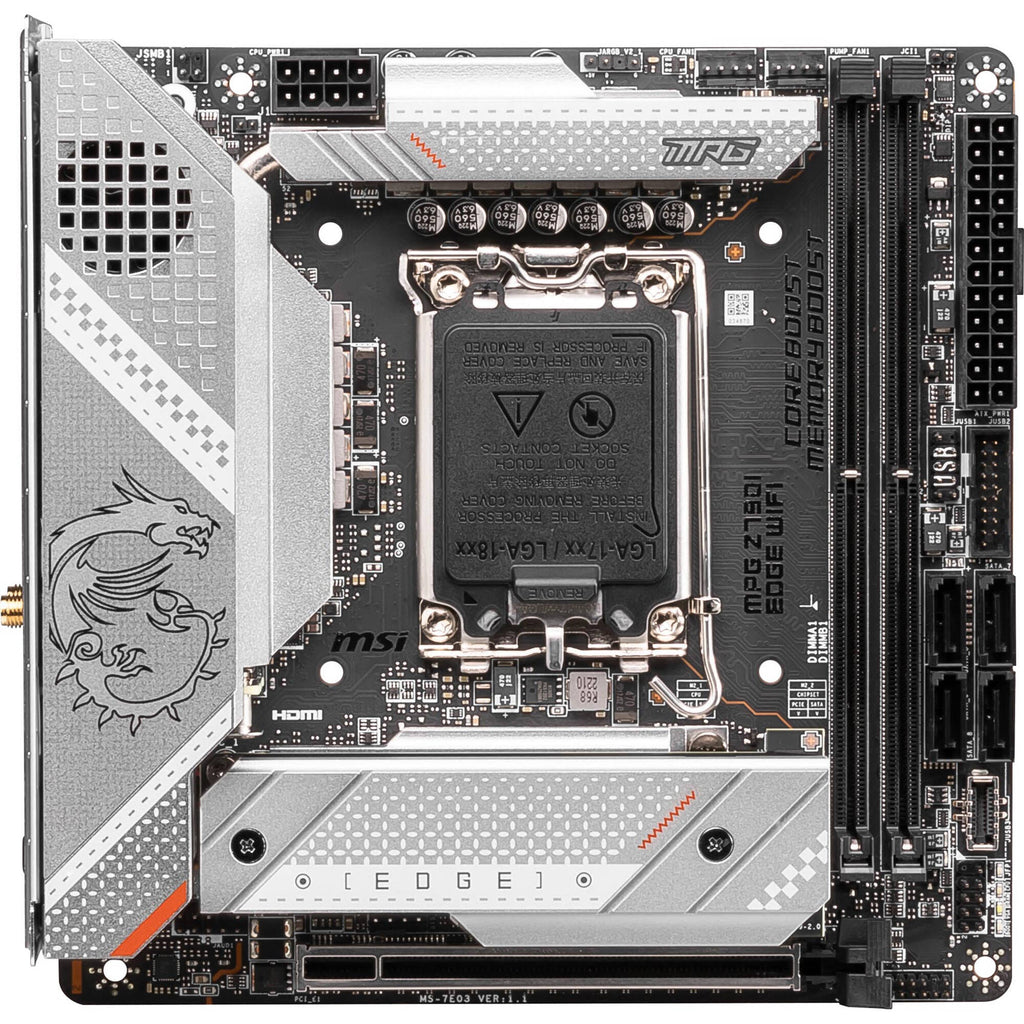

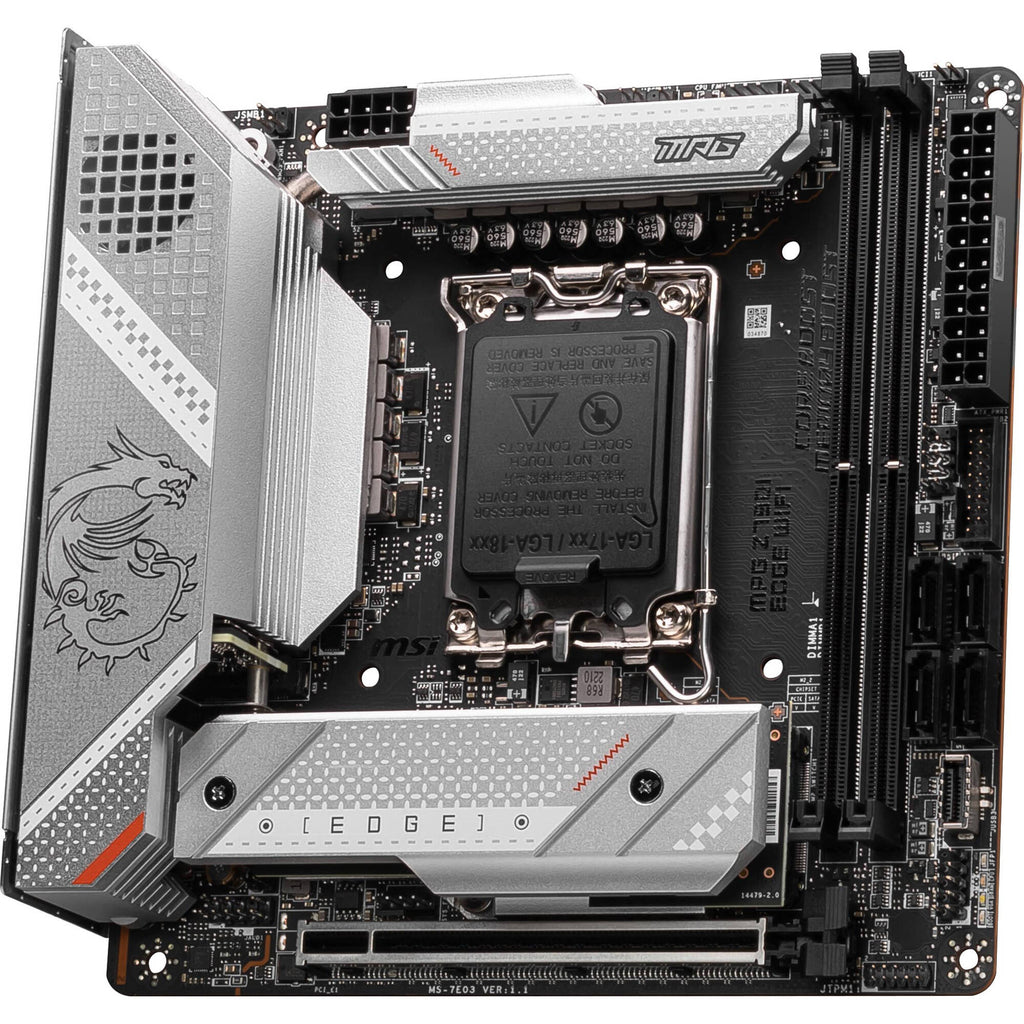

MSI MPG Z790i EDGE WIFI Overview
- 1Description
- 2LGA 1700 Socket
- 3Intel Z790 Chipset
- 410+1+1 Phase Power
- 5Lightning Gen 5
- 6DDR5 Memory Support
- 7Audio Boost 5
- 82.5 Gigabit Etherent
- 9USB 3.2 Gen 2x2
Bring big performance to small cases with the MPG Z790i EDGE WIFI LGA 1700 Mini-ITX Motherboard from MSI. Utilizing the Intel Z790 chipset and LGA 1700 socket, this Mini-ITX motherboard sports two DDR5 RAM slots supporting dual channel memory and speeds up to 8000 MHz when overclocked. Four SATA III and three M.2 interfaces provide ample room for storage. RAID 0, 1, 5, and 10 is supported via SATA; RAID 0, 1, and 5 is supported via M.2. Install a GPU or other adapter card via a PCIe 5.0 x16 slot. Take advantage of fast networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; connect to wireless peripherals with ease using Bluetooth 5.2.

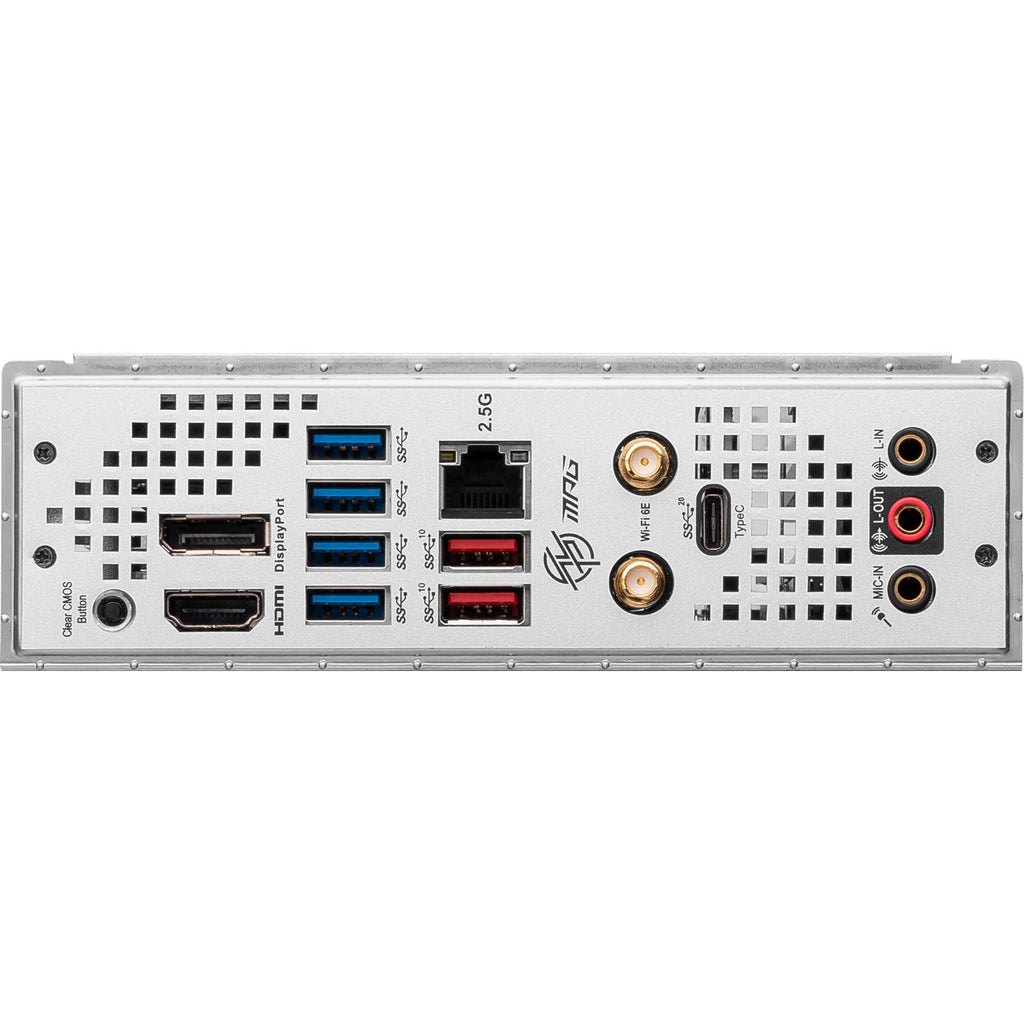

The Realtek ALC4080 audio codec supports 7.1 channel surround sound, while rear ports allow for analog connections. Interface with wired peripherals via four USB 3.2 Gen 1 and two Gen 2 Type-A ports, or via a USB 3.2 Gen 2x2 Type-C port. Output video via DisplayPort and HDMI. The rear I/O panel also sports a Clear CMOS button, while internal headers provide support for front-panel USB 3.2 Gen 2x2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, chassis intrusion, a TPM module, RGB connector, and more.
In the Box
- MSI MPG Z790i EDGE WIFI LGA 1700 Mini-ITX Motherboard
- 2 x SATA Cables
- M.2 Screw Package
- USB Drive
- Rainbow RGB LED Extension Cable
- Cable Stickers
- Wi-Fi Antenna
- Limited 3-Year Manufacturer Warranty
- Description
- LGA 1700 Socket
- Intel Z790 Chipset
- 10+1+1 Phase Power
- Lightning Gen 5
- DDR5 Memory Support
- Audio Boost 5
- 2.5 Gigabit Etherent
- USB 3.2 Gen 2x2
MSI MPG Z790i EDGE WIFI Specs
| Chipset | Intel Z790 |
| CPU Socket | LGA 1700 |
| USB | 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2 x USB-A (USB 3.1/3.2 Gen 2) 1 x USB-C (USB 3.2 Gen 2x2) |
| Thunderbolt | None |
| Display | 1 x HDMI 2.1 1 x DisplayPort 1.4 |
| Audio | 3 x 1/8" / 3.5 mm |
| Ethernet / Controller | 1 x Intel 2.5Gigabit |
| Wi-Fi Antenna | 2 x Connector |
| Buttons | Clear CMOS |
| Memory Slots | 2 x 288-Pin |
| Memory Support | DDR5 5600, 6600, 8000 MHz |
| Maximum Capacity | 64 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 4 x SATA III |
| M.2 | 2 x M Key 2280 (PCIe 4.0 x4) 1 x M Key 2280 (PCIe 3.0 x4, SATA III) |
| RAID Support | RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5 (M.2) |
| Expansion Slots | 1 x PCIe 5.0 x16 |
| USB | 1 x 3.2 Gen 2x2 Header (Supports 1 USB-C Port) 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1 x 2.0 Header (Supports 2 USB-A Port) |
| Air Cooling | 1 x 4-Pin CPU 1 x 4-Pin System |
| Liquid Cooling | 1 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard 1 x 8-Pin ATX |
| Security | Chassis Intrusion, TPM Module |
| LED Header | 1 x RGB |
| Audio | None |
| Diagnostics | 2-Digit Debug LED |
| ROM | 256 Mb |
| Front Panel I/O | AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2 |
| Audio Codec | Realtek ALC4080 (7.1-Channel) |
| Bluetooth | 5.2 |
| Wi-Fi | Wi-Fi 6E (802.11ax) with MU-MIMO Support |
| Wireless | Wi-Fi 6E (802.11ax) / Bluetooth 5.2 |
| Module Support | 1 E Key M.2 |
| Form Factor | Mini-ITX |
| Dimensions | 6.7 x 6.7" / 17.0 x 17.0 cm |
| Package Weight | 2.68 lb |
| Box Dimensions (LxWxH) | 9.2 x 7.7 x 3.3" |
