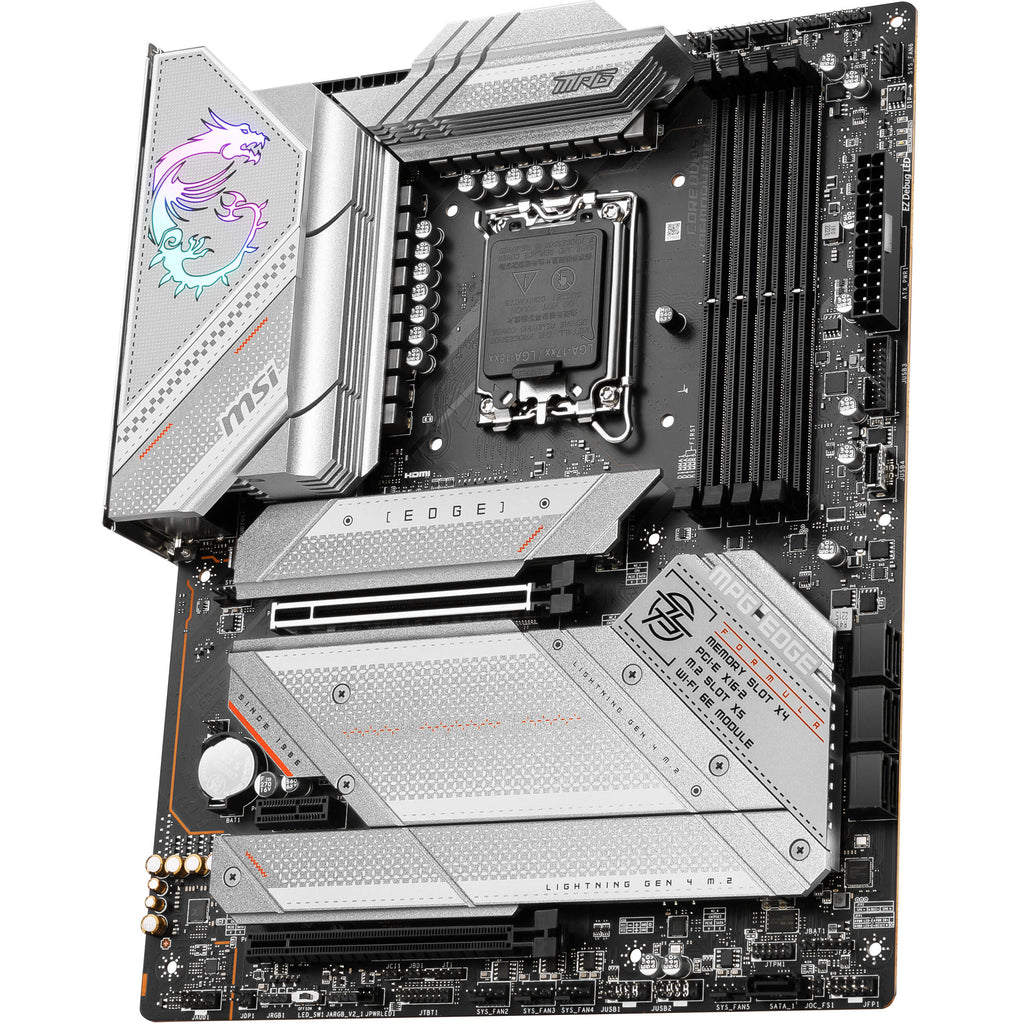

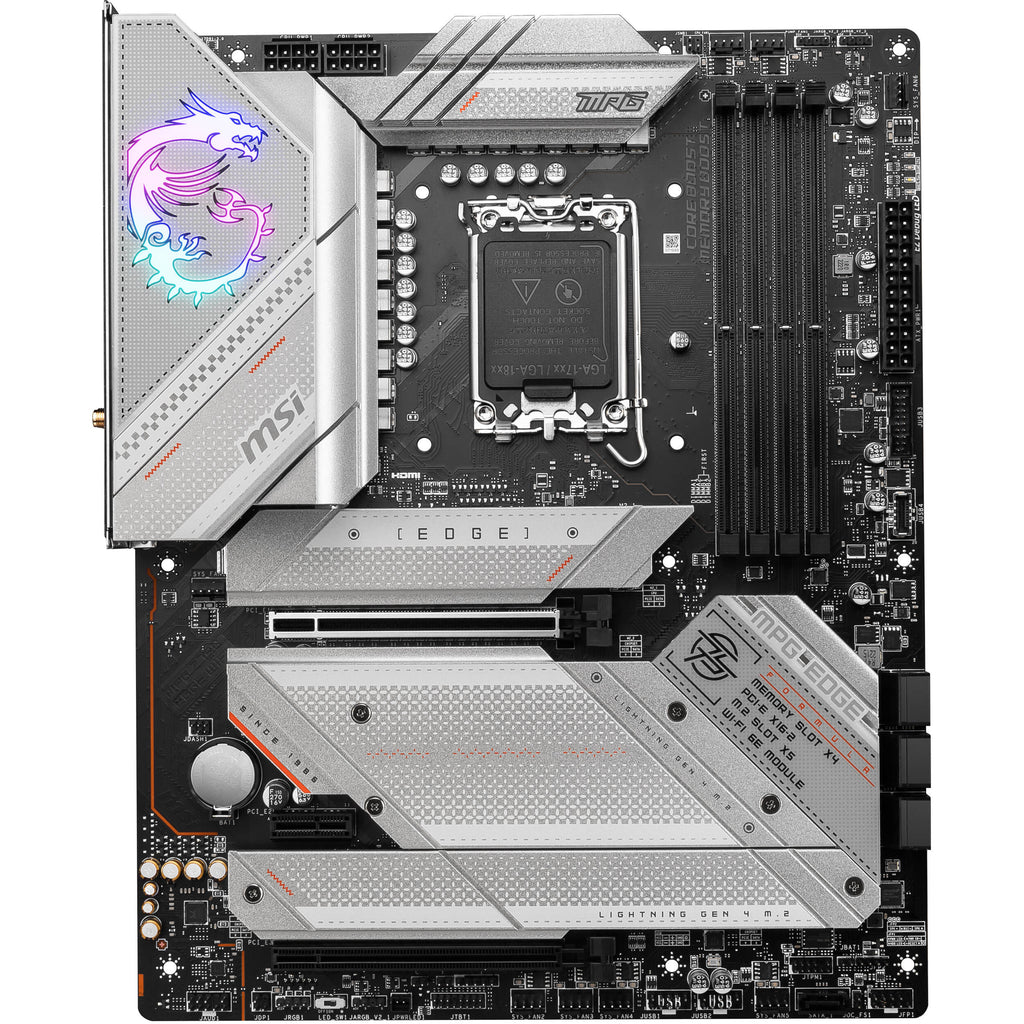

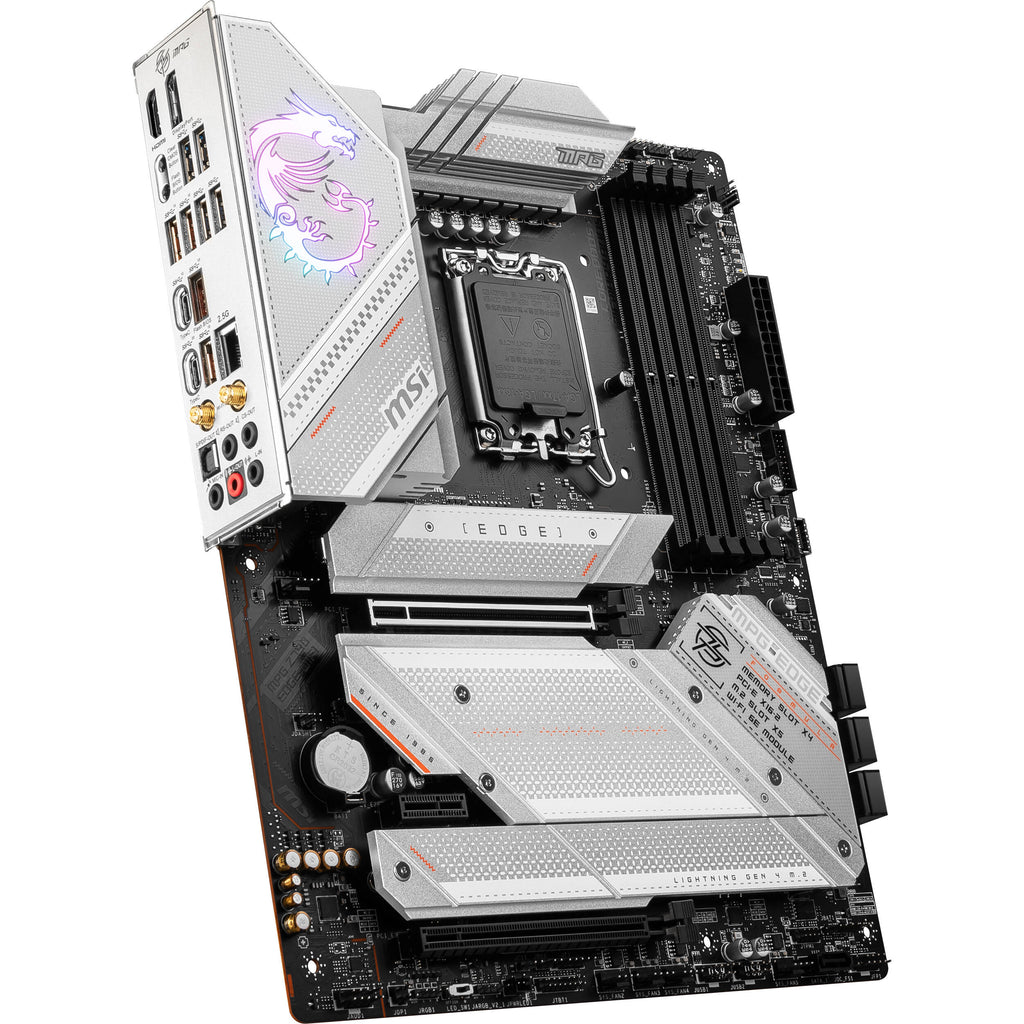

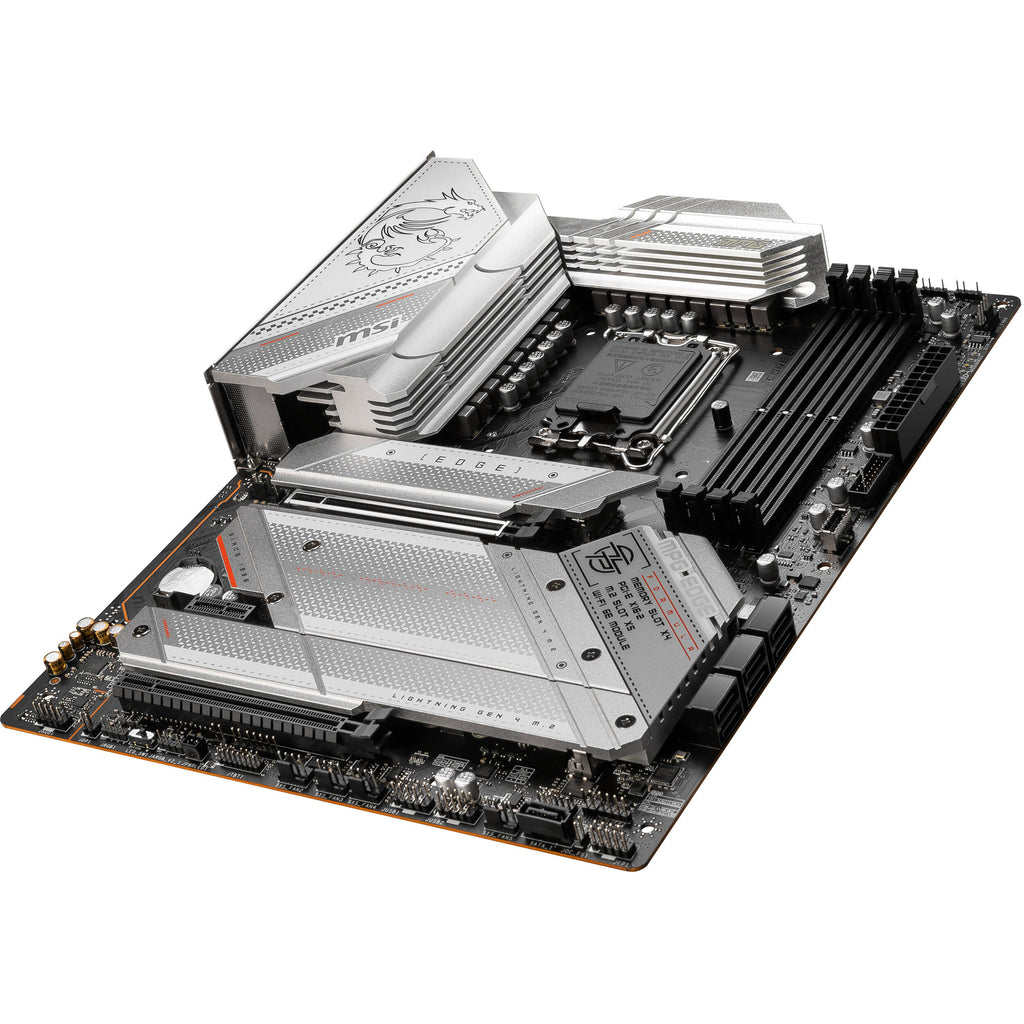

MSI MPG Z790 EDGE WIFI LGA 1700 ATX Motherboard

Roll over image to zoom in

MSI MPG Z790 EDGE WIFI LGA 1700 ATX Motherboard


	₹ 33675.0 includes GST and import duties.
	B2B customers can avail ₹ 5135.44 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	MSI
SKU:	6950302384213
MPN:	Z790EDGEWI
UPC/HSN:	824142288245

Share this product

MSI MPG Z790 EDGE WIFI Overview

1Description
2Hardware Design
3Cooling Solution
4DIY Friendly
5Expansion Design
6Audio Enhancements
7Mystic Light
8BIOS & Software

Get your next gaming build off on the right foot with the MSI MPG Z790 EDGE WIFI LGA 1700 ATX Motherboard. Offering robust connectivity and customization options, the MPG sets a solid foundation for your next system.

With the Intel Z790 chipset and LGA 1700 socket, you can install a range of 12th and 13th Gen Intel Core processors, giving you full access to a wide range of performance enhancements. Four DDR5 RAM slots allow you to install up to 128GB of memory with speeds up to 7200 MHz when overclocked, giving you enhanced render and multitasking capabilities. Amass an array of storage drives for your media and games with seven SATA III ports as well as five M.2 interfaces. Install a variety of graphics and utility cards with one PCIe 5.0 x16, one PCIe 4.0 (in x4 mode), and one PCIe 3.0 x1 slots. Between the back panel and internal headers, you get access to USB 3.2 Gen 1, Gen 2, and Gen 2x2 ports, allowing you to use resource-demanding peripherals such as external storage drives, audio interfaces, and more. Bluetooth 5.2 technology allows you to use wireless devices such as mice and headsets for a cable-free experience. Wi-Fi 6E (802.11ax) and 2.5 Gigabit Ethernet LAN allow you to use either wireless or wired networking solutions so you can download your games, access your cloud storage, and enjoy your favorite streaming media.

Hardware Design

The MPG leverages a 16+1+1 duet rail system to ensure proper electrical layout and throughput for your system. Six PCB layers with 2oz thickened copper materials and sever-grade materials add reliability, ensuring optimized circuit transmission.

Cooling Solution

Ensure your system is properly cooled to maintain optimal performance with an extended VRM heatsink, direct-touch heat pipe, 7W/mK thermal pad, and enlarged PCH heatsink. Enhanced M.2 Thermal layout with M.2 Shield Frozr technology prevents performance throttling by dissipating heat quickly.

DIY Friendly

A variety of user-friendly enhancements allow seasoned and new builders to get their system off the ground easier, streamlining the installation processes. Screwless M.2 storage removes screws and allows quick storage installation. Clear CMOS and Flash BIOS buttons allow you to update the motherboard to keep your hardware up to date. Additionally, you get a variety of improvements including a pre-installed I/O shield, EZ Debug LEDs, EZ LED Control, Keep Out Zone, and XL Clip.

Expansion Design

A single PCIe 5.0 x16 expansion slot offers enhanced data transfer speeds suitable for powerful graphics cards and uses MSI's Steel Armor covering which reinforces the slot to handle larger and heavier cards.

Audio Enhancements

Incorporating an isolated audio signal that is separated at the PCB level to prevent audio crosstalk, the MPG ensures deep and immersive audio for your games and streaming media. High quality audio capacitors empower the audio jacks and S/PDIF connectors with improved sound for your headsets and speakers. You also get De-pop protection, dedicated headphone amplifier, and a high-performance ALC4080 audio processor for greater audio quality.

Mystic Light

Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.

BIOS & Software

The MPG includes a wide range of BIOS and software programs that offer various enhancements with MSI Center. You get access to Mystic Light, True Color, User Scenario, Hardware Monitoring, Profile Setting, Fan Center, and System Diagnosis so you can fine-tune your entire system from a single interface.

UPC: 824142288245

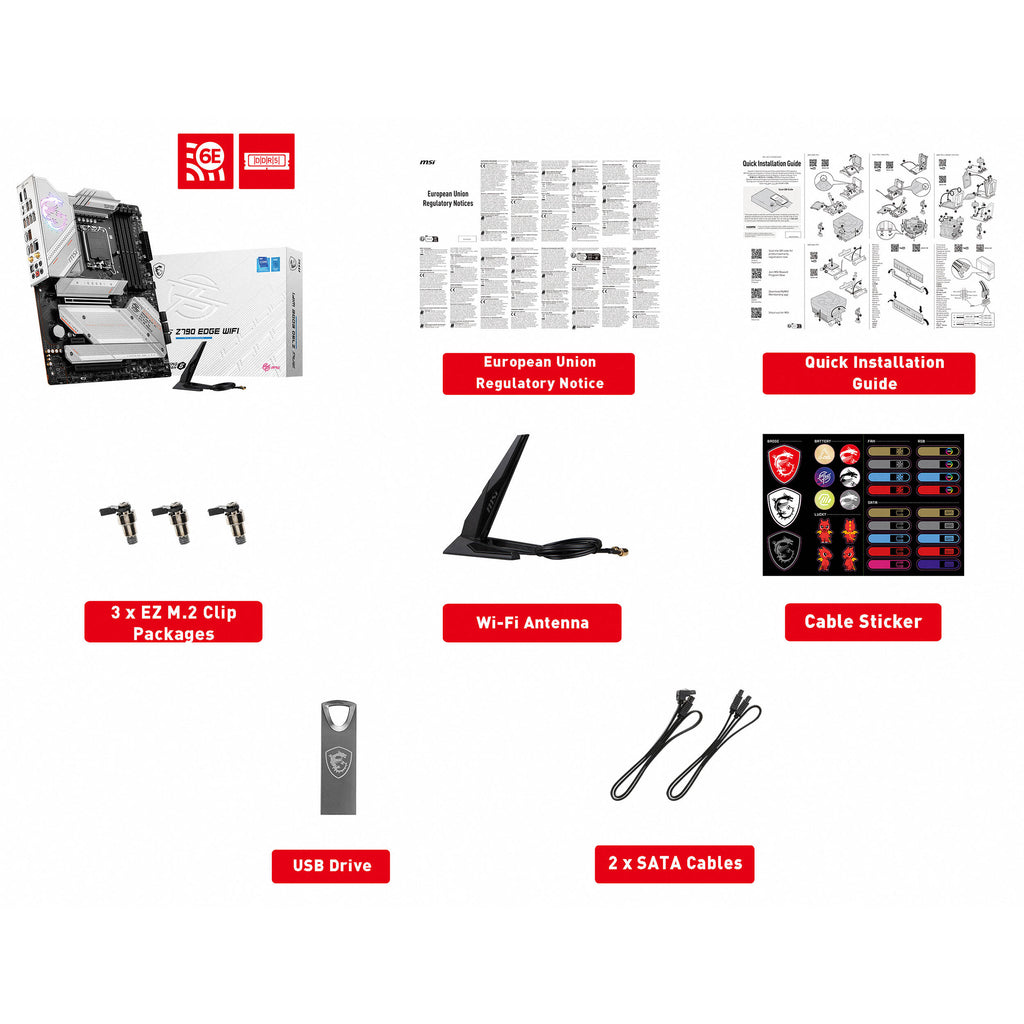

In the Box

MSI MPG Z790 EDGE WIFI LGA 1700 ATX Motherboard
2 x SATA Cables
3 x EZ M.2 Clips
USB Drive
Cable Stickers
Wi-Fi Antenna
Limited 3-Year Manufacturer Warranty

Table of Contents

Description
Hardware Design
Cooling Solution
DIY Friendly
Expansion Design
Audio Enhancements
Mystic Light
BIOS & Software

MSI MPG Z790 EDGE WIFI Specs

CPU

Chipset	Intel Z790
CPU Socket	LGA 1700

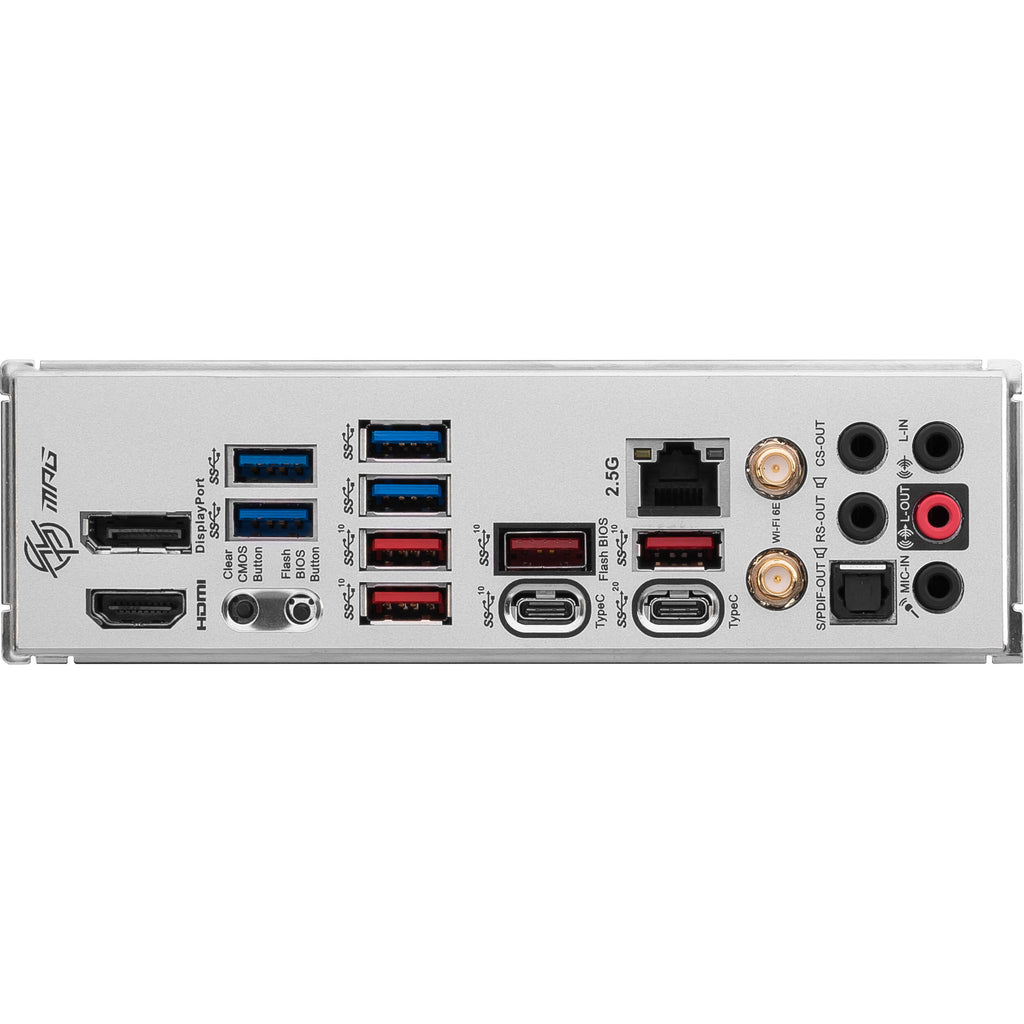

Back Panel I/O

USB	4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4 x USB-A (USB 3.1/3.2 Gen 2) 1 x USB-C (USB 3.1/3.2 Gen 2) 1 x USB-C (USB 3.2 Gen 2x2)
Thunderbolt	None
Display	1 x DisplayPort 1 x HDMI
Audio	5 x 1/8" / 3.5 mm 1 x S/PDIF
Ethernet / Controller	1 x Intel 2.5Gigabit
Wi-Fi Antenna	2 x Connector
Buttons	BIOS Flashback, Clear CMOS

Memory

Memory Slots	4 x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	7 x SATA III
M.2	1 x M Key 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2260, 2280 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified)) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) 1 x M Key 2260, 2280 (PCIe 4.0 x4)
RAID Support	RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5, 10 (M.2)

Internal I/O

Expansion Slots	1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1
USB	1 x 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port)
Air Cooling	1 x 4-Pin CPU 6 x 4-Pin System
Liquid Cooling	1 x 4-Pin Pump
Power Connectors	1 x 24-Pin Mainboard 2 x 8-Pin ATX
Security	TPM Header
LED Header	4 x RGB

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec

Realtek ALC4080 (7.1-Channel)

Wireless

Bluetooth	5.3
Wi-Fi	Wi-Fi 6E (802.11ax)
Wireless	Wi-Fi 6E (802.11ax) / Bluetooth 5.3

Software

OS Compatibility

Windows 10 to 11
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility

Physical

Form Factor	ATX
Dimensions	12.0 x 9.60" / 304.8 x 243.84 mm

Packaging Info

Package Weight	4.775 lb
Box Dimensions (LxWxH)	14 x 11.3 x 3"
