Description
MSI MPG B850I EDGE TI WIFI Overview
With a silver-white color scheme, the MSI MPG B850I EDGE TI WIFI AM5 Mini-ITX Motherboard is ideal for gamers looking to make a white PC build. With an AM5 socket and an AMD B850 chipset, this motherboard supports AMD 9000, 8000, or 7000 Series processors. The PCIe 5.0 x16 slot features MSI Steel Armor, allowing to support heavy graphics cards.
Stay connected with a wired 5GbE LAN connection or wirelessly with Wi-Fi 7. The motherboard can connect to peripherals with Bluetooth 5.4 or several USB-C and USB-A ports. The motherboard's compact form factor makes it ideal for Mini-ITX builds.
Ready for AI PC
AI Engine
The AI Engine provides several categories for you to sync the applications you want to perform and automatically optimize them to create a comfortable environment.
AI LAN Manager
The AI LAN Manager optimizes networking performance and minimizes latency, providing a seamless online experience.
Frozr AI Cooling
With Frozr AI Cooling, this motherboard automatically adjusts fans to make sure the system stays in cool and stable while still providing high performance.
AI Boost
An exclusive MSI feature, AI boost can overclock the NPU to improve AI performance.
EZ DIY
This motherboard was designed for EZ DIY. MSI focused on ensuring that installing and connect components was easy and effortless. Below are some examples. Flash the BIOS with only a connected power supply by following a few steps and the integrated Flash BIOS button.
- Restore the BIOS to default settings with the Clear CMOS button.
- The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup.
- This motherboard ensures the case standoff keep out zones are clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
- The included EZ Wi-Fi Antenna makes the process effortlessly by simply attaching fasteners to the motherboard without needing to screw them in.
Power Design
Unleash and sustain the maximum performance with a flagship VRM design built with a total of Direct 8+2+1 power design. Combining dual power connectors and 90A Smart Power Stage, the MPG B850I EDGE TI WIFI is ready for the challenge of high-end processors.
Lightning Gen 5 PCIe with Steel Armor
The PCIe 5.0 x16 slot delivers up to 128 GB/s, doubling the speed of the previous generation. The advanced SMT PCIe slot diminishes interference and electrical noise, fully supporting the PCIe 5.0 signal. The PCIe slot is secured to the motherboard with extra solder points, thanks to MSI Steel Armor, allowing it to support the weight of heavy graphics cards.
Wi-Fi 7
Wi-Fi 7 (802.11be) introduces higher speeds, wider channels, improved efficiency, and reduced latency over Wi-Fi 6 (802.11ax), with maximum speeds of up to 5.8 Gb/s. Utilizing 320 MHz on the 6 GHz band ensures reliability during simultaneous transmissions at max speeds and the 4096 QAM boosts peak transmission rates and network capacity. Multi-Link Operation enables devices to simultaneously send and receive data across several frequency bands and channels to meet traffic demands and the growing number of wireless devices.
Frozr Design
Extended Heatsink
The extended heatsink enlarges the surface of heat dissipation and maintains the performance at heavy loads.
M.2 Shield Frozr
The M.2 shield keeps your installed M.2 SSDs safe for optimal performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Frozr Heatsink
Designed with the patented fan and double ball bearings to provide optimal performance for enthusiast gamers.
UPC: 824142431061
- MSI MPG B850I EDGE TI WIFI AM5 Mini-ITX Motherboard
- EZ Wi-Fi Antenna
- SATA Cable
- ARGB Extension Cable
- 1 to 3 EZ Conn-Cable (V2)
- EZ Front Panel Cable
- 3 x M.2 Screw
- Cable Sticker
- Limited 3-Year Manufacturer Warranty
MSI MPG B850I EDGE TI WIFI Specs
Key Specs
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|
| Memory Slots |
2x 288-Pin
|
| Memory Type Support |
DDR5, 5600 MT/s Maximum Supported Speed
|
| M.2 Slots |
2280
|
| Expansion Slots |
1x PCIe 5.0 x16
|
| Wi-Fi |
Wi-Fi 7 (802.11be)
|
| Form Factor |
Mini-ITX
|
CPU
| Chipset |
AMD B850
|
| CPU Socket |
AM5
|

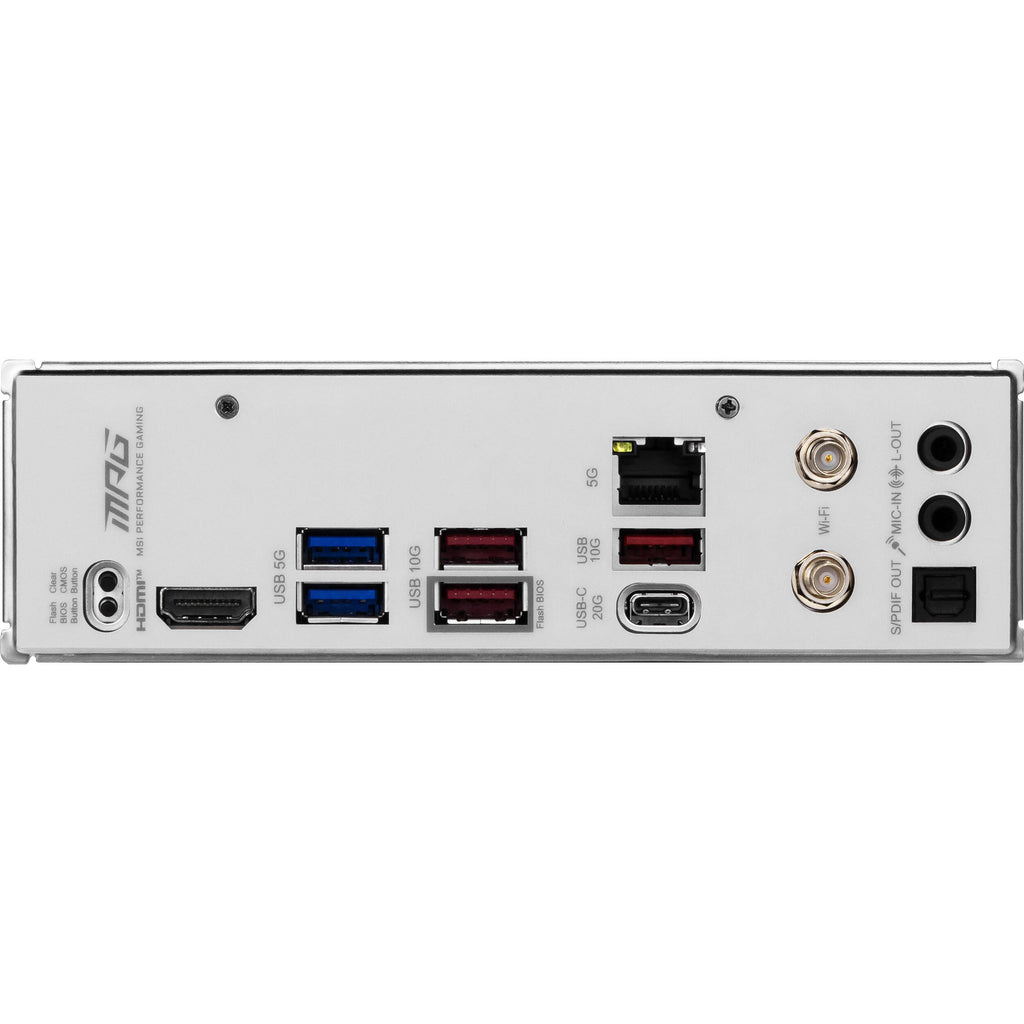

Back Panel I/O
| USB |
1x USB-C (USB 3.2 Gen 2x2)
3x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| Thunderbolt |
No
|
| Display |
1x HDMI
|
| Audio |
2x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Realtek 8126 5GbE
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback, Clear CMOS
|
Memory
| Memory Slots |
2x 288-Pin
|
| Memory Type Support |
DDR5, 5600 MT/s Maximum Supported Speed
|
| Maximum Capacity |
128 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
Storage Expansion
| SATA |
2x SATA III
|
| M.2 Slots |
2x M.2 (M Key) 2280
|
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1
|
Internal I/O
| Expansion Slots |
1x PCIe 5.0 x16
|
| USB |
1x USB 2.0 Header (Supports 2 USB-A Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) |
| Air Cooling |
1x 4-Pin CPU
1x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
1x 8-Pin CPU |
| Security |
Chassis Intrusion, TPM Header
|
| LED Header |
2x RGB
|
| Audio |
1x S/PDIF
|
Front Panel I/O
| Front Panel I/O |
USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
|
Audio
| Audio Codec |
Realtek ALC4080 (7.1-Channel)
|
| DAC |
No
|
Wireless
| Wi-Fi |
Wi-Fi 7 (802.11be): Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
| Bluetooth |
Bluetooth 5.4
|
Software
| OS Compatibility |
Windows 11 (64-Bit Only)
|
Physical
| Form Factor |
Mini-ITX
|
| Dimensions |
6.7 x 6.7" / 170 x 170 mm
|
Packaging Info
| Package Weight |
2.625 lb
|
| Box Dimensions (LxWxH) |
11 x 9.1 x 2.4"
|
