MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard

Roll over image to zoom in

MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard


	₹ 31595.0 includes GST and import duties.
	B2B customers can avail ₹ 4818.24 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	MSI
SKU:	6995439321173
MPN:	MPG B760I EDGE WIFI
UPC/HSN:	824142315545

Share this product

MSI MPG B760I EDGE WIFI Overview

1Description
2Enhanced Design
3DIY Friendly
4Built for Performance
5Software Enhancements
6Reliable Design
7Enhanced Audio
8Mystic Light

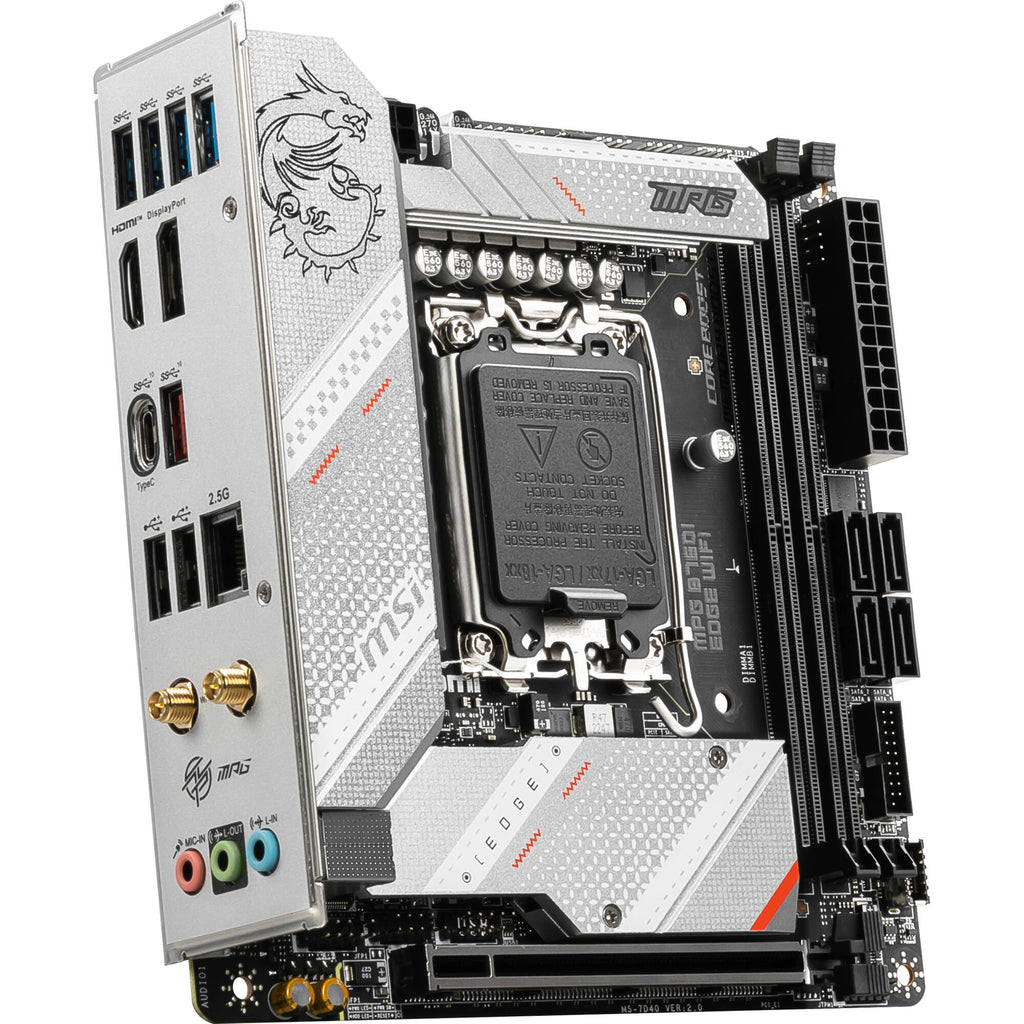

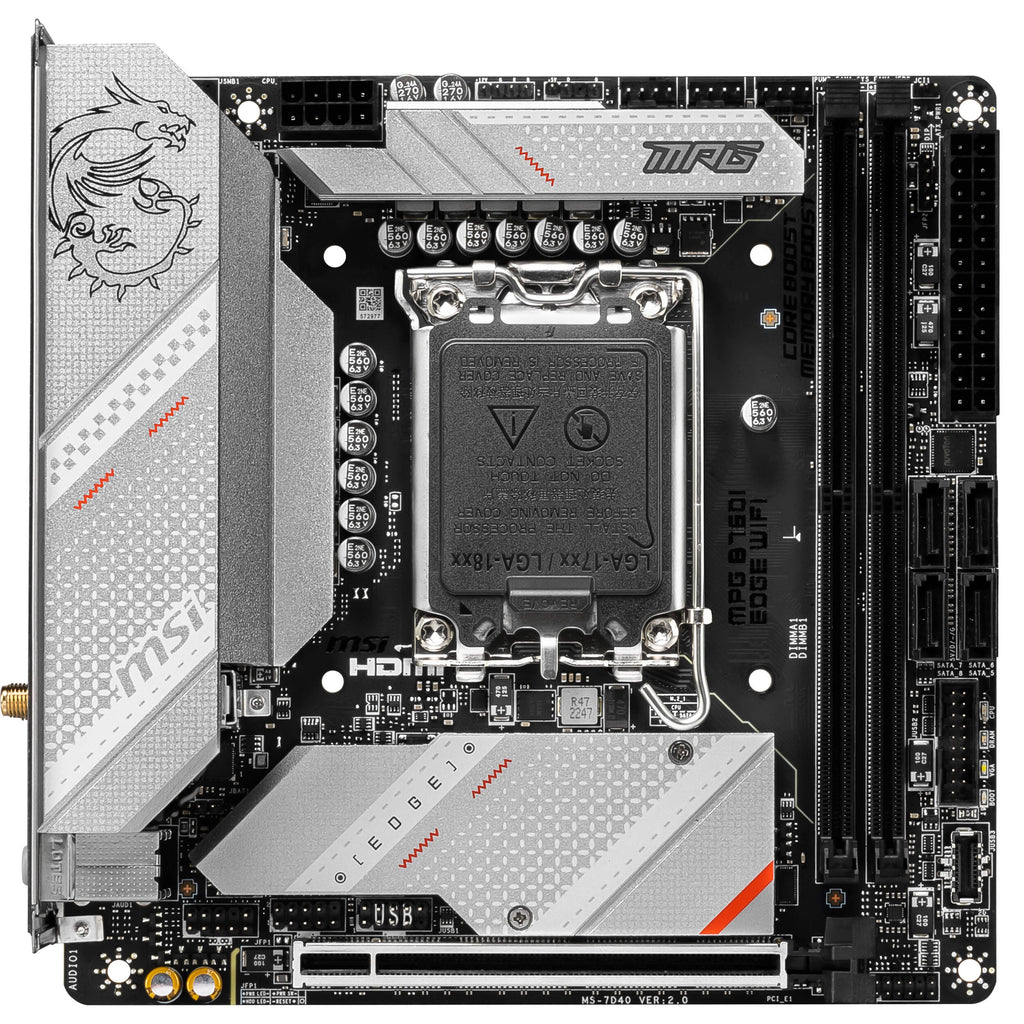

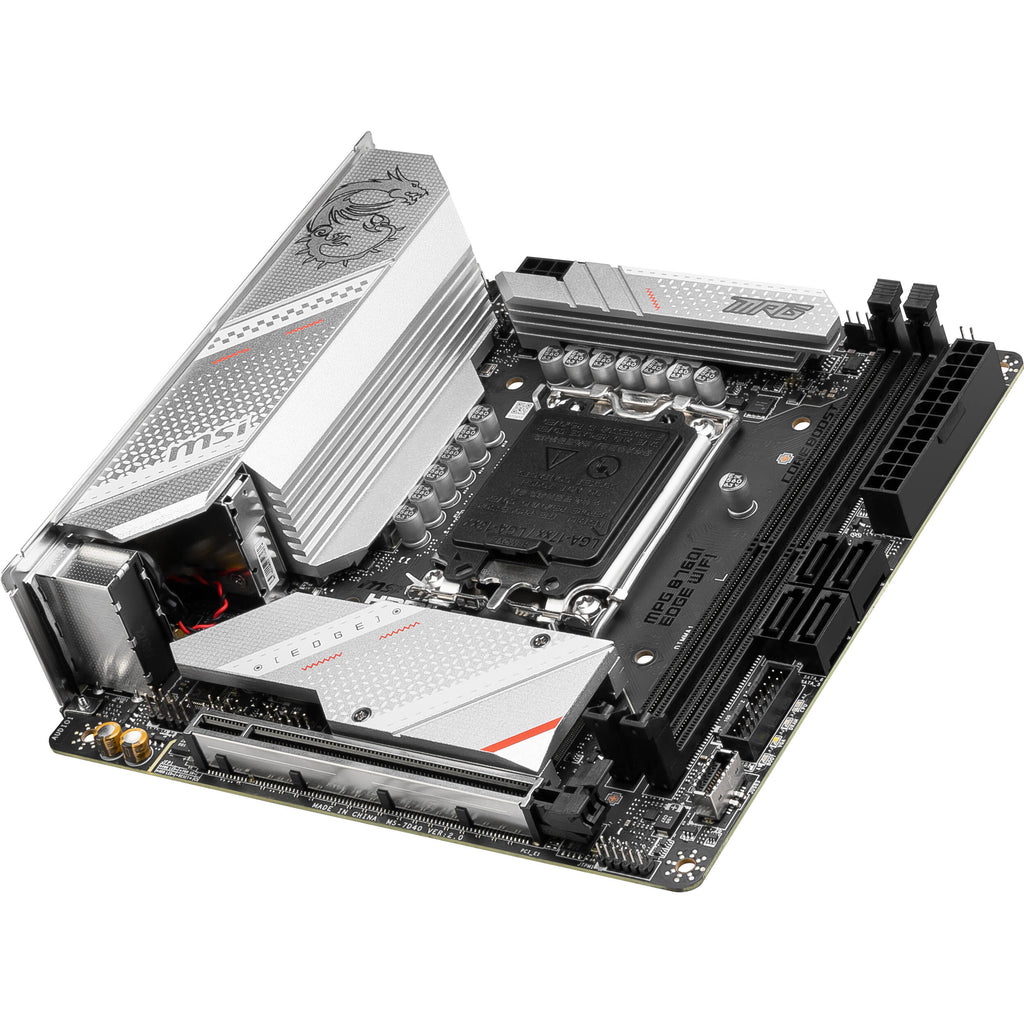

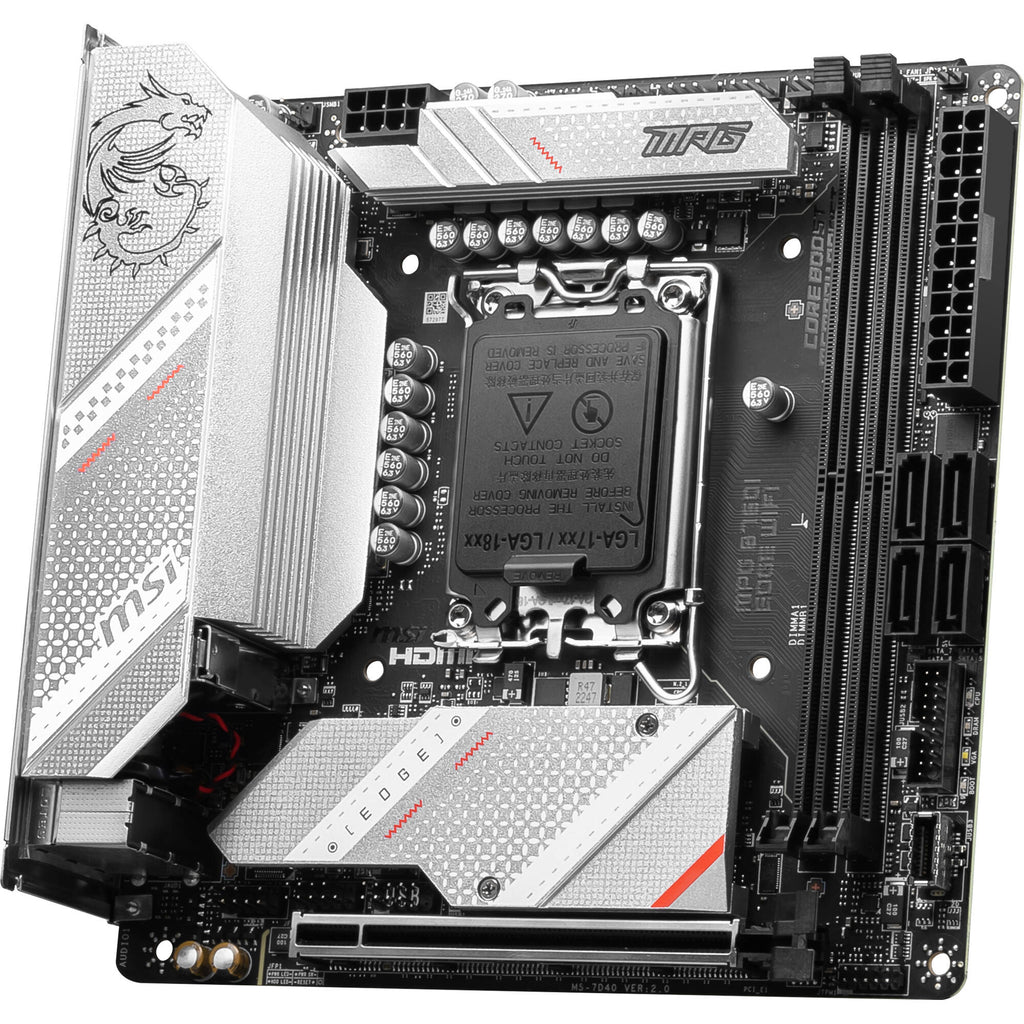

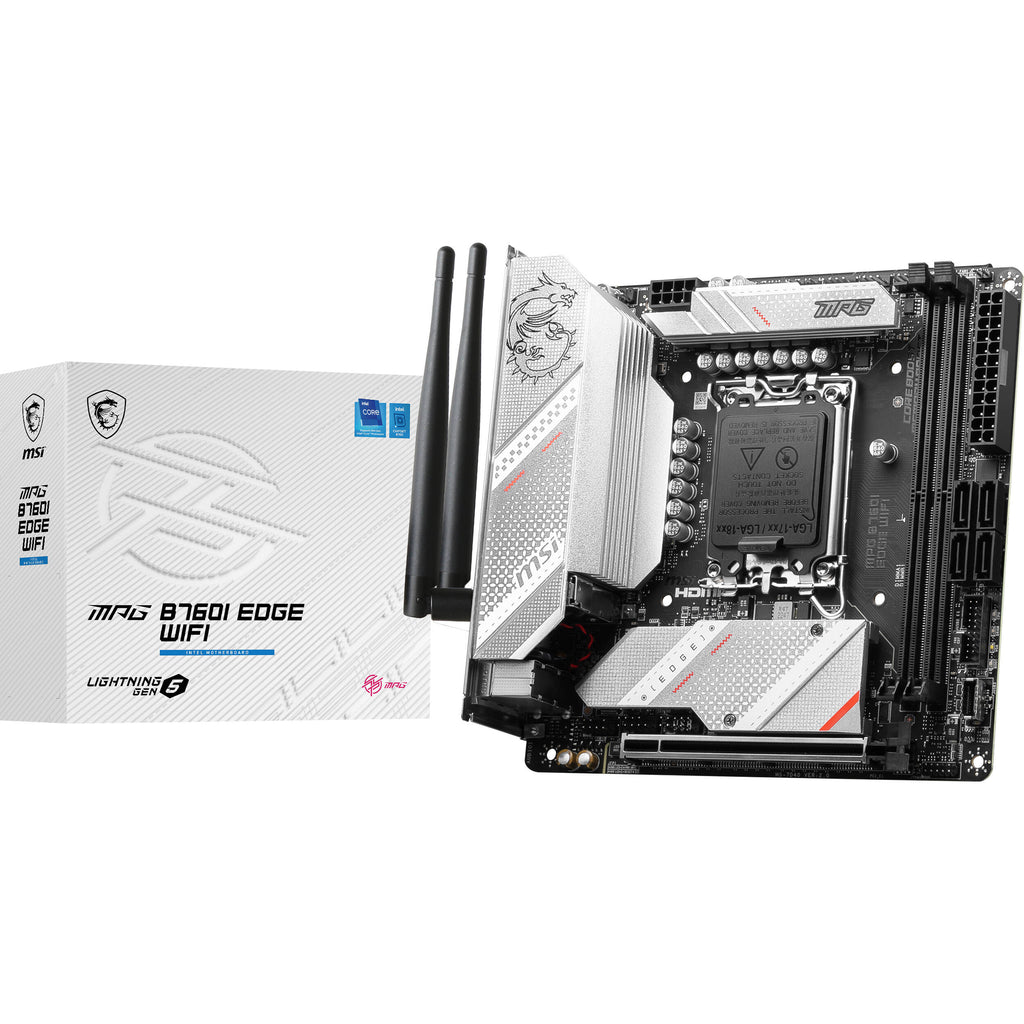

Set the foundation of your next miniature PC build with the robust MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard. Designed to leverage the power of 12th and 13th Gen Intel CPUs, the MPG offers a solid foundation designed for gaming enthusiasts looking for enhanced connectivity in a smaller footprint.

Intel's LGA 1700 socket rests at the heart of the MPG, allowing you to install a variety of 12th and 13th Gen processors to match your needs. Two DDR5 RAM slots allow you to install up to 96GB of memory to enhance multitasking and render speeds. Four SATA III and two M.2 PCIe SSD interfaces can support a wide range of storage drives that allow fast data transfer speeds. Install the graphics card of your choice in the PCIe 5.0 x16 expansion slot. Between back-panel connections and internal headers, you get several USB 2.0, 3.2 Gen 1, and 3.2 Gen 2 ports designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces. You also get Bluetooth 5.3 connectivity for wireless peripheral support, giving you a true cable-free experience. Connect to your network with a wired or wireless connection with a built-in 2.5 Gigabit Ethernet LAN port and Wi-Fi 6E (802.11ax) options, respectively.

Enhanced Design

Providing you with enhanced performance, the MPG utilizes several features and electrical designs to optimize your gaming experience. 8+1+1 VRM Power System enhances power throughput and manages electrical balance throughout the 8-layer PCB. Extended heat sink, pump fan support, M.2 Shield Frozr, and chipset heat sink with 7W/mK thermal pad all work together to ensure your system remains cool under heavy loads.

DIY Friendly

Whether you are a seasoned or a brand new builder, the MPG offers several enhancements that are useful to everyone. You have several other conveniences such as the pre-installed I/O shield, XL PCIe clip, EZ debug LEDs, and Windows 11 certification, giving you all you need to ensure proper operation.

Built for Performance

The MPG's PCIe 5.0 x16 slot is backed by proprietary Lightning Gen 5 technology, giving you up to 128 GB/s bandwidth, driving up graphical performance. Integrated Xtreme Memory Profile (XMP) overclocks your memory and ensures proper electrical throughput for greater RAM speeds.

Software Enhancements

Various ingrained systems allow you to fully optimize your gaming experience. MSI Center is a one-stop-shop platform for most of your needs. You can customize your settings with Profile Setting, Fan Center, System Diagnosis, Hardware Monitoring, User Scenario, and True Color settings. You also have various BIOS settings that can be adjusted with EZ-Mode or Advanced Mode along with Resizable Bar, adding even more optimization options for your system.

Reliable Design

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

Enhanced Audio

Ensure your audio is top-notch with an array of high-definition processors, audio capacitors, and jacks designed to deliver immersive audio suitable for your games and media. Isolated audio signal splits channels to prevent crosstalk for an even clearer sound. Protect your ears as you plug and unplug your headset with De-Pop Protection.

Mystic Light

Mystic Light allows you to customize your lighting colors and effects to add personality to your system.

UPC: 824142315545

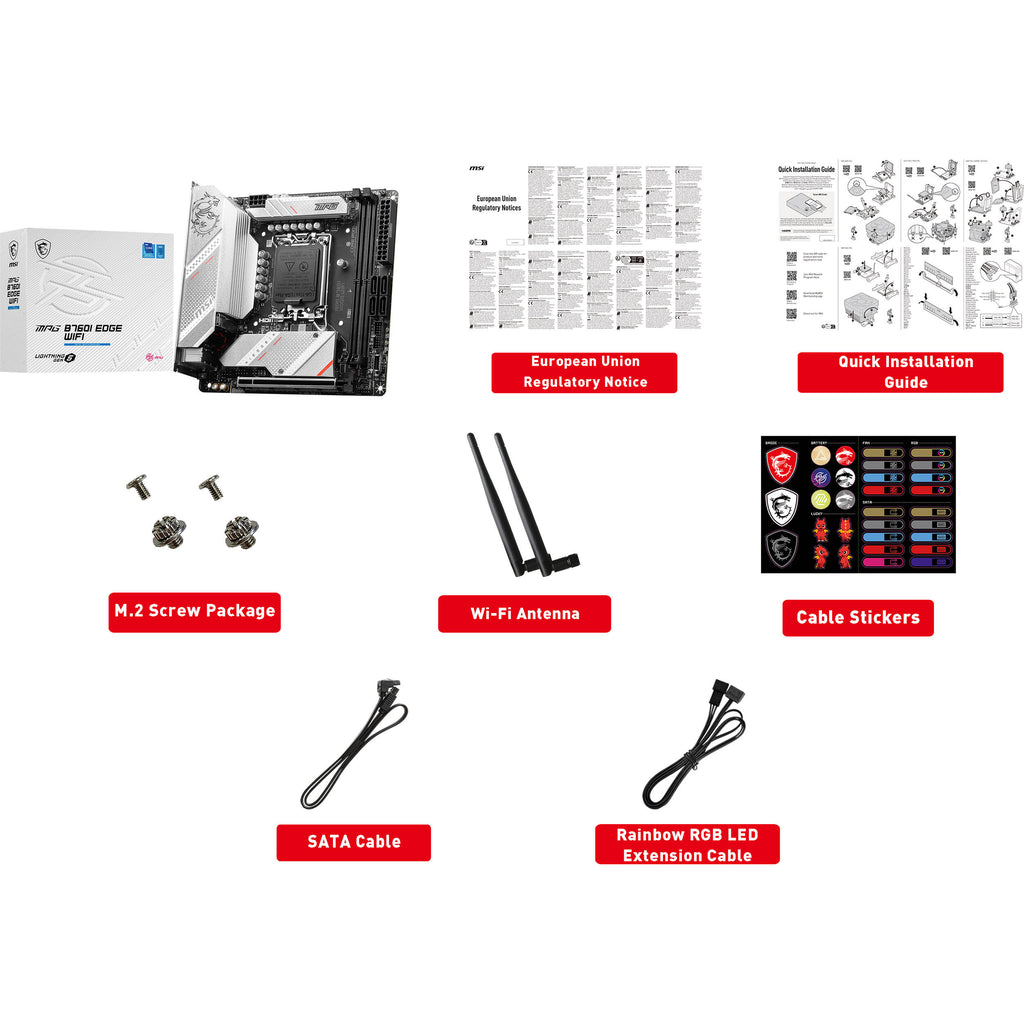

In the Box

MSI MPG B760I EDGE WIFI LGA 1700 Mini-ITX Motherboard
SATA Cable
M.2 Screw Package
Wi-Fi Antennas
JARGB Extension Cable
Cable Sticker Sheet
Limited 3-Year Manufacturer Warranty

User Manual

31.4 MB

Table of Contents

Description
Enhanced Design
DIY Friendly
Built for Performance
Software Enhancements
Reliable Design
Enhanced Audio
Mystic Light

MSI MPG B760I EDGE WIFI Specs

Key Specs

Chipset	Intel B760
CPU Socket	LGA 1700
Memory Slots	2x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
M.2	1x M Key 2280 (PCIe 4.0 x4) 1x M Key 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots	1x PCIe 5.0 x16
Wi-Fi	Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Form Factor	Mini-ITX

CPU

Chipset	Intel B760
CPU Socket	LGA 1700

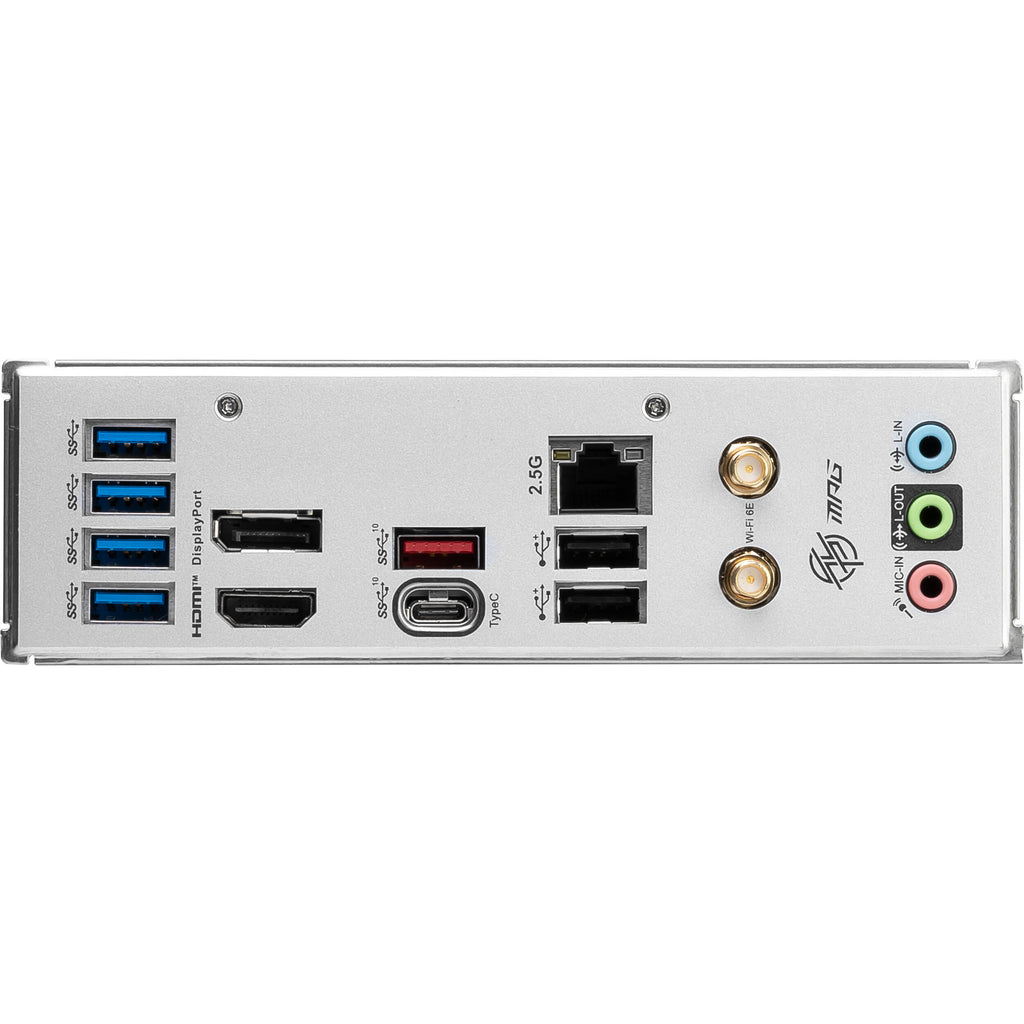

Back Panel I/O

USB	4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 1x USB-C (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 2.0)
Thunderbolt	No
Display	1x DisplayPort 1.4 Output 1x HDMI 2.1 Output
Audio	3x 1/8" / 3.5 mm
Ethernet / Controller	1x 2.5Gigabit
Wi-Fi Antenna	2x Connector

Memory

Memory Slots	2x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
Maximum Capacity	96 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4x SATA III
M.2	1x M Key 2280 (PCIe 4.0 x4) 1x M Key 2280 (PCIe 4.0 x4, SATA III)
Optane Memory Support	No
RAID Support	RAID 0, 1, 5, 10 (SATA)

Internal I/O

Expansion Slots	1x PCIe 5.0 x16
USB	1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling	1x 4-Pin CPU 1x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin ATX
Security	Chassis Intrusion, TPM Module
LED Header	6x RGB
Diagnostics	Clear CMOS

Audio

Audio Codec	Realtek ALC897 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
Bluetooth	5.3

Software

OS Compatibility

Windows 10 to 11 (64-Bit Only)

Physical

Form Factor	Mini-ITX
Dimensions	6.7 x 6.7" / 17.0 x 17.0 cm

Packaging Info

Package Weight	2.185 lb
Box Dimensions (LxWxH)	9.7 x 8.4 x 3.3"
