MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard

Roll over image to zoom in

MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard


	₹ 33325.0 includes GST and import duties.
	B2B customers can avail ₹ 5082.06 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	MSI
SKU:	7133548609621
MPN:	B850TMAHAWKWIFIMAX
UPC/HSN:	824142395356

Share this product

MSI MAG B850 TOMAHAWK MAX WIFI Overview

Take your gaming and content-creation experiences to a new level by including the MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard in your computer build. Supporting AMD 9000, 8000, and 7000 series processors with the AM5 socket, gamers and enthusiasts can outfit this motherboard to smoothly handle demanding applications and video editing workloads.

Designed to help simplify builds, MSI's EZ technology makes it easy to install two M.2 PCIe 5.0 and two PCIe 4.0 SSDs to store your games library, applications, and important files. There are also four SATA III connectors available. The four DDR5 DIMM slots support up to 256GB, reaching up to 8400 MT/s overclocked speeds. With one PCIe 5.0 x16 slot, one PCIe 4.0 x16 (x4 mode) slot, and one PCIe 3.0 x1 slot, you can install powerful graphics cards and other compatible expansions.

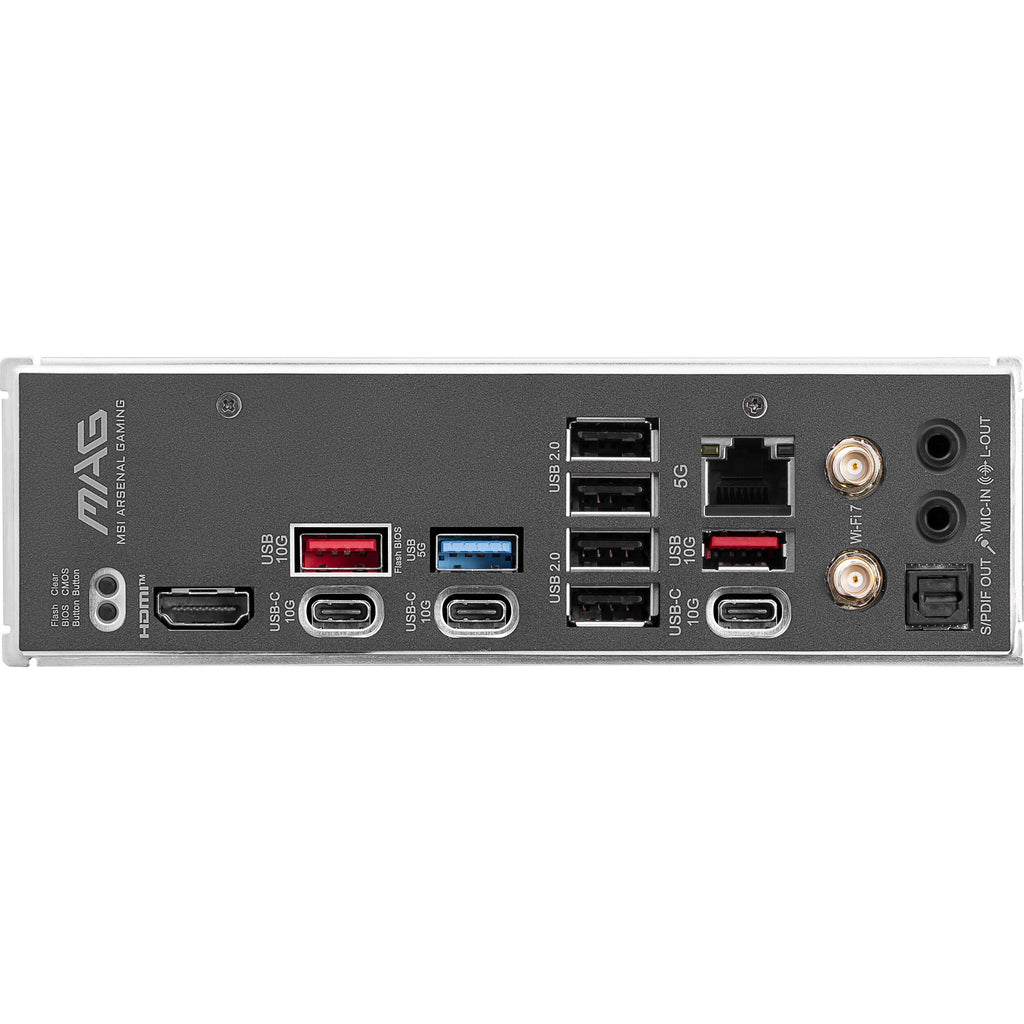

The rear panel features three USB-C and two USB-A 3.2 Gen 2 ports that can transfer up to 10 Gb/s with compatible devices. There is also a 5 Gb/s USB-A 3.2 Gen 1 port in addition to four USB 2.0 ports. An internal header allows you to connect a front panel 20 Gb/s USB-C port. Built-in Wi-Fi 7 (802.11be) support and a 5 Gb/s Ethernet port provide you with connections to compatible network devices for smooth 8K video streaming and low-latency online games. Windows 11 64-bit is required to take advantage of all the motherboard's features.

Enhanced Power

Unleash maximum CPU performance with a 14+2+1 power phases and an 80A Smart Power Stage.

EZ M.2 Clip II

MSI's EZ M.2 CLIP II makes SSD installation seamless. Insert the SSD into the M.2 slot and press it down to lock it in place with the clip. Flicking the clip outward lets you remove the SSD. Use the EZ M.2 Clip II remover tool to detach or reposition the clip on the motherboard.

Flash BIOS

Flash the BIOS with only a connected power supply and a flash drive. No CPU or memory required.

Clear CMOS

Restore the BIOS to its default settings with the push of a button.

Wi-Fi 7

Wi-Fi 7 (802.11be) introduces higher speeds, wider channels, improved efficiency, and reduced latency over Wi-Fi 6 (802.11ax), with maximum speeds of up to 5.8 Gb/s. Utilizing 320 MHz on the 6 GHz band ensures reliability during simultaneous transmissions at max speeds and the 4096 QAM boosts peak transmission rates and network capacity. Multi-Link Operation enables devices to simultaneously send and receive data across several frequency bands and channels to meet traffic demands and the growing number of wireless devices.

Audio Boost 5

Enjoy studio grade sound quality for immersive gaming experiences.

Mystic Light

Customize RGB lighting with a variety of effects and sync them with Mystic Light compatible peripherals.

AI PC Features

AI Engine

By learning your behavior, the MSI AI engine can optimize and adjust your system in real-time, which saves you from having to perform manual changes.

AI LAN Manager

Optimizes network performance and minimizes latency for online experiences.

Frozr AI Cooling

Automatically adjusts fan duty to make sure the system stays cool and stable.

AI Boost

Overclock your NPU for improved AI performance.

UPC: 824142395356

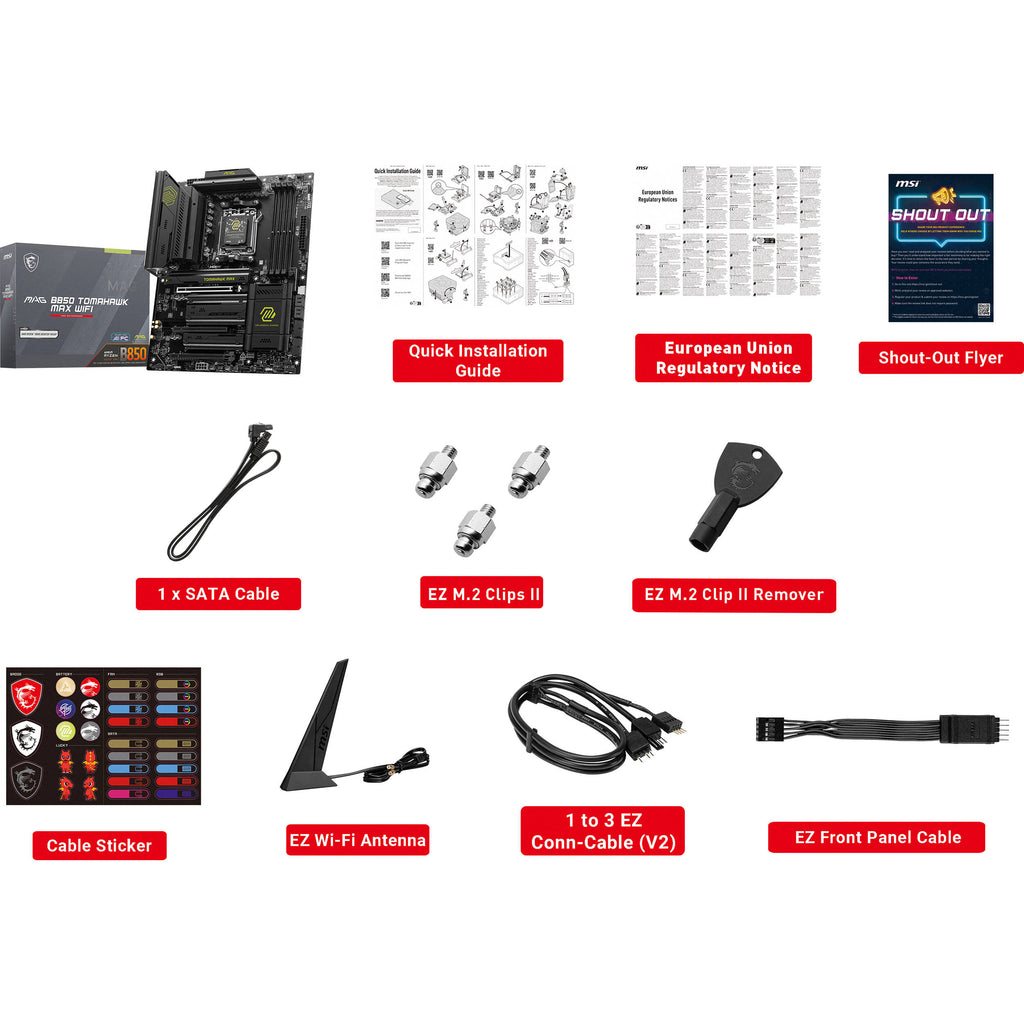

Items Included

MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard
SATA Cable
EZ Wi-Fi Antenna
1-to-3 Conn-Cable (V2)
EZ Front Panel Cable
3 x EZ M.2 Clip II
EZ M.2 Clip II Remover
Cable Sticker Sheet
Limited 3-Year Manufacturer Warranty

Additional Resources

User Manual

6.1 MB

MSI MAG B850 TOMAHAWK MAX WIFI Specs

Key Specs

Chipset	AMD B850
CPU Socket	AM5
Memory Slots	4x 288-Pin
Memory Support	DDR5 8400 MT/s
Storage Slots	1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
Expansion Slots	1x PCIe 5.0 x16 1x PCIe 4.0 x4 1x PCIe 3.0 x1
Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Form Factor	ATX

CPU

Chipset	AMD B850
CPU Socket	AM5

Back Panel I/O

USB	3x USB-C (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI
Audio	2x 1/8" / 3.5 mm
Ethernet / Controller	1x 5GbE
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback, Clear CMOS

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR5 8400 MT/s
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
Optane Memory Support	No
RAID Support	RAID 0, 1, 10 (M.2)

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 1x PCIe 4.0 x4 1x PCIe 3.0 x1
USB	2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) 1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
Air Cooling	1x 4-Pin CPU 6x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 2x 8-Pin ATX 1x 8-Pin CPU
Security	Chassis Intrusion, TPM Module
LED Header	9x RGB
Diagnostics	Clear CMOS

BIOS

ROM

256 Mb

Front Panel I/O

AAFP

Audio

Audio Codec	Realtek ALC4080 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth	5.4

Physical

Form Factor	ATX
Dimensions	9.6 x 12" / 243.8 x 304.8 mm

Packaging Info

Package Weight	4.53 lb
Box Dimensions (LxWxH)	13.9 x 10.8 x 2.8"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

Quantity	Price
2	₹ 32658.5
3-5	₹ 32325.25
5-10	₹ 31658.75
10+	₹ 30992.25

Bulk discount will be automatically applied during checkout based on quantity.
