Description
MSI MAG B760M MORTAR WIFI II Overview
- 1Description
- 2Enhanced Design
- 3Built for Performance
- 4DIY Friendly

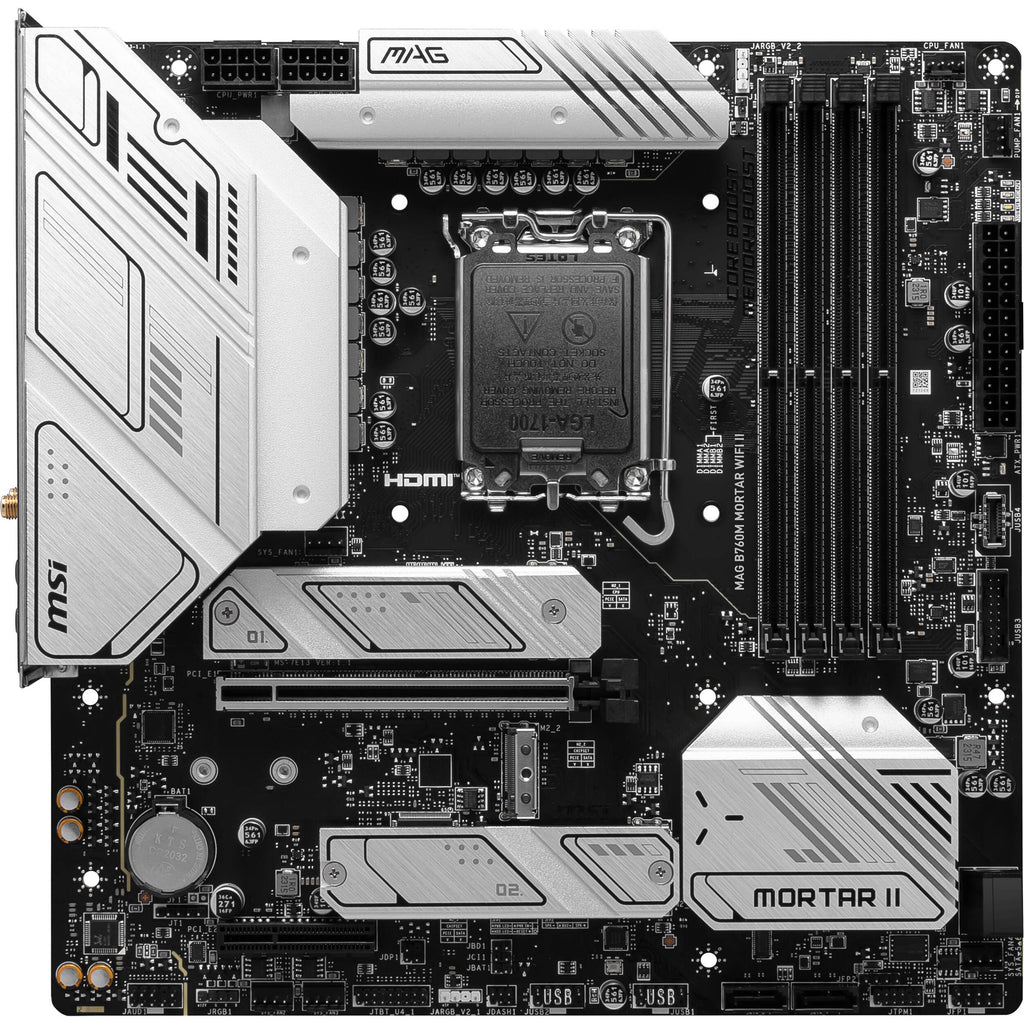

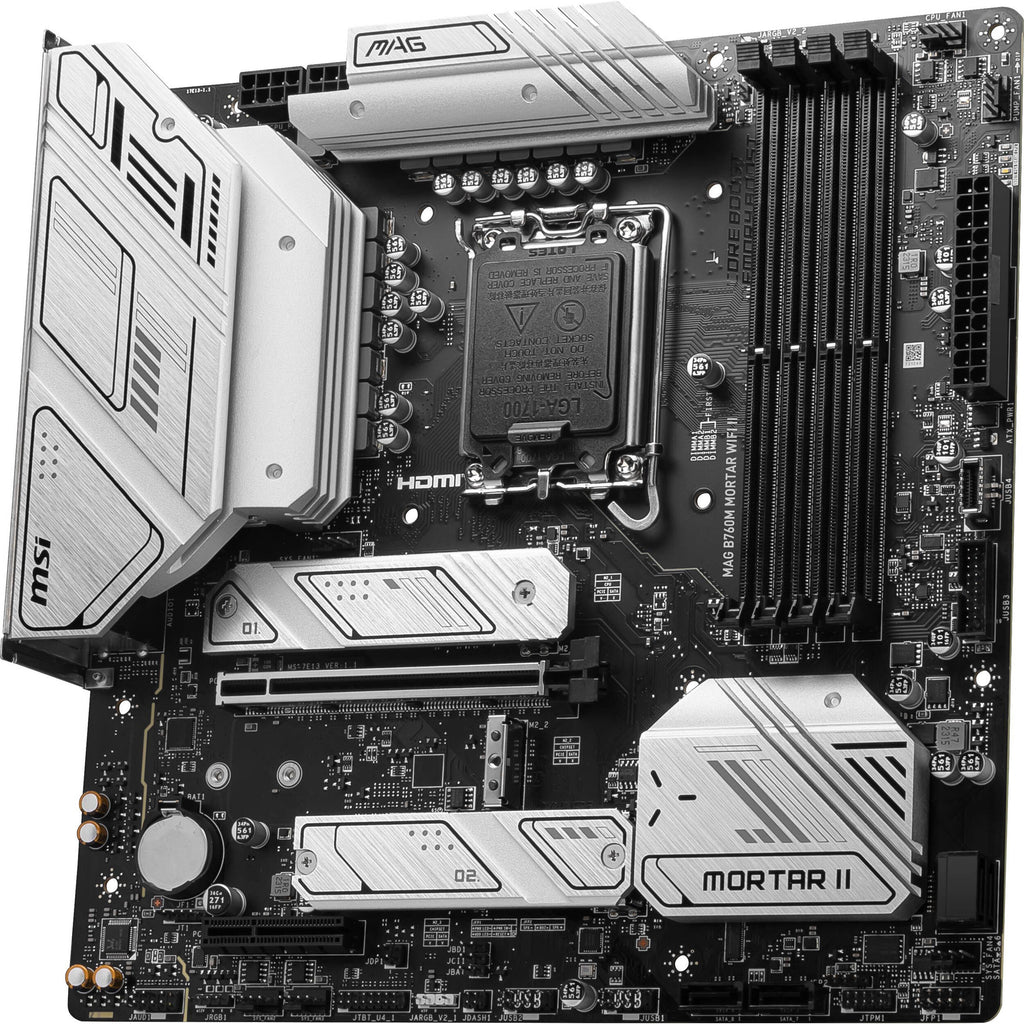

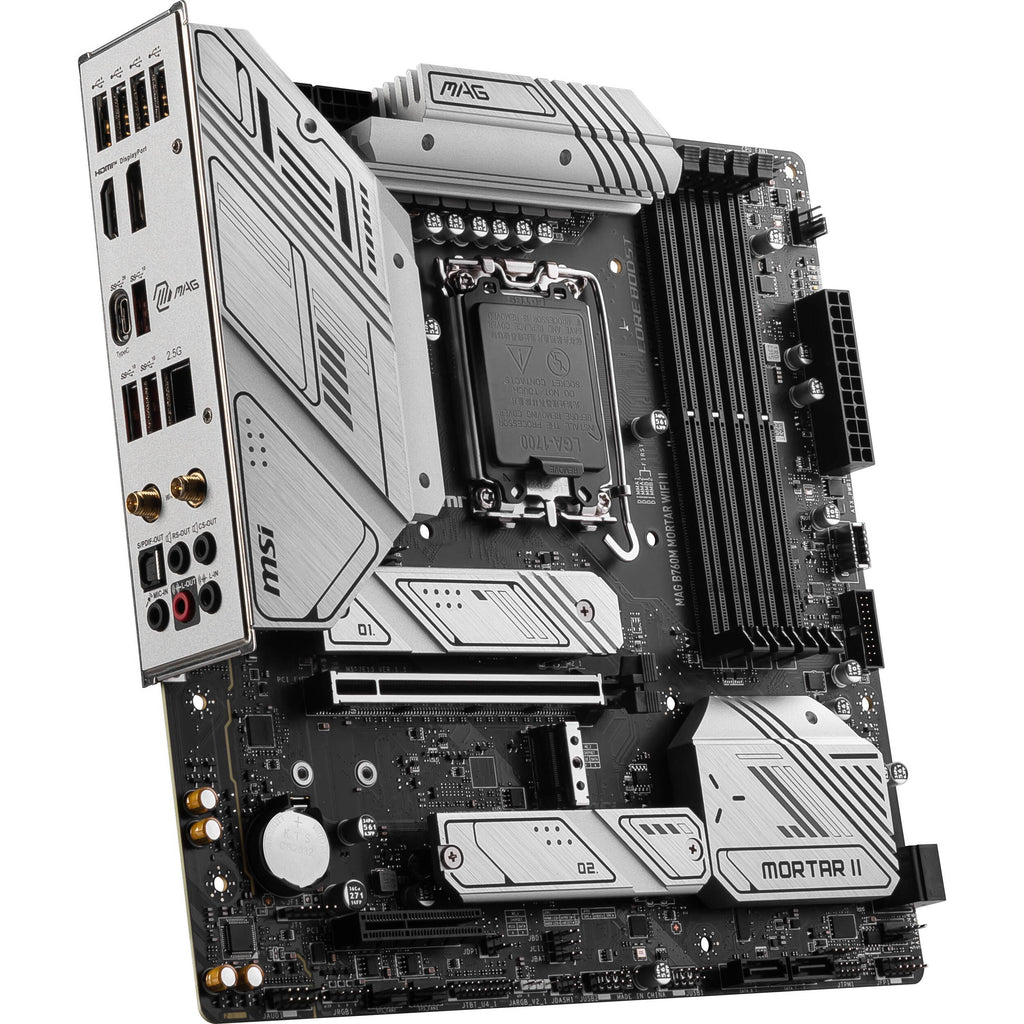

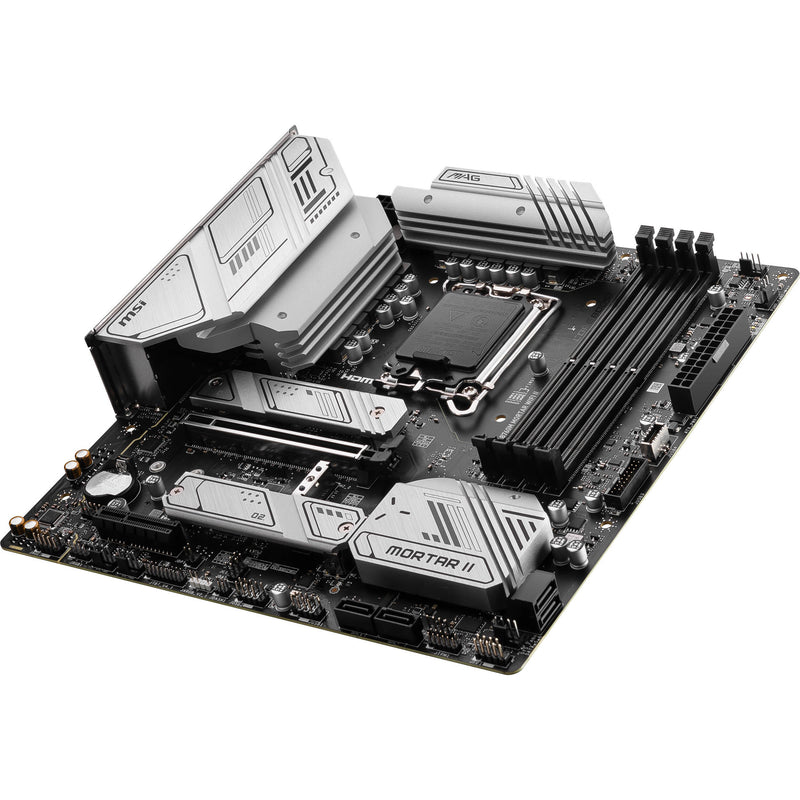

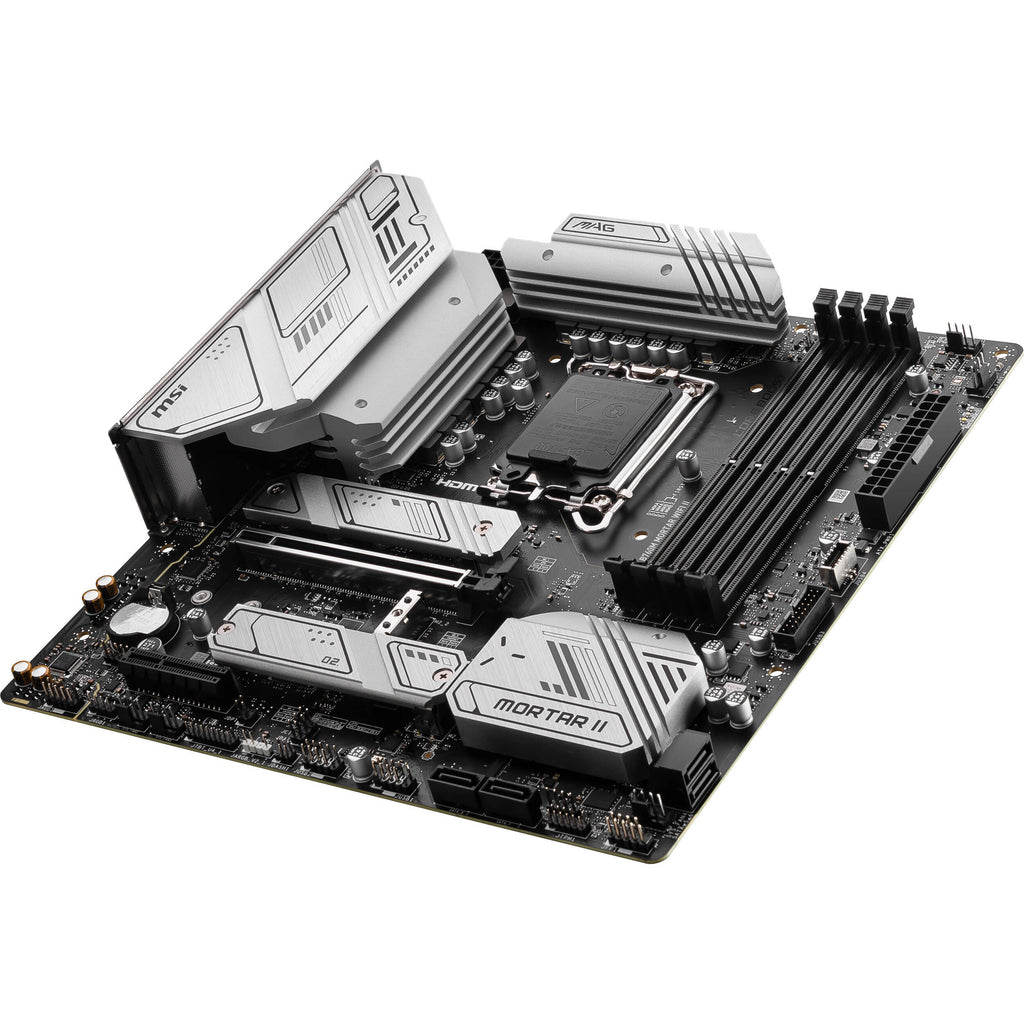

Set the foundation of your next PC build with the robust MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard. Designed to leverage the power of Intel CPUs, DDR5 RAM, and a high-speed expansion slot for graphics, the MAG offers a solid foundation designed for gaming enthusiasts.

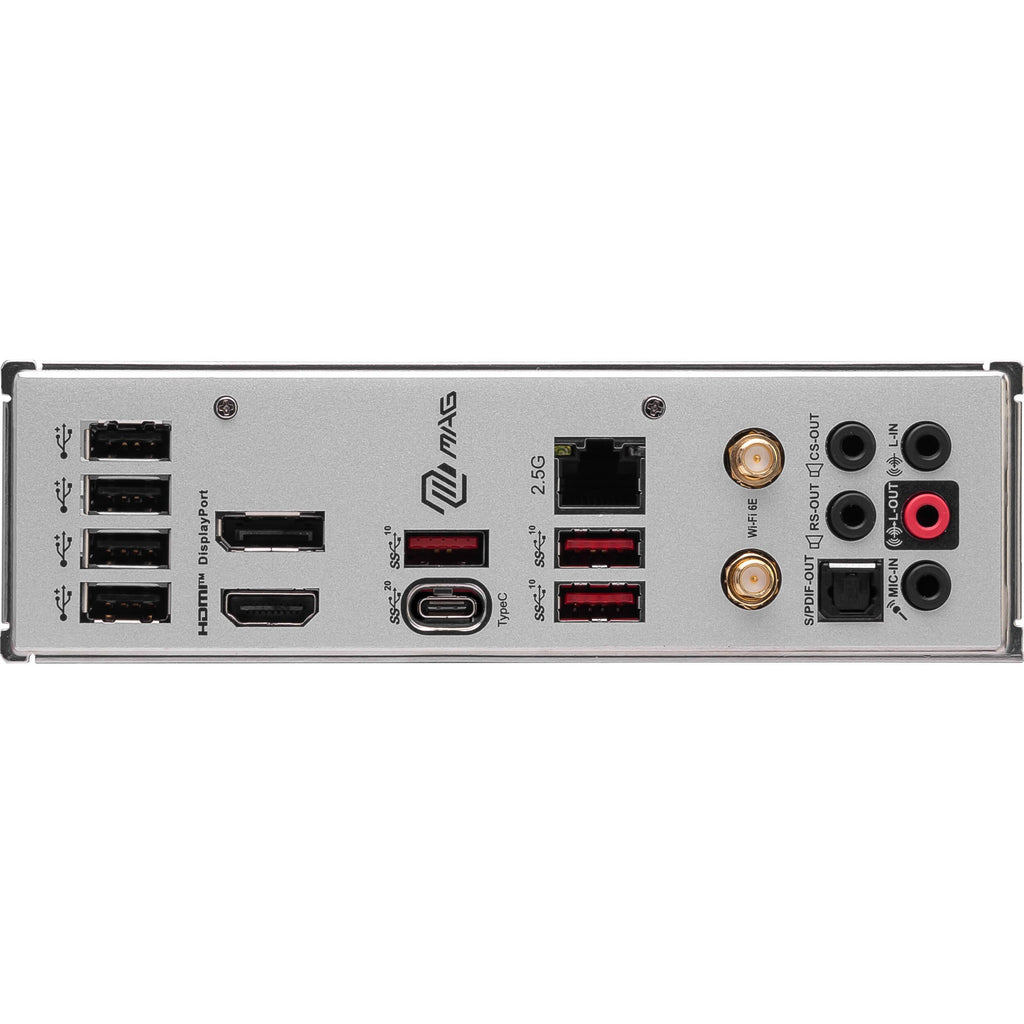

Intel's LGA 1700 socket rests at the heart of the MAG, allowing you to install a variety of 12th, 13th, and 14th Gen processors to match your needs. The Micro-ATX form factor makes it easier to install in smaller cases, reducing your desktop footprint without compromising performance. Four DDR5 RAM slots allow you to install up to 192GB of memory to enhance multitasking and render speeds. Four SATA III and three M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Between back-panel connections and internal headers, you get several USB 2.0, 3.2 Gen 1, and 3.2 Gen 2 ports, designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces. A single USB-C 3.2 Gen 2x2 port offers enhanced data transfer speeds and Power Delivery, allowing you to support power-hungry devices with ease. You also get Bluetooth 5.3 connectivity for wireless peripheral support, giving you a true cable-free experience. Connect to your network with a wired or wireless connection with built-in 2.5 Gigabit Ethernet LAN port and Wi-Fi 6E (802.11ax) options, respectively.
In the Box

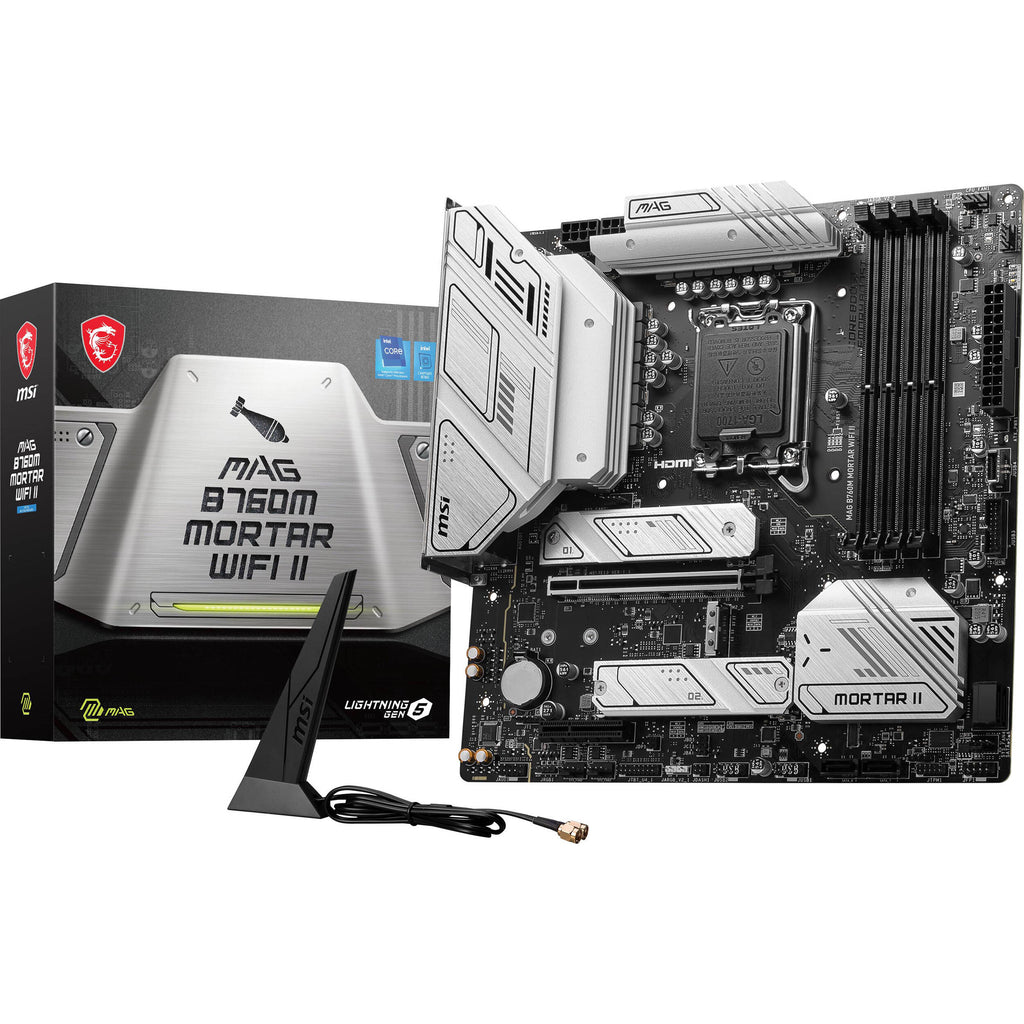

- MSI MAG B760M MORTAR WIFI II LGA 1700 Micro-ATX Motherboard
- SATA Cable
- EZ M.2 Clip
- Wi-Fi Antenna
- Front Panel Connector
- Cable Sticker Sheet
- Limited 3-Year Manufacturer Warranty
- Description
- Enhanced Design
- Built for Performance
- DIY Friendly
MSI MAG B760M MORTAR WIFI II Specs
| Chipset |
Intel B760
|
| CPU Socket |
LGA 1700
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MHz
|
| M.2 |
1x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
1x M Key 2260, 2280 (PCIe 4.0 x4) 1x M Key 2280 (PCIe 4.0 x4, SATA III) |
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 3.0 x4 |
| Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
| Form Factor |
Micro-ATX
|
| Chipset |
Intel B760
|
| CPU Socket |
LGA 1700
|
| USB |
4x USB-A (USB 2.0)
3x USB-A (USB 3.1/3.2 Gen 2) 1x USB-C (USB 3.2 Gen 2x2) |
| Thunderbolt |
No
|
| Display |
1x DisplayPort 1.4 Output
1x HDMI 2.1 Output |
| Audio |
5x 1/8" / 3.5 mm
1x S/PDIF |
| Ethernet / Controller |
1x 2.5Gigabit
|
| Wi-Fi Antenna |
2x Connector
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MHz
|
| Maximum Capacity |
192 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
| SATA |
4x SATA III
|
| M.2 |
1x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
1x M Key 2260, 2280 (PCIe 4.0 x4) 1x M Key 2280 (PCIe 4.0 x4, SATA III) |
| Optane Memory Support |
No
|
| RAID Support |
RAID 0, 1, 5, 10 (SATA)
|
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 3.0 x4 |
| USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 3-Pin CPU
4x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin ATX |
| Security |
Chassis Intrusion, TPM Module
|
| LED Header |
7x RGB
|
| Add-On |
1x USB4 Expansion Card Header
|
| ROM |
256 Mb
|
| Front Panel I/O |
AAFP
|
| Audio Codec |
Realtek ALC897 (7.1-Channel)
|
| DAC |
No
|
| Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support
|
| Bluetooth |
5.3
|
| OS Compatibility |
Windows 10 to 11
|
| Form Factor |
Micro-ATX
|
| Dimensions |
9.6 x 9.6" / 243.8 x 243.8 mm
|
| Package Weight |
3.555 lb
|
| Box Dimensions (LxWxH) |
11.1 x 10.6 x 3.6"
|
